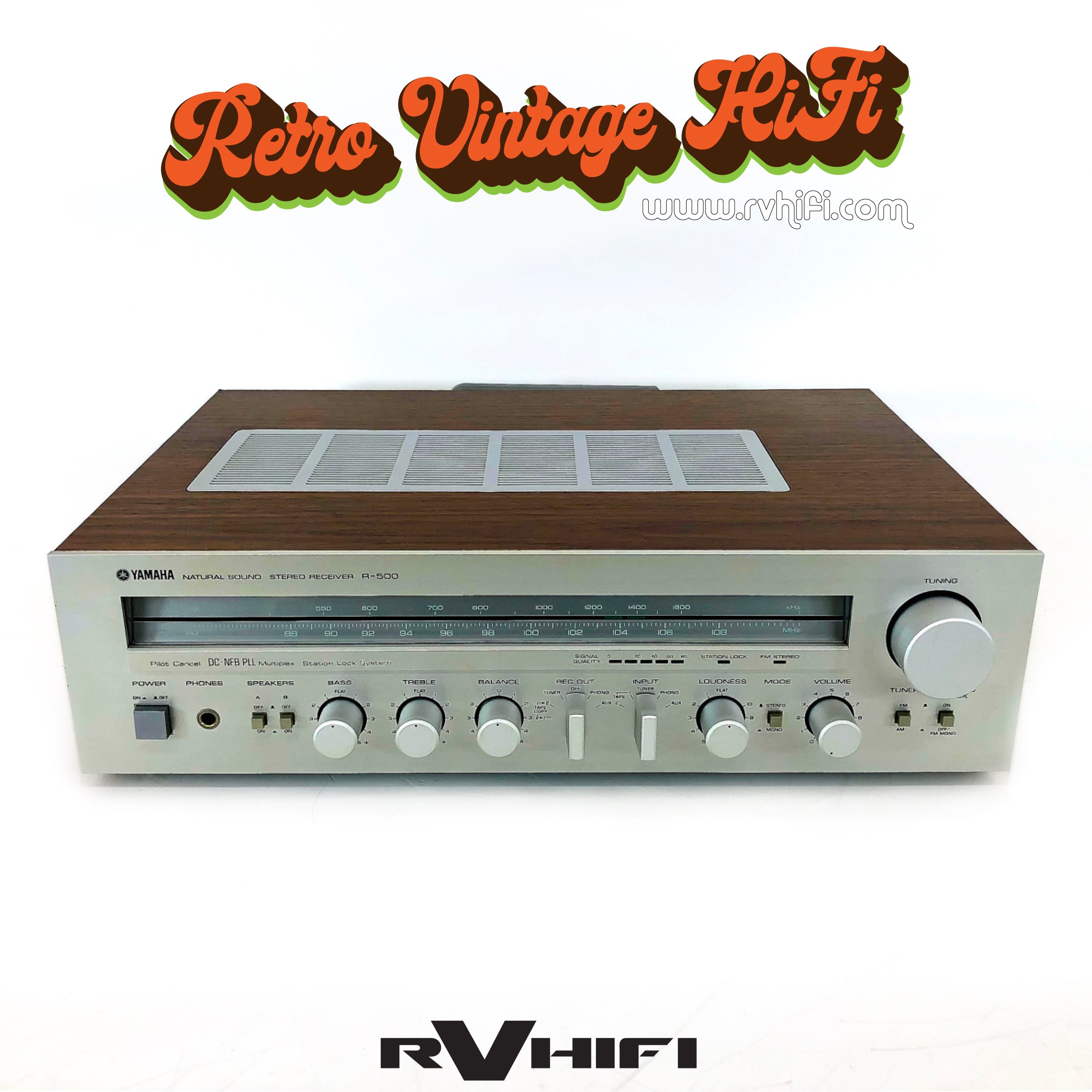

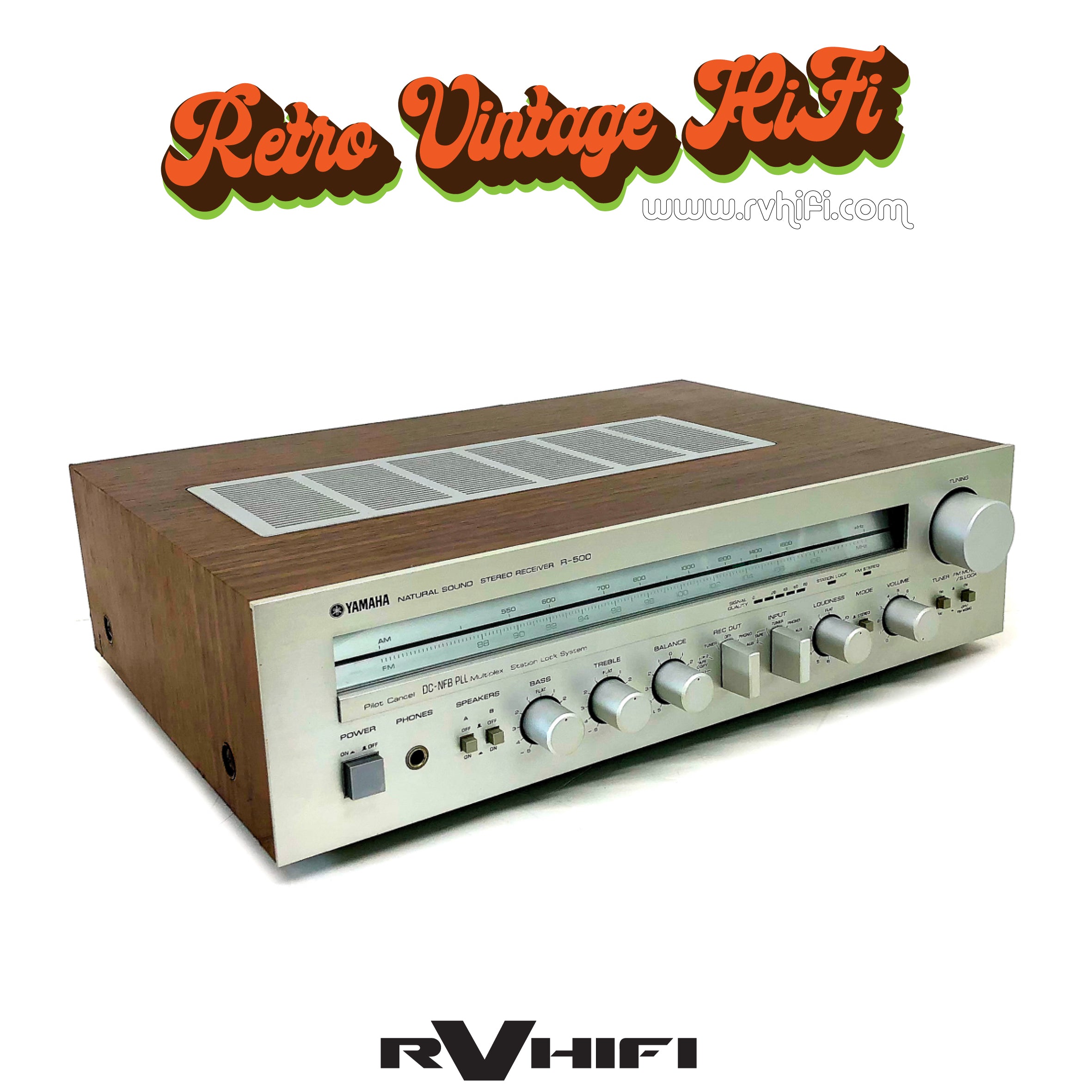

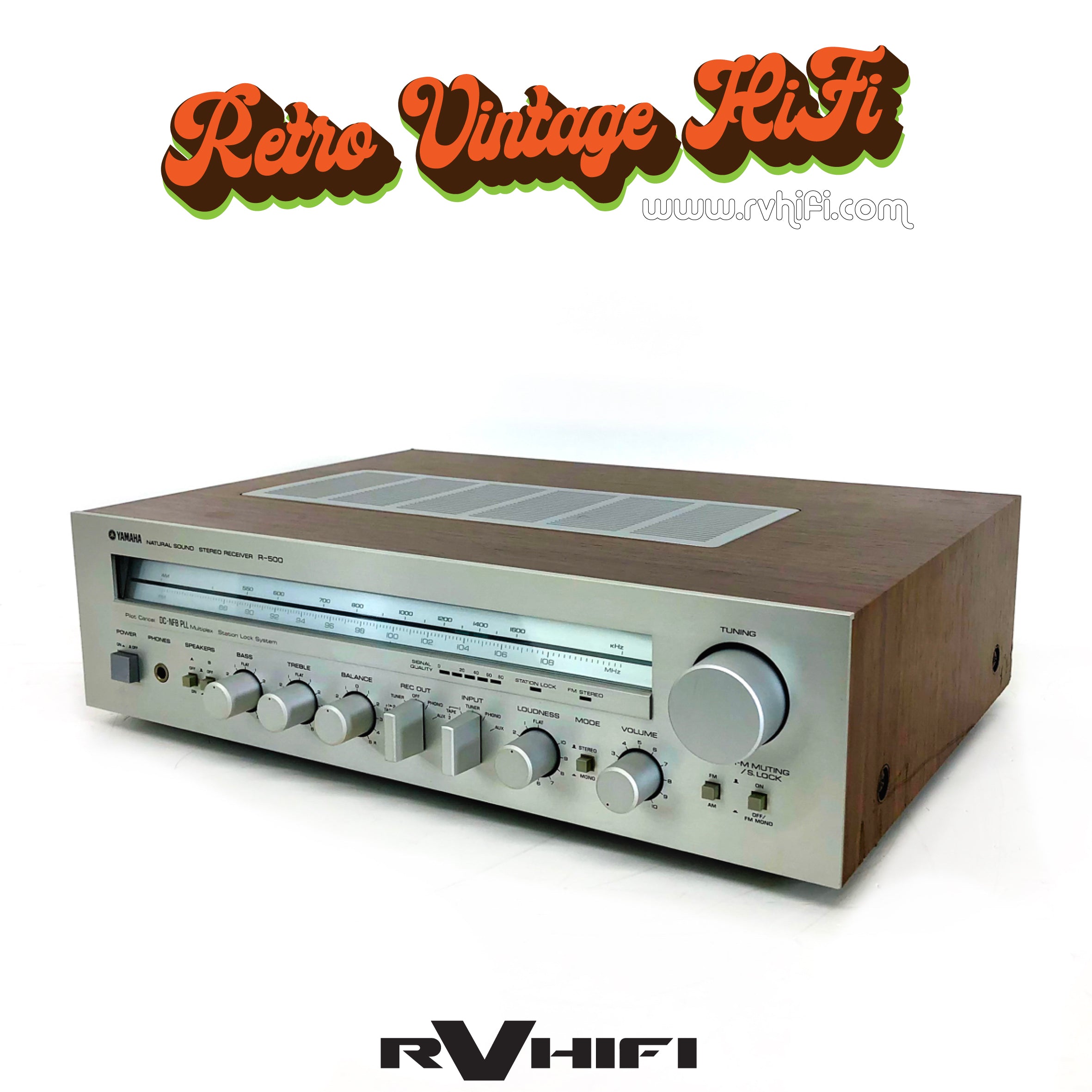

Yamaha R-500 AM/FM Stereo Receiver

Step back into the golden age of audio with the Yamaha R-500, a classic stereo receiver delivering pristine, true-to-life sound that's perfect for jazz and acoustic enthusiasts. This vintage gem features a stylish retro look and intuitive controls for Bass, Treble, and Loudness, plus a built-in phono stage for your vinyl collection. Experience music the way it was meant to be heard—pure, clear, and timeless.

Specifications:
Tuning range: FM, MW
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.005%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 120mV (DIN), 120mV (line)
Signal to noise ratio: 85dB (MM), 100dB (line)
Output: 120mV (line), 28mV (DIN)
Semiconductors: 12 x IC, 1 x FET, 28 x transistors, 19 x diodes, 10 x LED
Dimensions: 435 x 122 x 337mm
Weight: 8kg
Year: 1981-82
Serial No: 142943

Description of Works:
Replaced electrolytic capacitors in power supply, power and pre-amplifier.
Replaced illumination globes.
Dismantled, cleaned & deoxit potentiometers and switches.
Adjust DC offset and bias.
Cleaned & detailed unit.
New 240vac power lead.

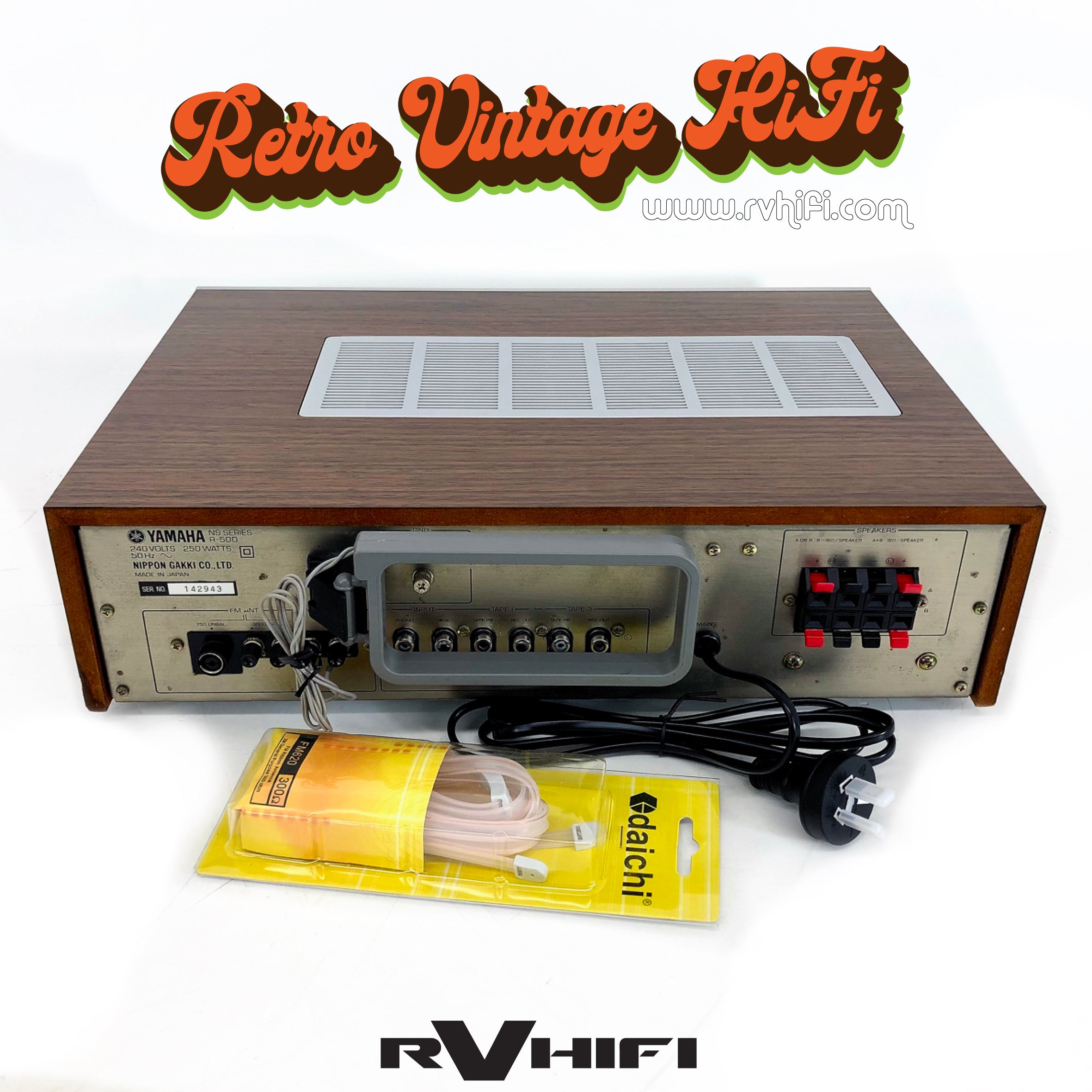

Includes: FM Antenna.

Warranty: 3 months
