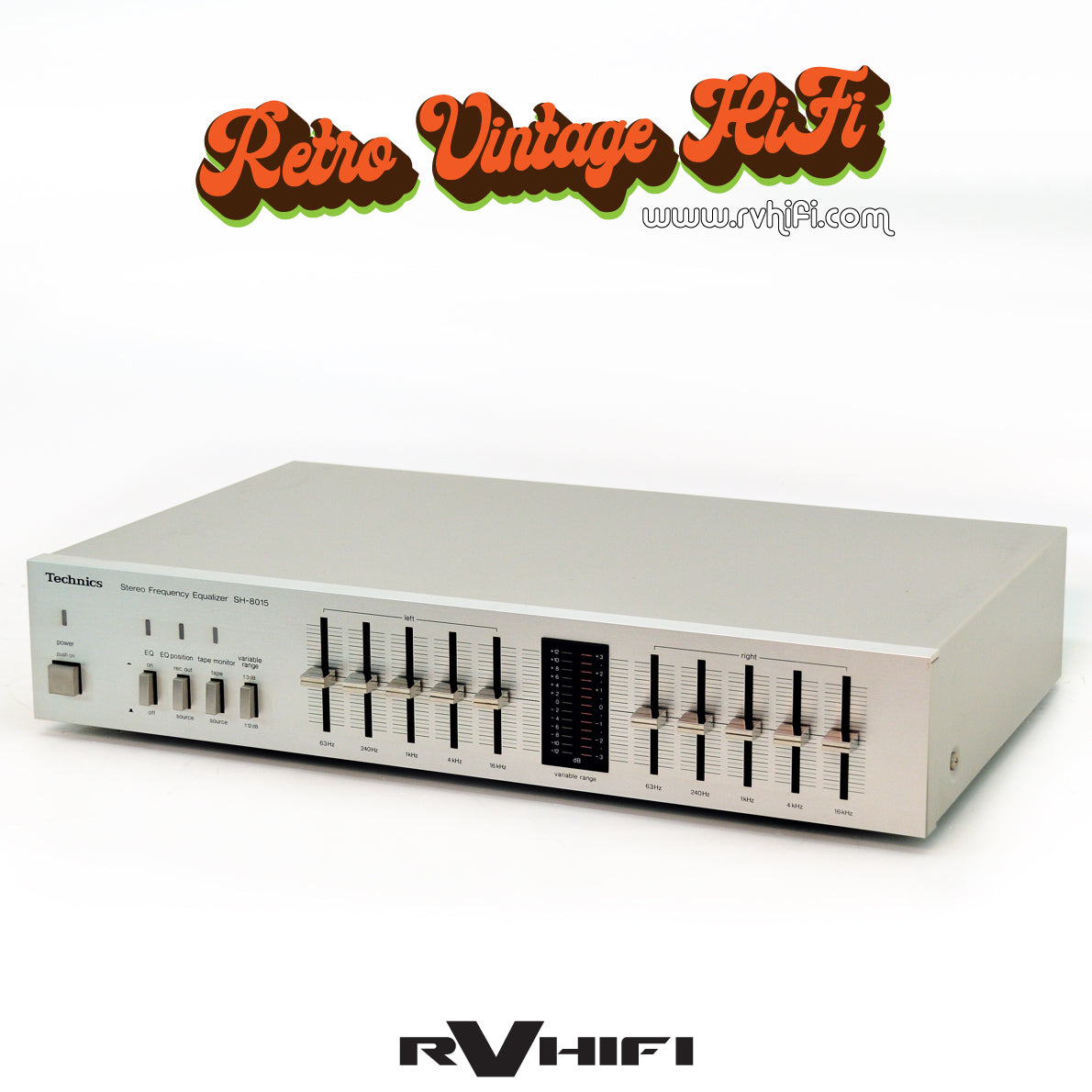

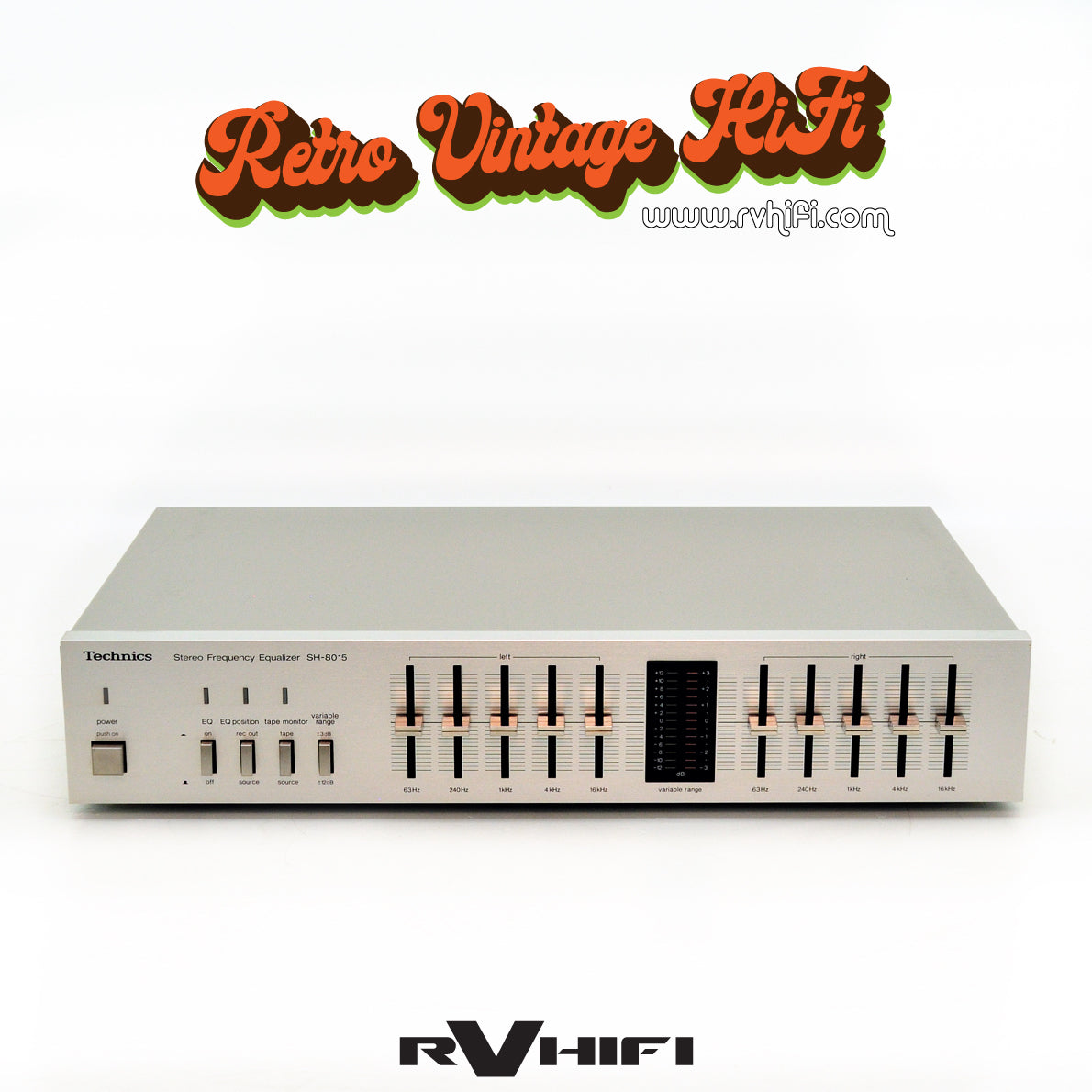

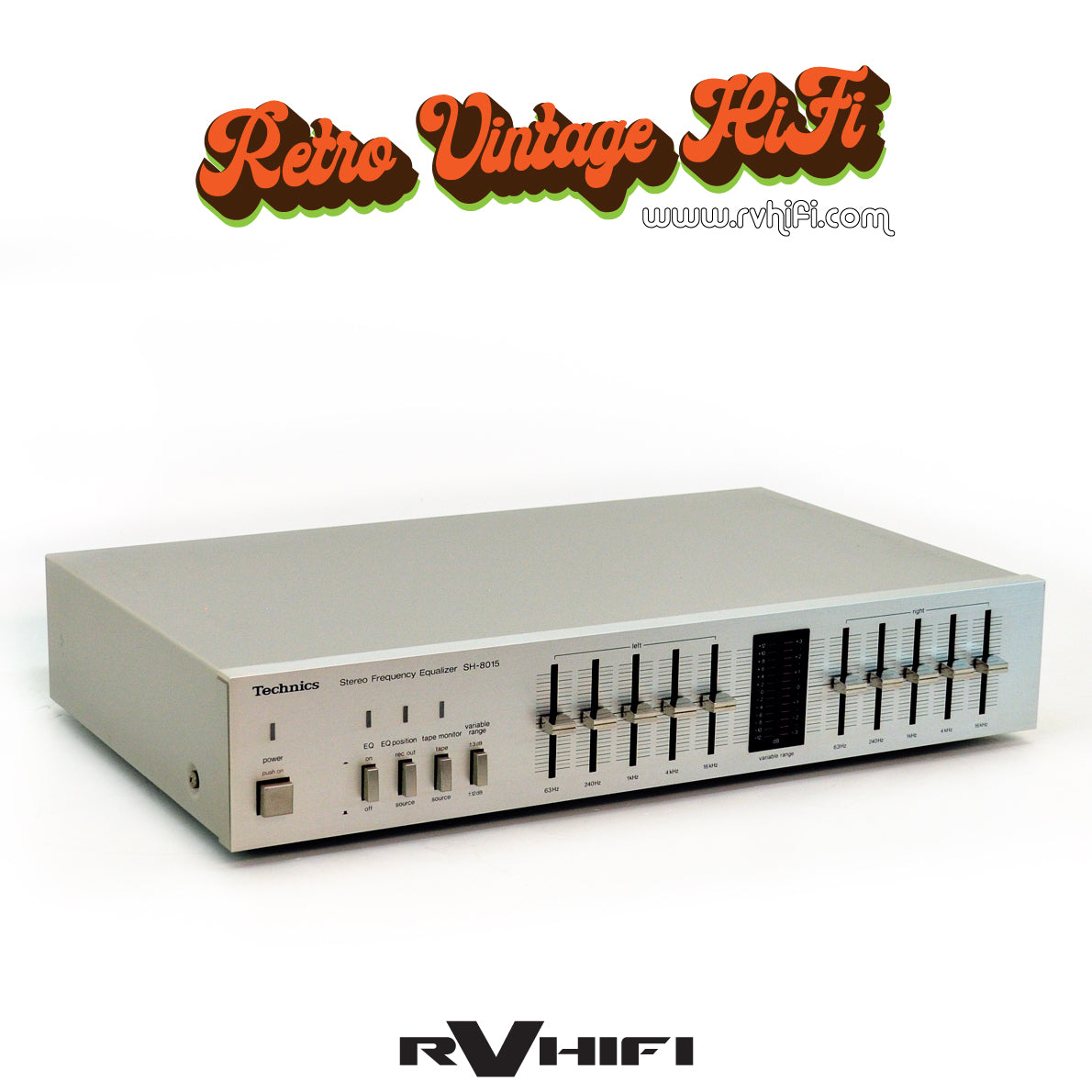

Technics SH-8015 Stereo Frequency Equalizer

Technics SH-8015 Stereo Frequency Equalizer

Description:
Technics SH-8015 Stereo Graphic Equalizer was released in the 1980s. Selectable input sensitivity ranges from 500mV to 6V, with adjustable equalization, tape loop and input/output monitoring.

Specifications:
Input Sensitivity: 500mV (6V max)
Output Level: 500mV (6V max)
Gain: ± 0dB
Frequency response: 5Hz to 100kHz
Signal to Noise Ratio: 101dB
Total harmonic distortion: 0.02%
Control Range: ± 12dB
Frequency Bands: 63, 240, 1K, 4K, 16KHz
Dimensions: 430 x 86 x 273mm
Weight: 3.5kg
Year: 1981 - 1982
Serial No. MN2805A132

Description of Works:
Serviced and inspect all PCB's for dry solder joins.
All slide potentiometers cleaned and treated with DeoxIT.
New AC Power Lead.

Warranty: 3 months
