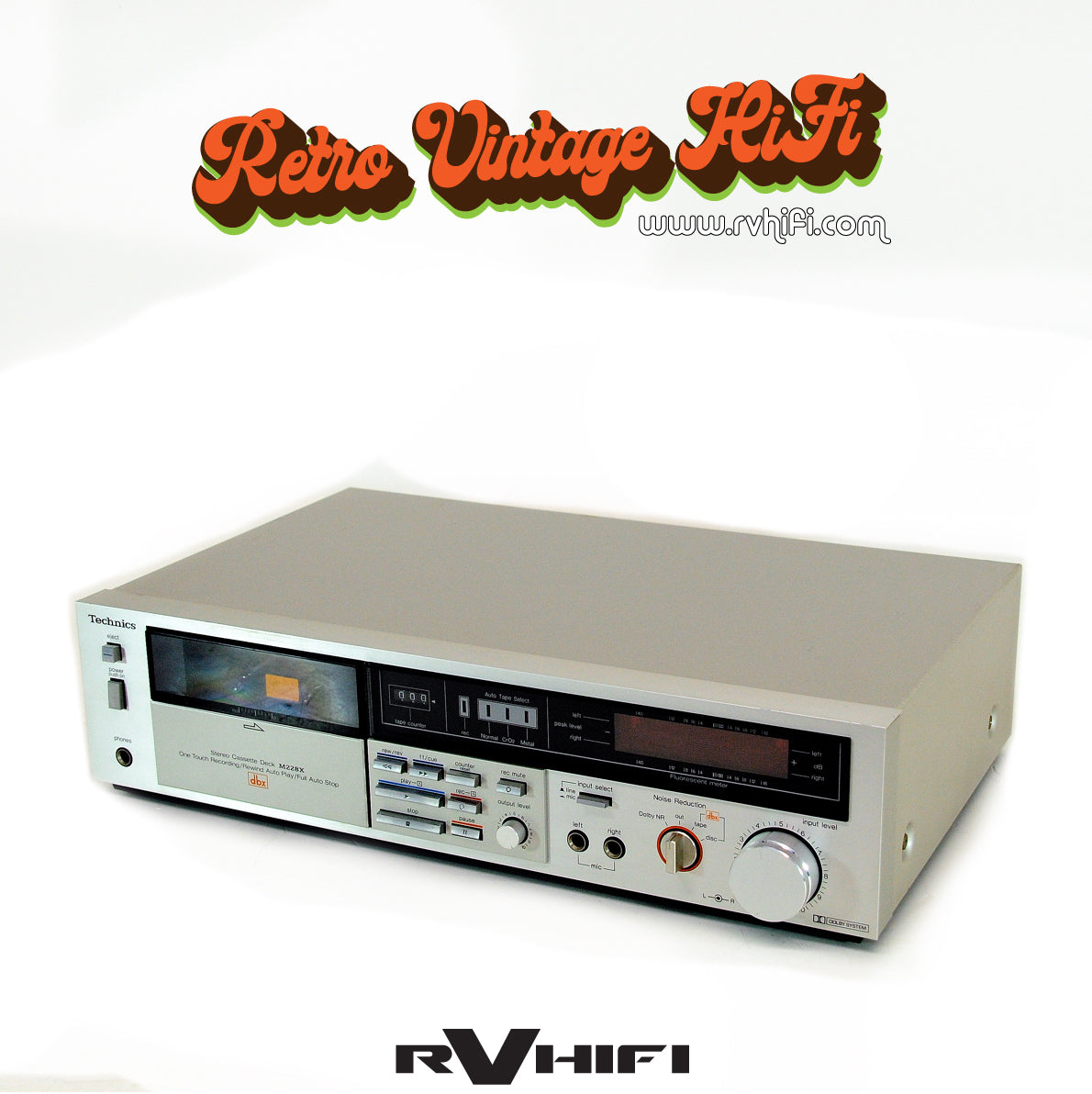

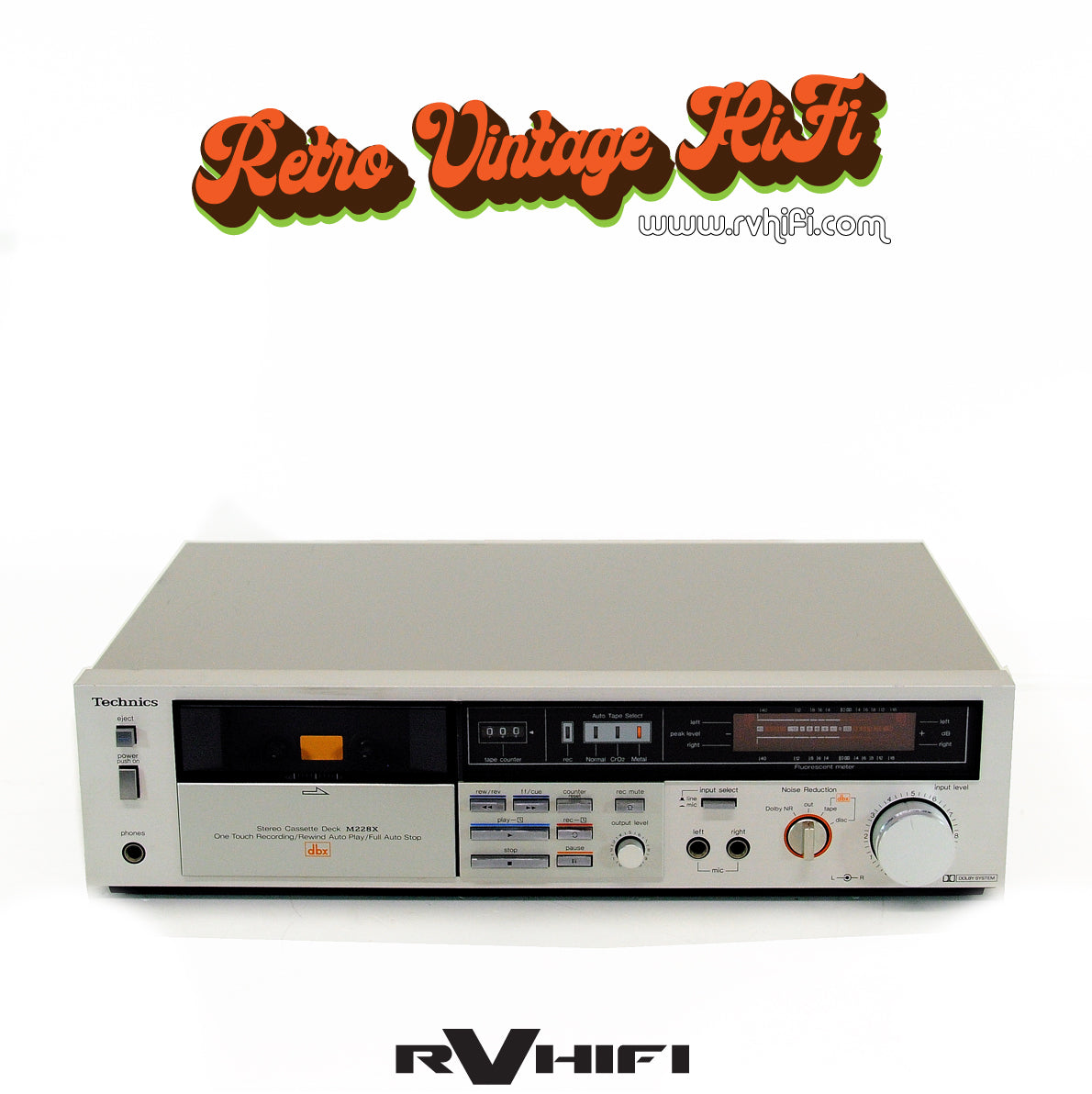

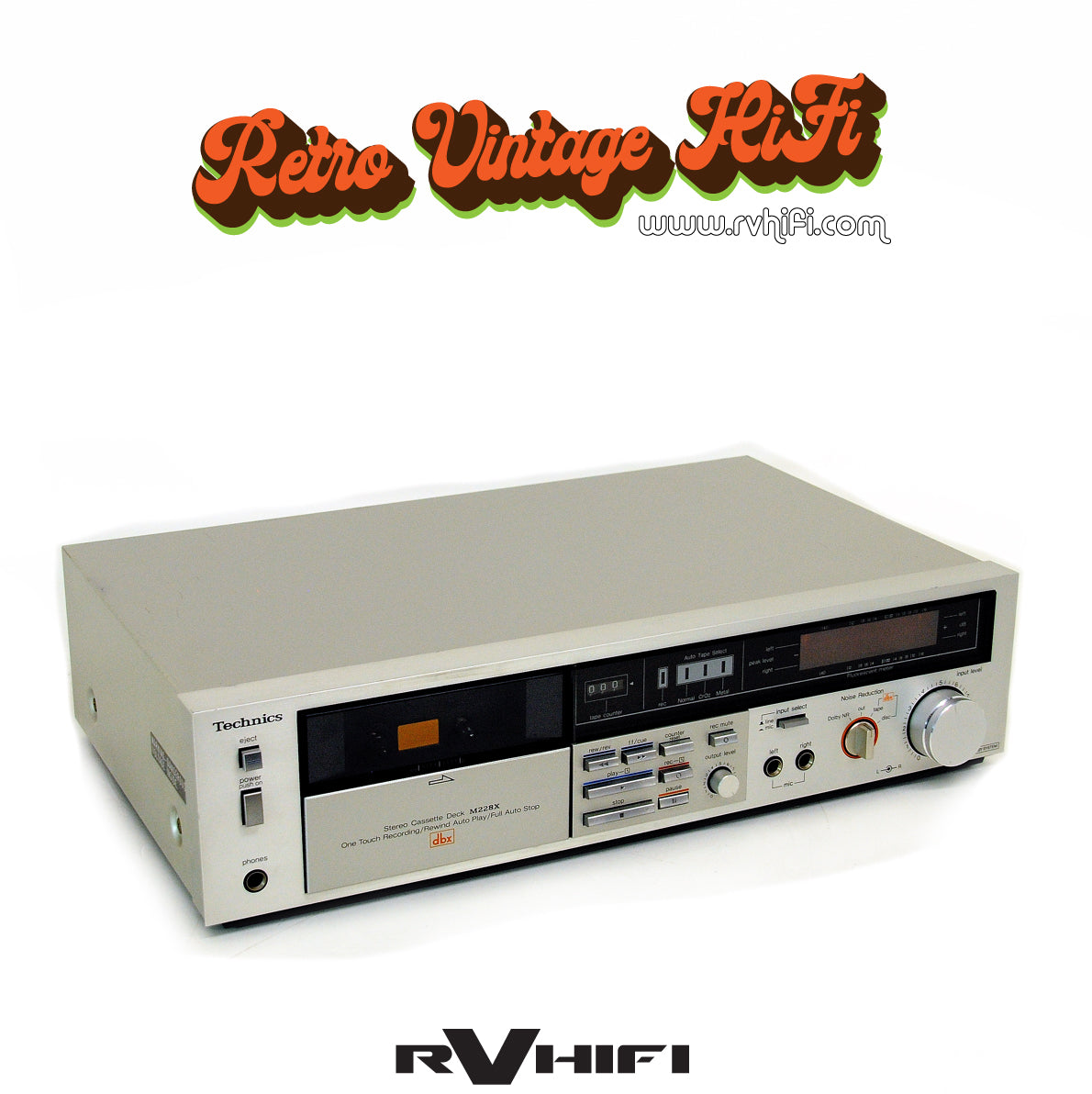

Technics RS-M228X Stereo Cassette Deck

The Technics RS-M228X is a stereo cassette deck known for its robust build quality and performance. Launched in the late 1980s, it was designed to appeal to both casual listeners and audiophiles who appreciated high-quality audio playback and recording capabilities.

Specifications:
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, DBX
Frequency Response: 20Hz to 18kHz  (Metal tape)
Signal to Noise Ratio: 92dB  (DBX)
Wow and Flutter: 0.048%
Dimensions: 430 x 109 x 280mm
Weight: 5kg
Year: 1982 - 1983
Serial No: CI200514

Description of Works:
Dismantled mechanism, remove old grease, applied new synthetic lubricant.
Replaced Belts, Idler tires in cassette mechanism.
Replaced Pinch Roller.
Washed and DeoxIT all potentiometers.
Dismantled, cleaned and DeoxIT all switches.
Inspect and re-soldered all PCB's for dry joins.
Calibrated all settings.
Cleaned, demagnetized and adjusted tape heads.
Cleaned and detailed exterior.
Replaced all belts and idler tires.

Warranty: 3 months.

RV HIFI says:
Overall, the Technics RS-M228X stands out as a capable cassette deck that combines good performance with user-friendly features. For those looking to explore or revisit the world of cassette tapes, it offers an excellent balance of audio quality and usability, making it a worthy candidate for any vintage audio setup. While cassette decks have largely been supplanted by digital formats, the charm and warmth of analog tape playback still attract many enthusiasts, and the RS-M228X remains a respected choice among them.
