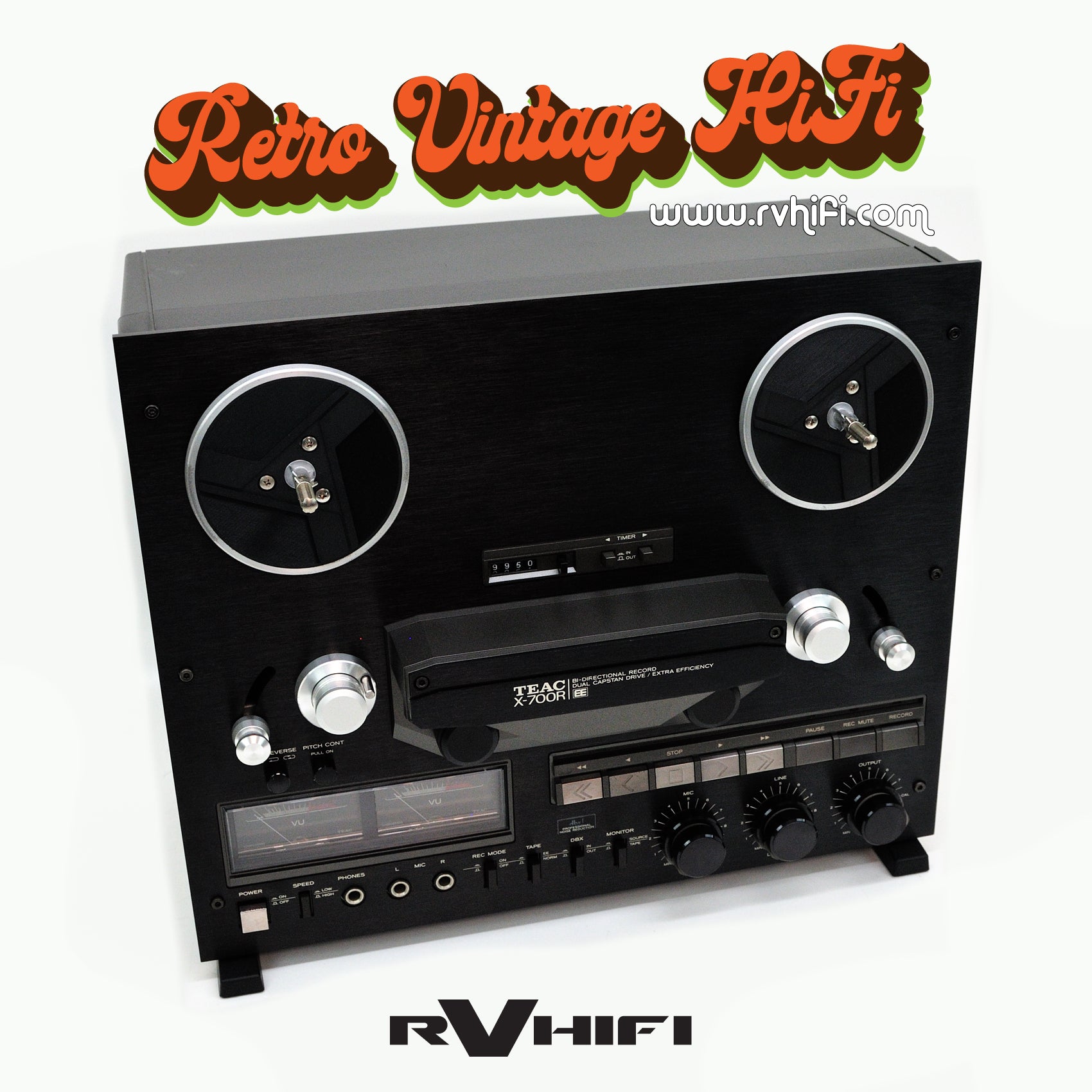

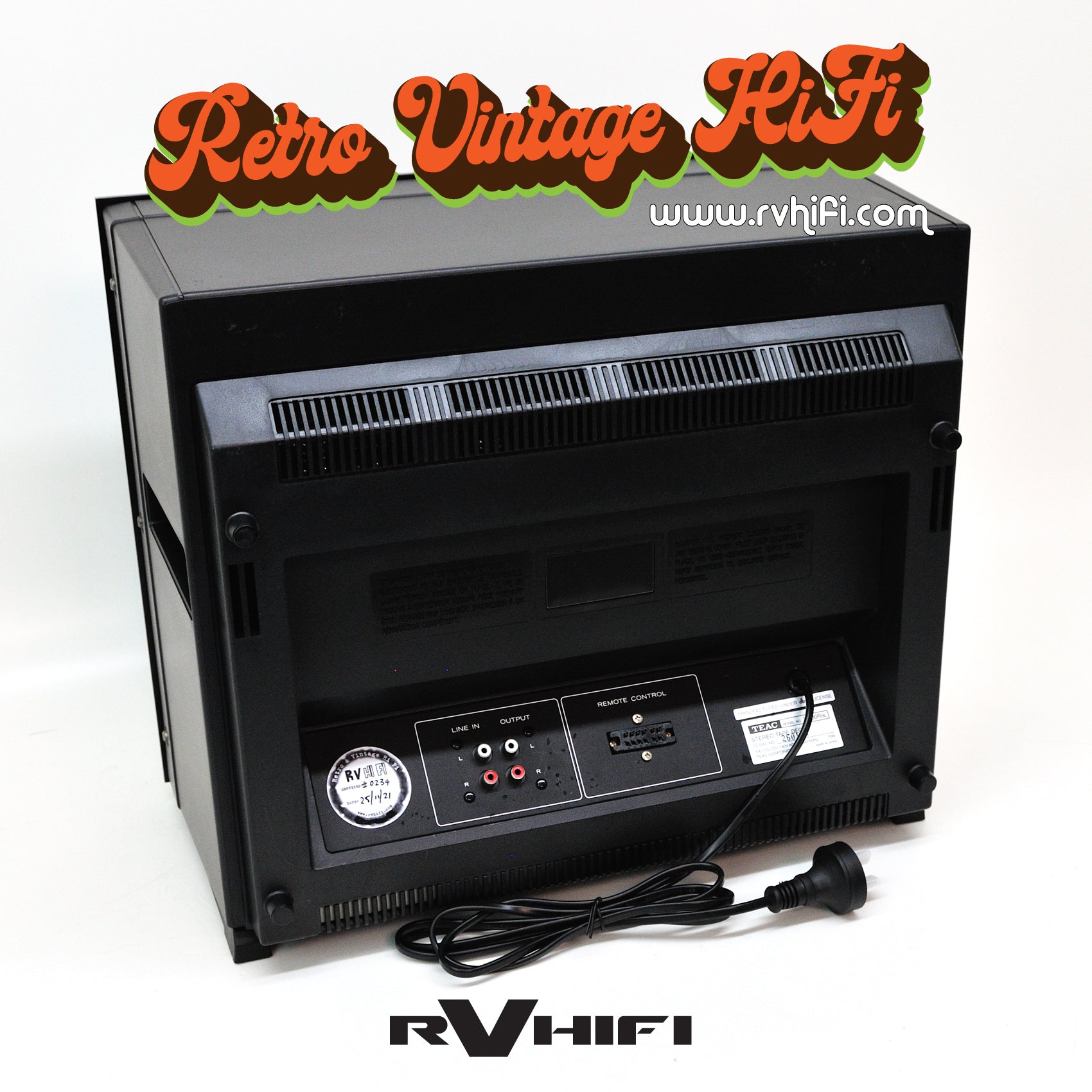

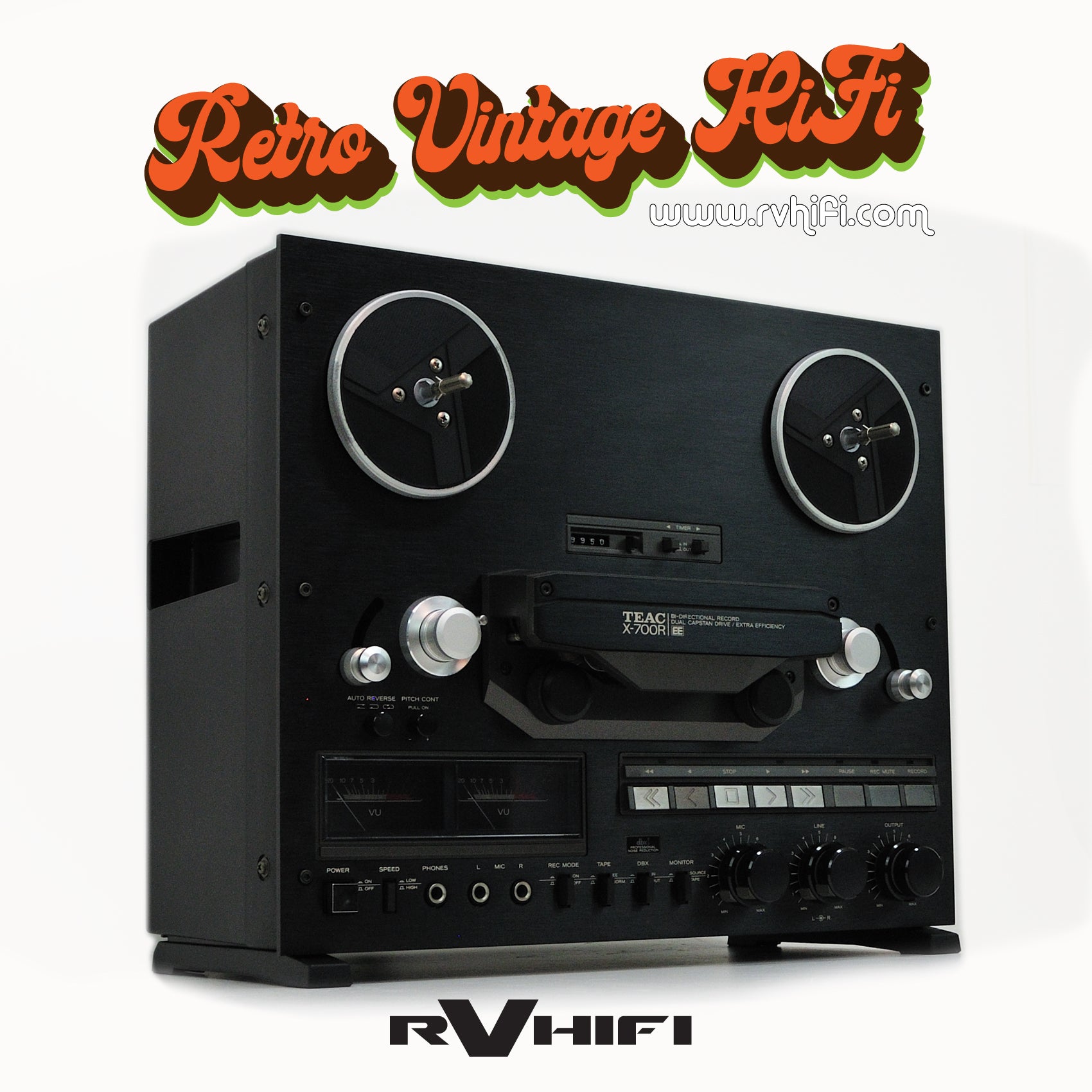

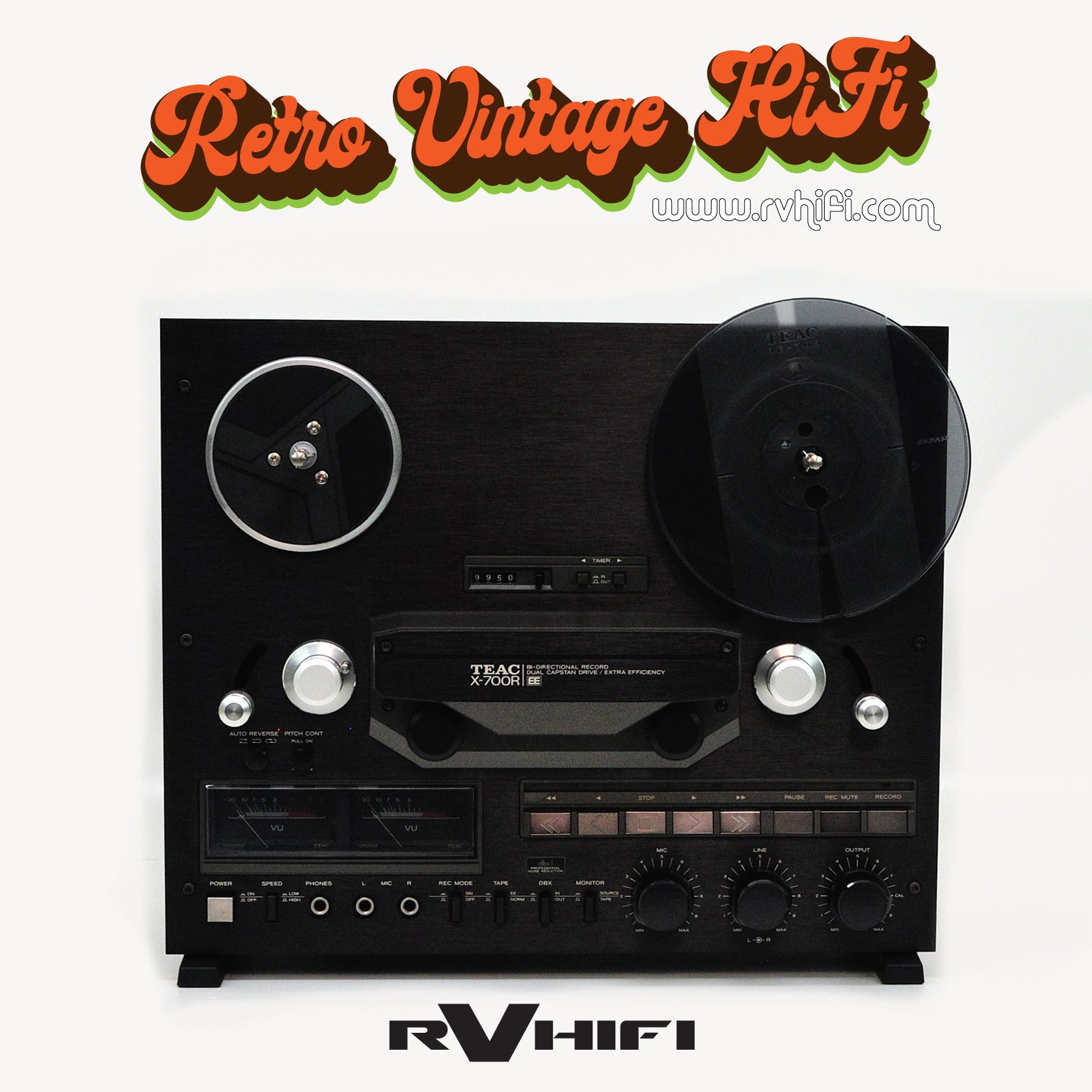

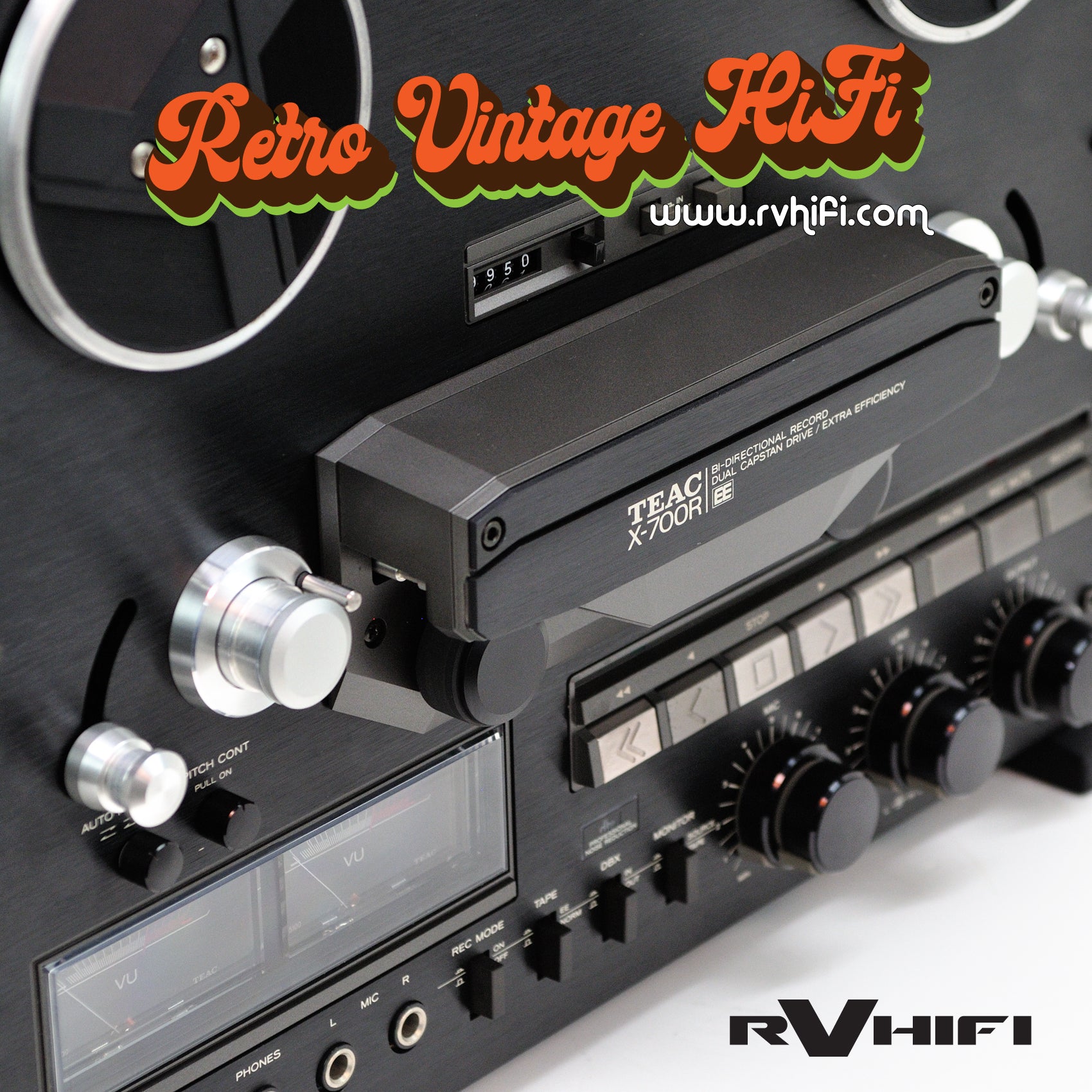

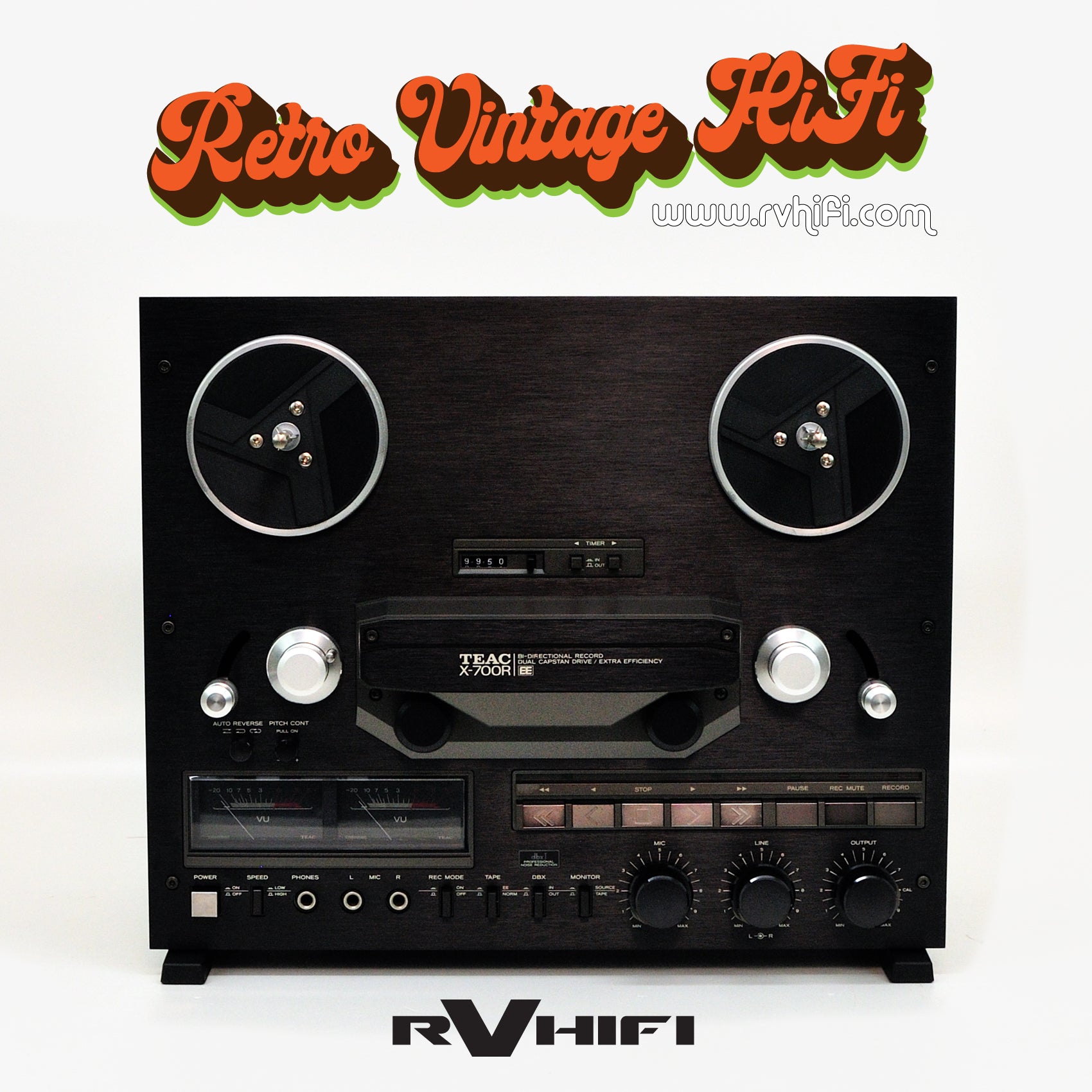

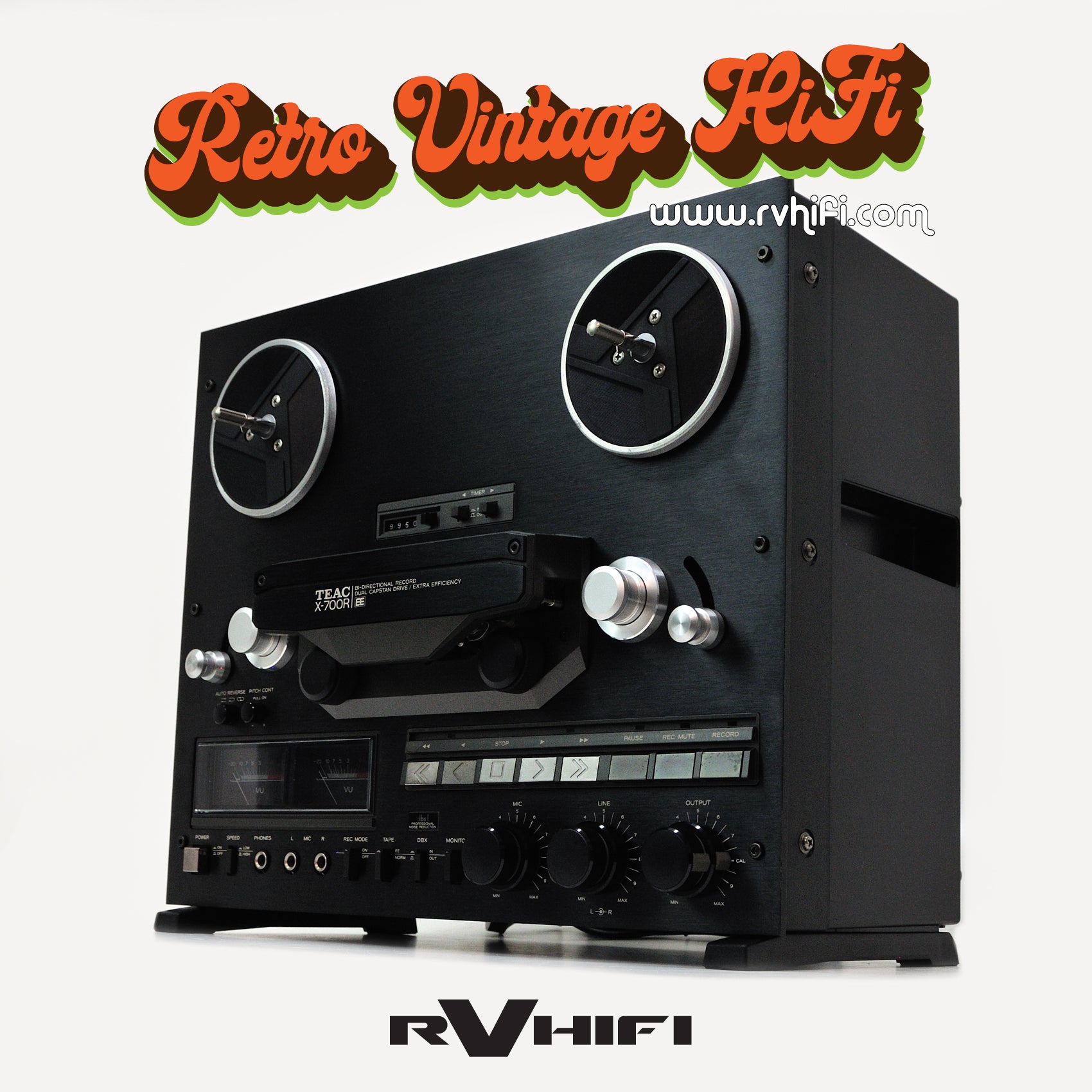

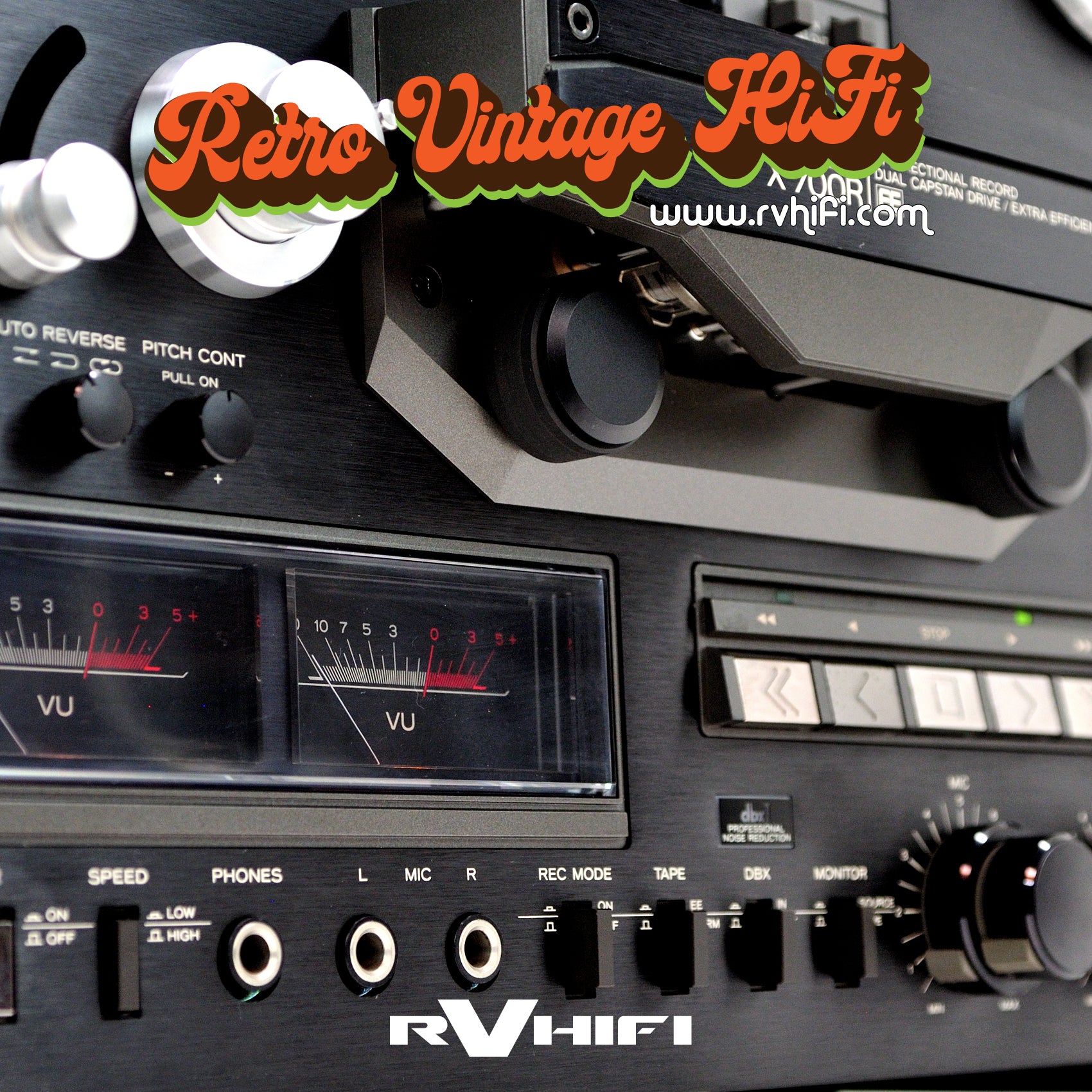

TEAC X-700R Reel to Reel (1984-86)
Track system: auto reverse, 4-track, 2-channel, stereo system
Heads: 2 x playback, 2 x record, 2 x erase
Motor: dc brush motor (capstan), 2 x dc slotless (reel)
Reel size: up to 7 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.03% (7 1⁄2 ips)
Frequency response: 30Hz to 34kHz (7 1⁄2 ips)
Signal to Noise Ratio: 100dB
Total harmonic distortion: 0.8%
Input: 60mV (line), 0.25mV (mic)
Output: 0.45V (line)
Dimensions: 432 x 364 x 362mm
Serial No. 260120
Description of Works
Replaced all power supply electrolytic capacitors.
Replaced main belt.
Replaced pinch rollers.
Cleaned, removed old grease, applied sythetic lubricant to mechanical parts.
Cleaned, inspected and adjusted brake pads.
Inspected PCB's for dry joints and re-soldered.
Checked all mechanical adjustments.
Checked all electrical adjustments.
Cleaned & deoxit potentiometers and switches.
Cleaned, demagnetised and adjust tape heads
Cleaned & detailed unit.
New 240vac power lead.
Includes: TEAC RE-702 empty reel and RCA cables.
RV HI FI SAYS:
The TEAC X-700R Open Reel Tape Deck is a quality machine, with similar features as the X-100R. Sound quality is superb, clear and well balanced. This unit also includes dbx noise reduction system that bring this deck to another level.
