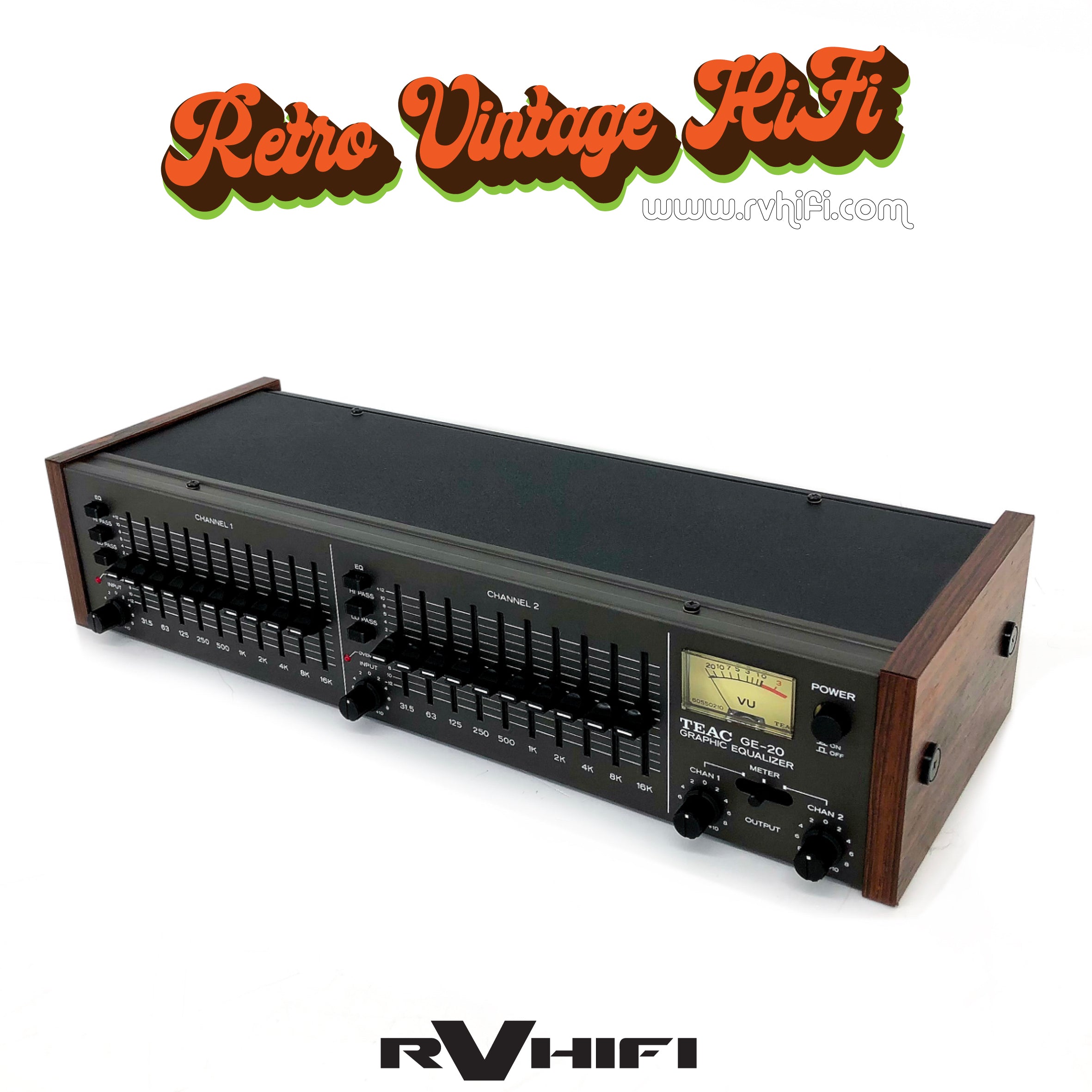

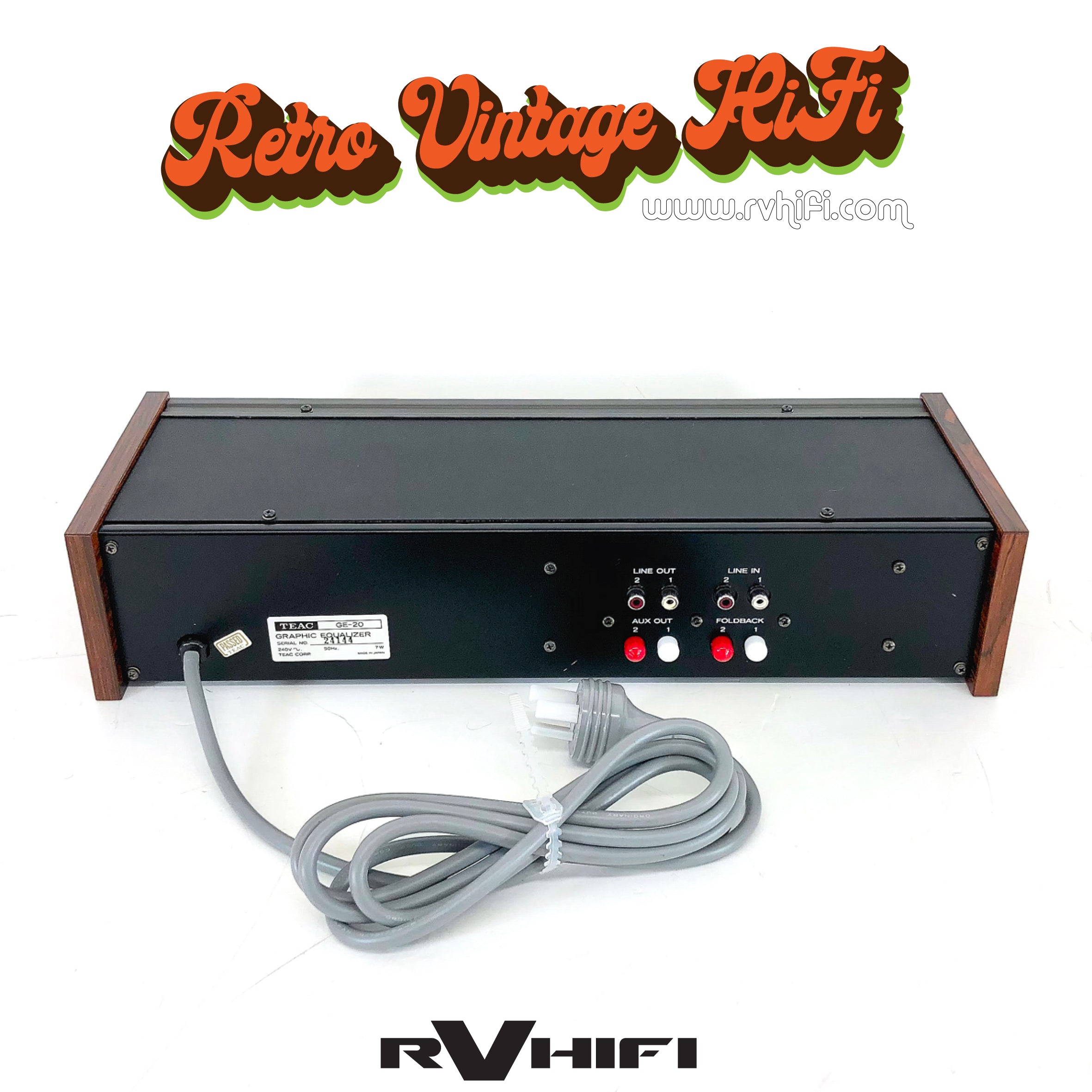

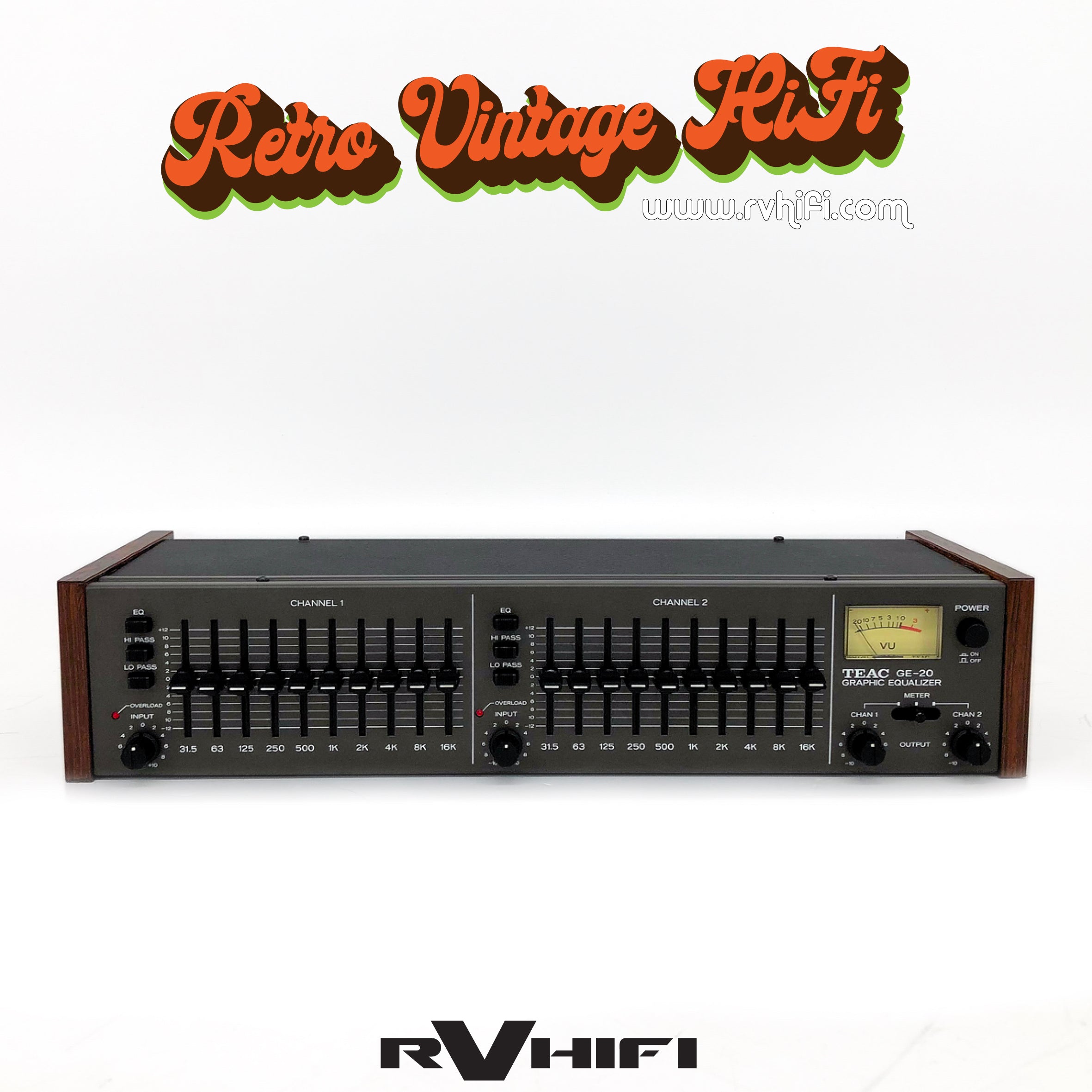

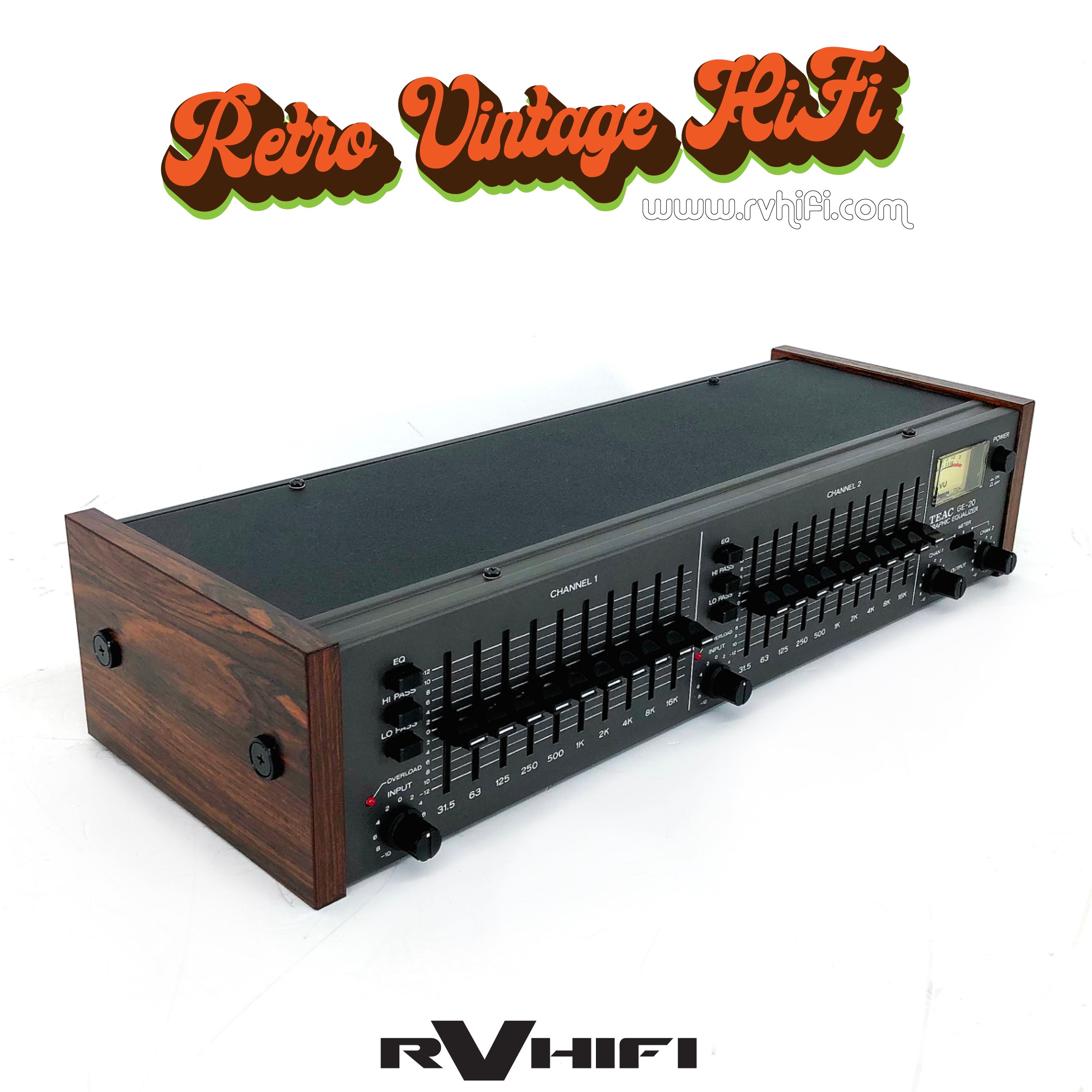

TEAC GE-20 Stereo Graphic Equalizer

The TEAC GE-20 is a vintage two-channel graphic equalizer from the late 1970s, distinguished by its low-noise performance and distinctive design. It features 10 bands of equalization per channel, alongside high- and low-pass filters and integrated level meters, providing precise control for detailed audio customization.

Specifications:
Input Sensitivity: 300mV
Output Level: 300mV
Frequency response: 20Hz to 30kHz
Signal to Noise Ratio: 82dB
Total harmonic distortion: 0.03%
Control Range: ± 12dB
Frequency Bands: 31.5, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
Dimensions: 440 x 95 x 170mm
Weight: 4.5kg
Year: 1979-1989
Serial No: 24144

Description of Works:
Replaced all electrolytics with premium Nichicon FineGold capacitors.
Replaced op-amps on Input PCB's with high-performance dual op-amps.
Serviced and inspect all PCB's for dry solder joins.
All slide potentiometers cleaned and treated with DeoxIT.
Cleaned and detailed unit.
All functions work as they should.

Warranty: 12 months
