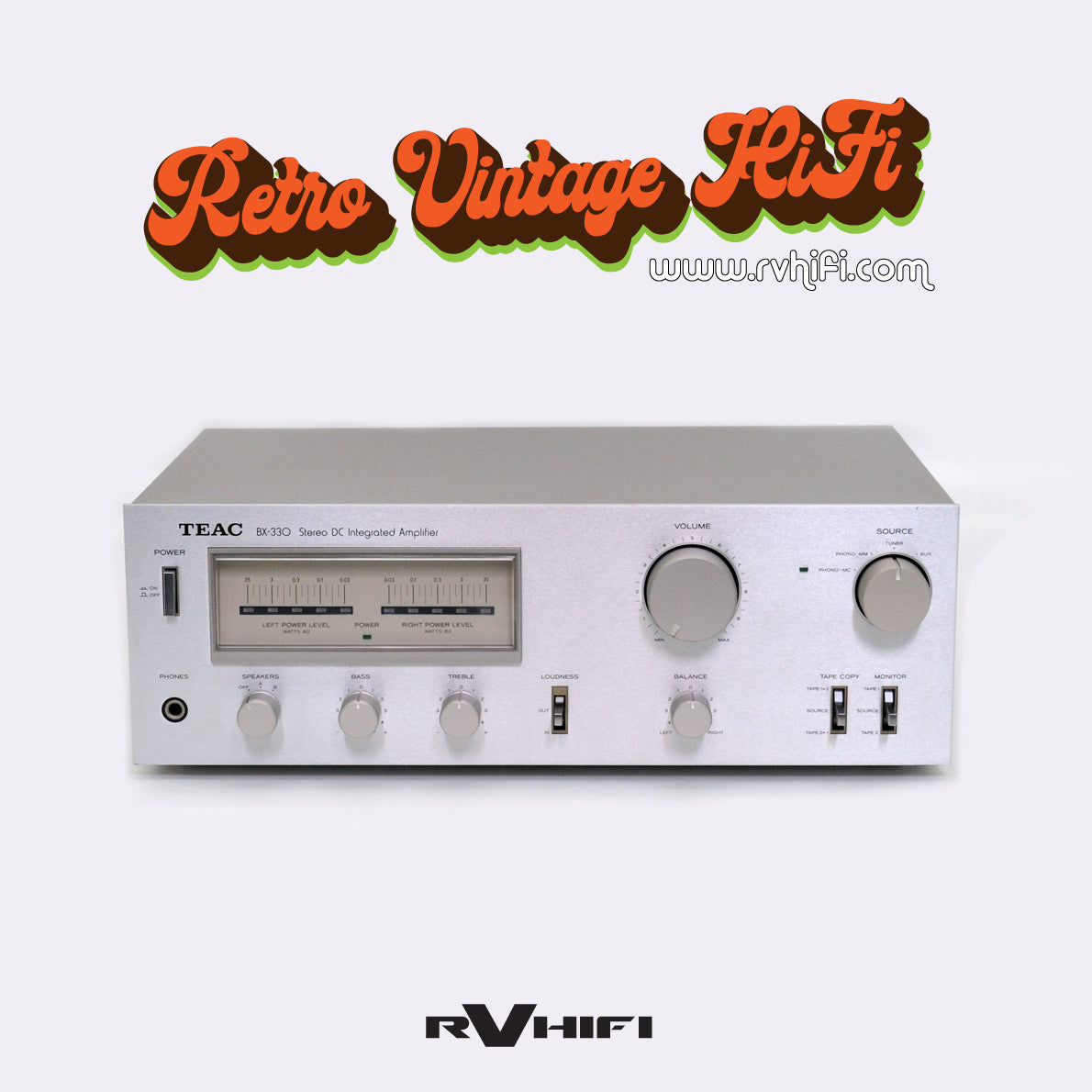

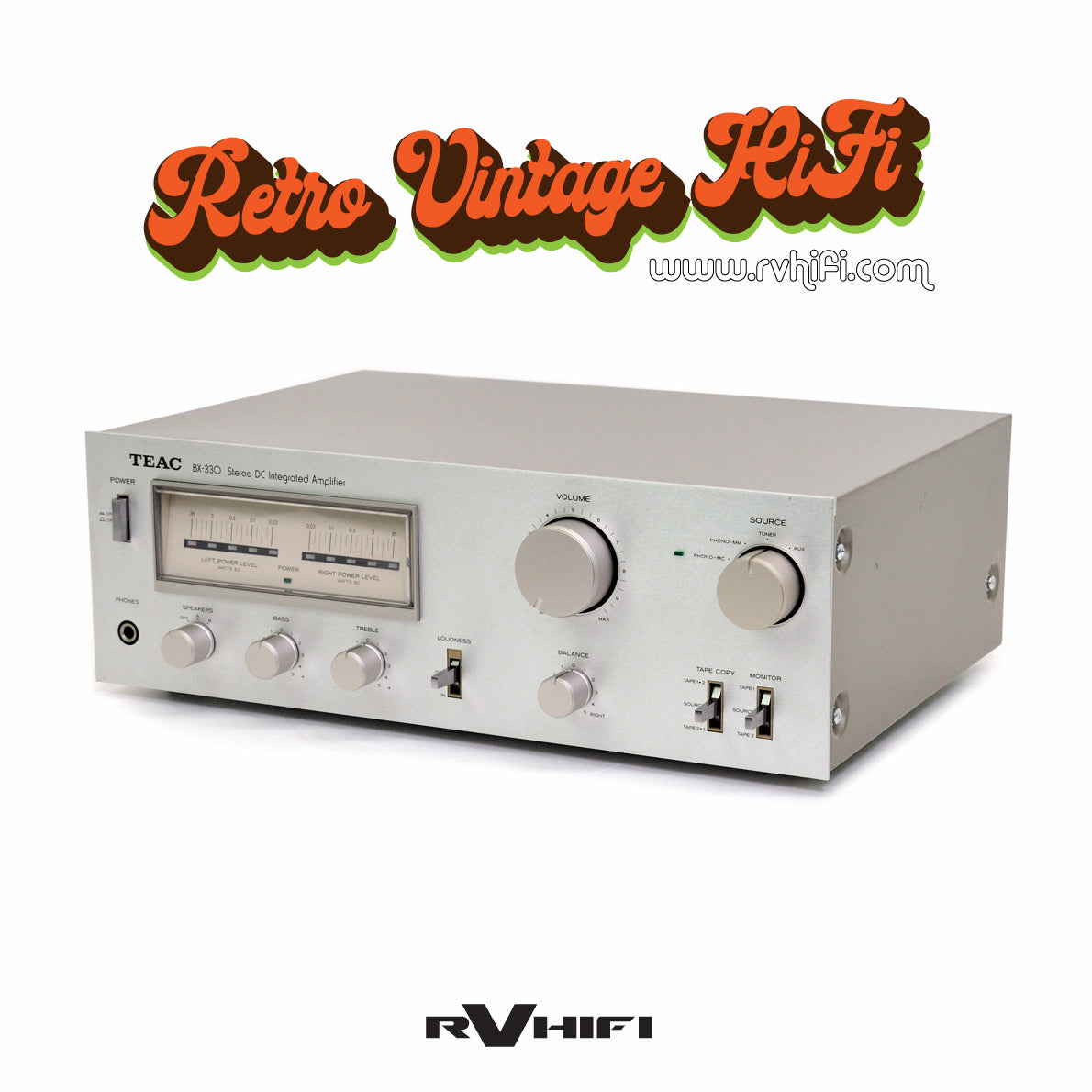

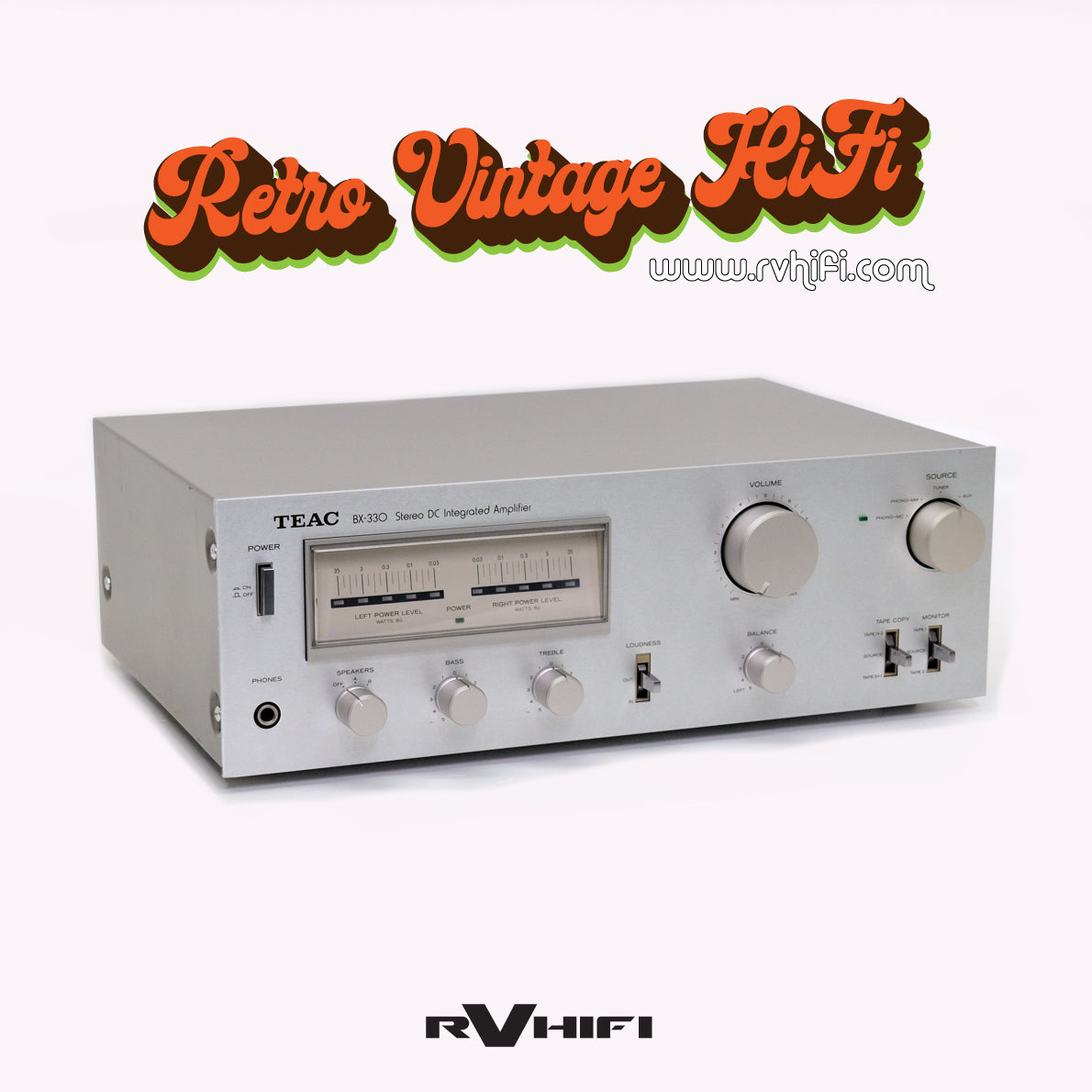

TEAC BX-330 DC Integrated Amplifier (1980-81)

Regular price
$499.99
Sale price
$499.99
Regular price
Sold out
Unit price
per

TEAC BX-330 DC Integrated Amplifier

TEAC BX-330 DC Integrated Amplifier (1980-81)

Specifications

Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.1%
Damping factor: 21
Input sensitivity: 0.5mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 72dB (MC), 86dB (MM)
Output: 150mV (line)
Speaker load impedance: 8Ω to 16Ω
Dimensions: 410 x 140 x 320mm
Weight: 7.5kg
Year: 1980
Serial No. 9773

Description of Works

Replaced power supply caps 4700uf 50v to 10000uf 50v
Replaced several other caps.
Inspect & re-soldered dry solder joints on PCB's.
Cleaned & deoxoit all pots
Cleaned & detailed unit
Adjusted DC offset

Warranty 6 months
