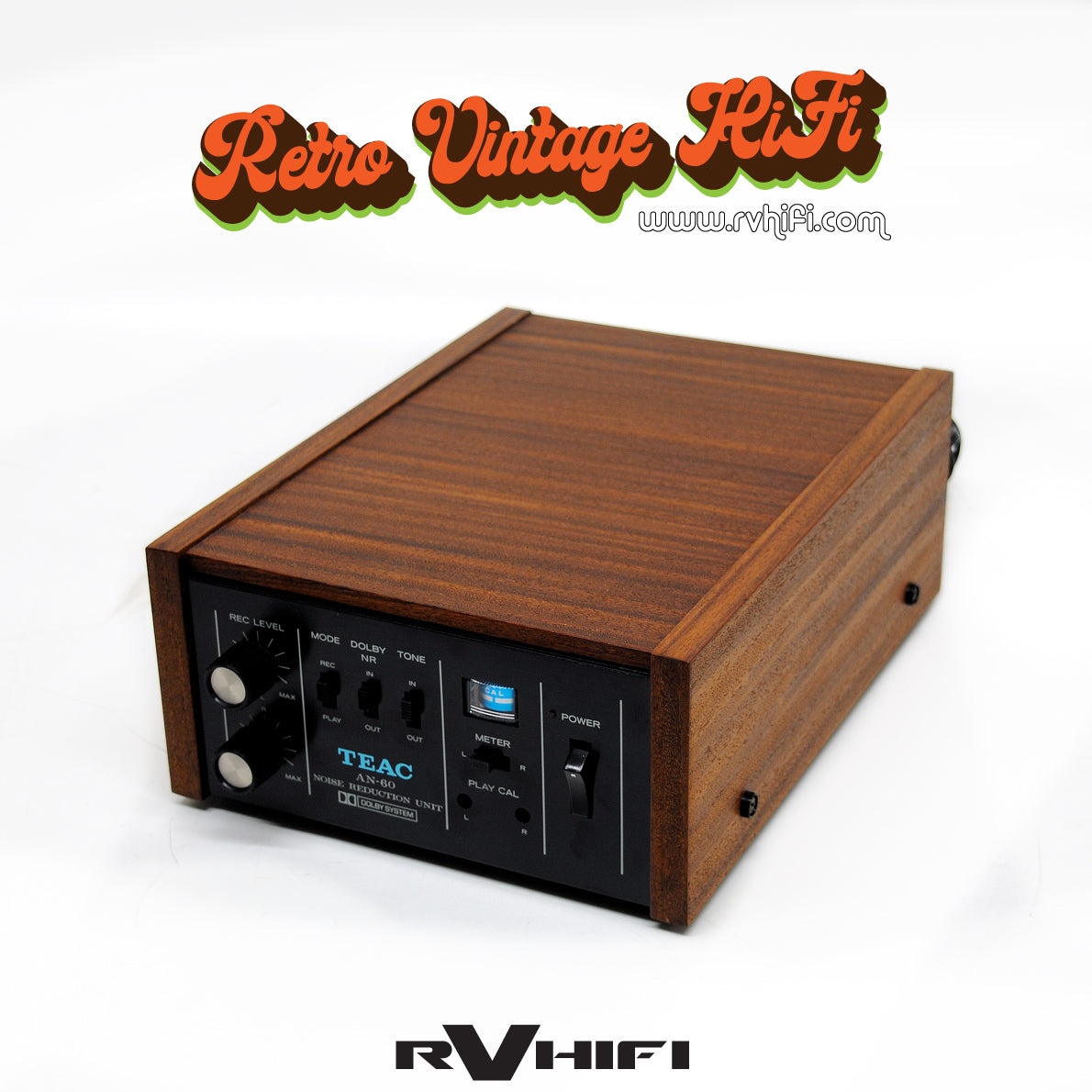

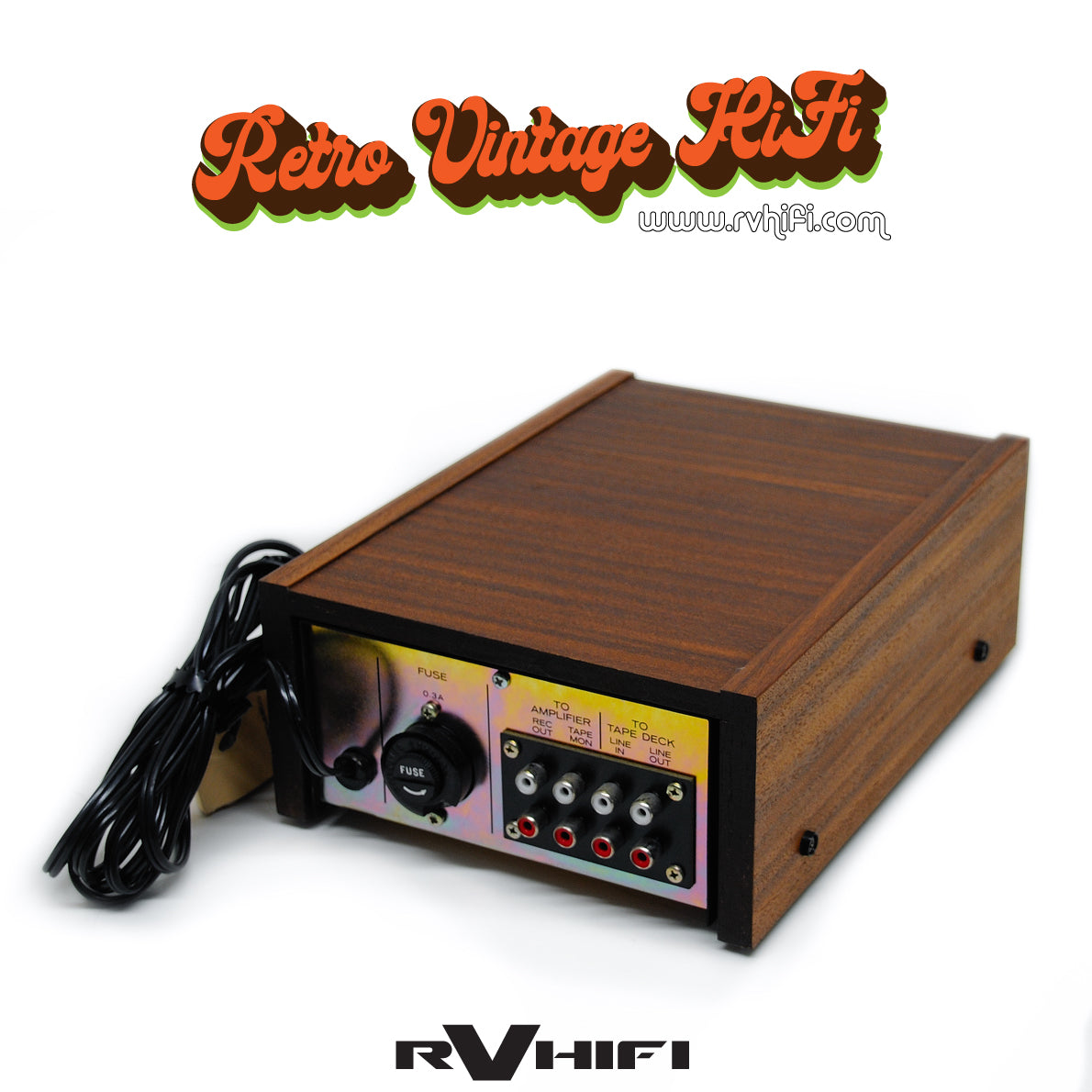

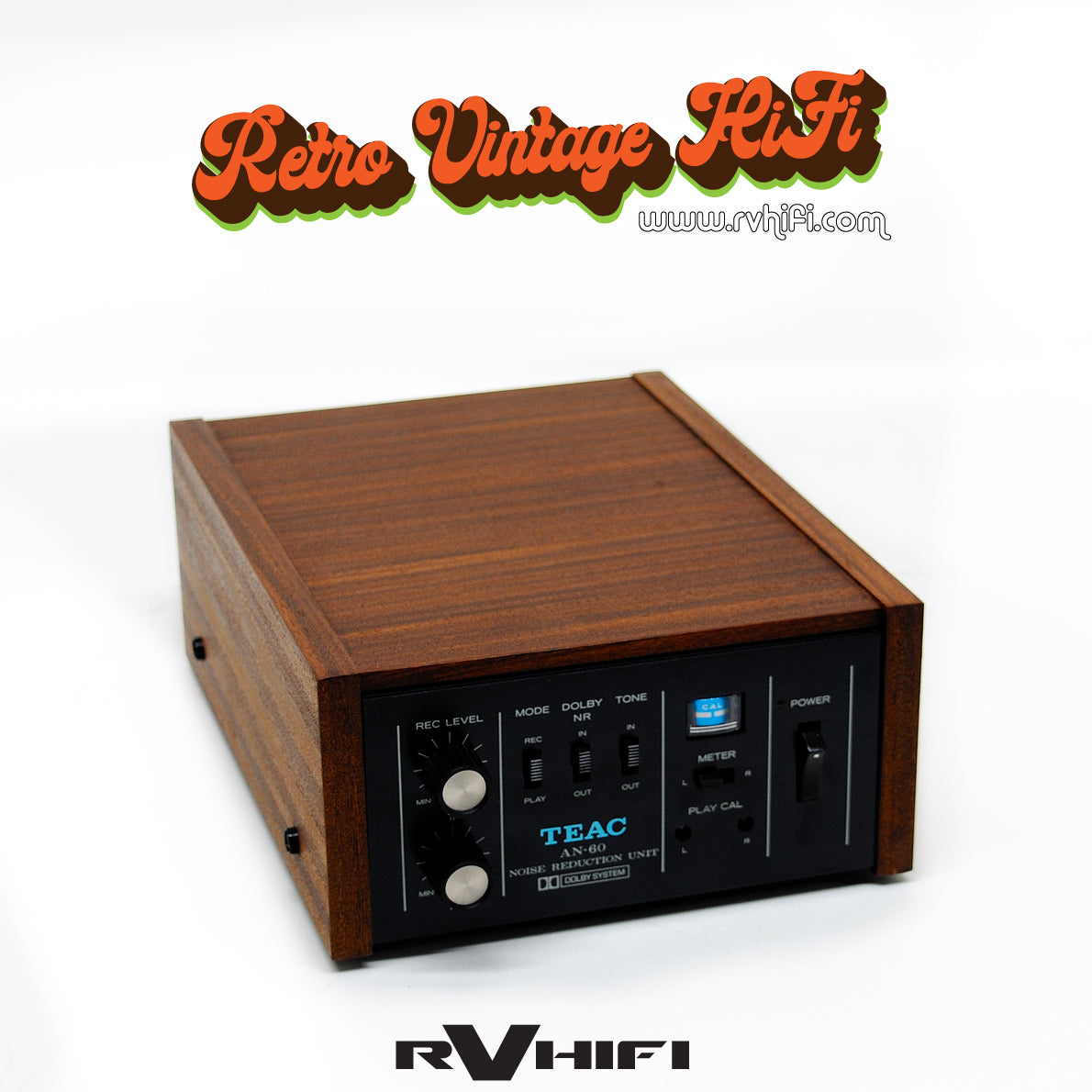

TEAC AN-60W Noise Reduction Unit

Description:

The TEAC AN-60W noise reduction unit with the patented Dolby noise reduction system will enable you to make superior recordings at reduced tape speeds.  The primary reason for using higher speeds in the past was to reduce tape hiss and noise as well as to provide increased high frequency response.  With the AN-60 tape hiss is electronically reduced in amplitude so that it no longer limits tape quality.  You will discover that the recordings made at slow speeds with the Dolby process equal or surpass those made in the past at higher tape speeds, thus costs are drastically reduced.  The AN-60 is also particularly useful when dubbing from one tape to another; formerly tape hiss was inevitable, actually the tape noise doubled with each dubbing.  With the Dolby process this no longer occurs and tape hiss is eliminated.

Specifications:

Channels: 2
Input sensitivity: 100mV
Output level: 300mV
Noise reduction system: Dolby
S/N improvement: 10dB (Dolby)
Frequency response: 20Hz to 15kHz
Total harmonic distortion: 0.5%
Channel separation: 50dB
Dimensions: 86 x 160 x 268mm
Weight: 2kg
Year: 1972
Serial No. 23311

Warranty: 3 months.

RV HIFI Says:

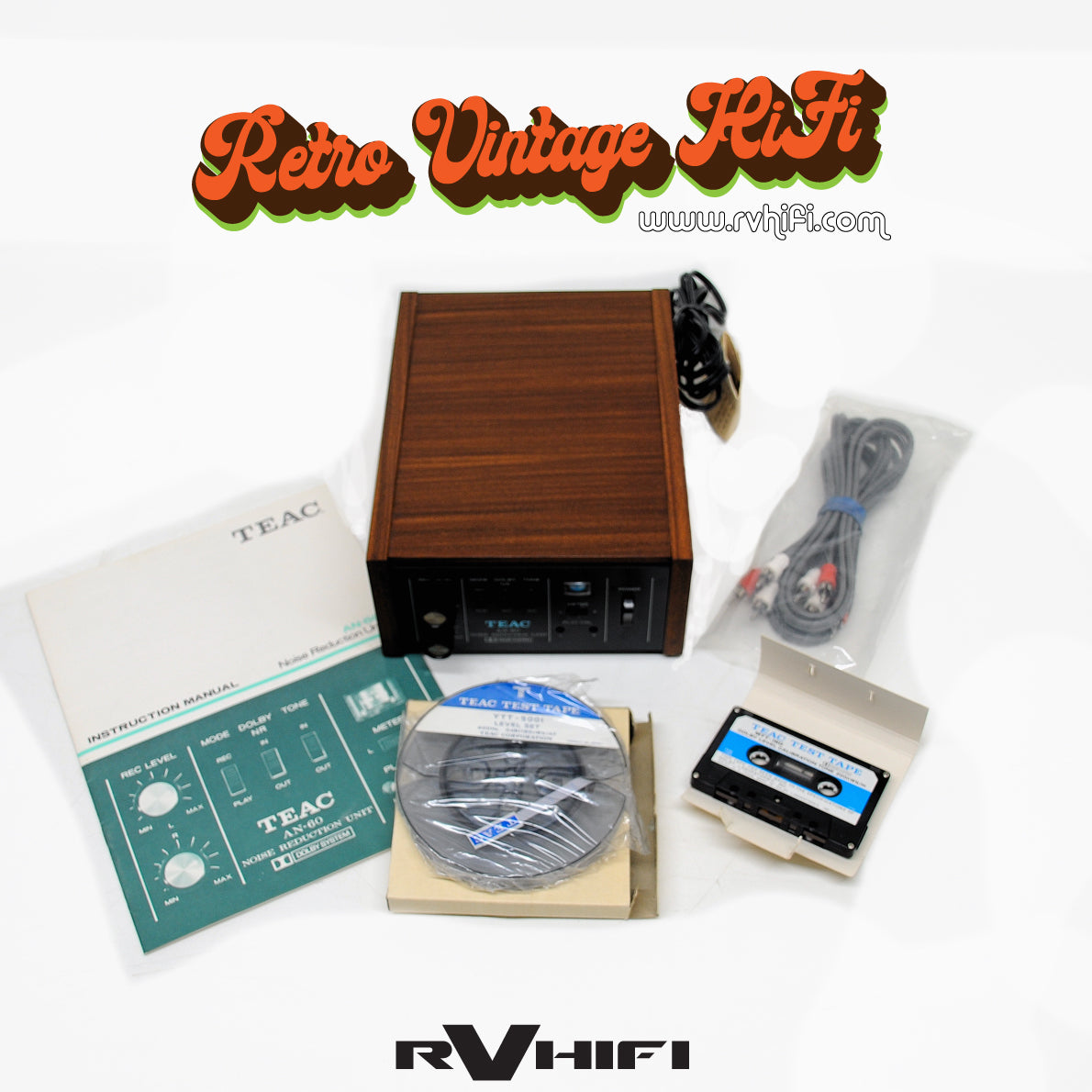

This is a BRAND NEW TEAC AN-60W in its original box, never used, never plugged in. Super rare a true collector piece, early 1970's production with every single accessory just like when it left the factory. Includes owners manual, RCA leads and 2 calibration tapes; TEAC TEST TAPE MTT-150 (cassette) and TEAC TEST TAPE YTT-5001 (open reel). This item also has international mains voltage selection for world-wide use.
