TEAC A-2300SX Stereo Reel to Reel Tape Recorder

TEAC A-2300SX Stereo Reel to Reel Tape Recorder

Description

The A-2300SX features a cue lever for fast search, cueing and editing.Independent left and right channel tape/source selectors offer improved monitoring capabilities and provide sound on sound (with some re-patching).

Specifications:
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x erase, 1 x record, 1 x playback
Motor: 2 x reel, 1 x capstan
Reel size: 5 or 7 inch reel
Equalization: NAB
Tape speeds: 3 ³⁄₄  7 ¹⁄₂ ips
Wow and flutter: 0.2% (7 ¹⁄₂ ips)
Signal to Noise Ratio: 48dB
Total harmonic distortion: 1.5%
Crosstalk: 35dB
Input: 97mV (line), 0.25mV (mic)
Output: 0.3V (line)
Dimensions: 440 x 392 x 210mm
Weight: 18kg

Description of Works:
Inspected random electrolytic capacitors through out the circuit, all passives within 5% of specified values.
Tape heads like new condition, have no wear.
Replaced main belt.
Reconditioned pinch roller.
Cleaned, removed old grease, applied synthetic lubricant to all mechanical parts.
Cleaned, inspected and adjusted brake pads.
Inspected PCB's for dry joints and re-soldered.
Checked all mechanical adjustments.
Checked all electrical adjustments.
Cleaned & deoxit potentiometers and switches.
Cleaned, demagnetized tape heads.
Cleaned, polished & detailed unit.
Wood veneer sides have been re-stained, sealed with satin oil based polyurethane.
New 240vac power lead.

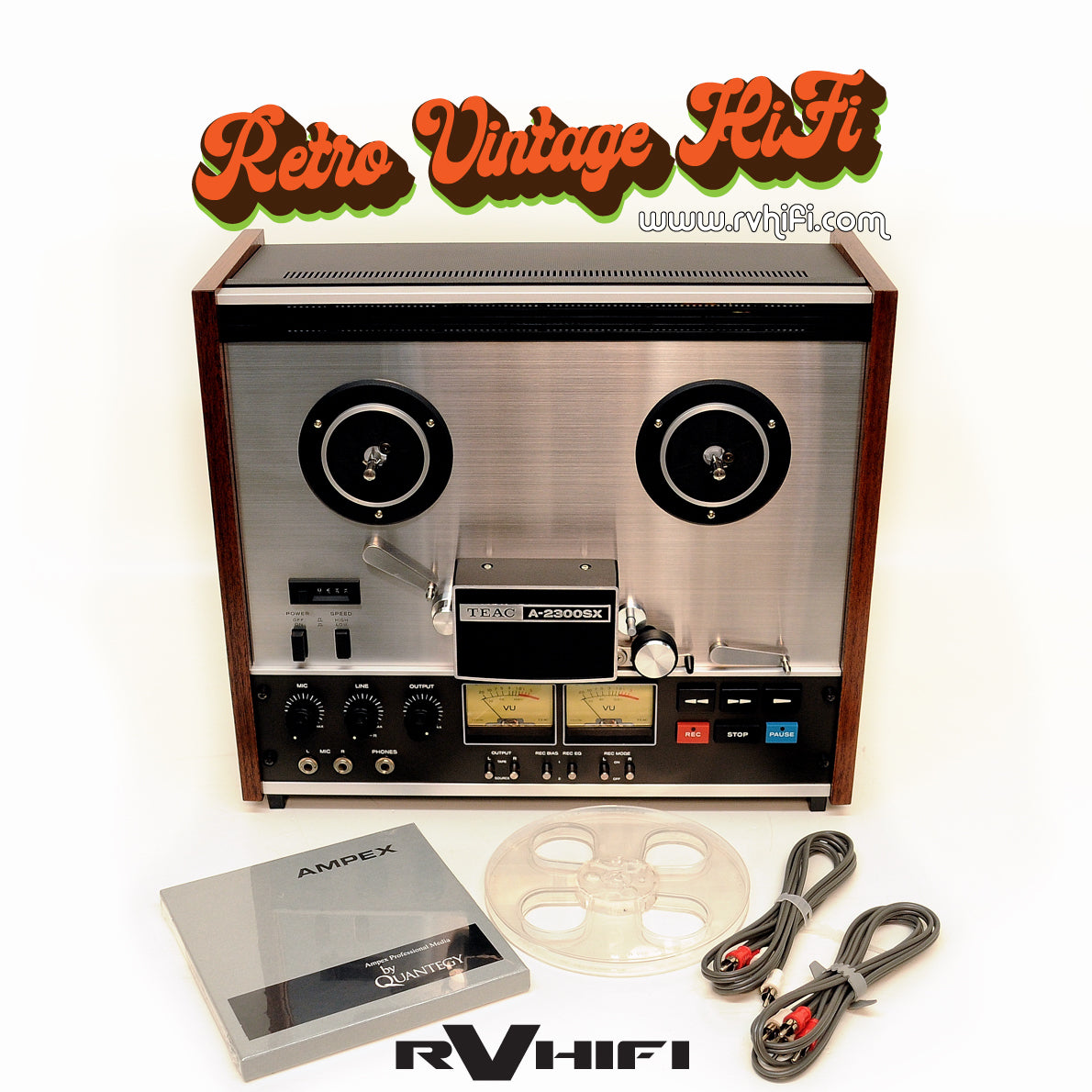

Includes:
2 x TEAC genuine (NOS) RCA cables.
1 x Empty take-up reel.
1 x New (sealed) AMPEX 7" blank tape.

Warranty
6 months

RV HIFI SAYS:

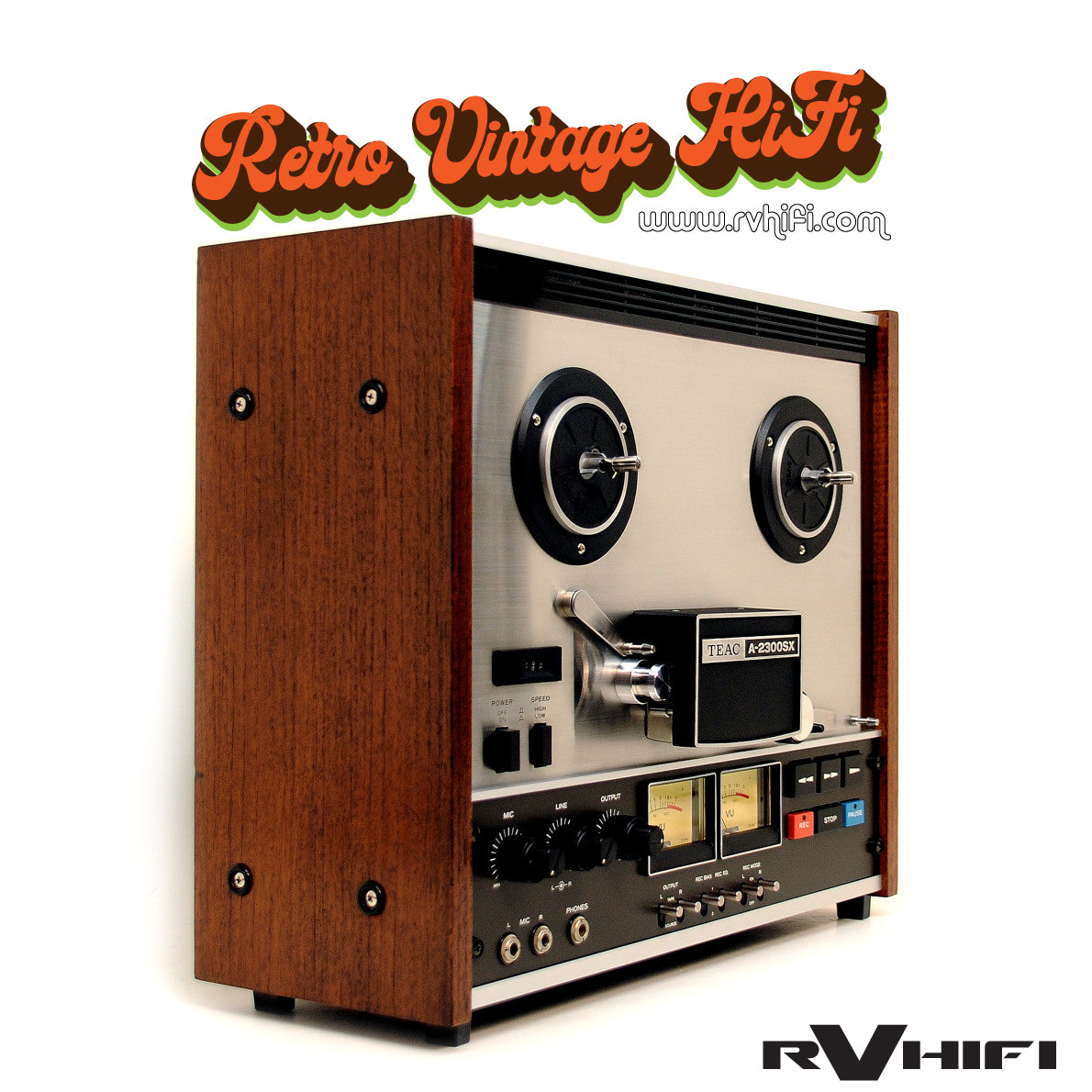

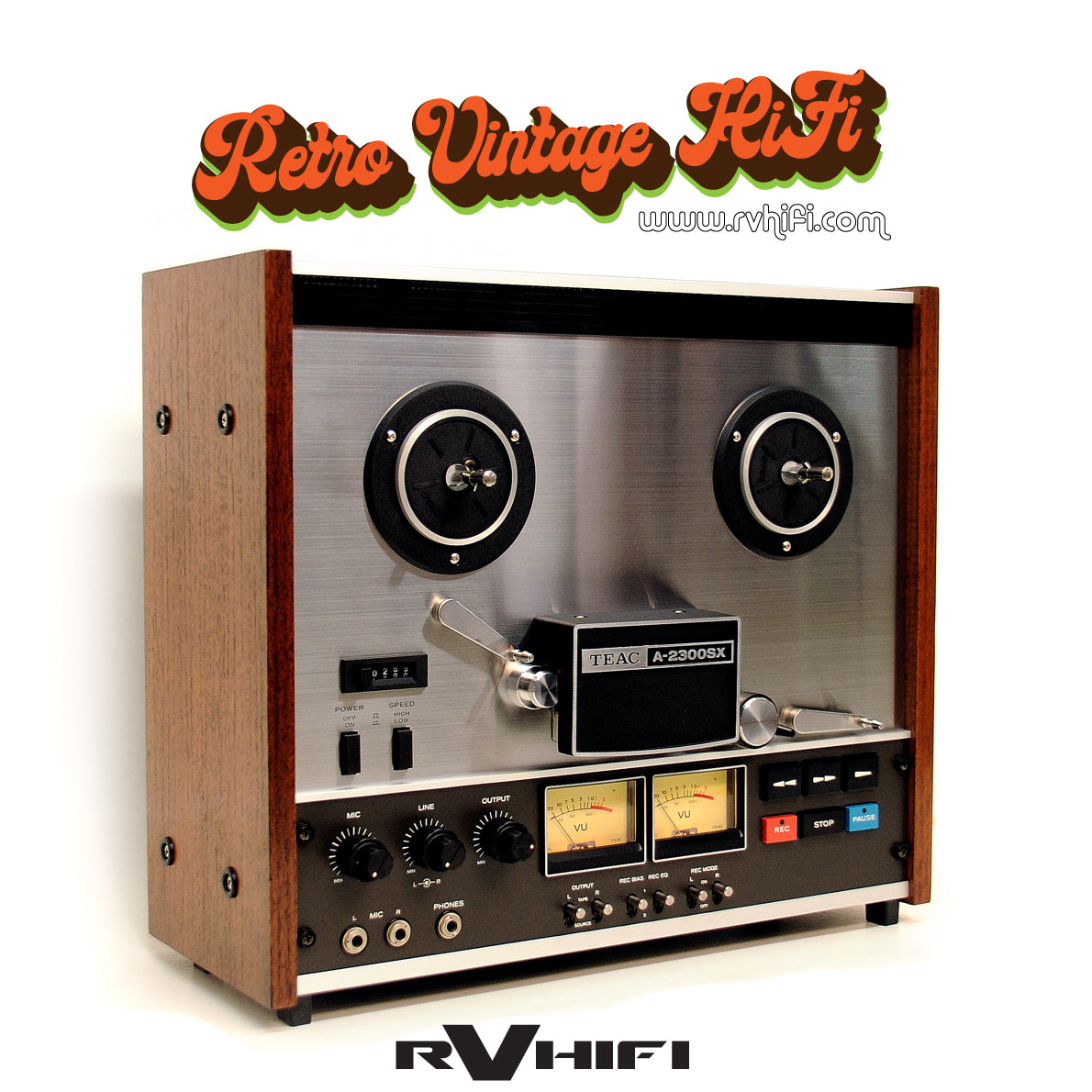

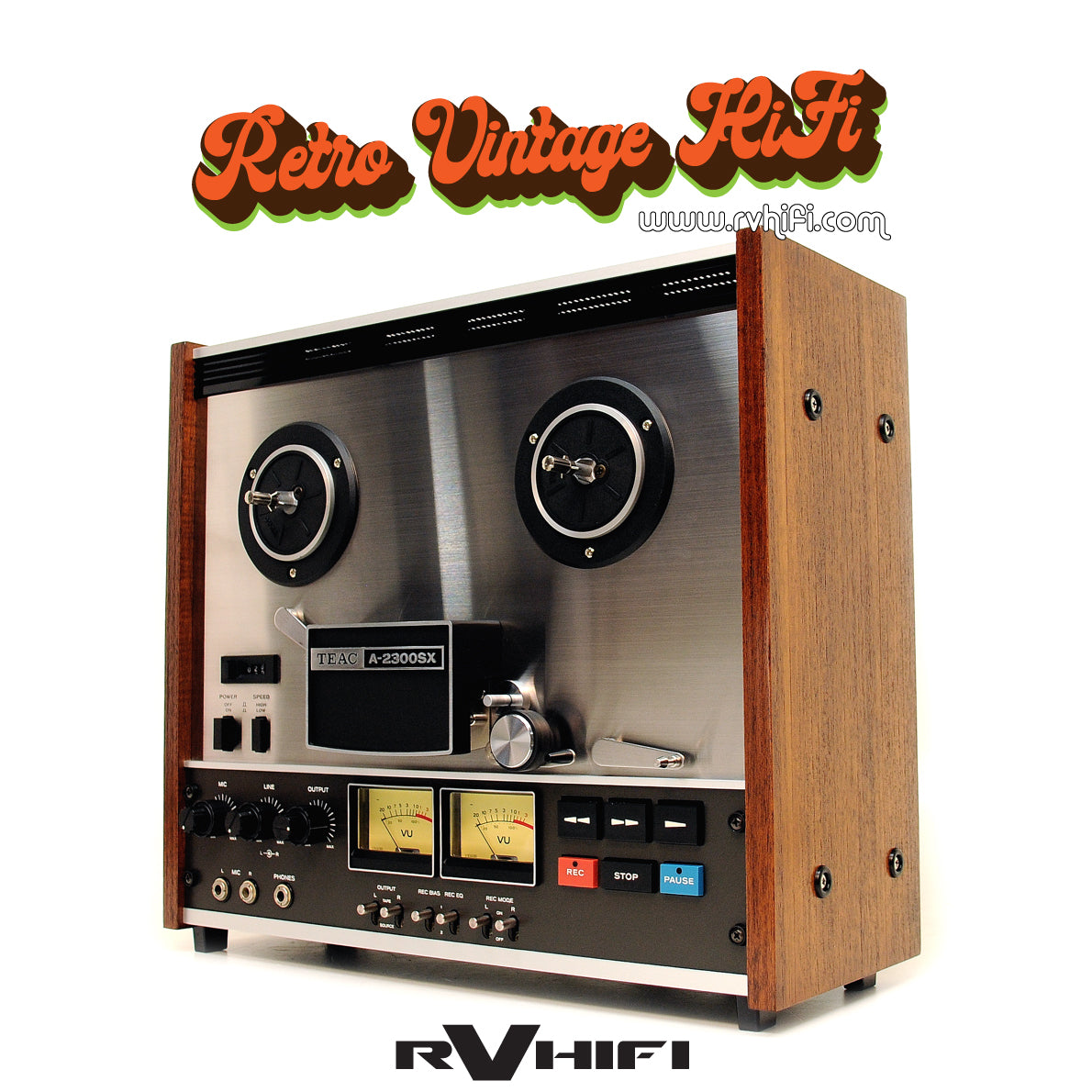

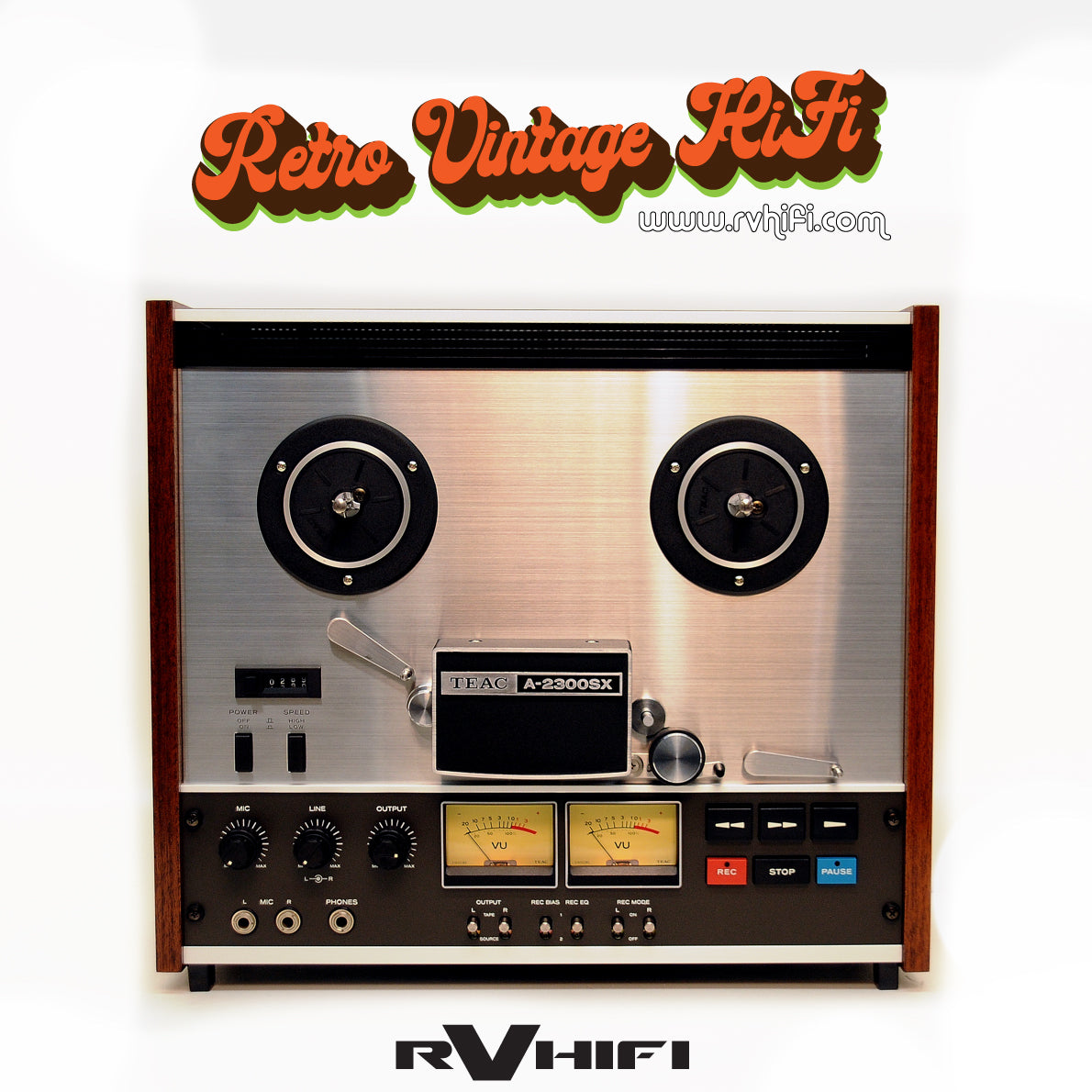

This TEAC A-2300SX open reel tape deck is in pristine condition, with minimal use and no wear on the tape heads. All electrolytic capacitors are within specification, and the unit has undergone a thorough service and cleaning. The veneer sides, previously faded, have been restored to a better-than-new appearance. The machine operates flawlessly, with robust fast forward and rewind motors. The recording and playback quality is exceptional. Additionally, a set of authentic New Old Stock TEAC RCA leads, an empty take-up reel, and a new sealed AMPEX blank tape reel are included.

Due to the weight and cubic dimensions of this item, we request that you contact us on 0419700769 or by email contact@rvhifi.com.au for a quote on shipping to your location.
