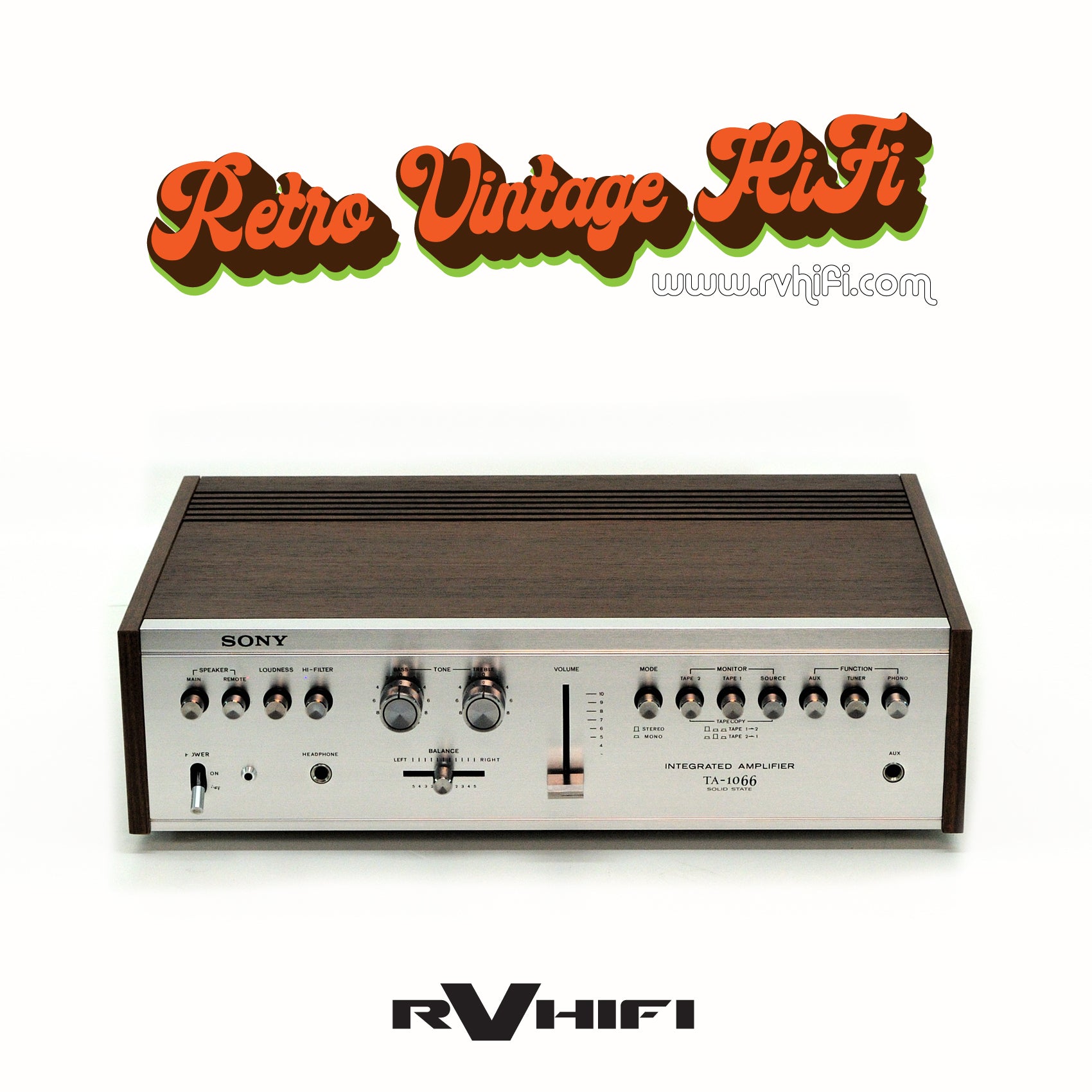

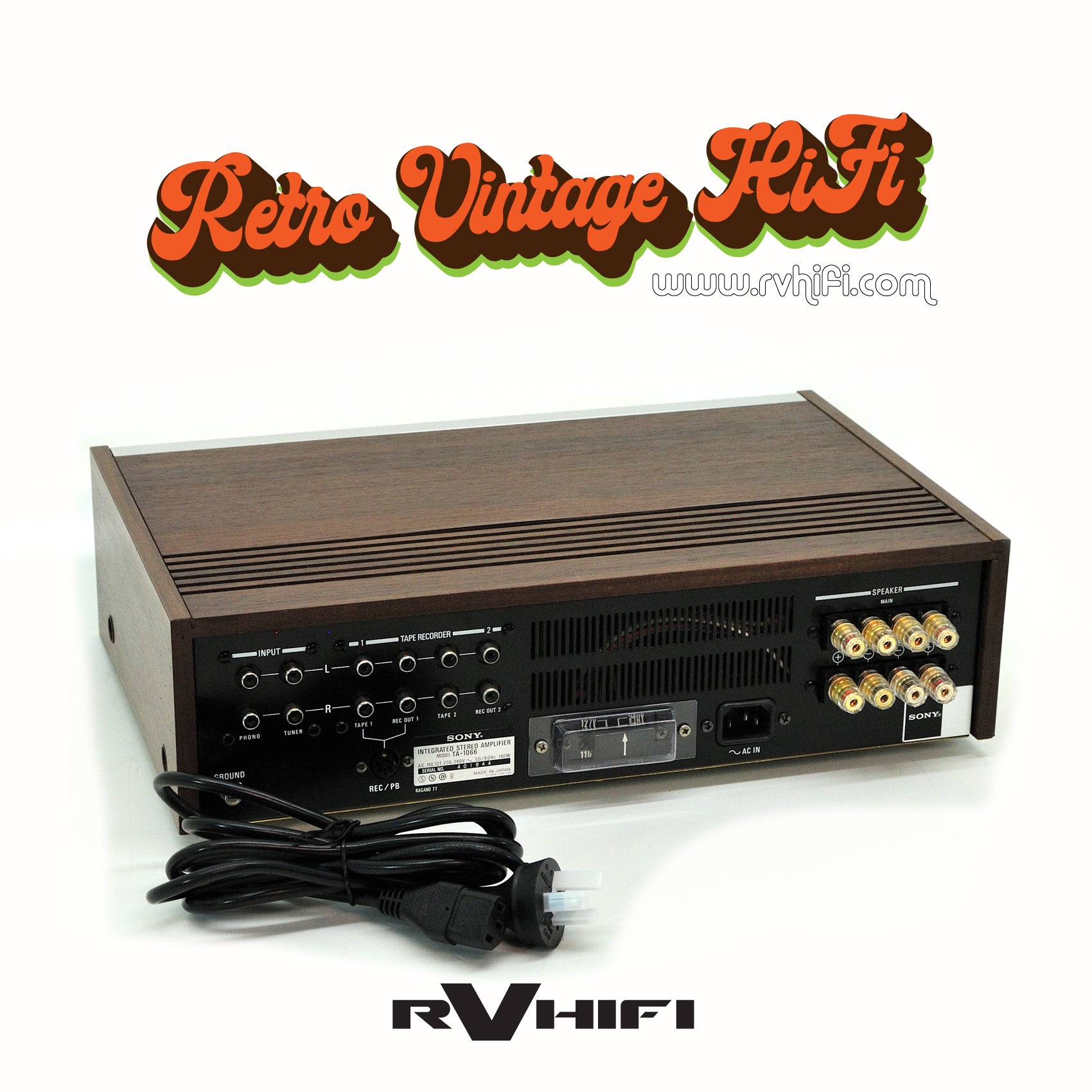

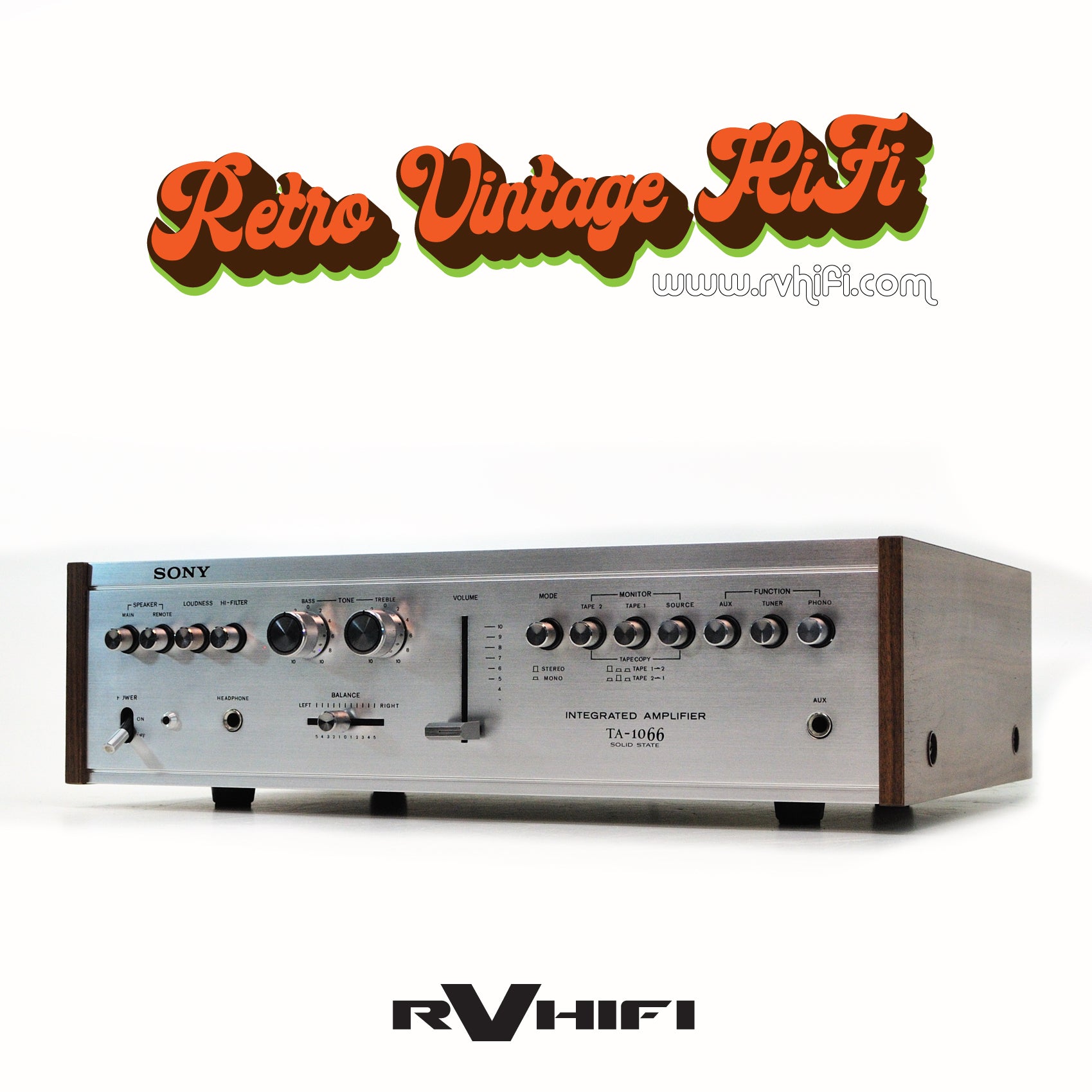

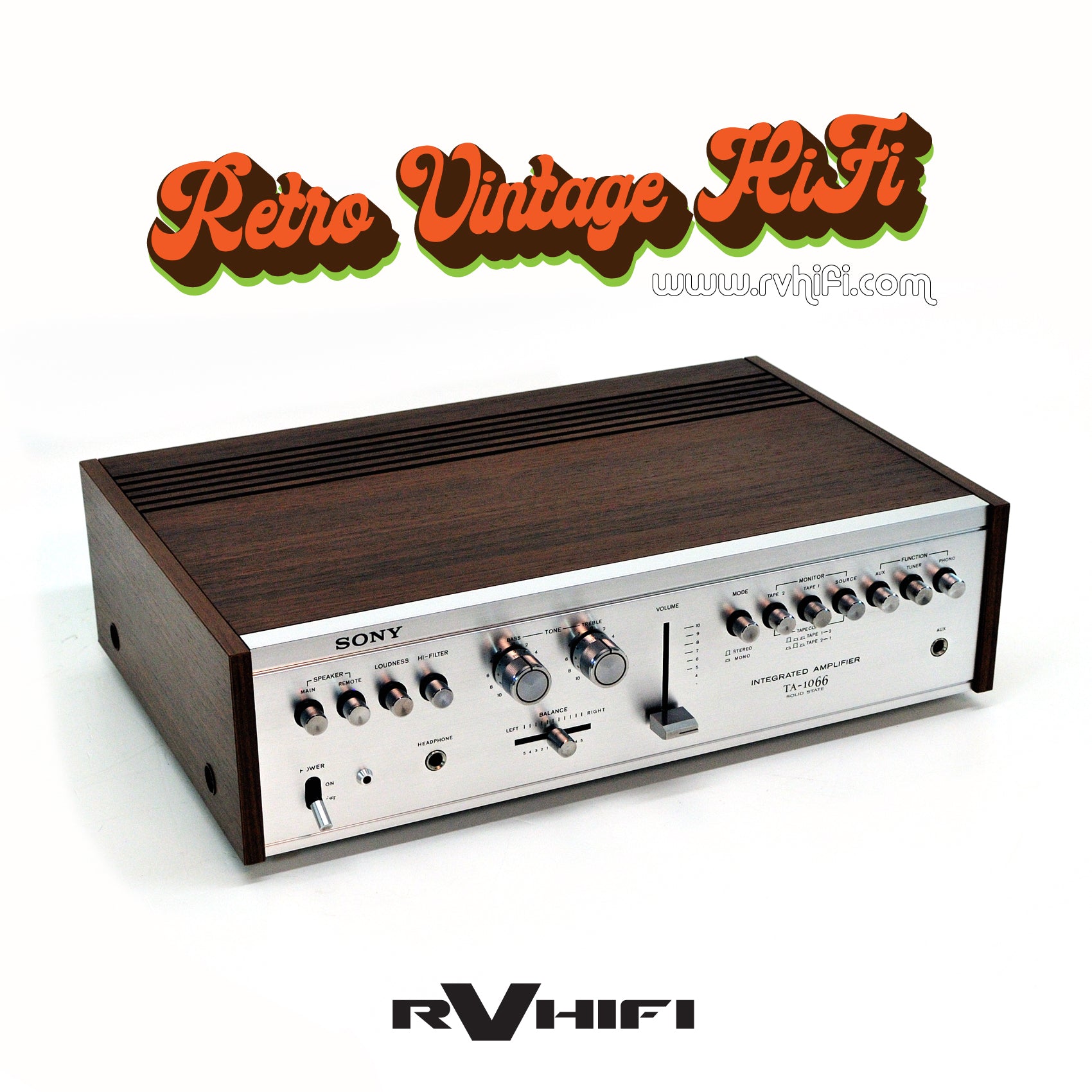

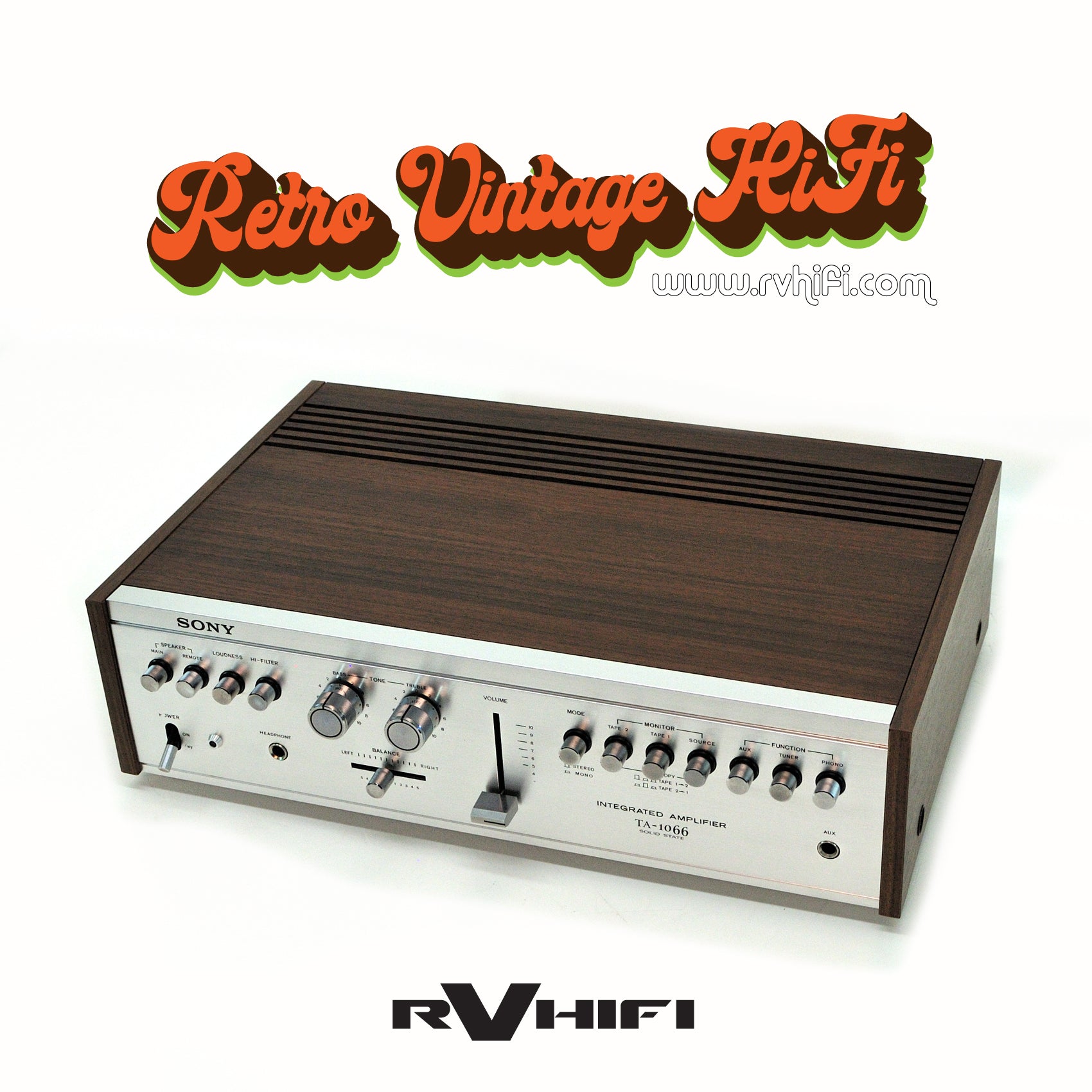

SONY TA-1066 Stereo Integrated Amplifier
Power output: 20 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 60kHz
Total harmonic distortion: 0.8%
Damping factor: 22
Input sensitivity: 2.5mV (MM), 250mV (line)
Signal to noise ratio: 70dB (MM), 90dB (line)
Output: 250mV (line), 30mV (DIN)
Semiconductors: 22 x transistors, 6 x diodes
Dimensions: 410 x 120 x 280mm
Serial No. 401844Description of Works
Replaced all electrolytic capacitors.
Replaced "ON" globe to LED.
Inspected PCB's for dry joints and re-soldered.
Checked all electrical adjustments.
New gold speaker banana posts.
Cleaned & deoxit potentiometers and switches.
Cleaned & detailed unit.
New 240vac power lead.
RV HIFI Says:
Sony TA-1066 stereo integrated amplifier, excellent build quality and sound reproduction is similar to a tube amplifier.
