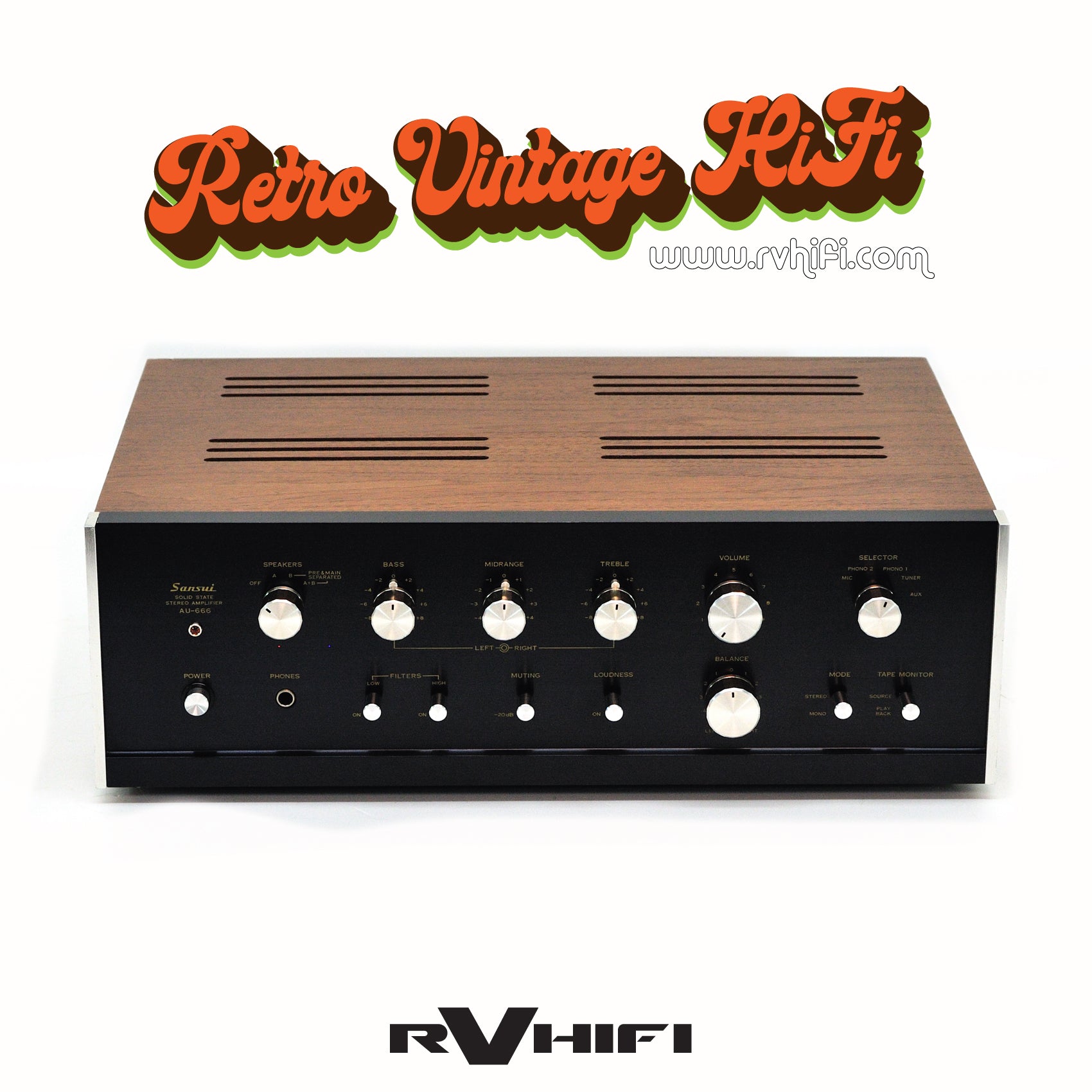

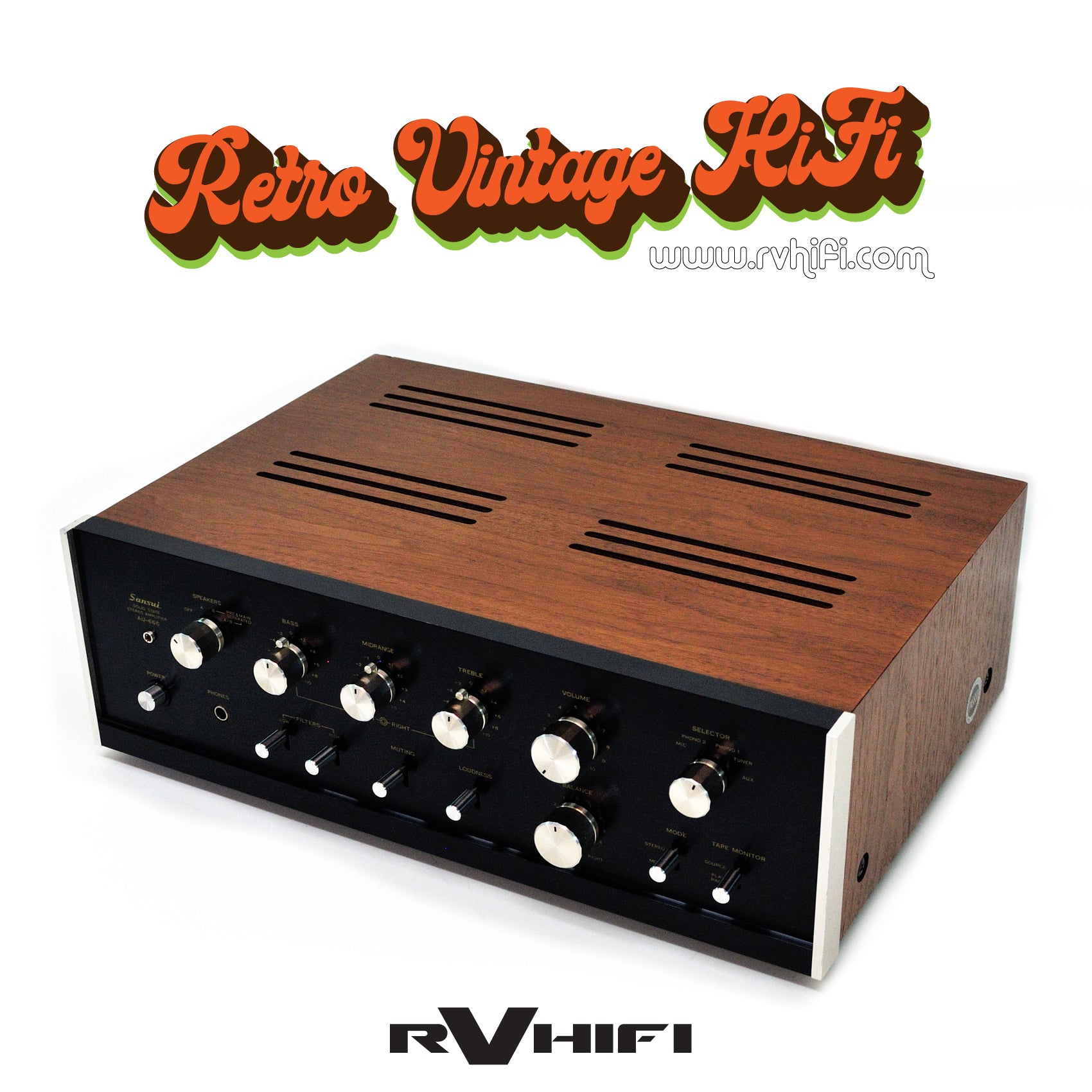

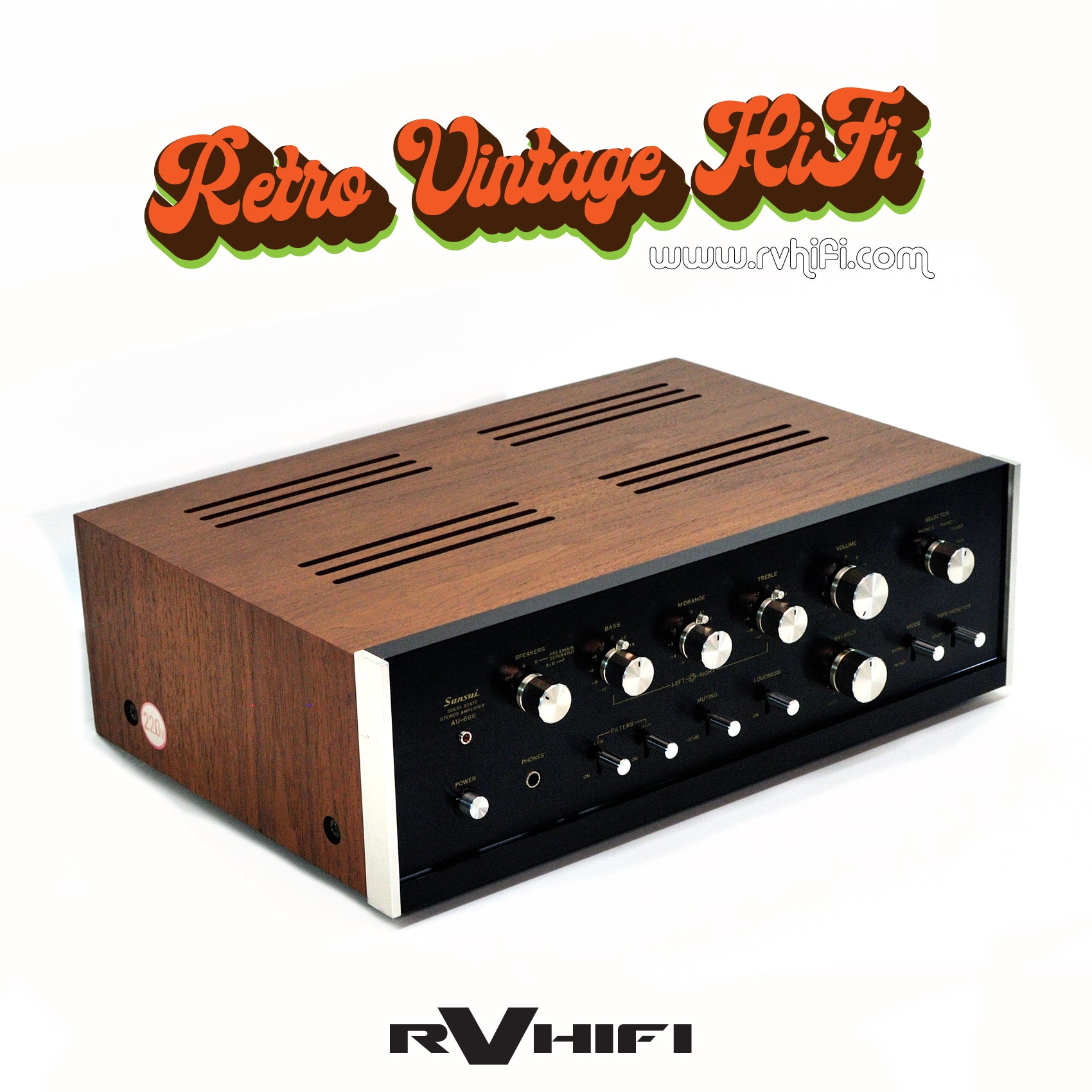

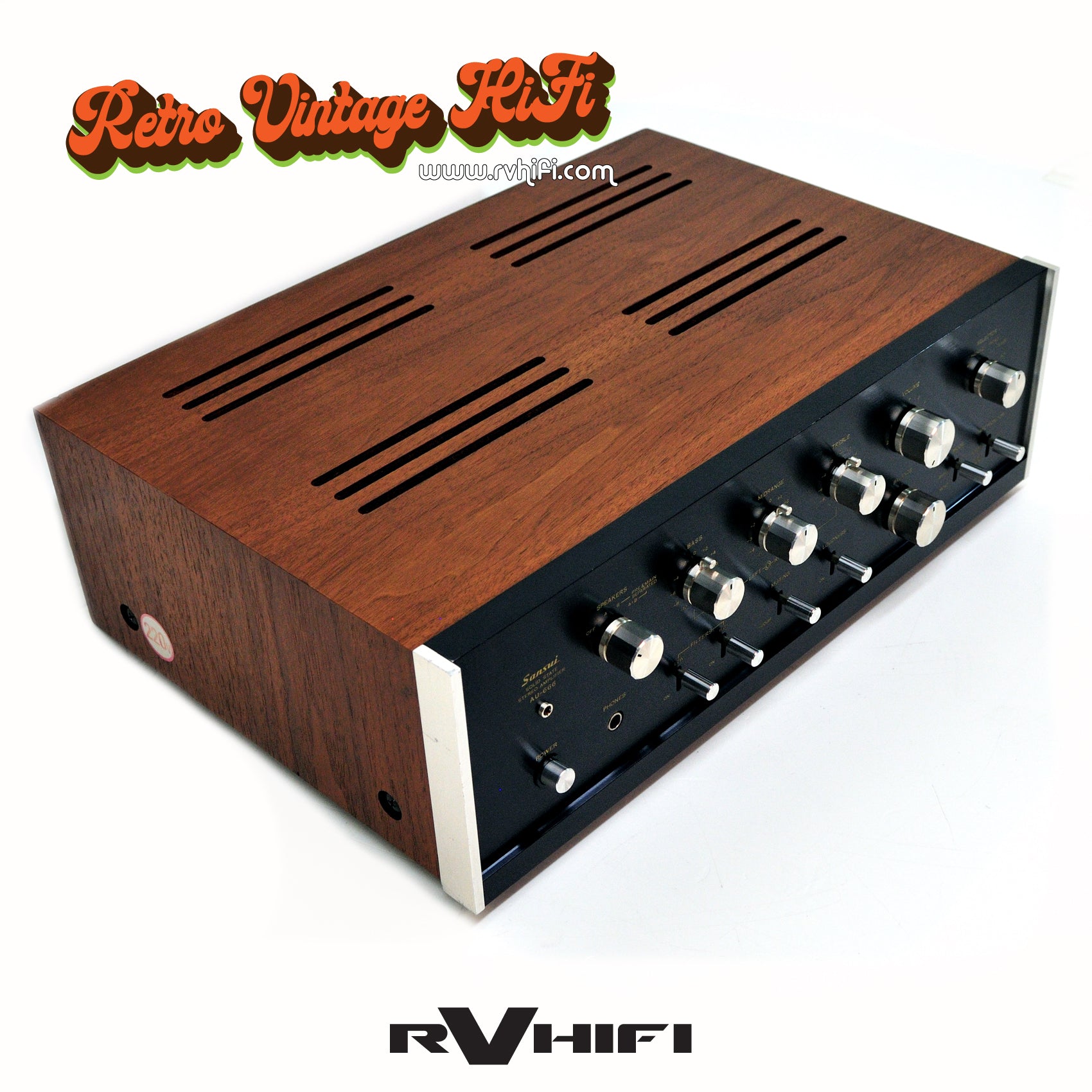

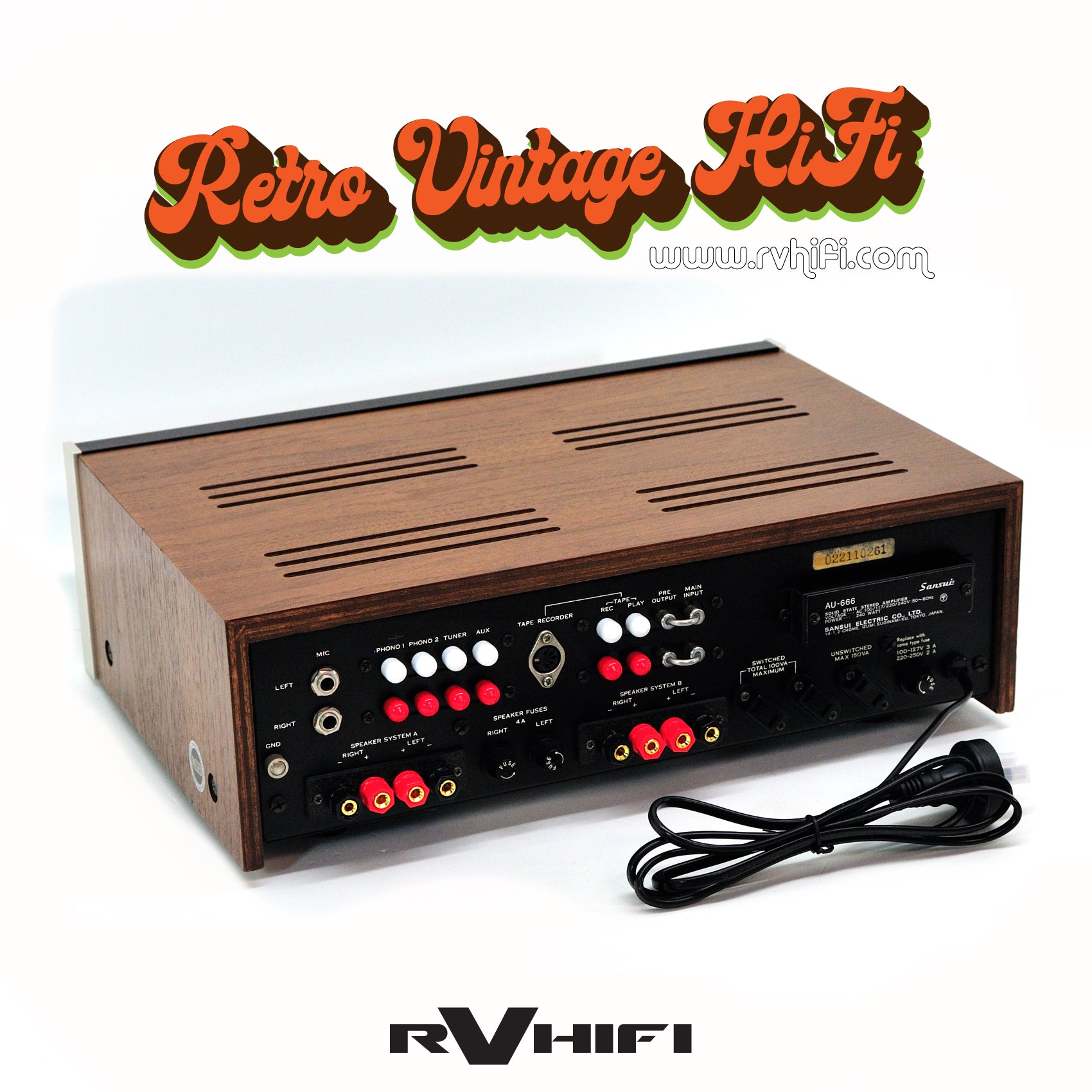

Sansui AU-666 Stereo Integrated Amplifier Solid State
Sansui AU-666 Stereo Integrated Amplifier Solid State
Sansui AU-666 Stereo Integrated Amplifier Solid State
Sansui AU-666 Stereo Integrated Amplifier Solid State
Sansui AU-666 Stereo Integrated Amplifier Solid State
  • Load image into Gallery viewer, Sansui AU-666 Stereo Integrated Amplifier Solid State
  • Load image into Gallery viewer, Sansui AU-666 Stereo Integrated Amplifier Solid State
  • Load image into Gallery viewer, Sansui AU-666 Stereo Integrated Amplifier Solid State
  • Load image into Gallery viewer, Sansui AU-666 Stereo Integrated Amplifier Solid State
  • Load image into Gallery viewer, Sansui AU-666 Stereo Integrated Amplifier Solid State

Sansui AU-666 Stereo Integrated Amplifier Solid State - SOLD -

Regular price
$0.00
Sale price
$0.00
Regular price
Sold out
Unit price
per

Sansui AU-666 Stereo Integrated Amplifier Solid State

Sansui AU-666 Stereo Integrated Amplifier Solid State

Specifications
Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 40kHz
Total harmonic distortion: 0.5%
Damping factor: 40
Input sensitivity: 3mV (mic), 2.2mV (MM), 180mV (DIN), 180mV (line)
Signal to noise ratio: 70dB (MM), 80dB (line)
Channel separation: 50dB (MM), 50dB (line)
Output: 180mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 31 x transistors, 5 x diodes
Dimensions: 415 x 127 x 278mm
Weight: 9.9kg
Year: 1970

Serial No. 022110261

Description of Works
Replaced all electrolytic capacitors with Nichicon Fine Gold series.
Replaced several ceramic capacitors with Wima capacitors.
Replaced several small signal transistors with matched sets.
Inspect & re-soldered dry solder joints on PCB's.
Cleaned and DeoxIT all potentiometers.
Upgraded speaker terminals with gold banana posts.
Adjusted Bias & DC offset.
New 240vac power lead.
Cleaned & detailed unit.
Cleaned, detailed & re-coated wood case with varnish.


Warranty:  6 months.

RV HI FI SAYS:

Amazing Sansui AU-666 solid state amplifier from the early 70's, this unit produces a clean sound with a warm engaging quality.  Despite this unit being purchased from it's original owner in superb condition, we had found that most of the capacitors had drifted so we completely restored this amplifier for another 50 years of enjoyment!  Due to the lack of availability in Australia, this model is quite sort after by collectors.
