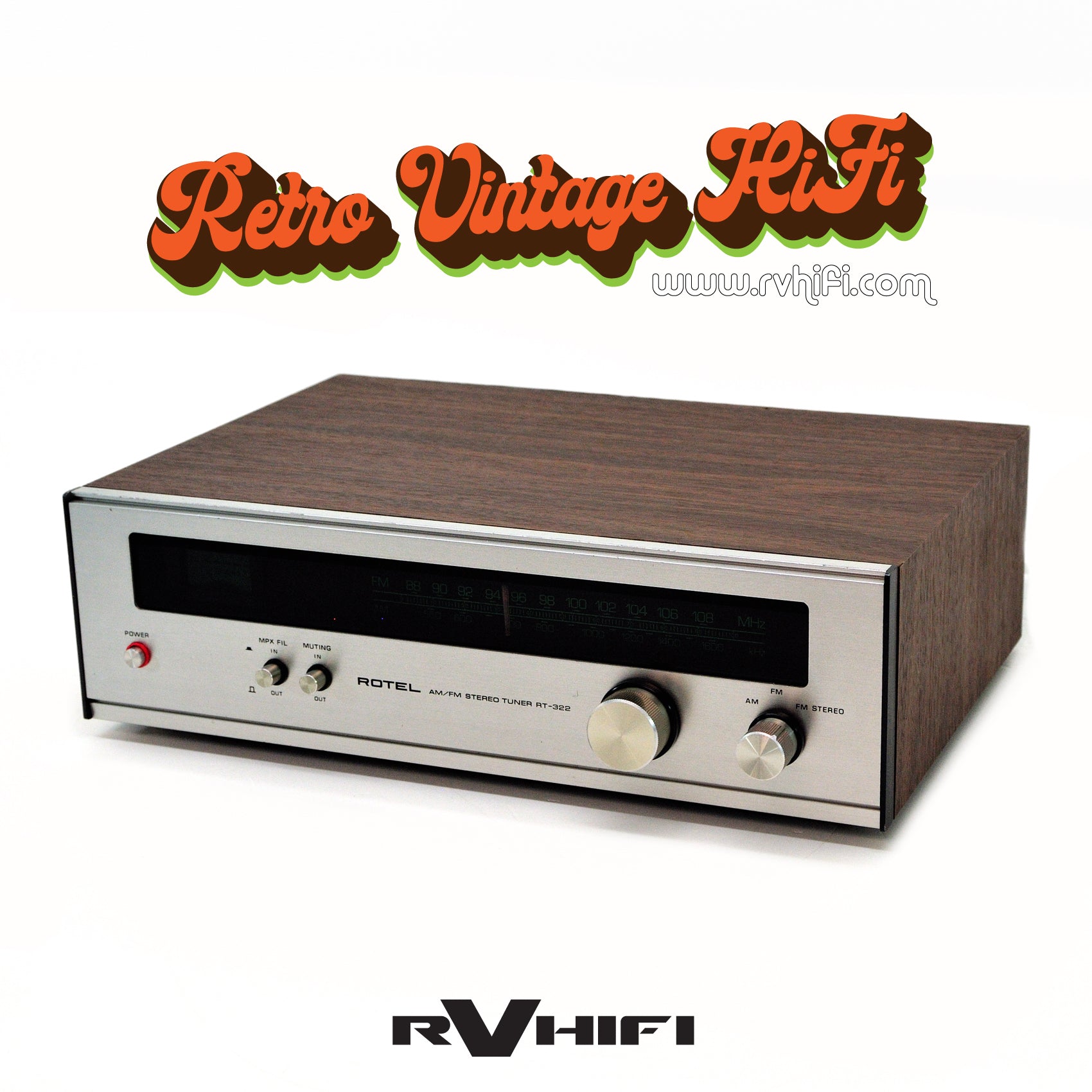

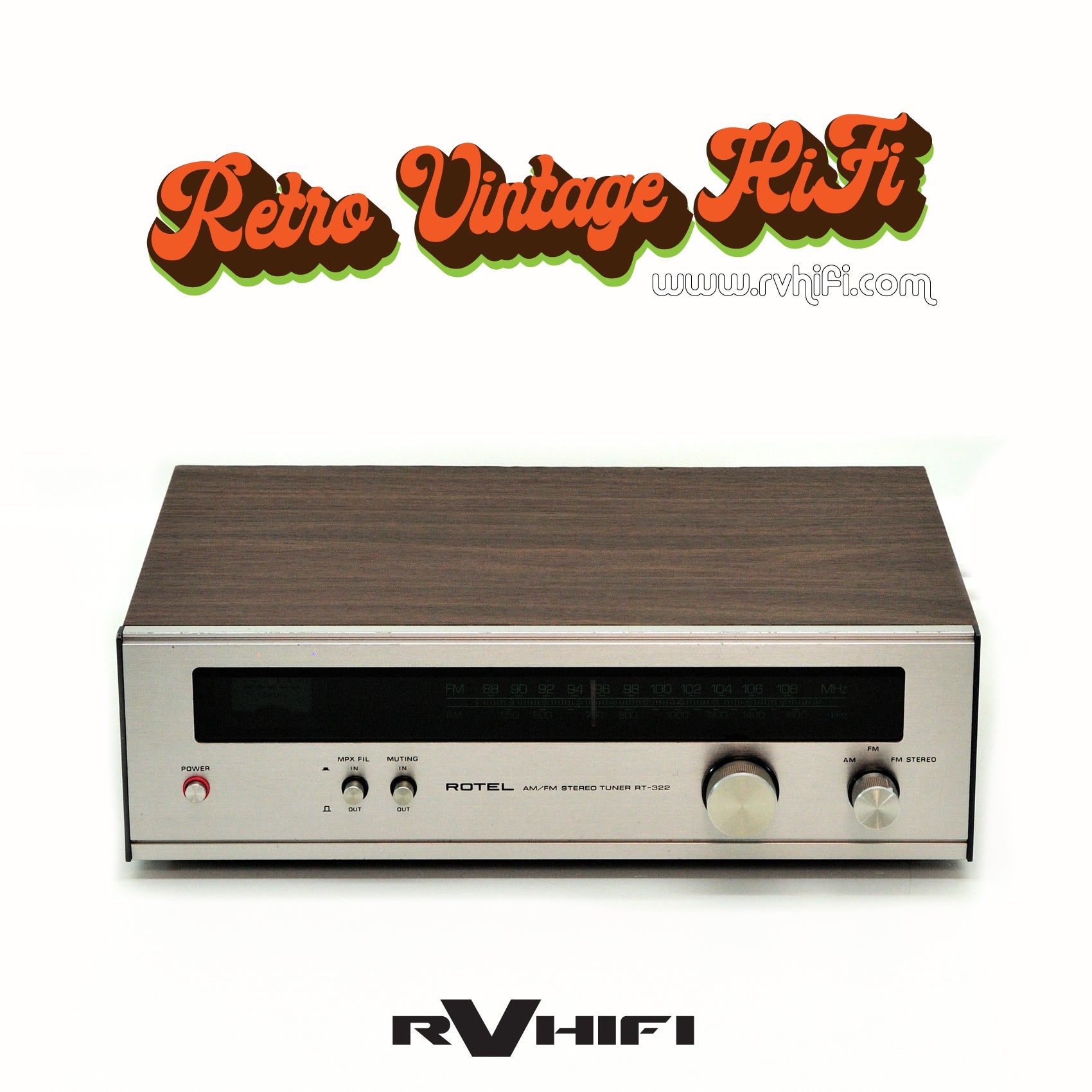

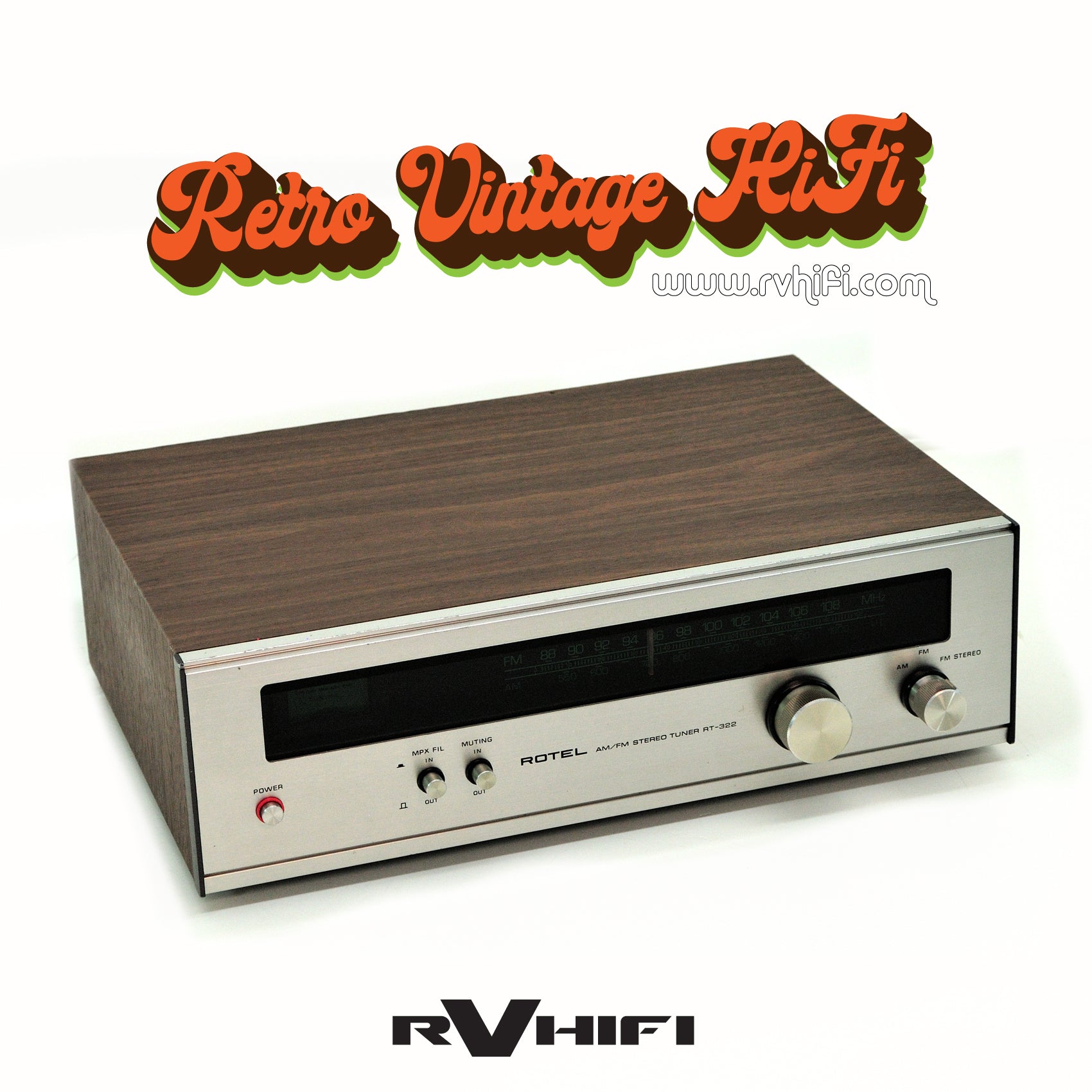

Rotel RT-322 AM/FM Stereo Tuner

Rotel RT-322 AM/FM Stereo Tuner

Specifications

FM Section
Sensitivity (IHF): 2.0mV
Frequency Range :88-108MHz
harmonic Distortion: less than 0.5%
Signal to Noise Ratio: 65db
Capture Ratio: 1.5db
Selectivity: 50db
Stereo Separation: 40db at 1kHz
Image Rejection: 60db
IF Rejection: 80db
Spurious Response Rejection: 80db
AM Section
Sensitivity (IHF): 250mV
Frequency Range: 535 - 1605kHz
Image Rejection: 50dbat 1 MHz
IF Rejection: 40db at 1 MHz
Signal to Noise Ratio: 50db
Selectivity: 30db
Year 1973

Weight 3.9kgs

Dimensions: 350W x 255D x 110Hmm

Serial No. 29736

Description of Works

Inspected electrolytic capacitors, all within specifications.
Replaced all lamp globes.
Inspected PCB's for dry joints and re-soldered.
Checked all electrical adjustments.
Cleaned & deoxit potentiometers and switches.
Cleaned & detailed unit.
New 240vac power lead.

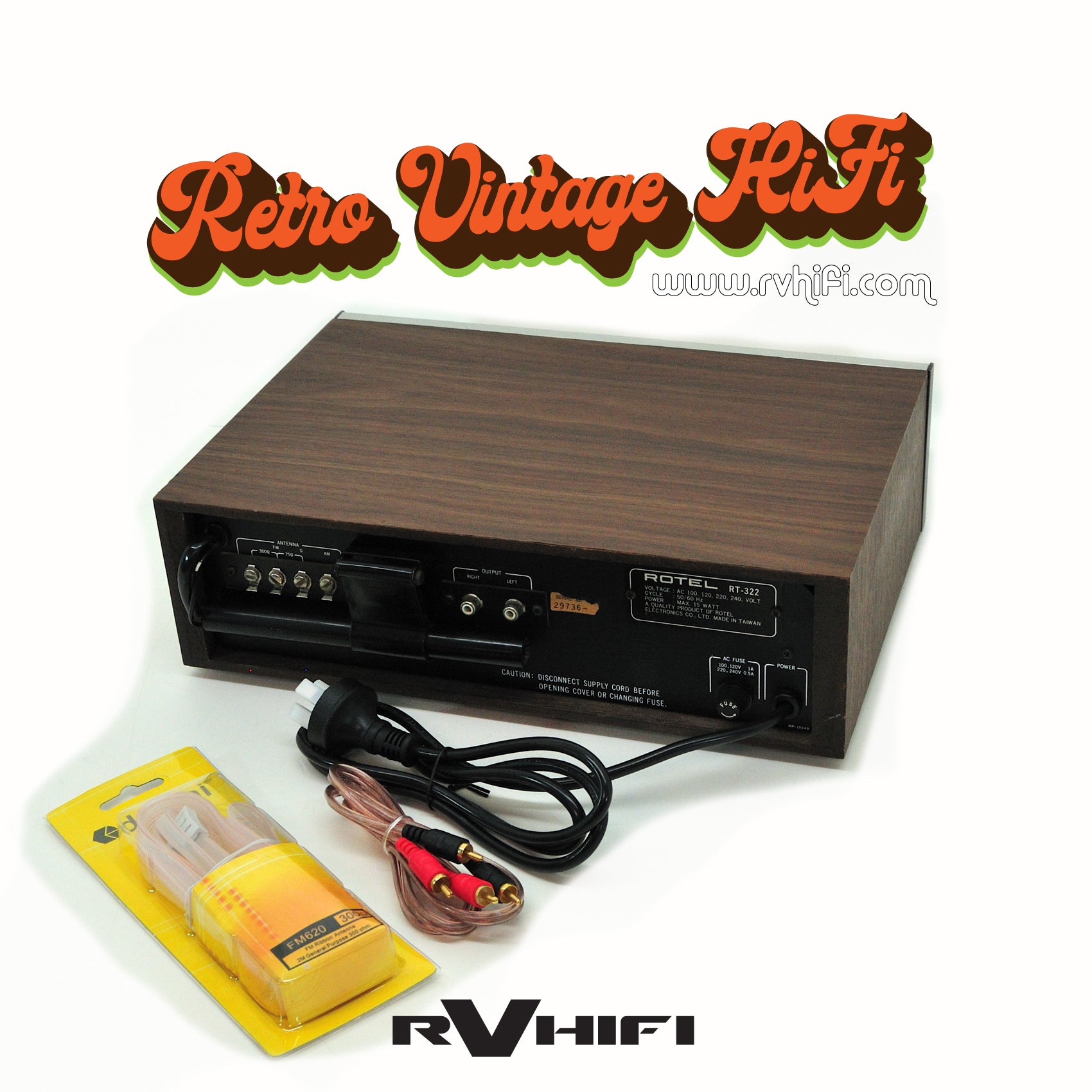

Includes: FM Ribbon Antenna & RCA cable.

Warranty 3 Months
