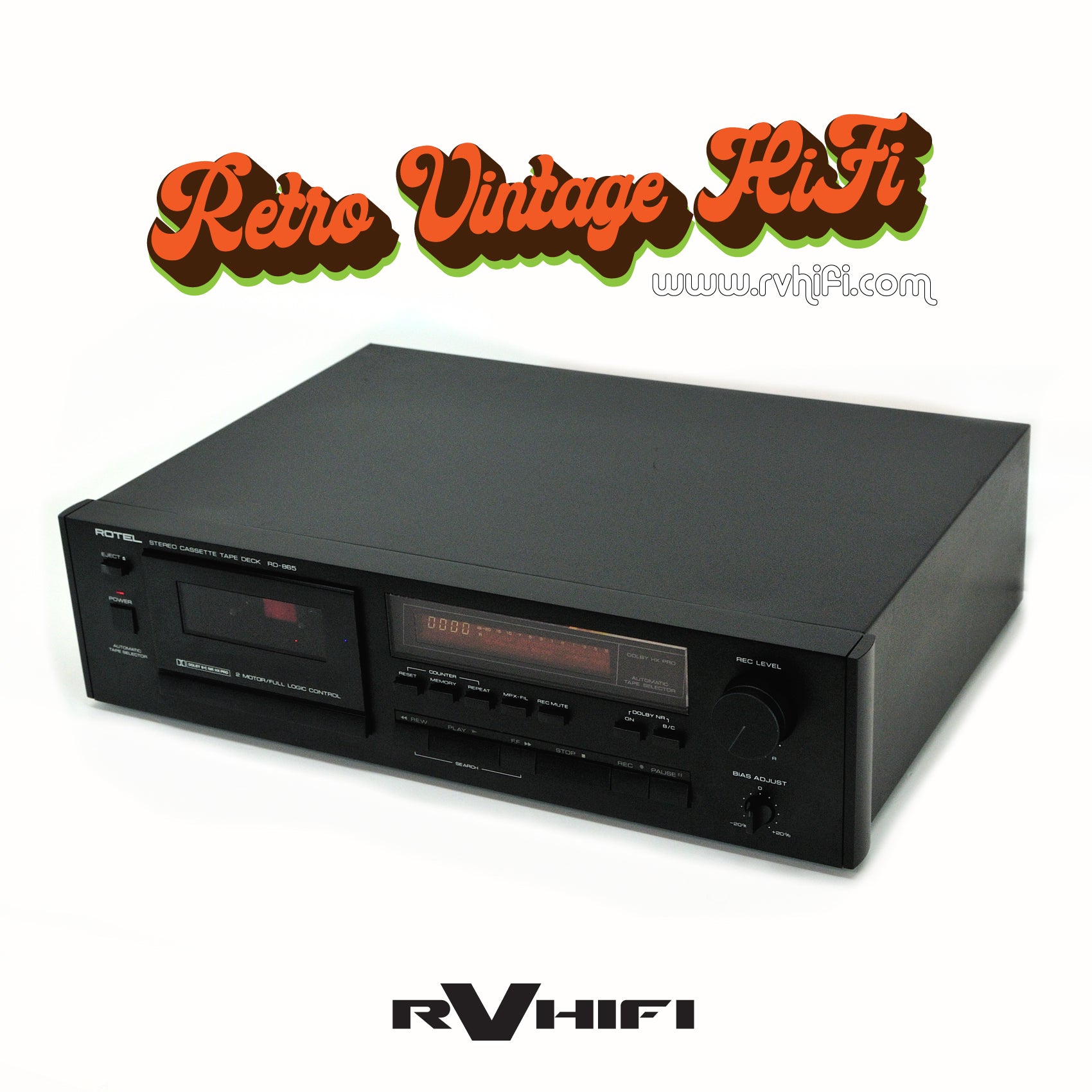

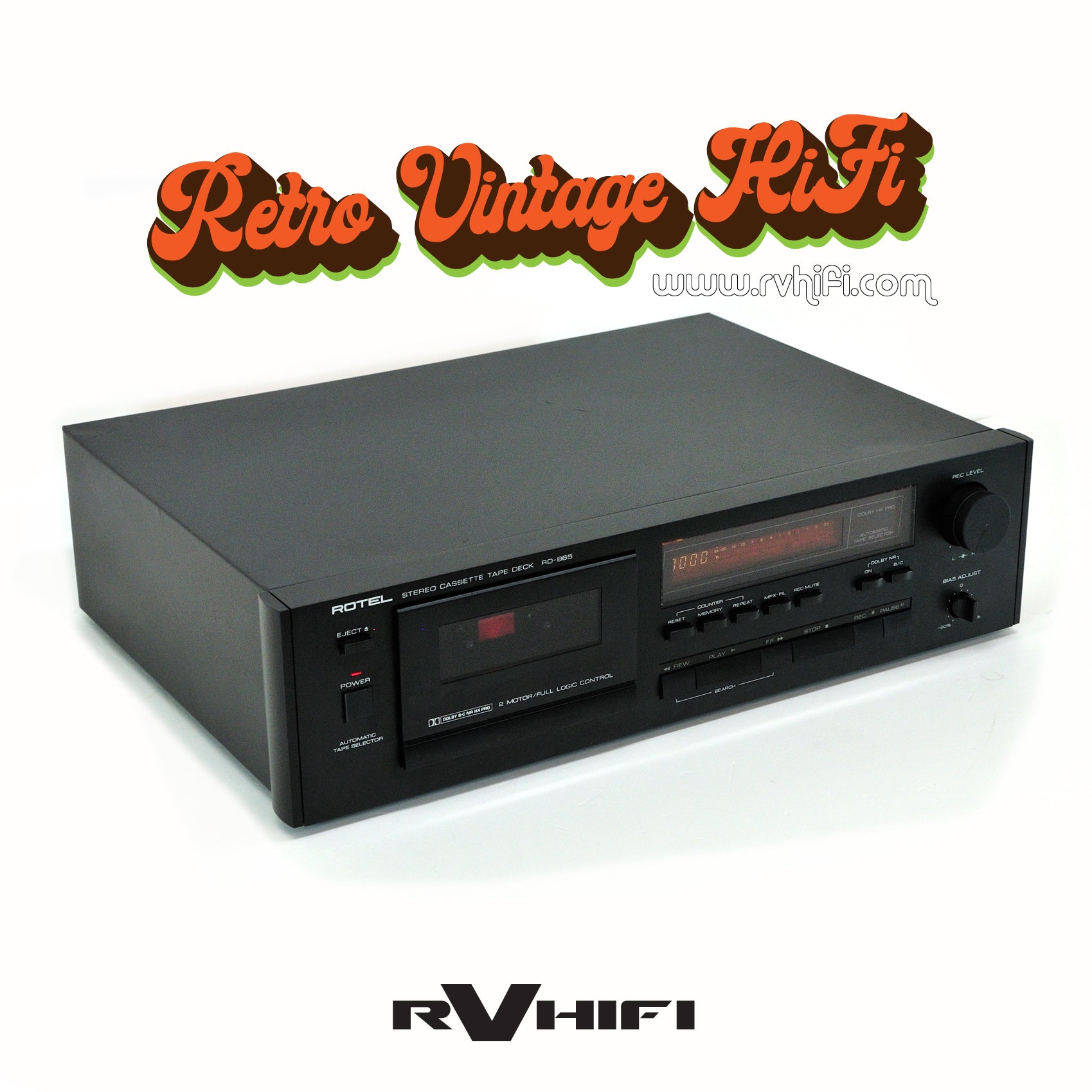

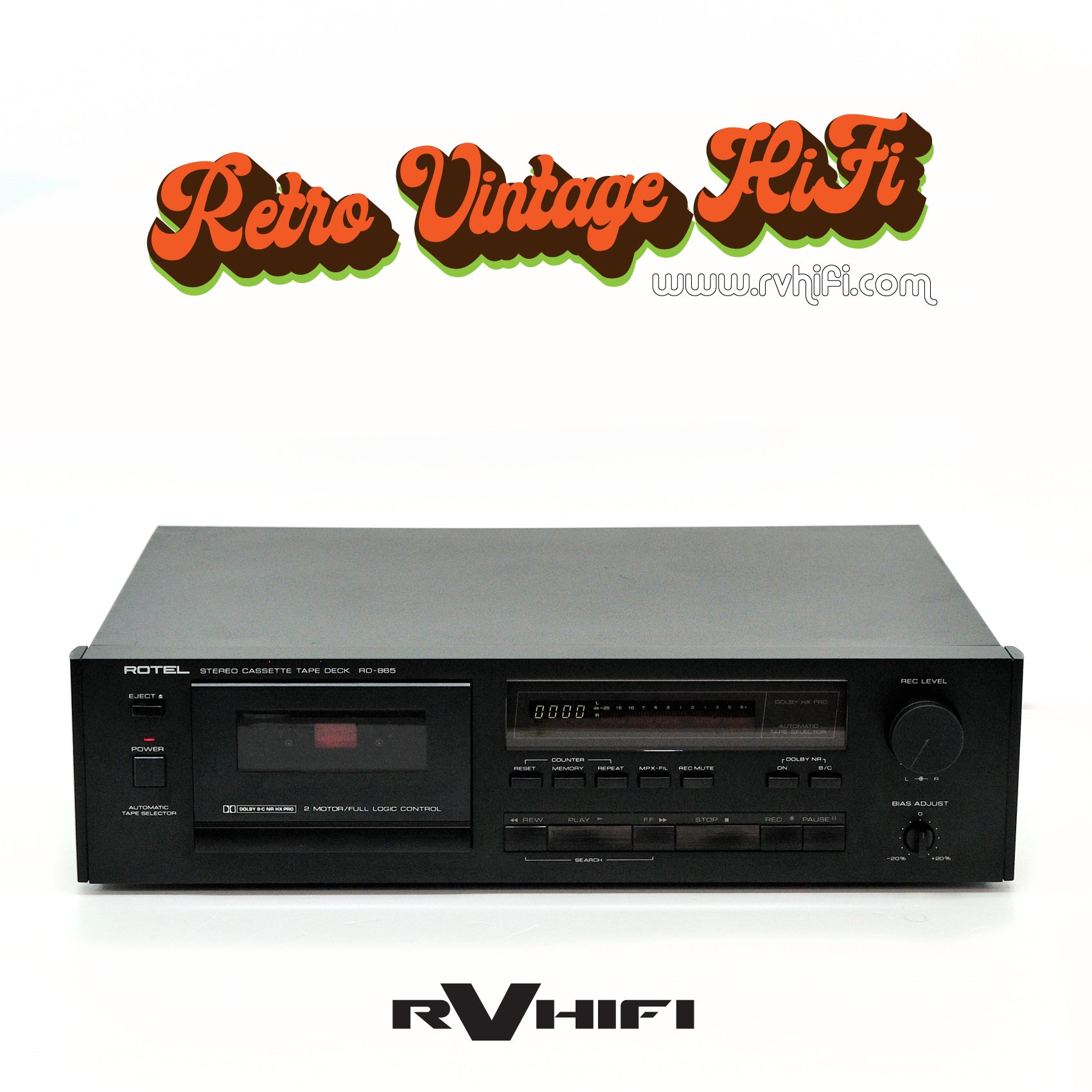

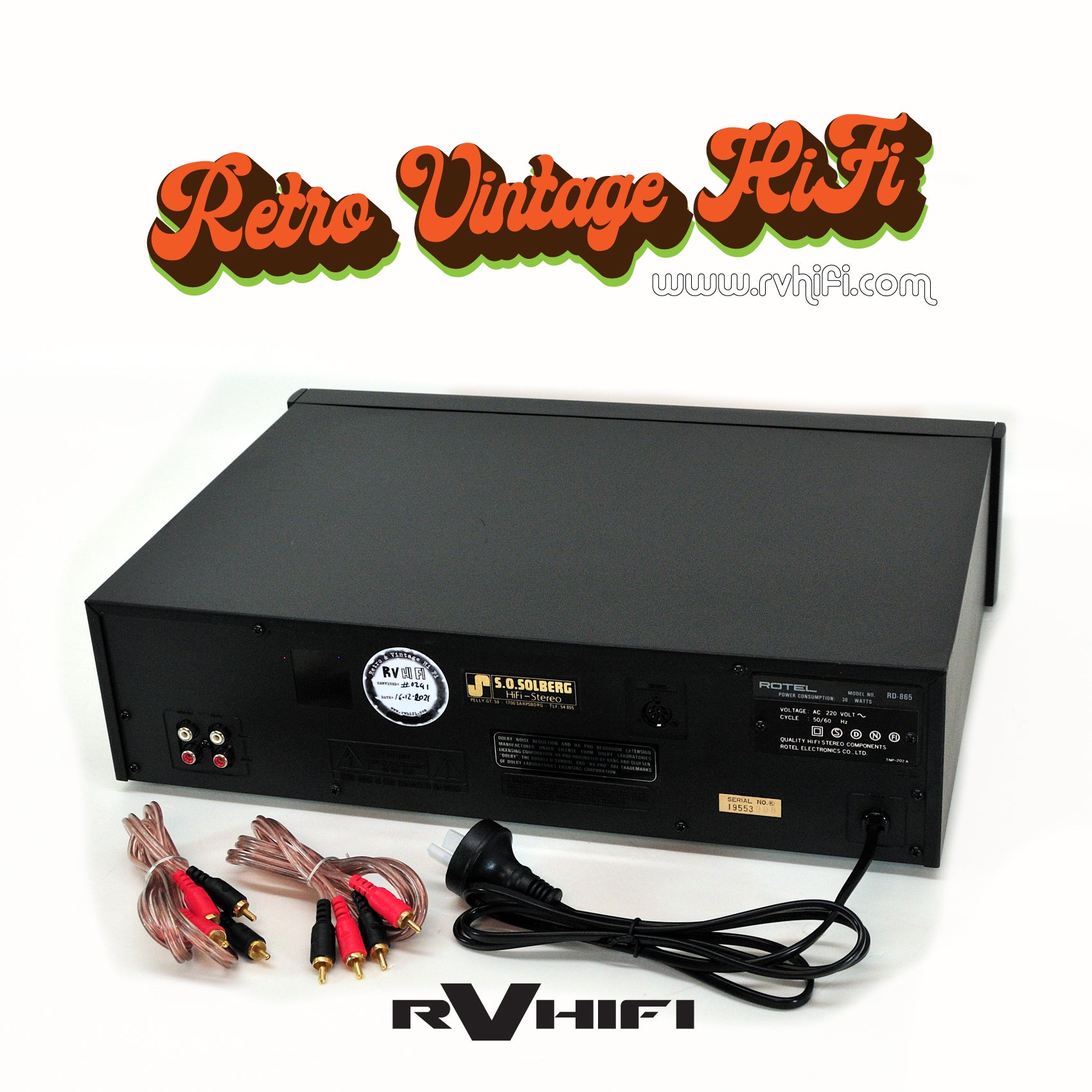

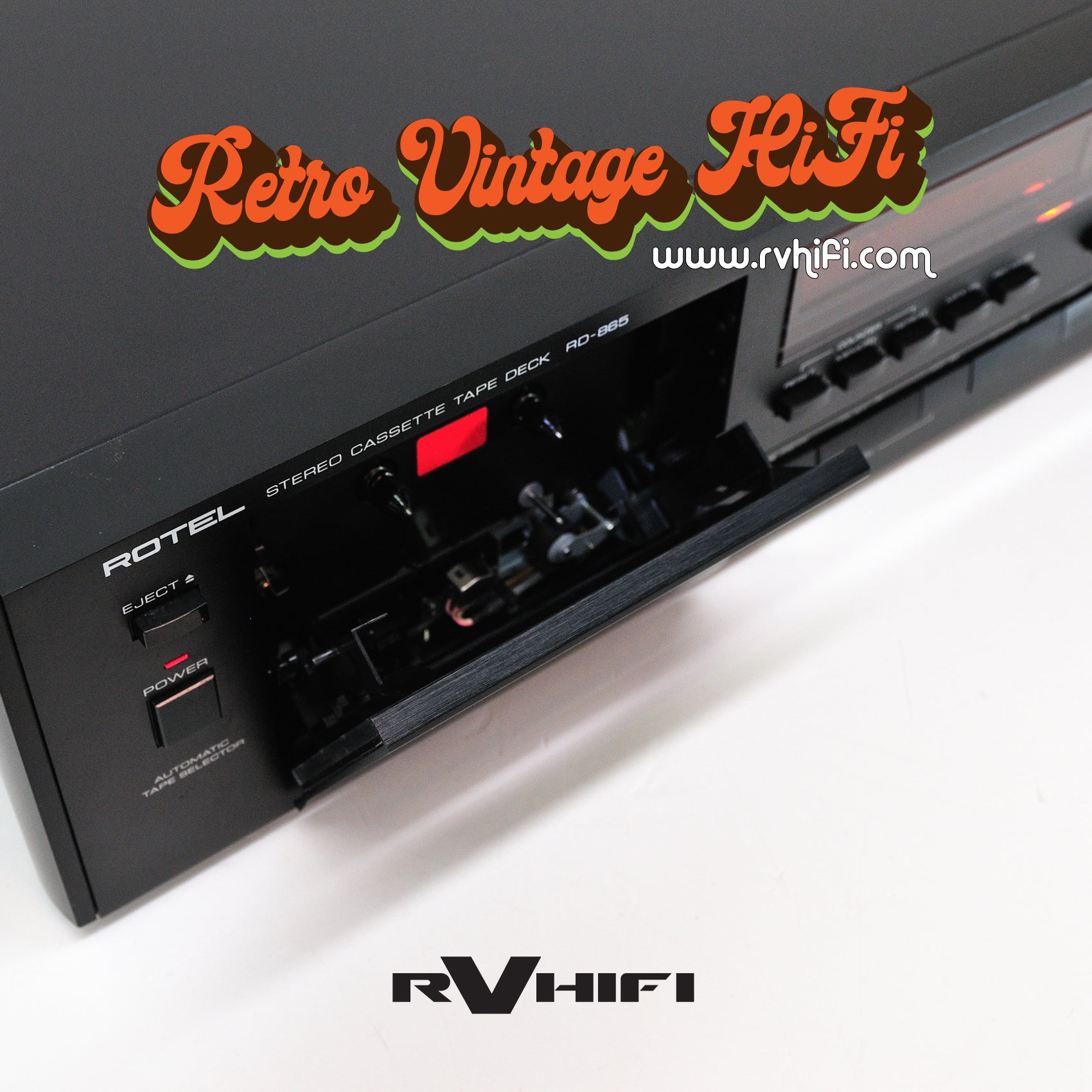

Rotel RD-865 Cassette Deck

Rotel RD-865 Cassette Deck

Specifications

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronic DC governor
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 30Hz to 18kHz  (Metal tape)
Signal to Noise Ratio: 72dB  (dolby C)
Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.0%
Input: 50mV (line)
Output: 0.77V (line)
Dimensions: 444 x 115 x 325mm
Weight: 5.6kg
Year: 1989

Serial No. 19553908

Description of Works

The following tasks and parts have either been repaired or replaced:
New belts
Cassette mechanism stripped down, old grease removed, new synthetic lubricant
Washed and cleaned chassis
Cleaned and polished all alloy parts, fascia and knobs
Serviced, de-magnetized & calibrated tape heads and all mechanical moving parts
Tested in excess of 2 hours.

Warranty 3 months.

RV HIFI Says:
Rotel RD-865 stereo cassette deck from the late 1980's. This 2 head / 2 motor unit reproduces and records exceptionally well and rivals many other decks.
