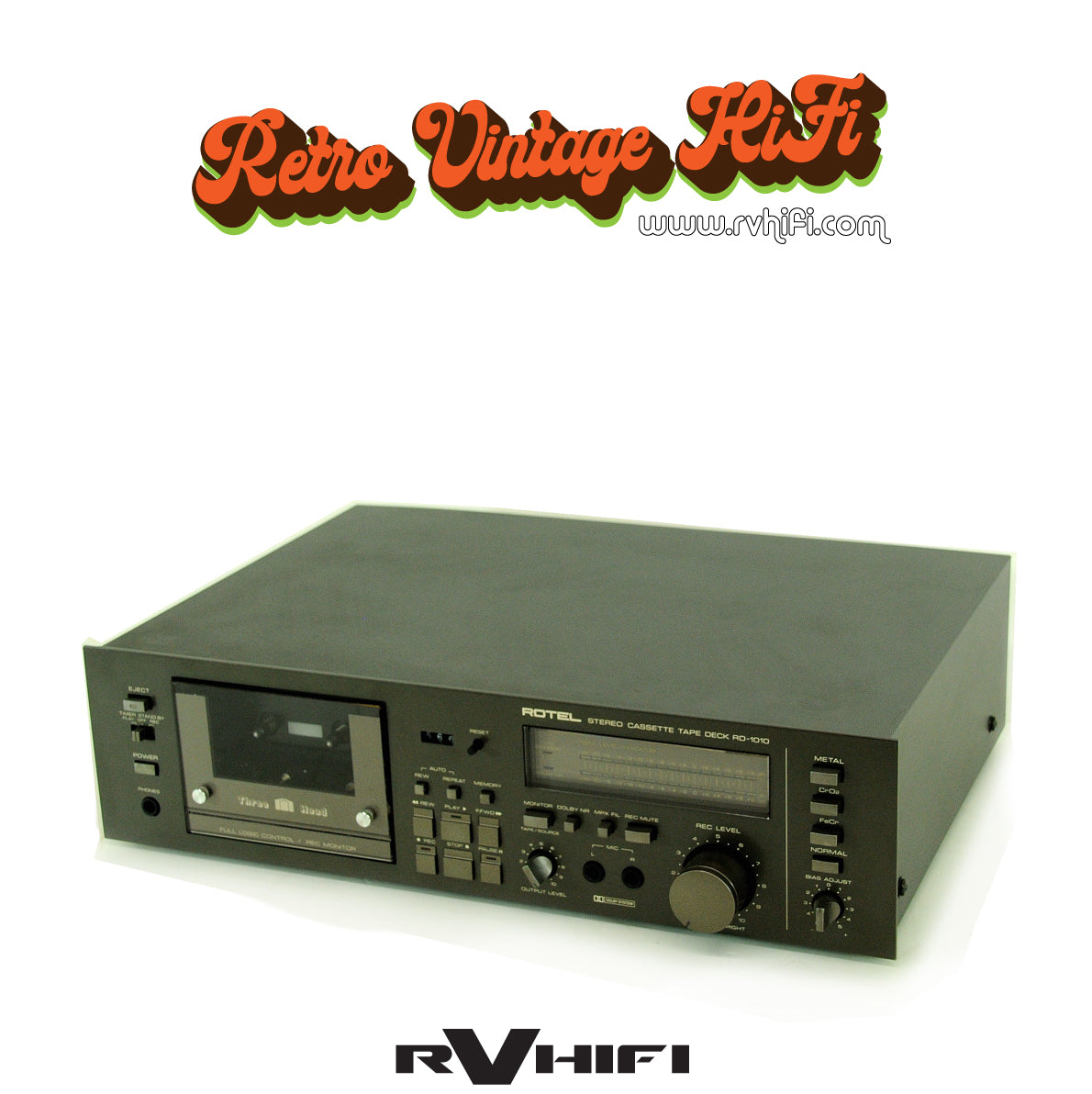

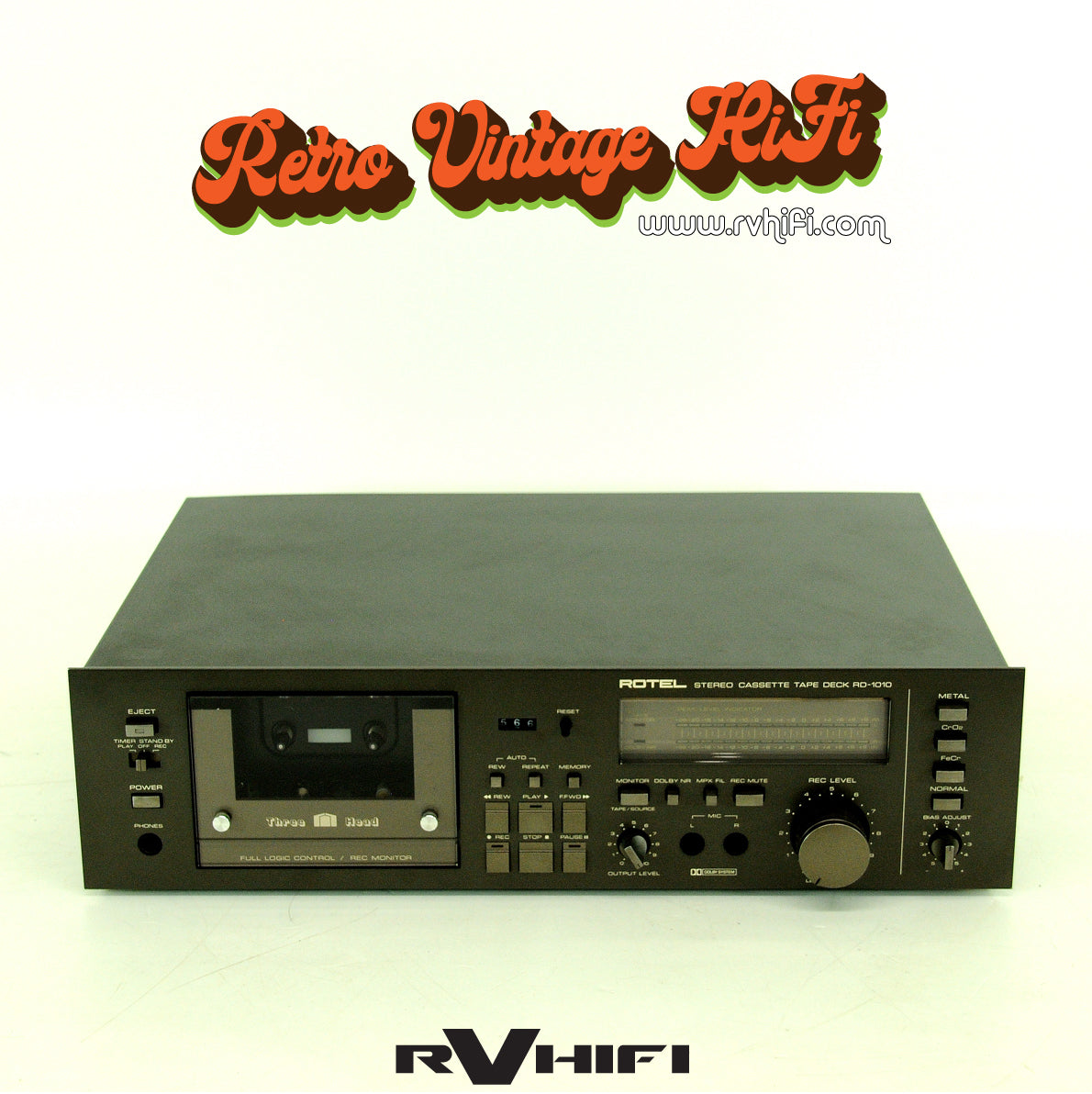

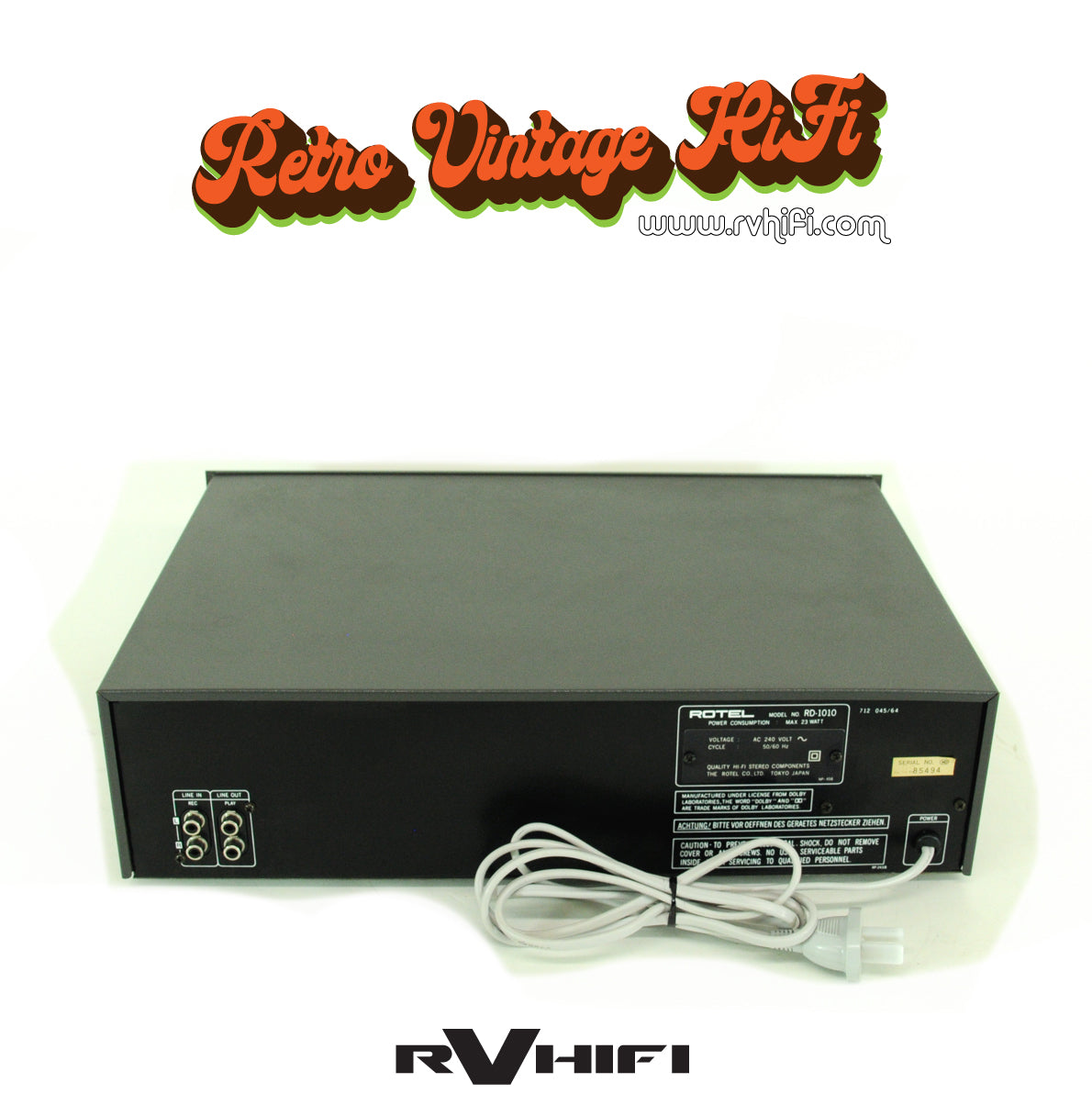

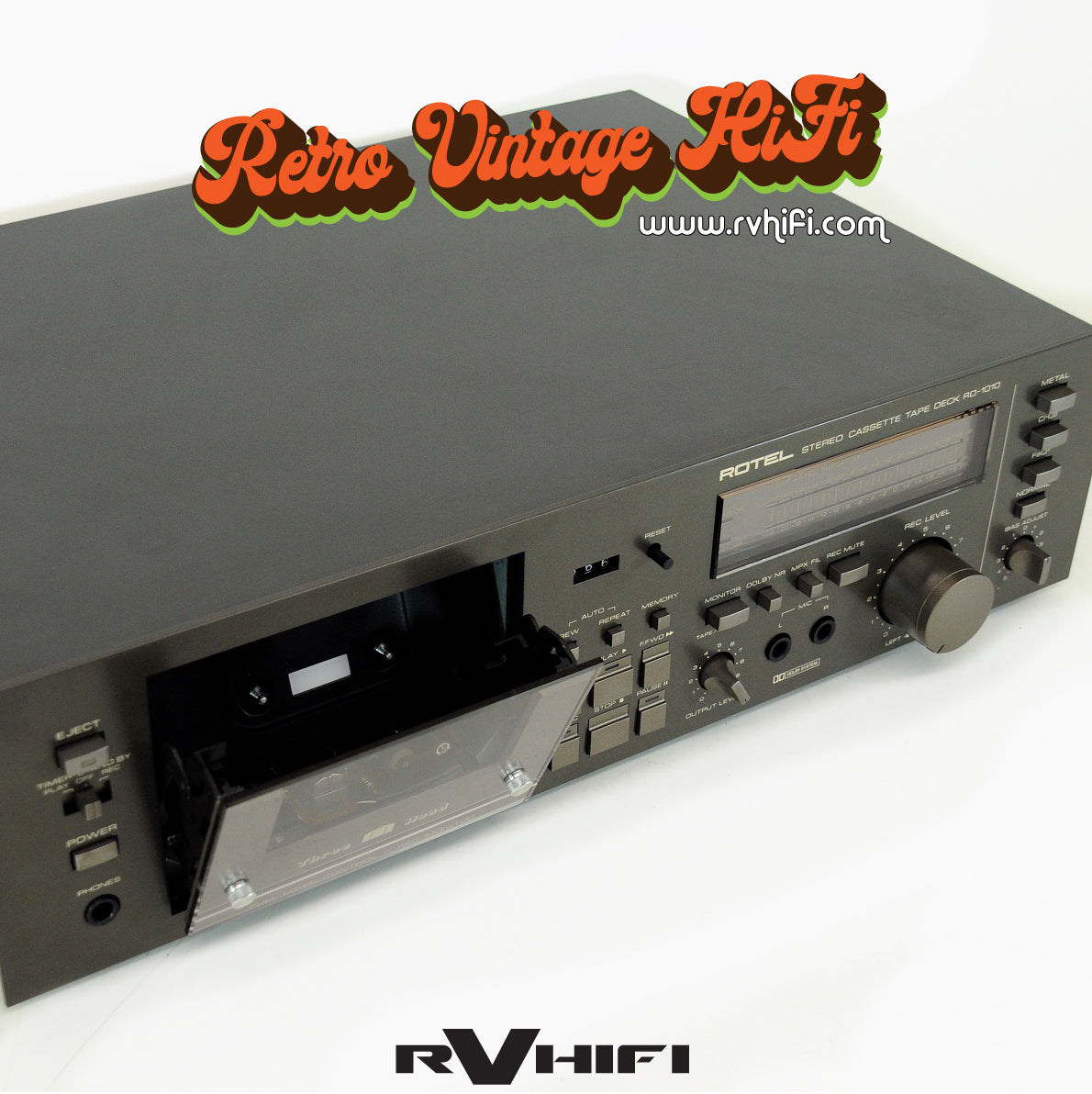

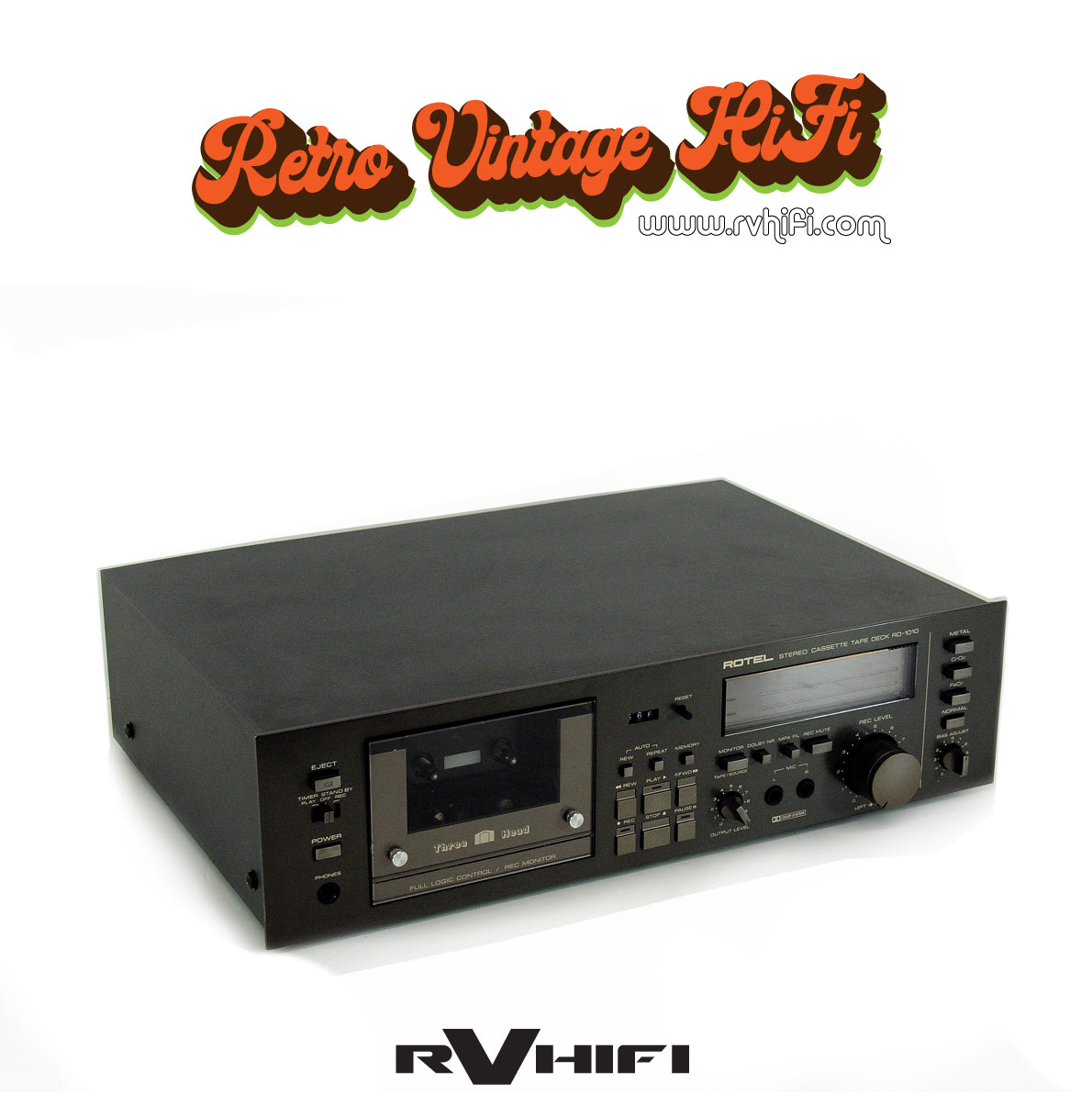

Rotel RD-1010 Stereo Cassette Deck

The Rotel RD-1010 is a stereo cassette deck with 3 heads, combining solid performance with a reliable build quality. This product, from the renowned brand Rotel known for its high-fidelity audio equipment, aims to provide a top-notch listening experience while also offering user-friendly controls and features.

Specifications:
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: electronic governor DC
Tape Type: type I, FeCr, CrO2, Metal
Noise Reduction: B
Frequency Response: 30Hz to 19kHz  (Metal tape)
Signal to Noise Ratio: 64dB  (dolby B)
Wow and Flutter: 0.045%
Total Harmonic Distortion: 0.5%
Input: 30mV (line), 0.3mV (mic)
Output: 0.58V (line)
Dimensions: 430 x 115 x 294mm
Weight: 6.2kg
Year: 1981
Serial No: 22285494

Description of Works:
Dismantled mechanism, remove old grease, applied new synthetic lubricant.
Replaced Belts, Idler tyres in cassette mechanism.
Replaced Pinch Roller.
Washed and DeoxIT all potentiometers.
Dismantled, cleaned and DeoxIT all switches.
Inspect and re-soldered all PCB's for dry joins.
Calibrated all settings.
Cleaned, demagnetized and adjusted tape heads.
Cleaned and detailed exteriors

Warranty: 3 months.

RV HIFI Says:
The Rotel RD-1010 is a remarkable cassette deck that combines top-notch audio quality with easy-to-use features. With its three-head design, sturdy construction, and options such as Dolby noise reduction, DBX and adjustable bias control, it's a fantastic choice for anyone who loves listening to tapes or wants to preserve their cassette collection. Whether you're a casual listener or an audiophile, the RD-1010 is an ideal pick for experiencing the world of analog audio.
