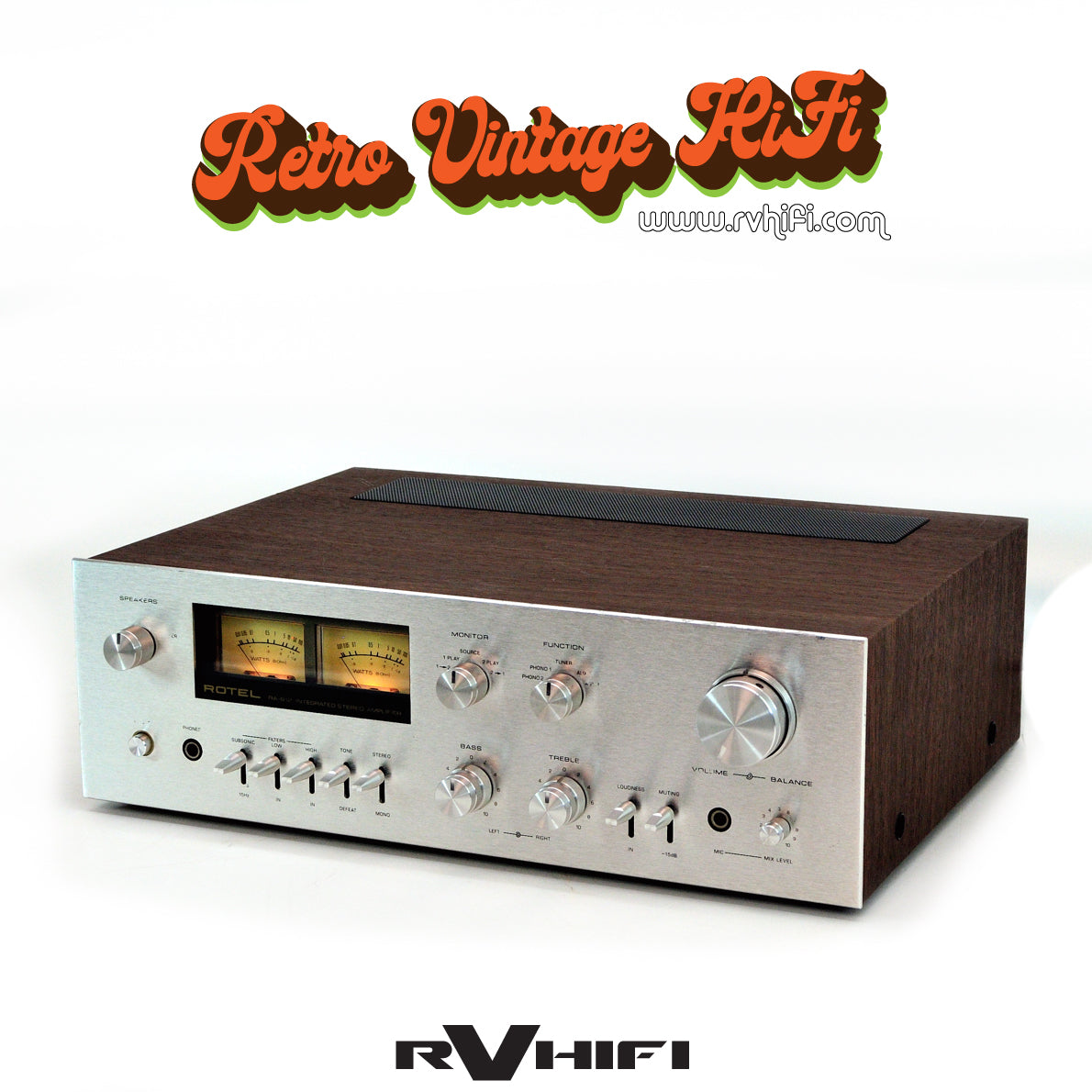

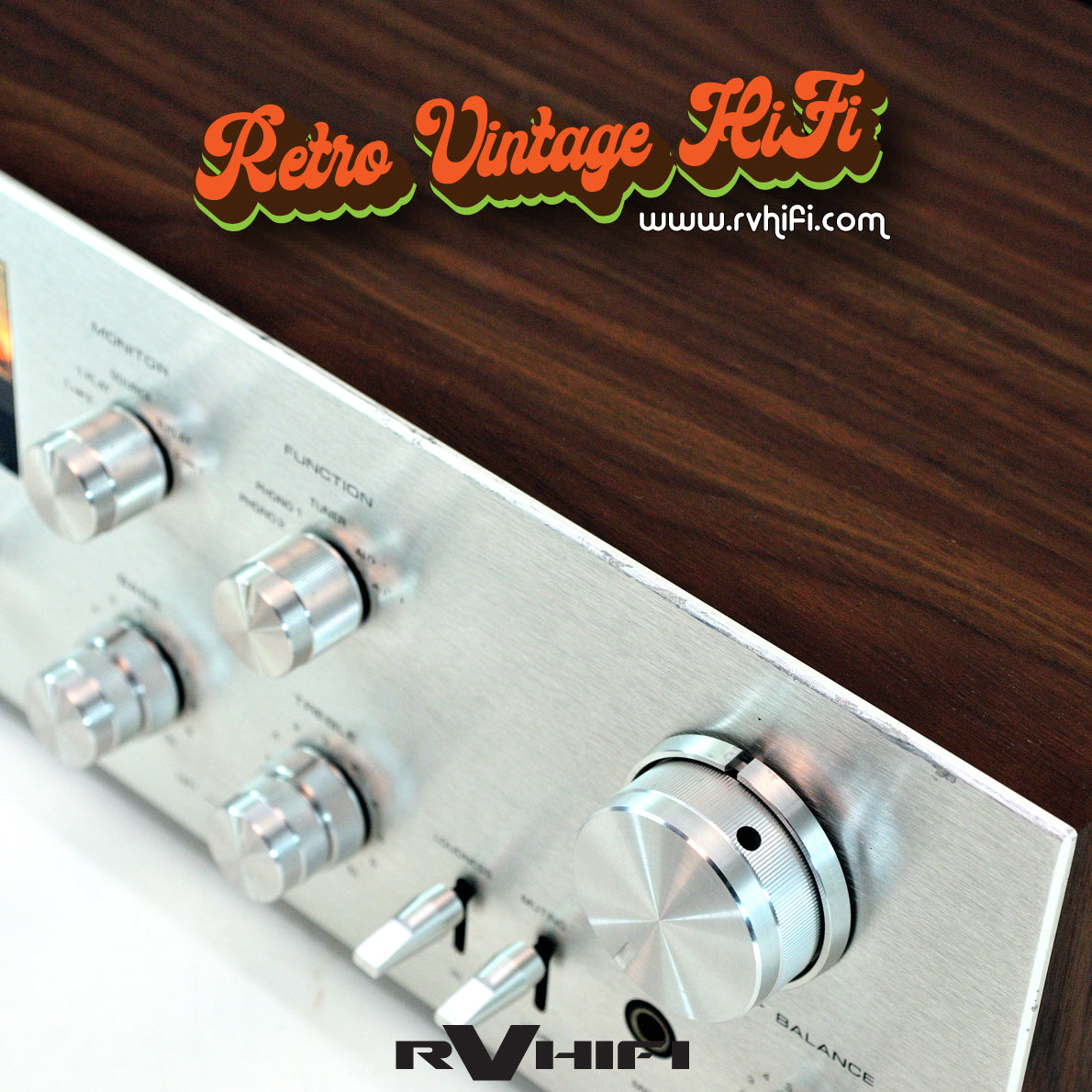

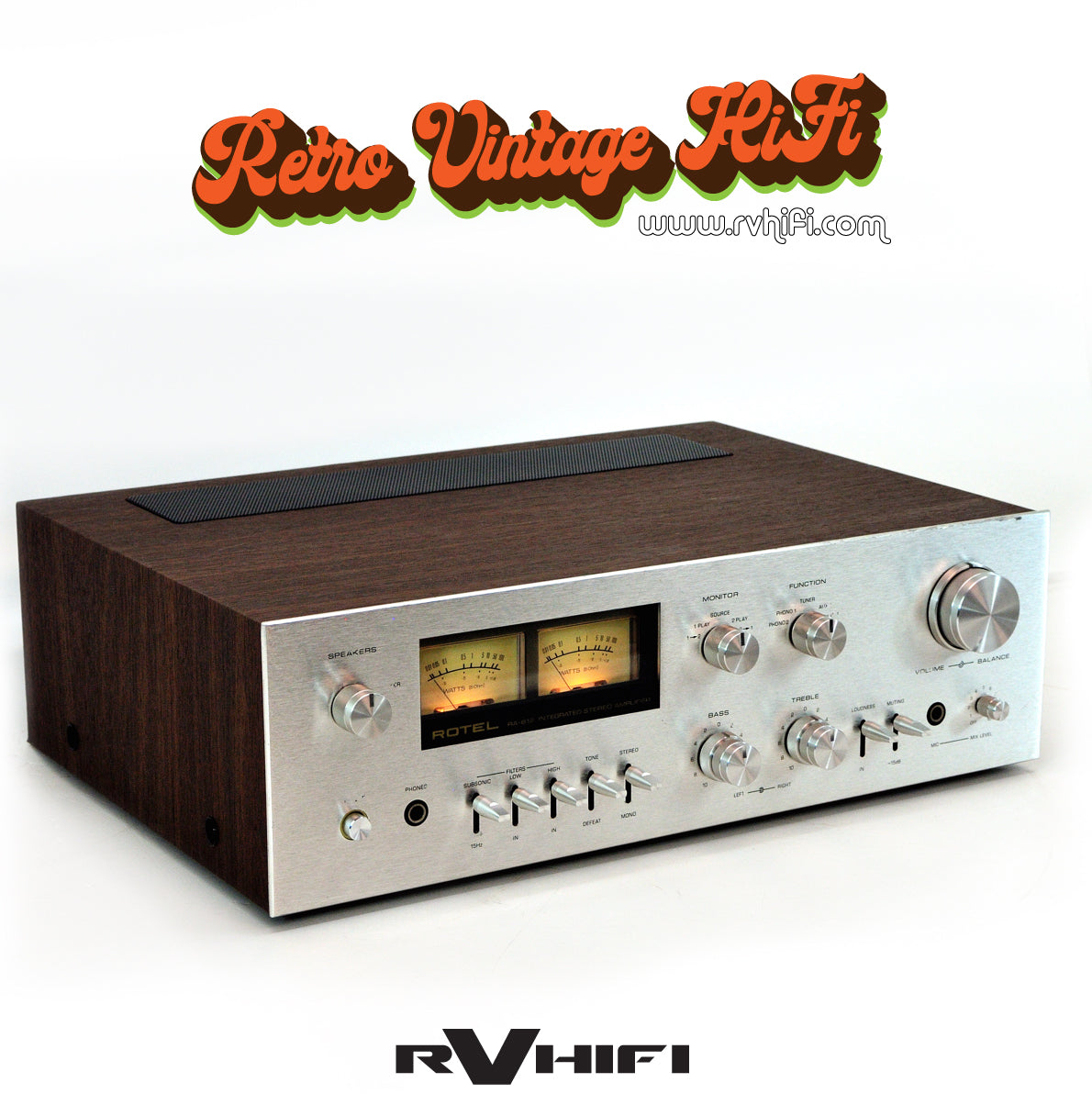

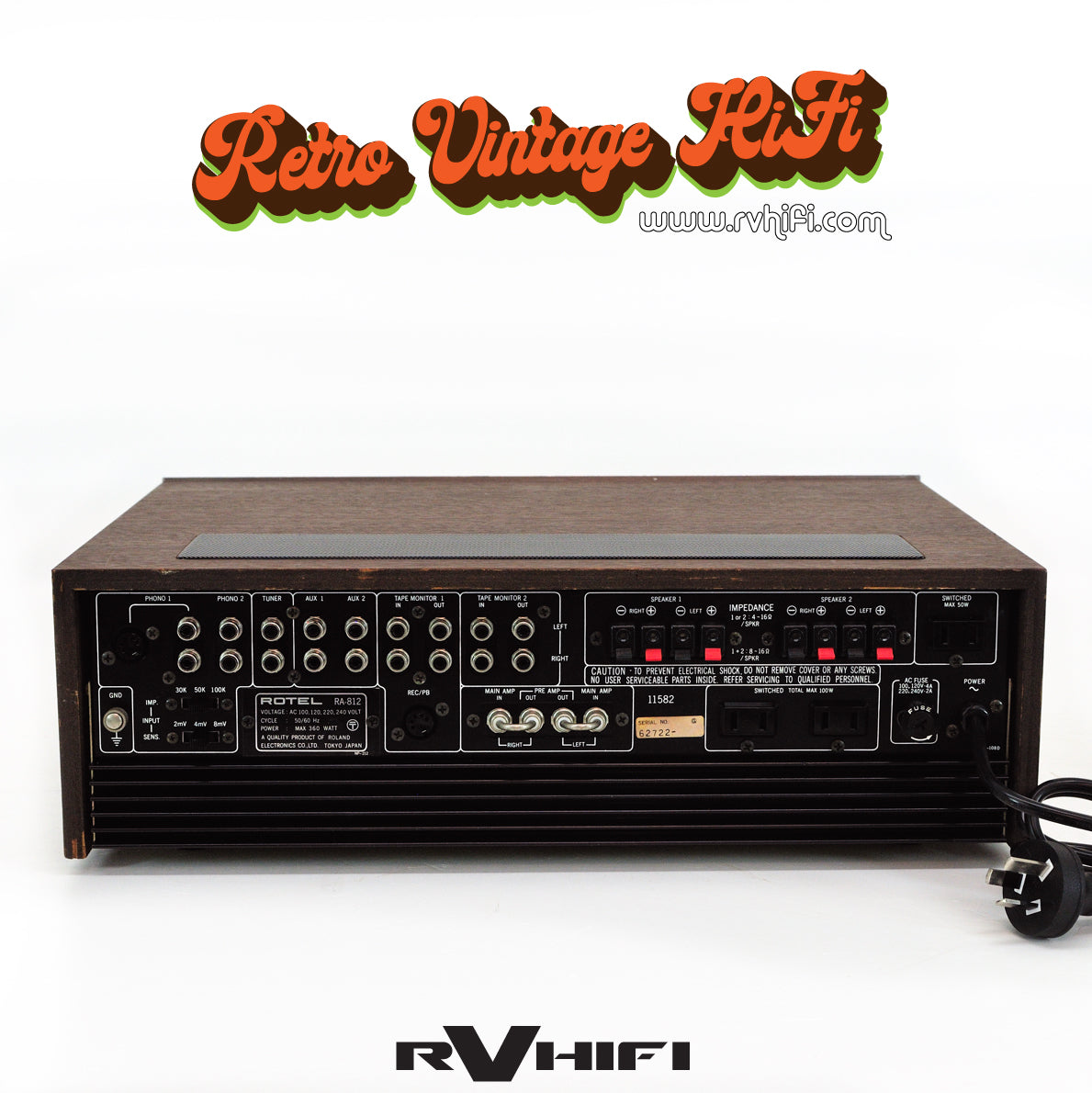

RA-812 Specifications:
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response:Â 5Hz to 50kHz
Total harmonic distortion:Â 0.3%
Damping factor:Â 50
Input sensitivity:Â 3mV (mic), 2mV (MM), 120mV (line)
Signal to noise ratio:Â 75dB (MM), 95dB (line)
Output:Â 270mV (line), 60mV (DIN), 0.9V (Pre out)
Dimensions:Â W430 x H140 x D330mm
Weight:Â 11kg
Year:1976
Serial No: 62722

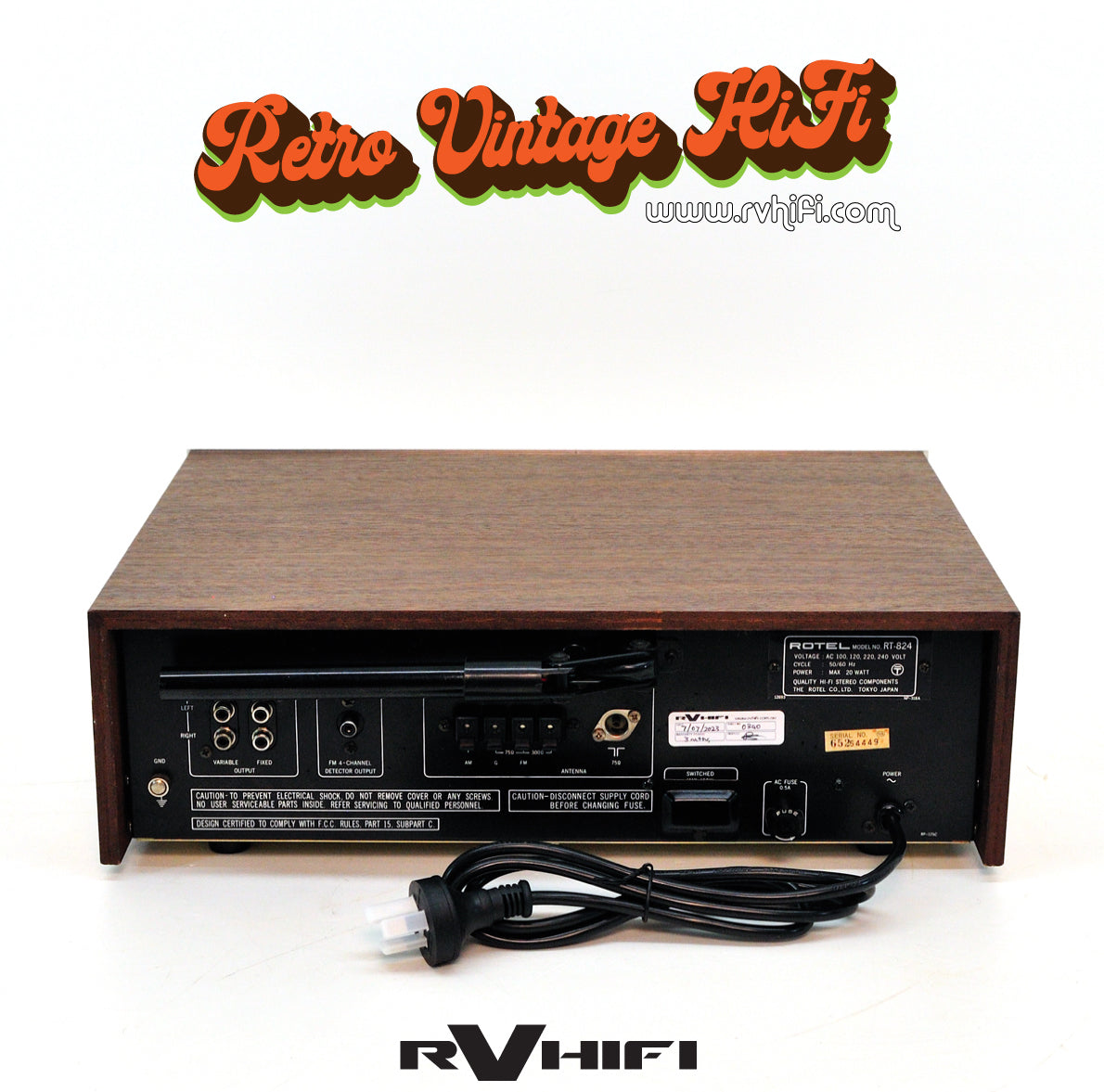

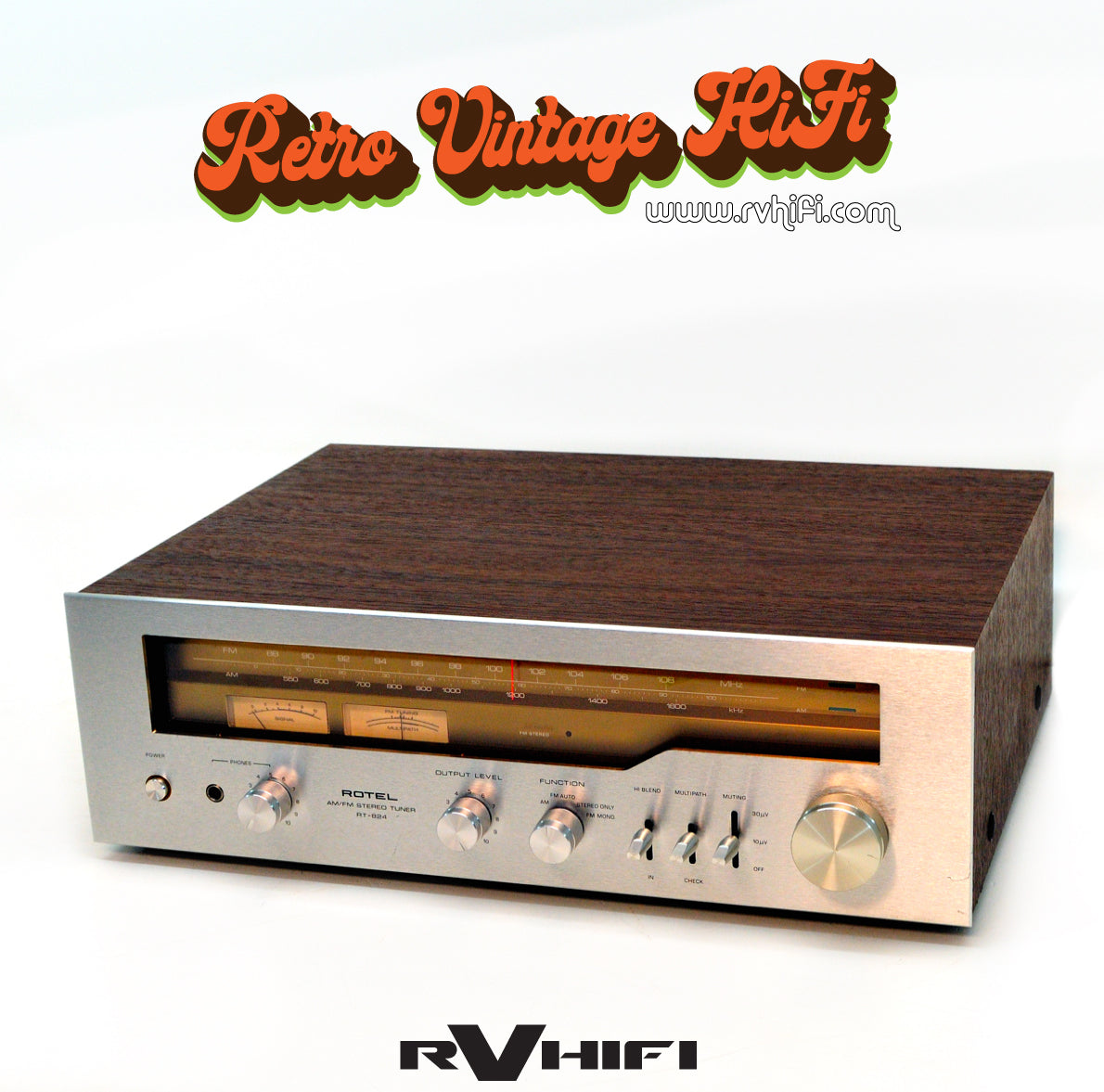

RT-824 Specifications:
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
Sensitivity: 1.6uV (FM), 150uV (MW)
Signal to Noise Ratio: 70dB (FM), 55dB (MW)
Distortion: 0.4% (FM)
Selectivity: 80dB (FM), 40dB (MW)
Output: 775mV (FM)
Dimensions: 430 x 140 x 330mm
Weight: 9kg
Year:1976
Serial No: 65254449
Description of Works:
Replaced all electrolytic capacitors and several low signal transitors in RA-812.
Replaced all electrolytic capacitors in RT-824 powersupply.
Replaced all illumination lamps in RT-824.
Dismantled, cleaned & deoxit potentiometers and switches.
Adjust bias and DC offset.
New illumination globes in VU meters.
Cleaned & detailed units.
New 240vac power leads.
Also includes: New RCA leads and FM antenna.
Warranty: 3 months.
RV HIFI says:

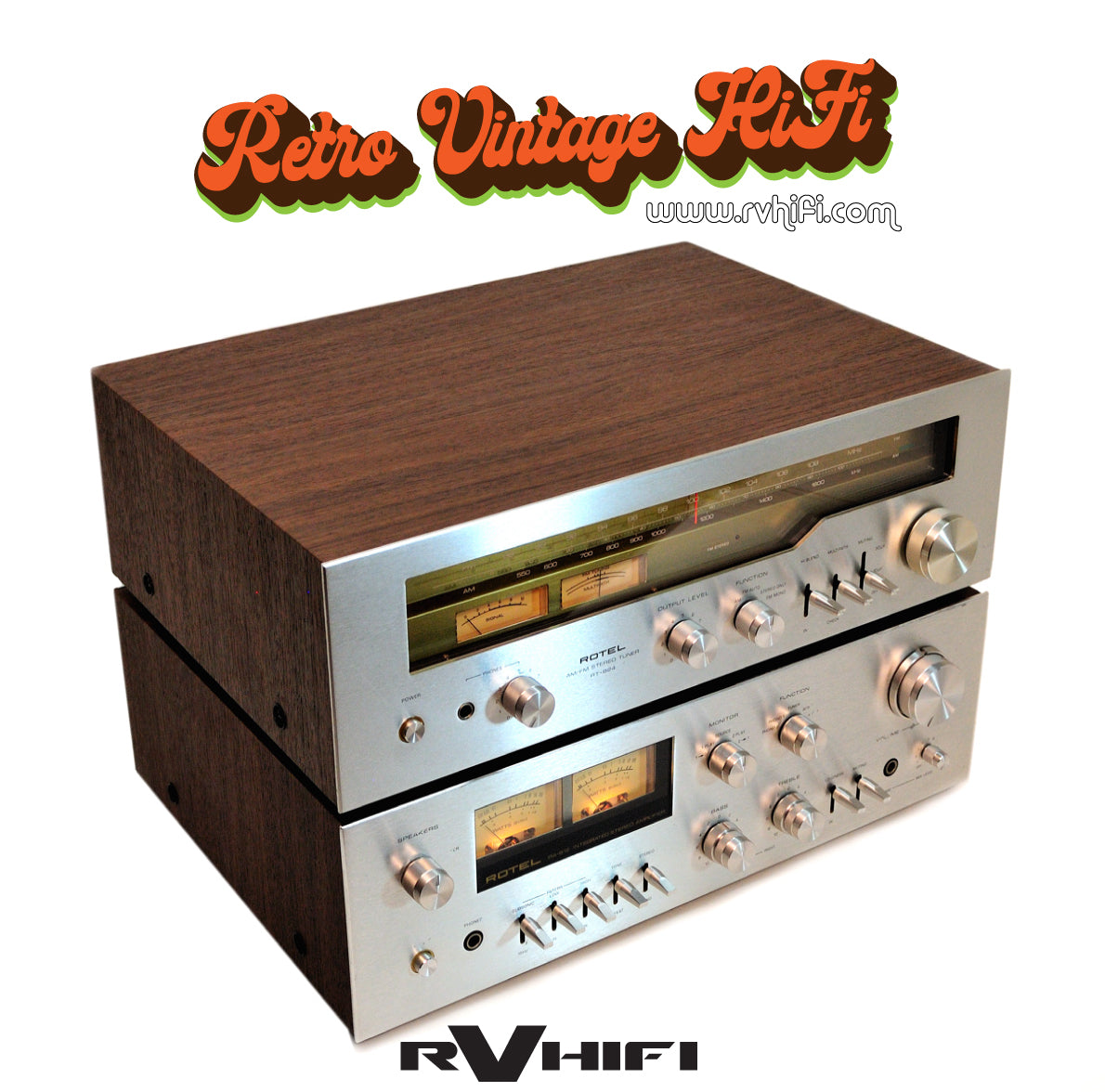

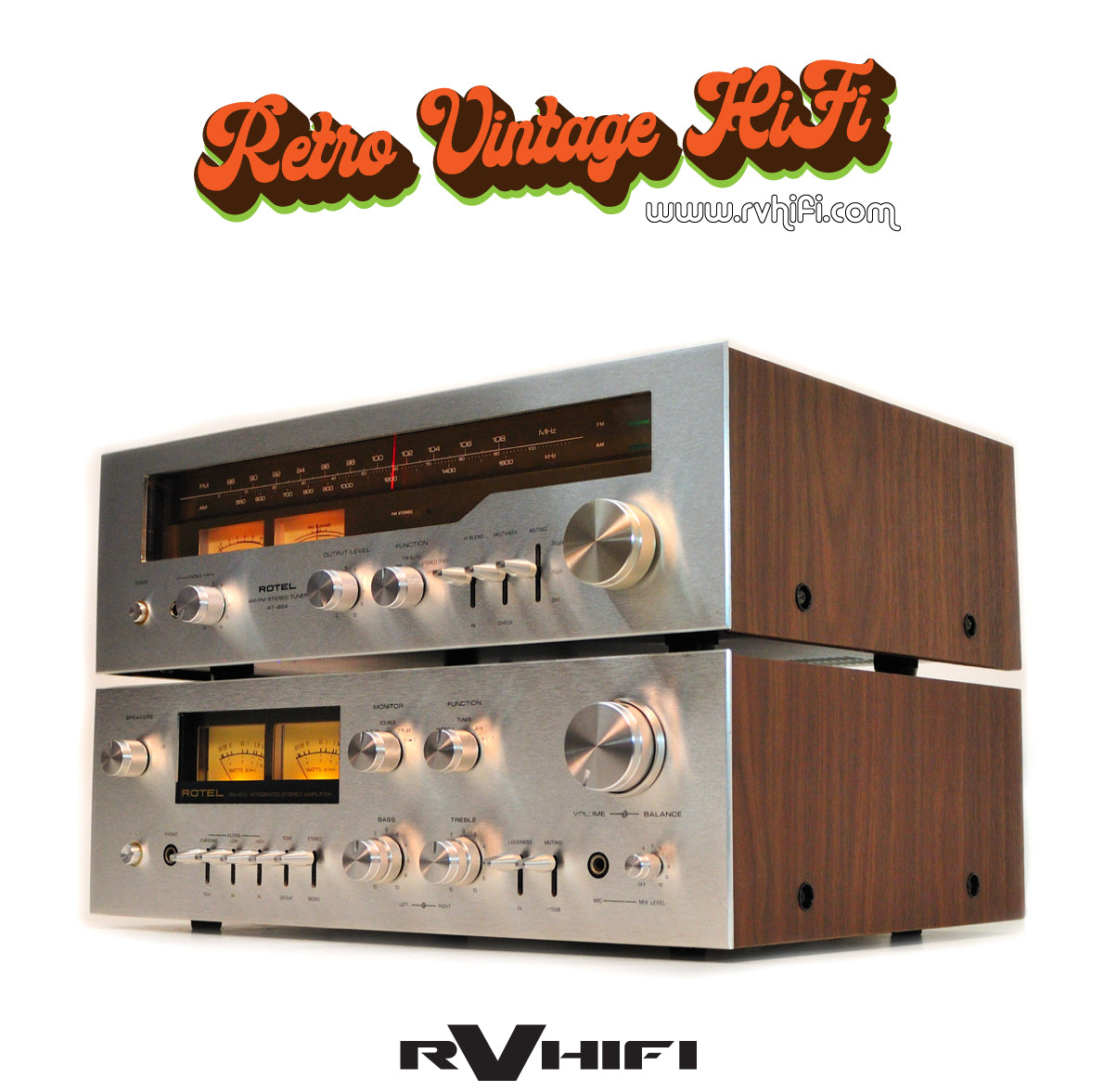

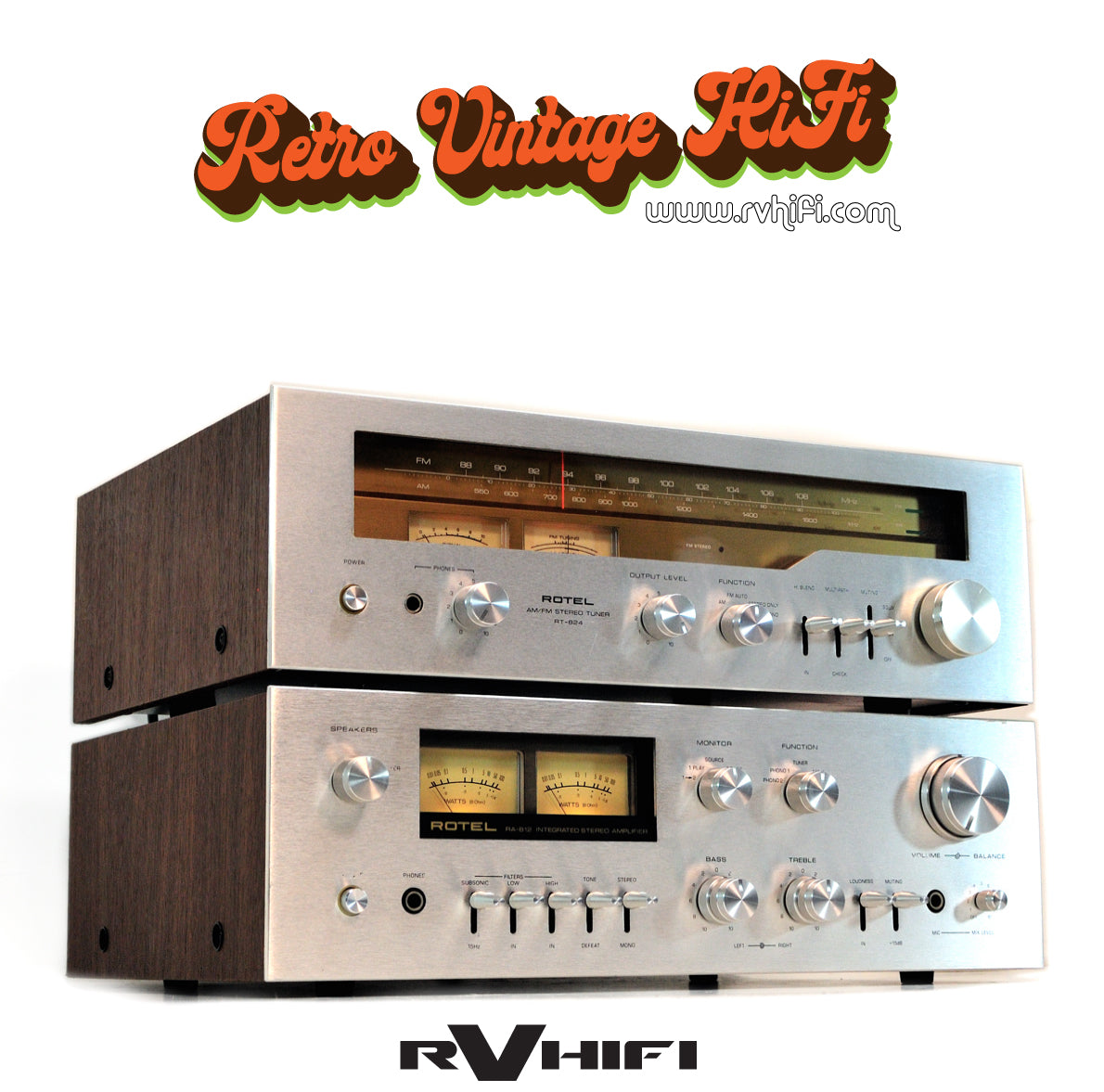

With the Rotel RA-812 / RT-824 Stereo Integrated Amplifier and Tuner, enjoy classic looks with timeless appeal. This sleek package provides robust sound performance and reliability. Its attractive design and quality construction makes it a great addition to any audio setup.
