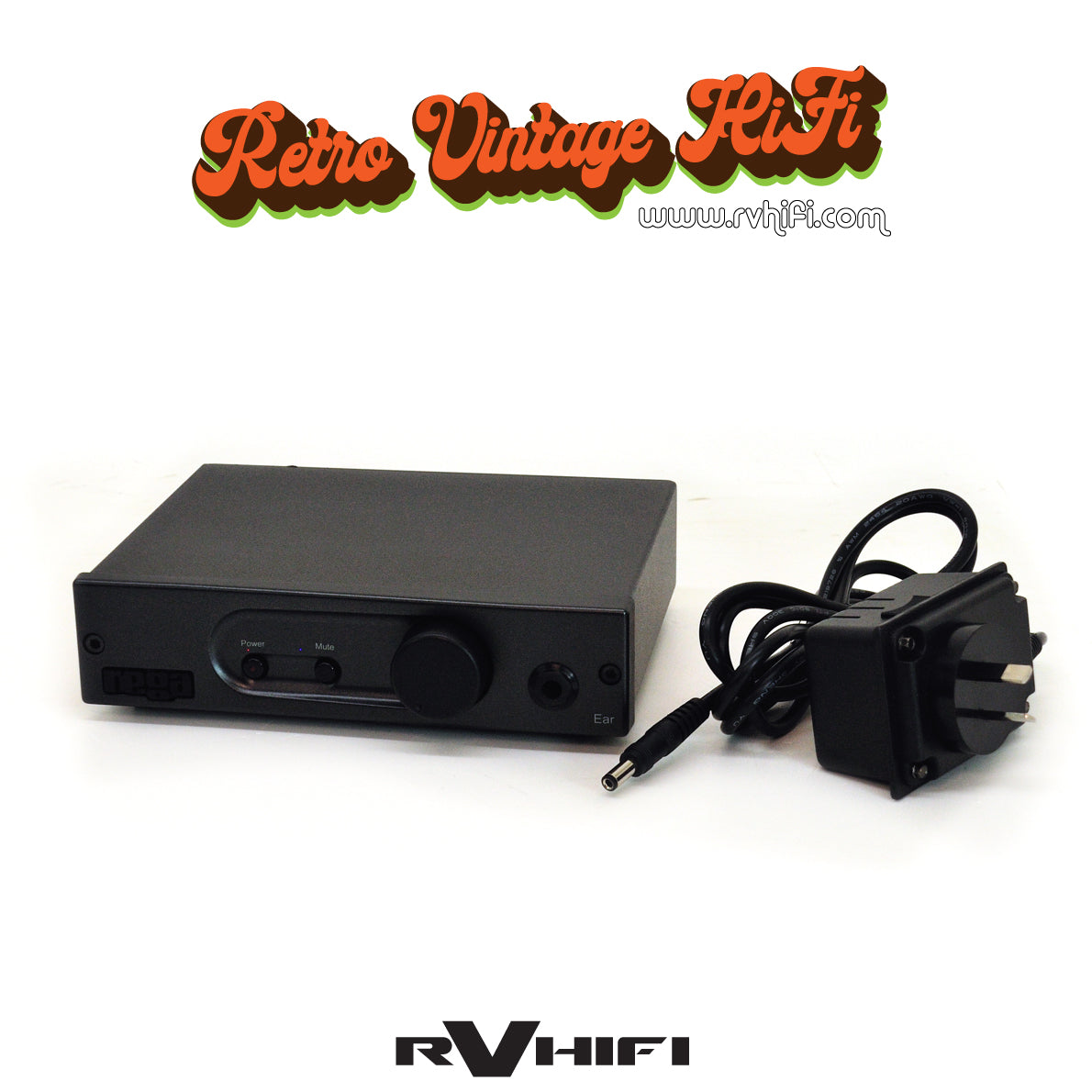

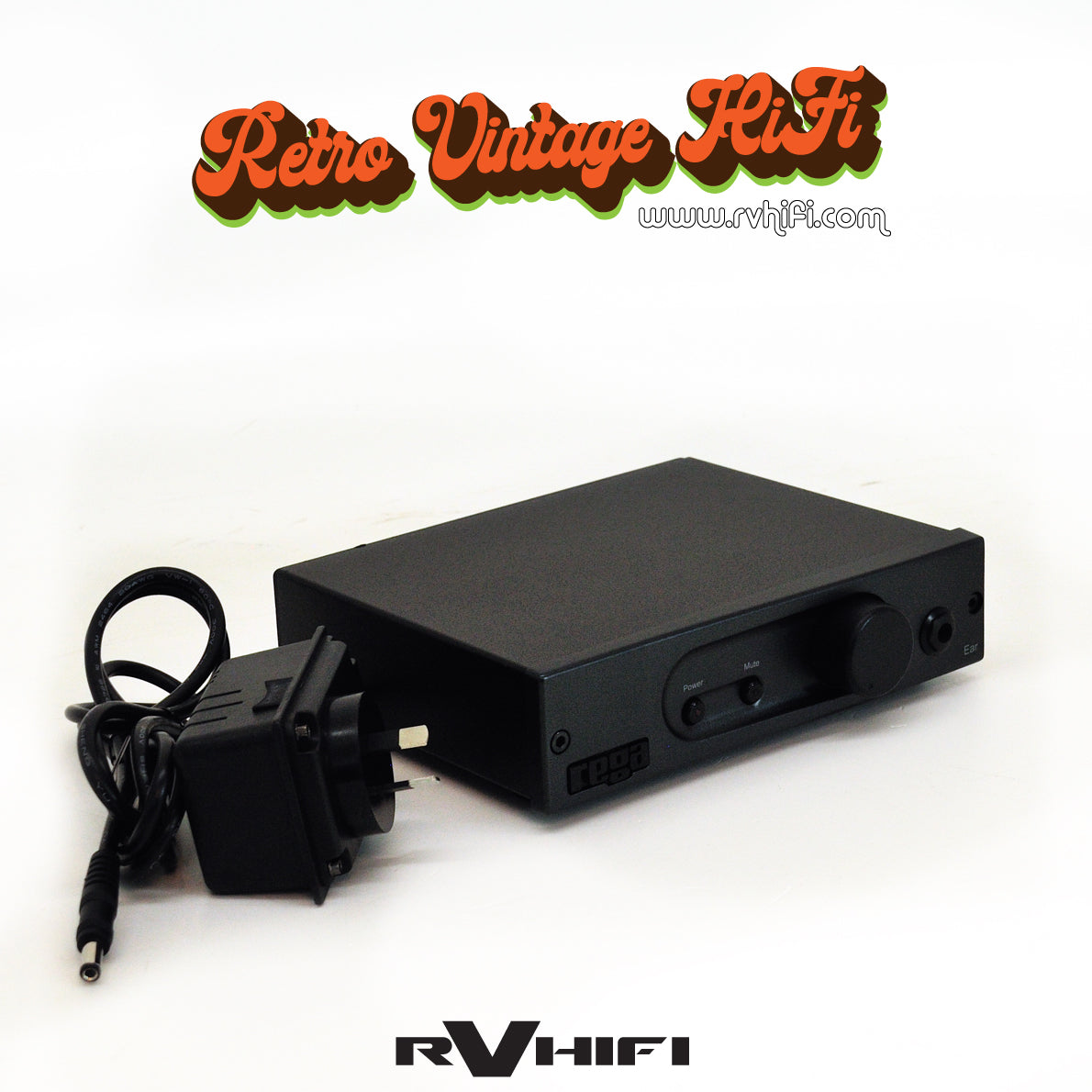

Rega Ear Headphone Amplifier

Rega Ear Headphone Amplifier

MK1

Specifications
Maximum output level into 32 ohm load: 525 mW
Input sensitivity for maximum output into 32 ohm: 331 mV
Input level for 250 mW into 32 ohm load: 230 mV
Maximum output level into 600 ohm load: 55 mW
Input sensitivity for maximum output input 600 ohm: 465mV
Input impedance: 24K ohm
Gain = 21.7dB
Power requirements = 24V AC @ 240mA
Frequency response = 20Hz to 35KHz – 1dB points
Recommended minimum load (normal operating conditions) = 32 ohm per channel
Size: H50 x L182 x D160 mm.

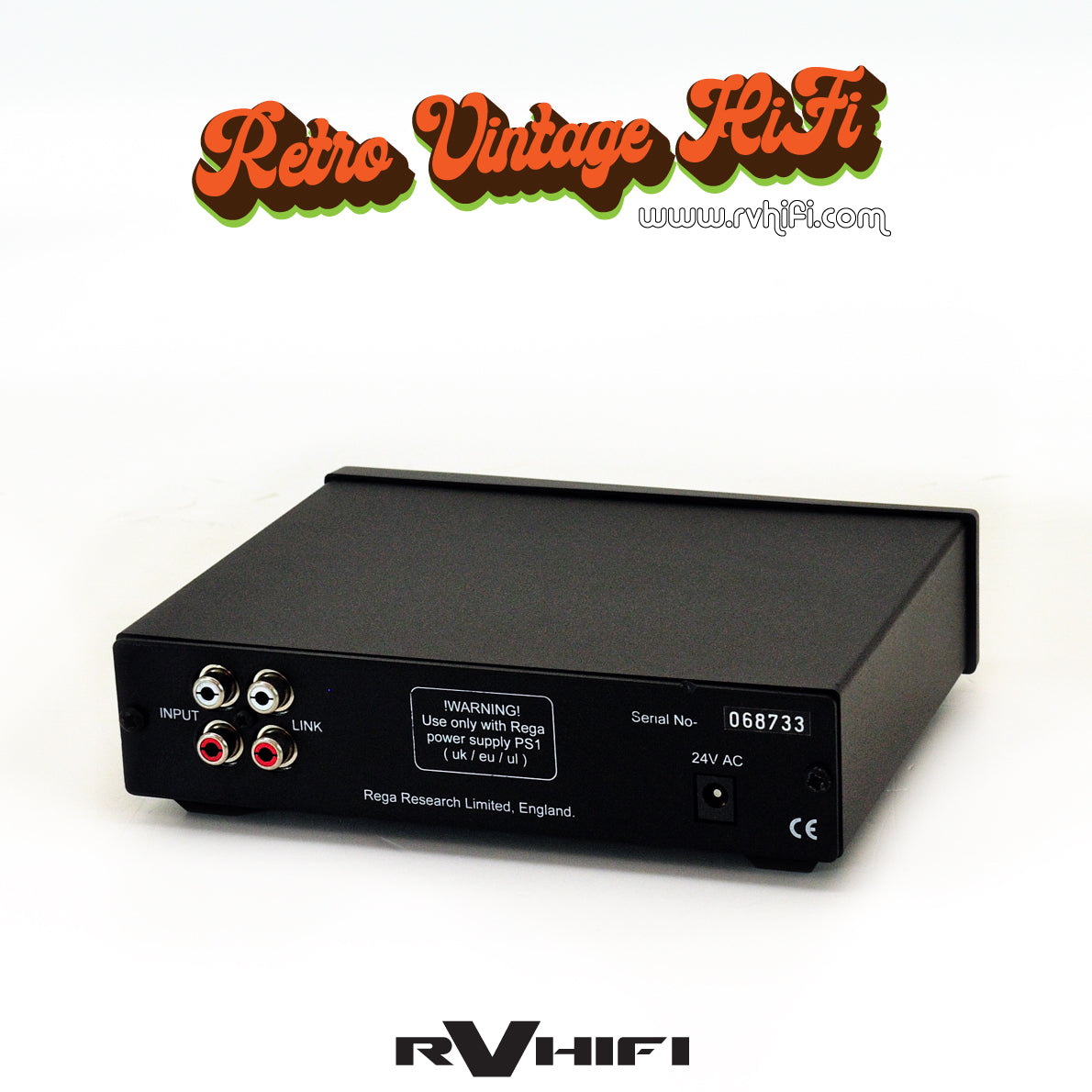

Serial No: 068733

Description of Works:
Checked and tested.
Cleaned & detailed unit.

Warranty: No warranty
