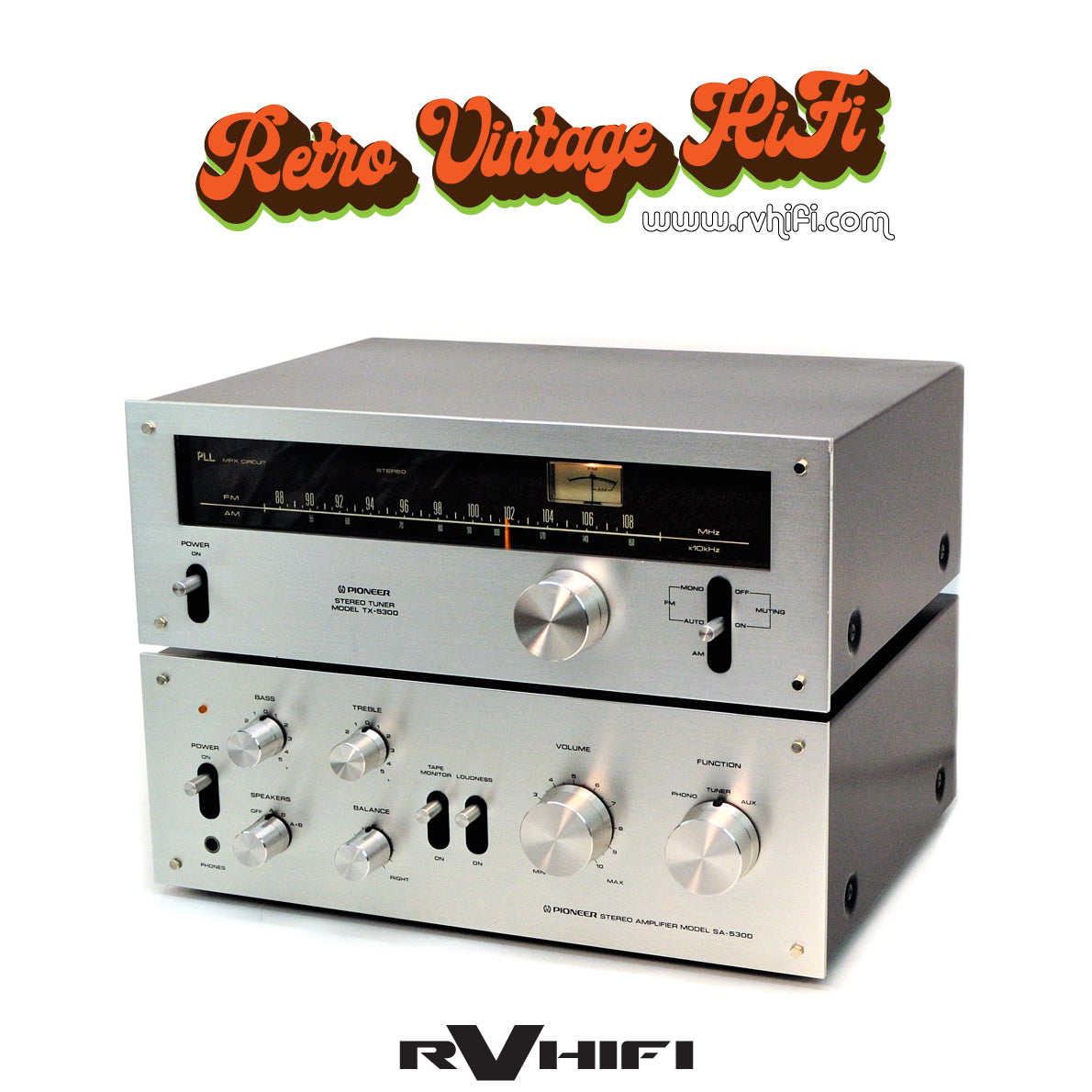

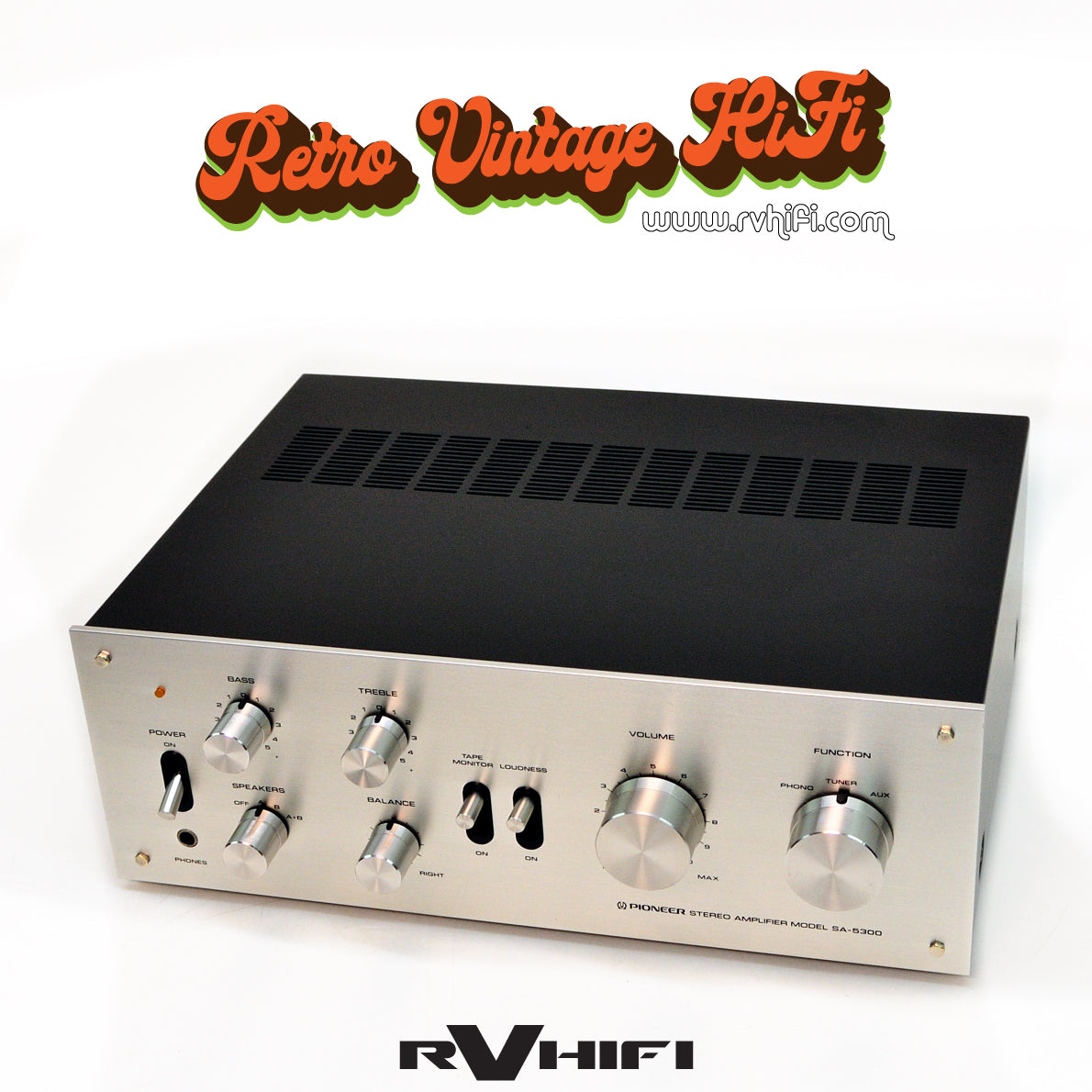

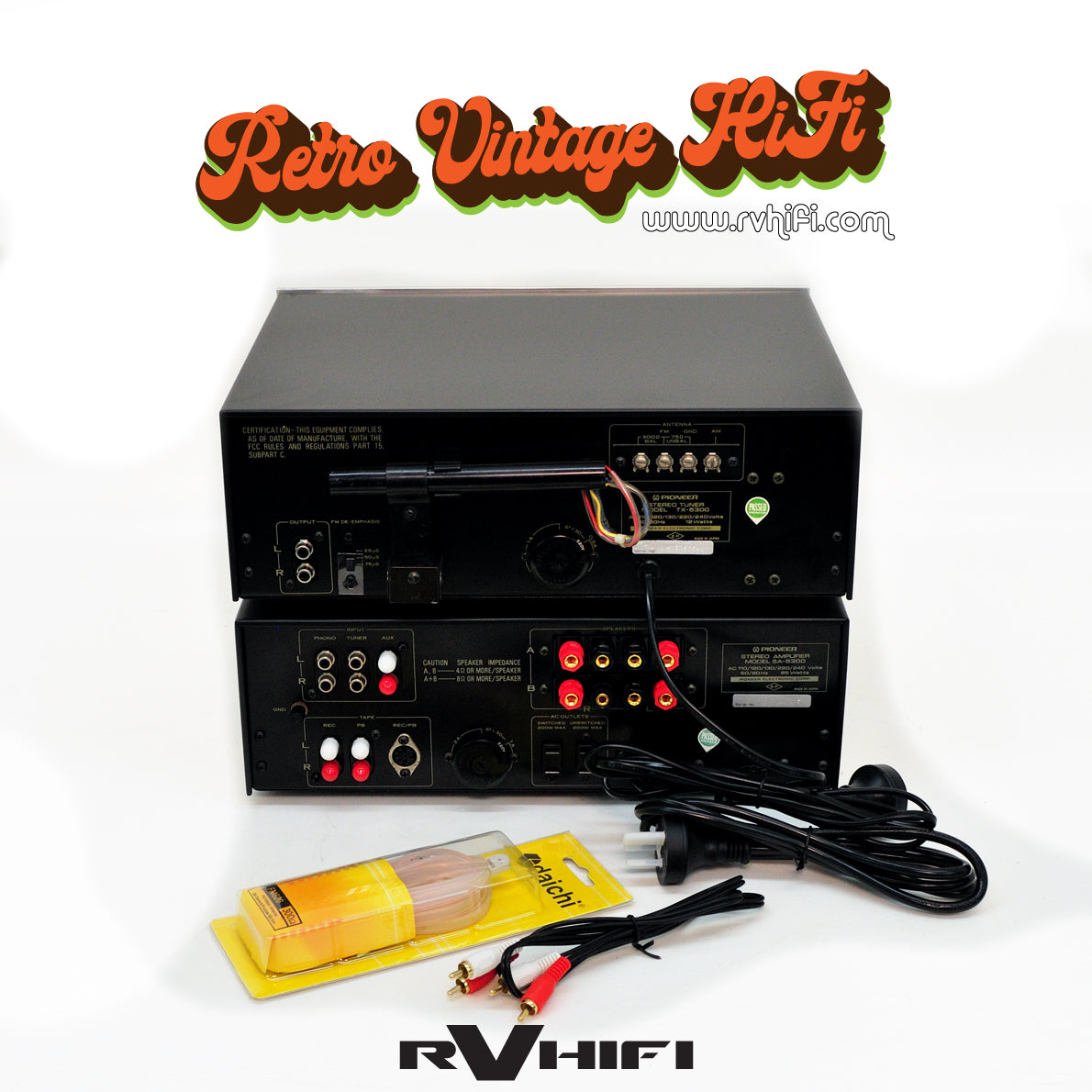

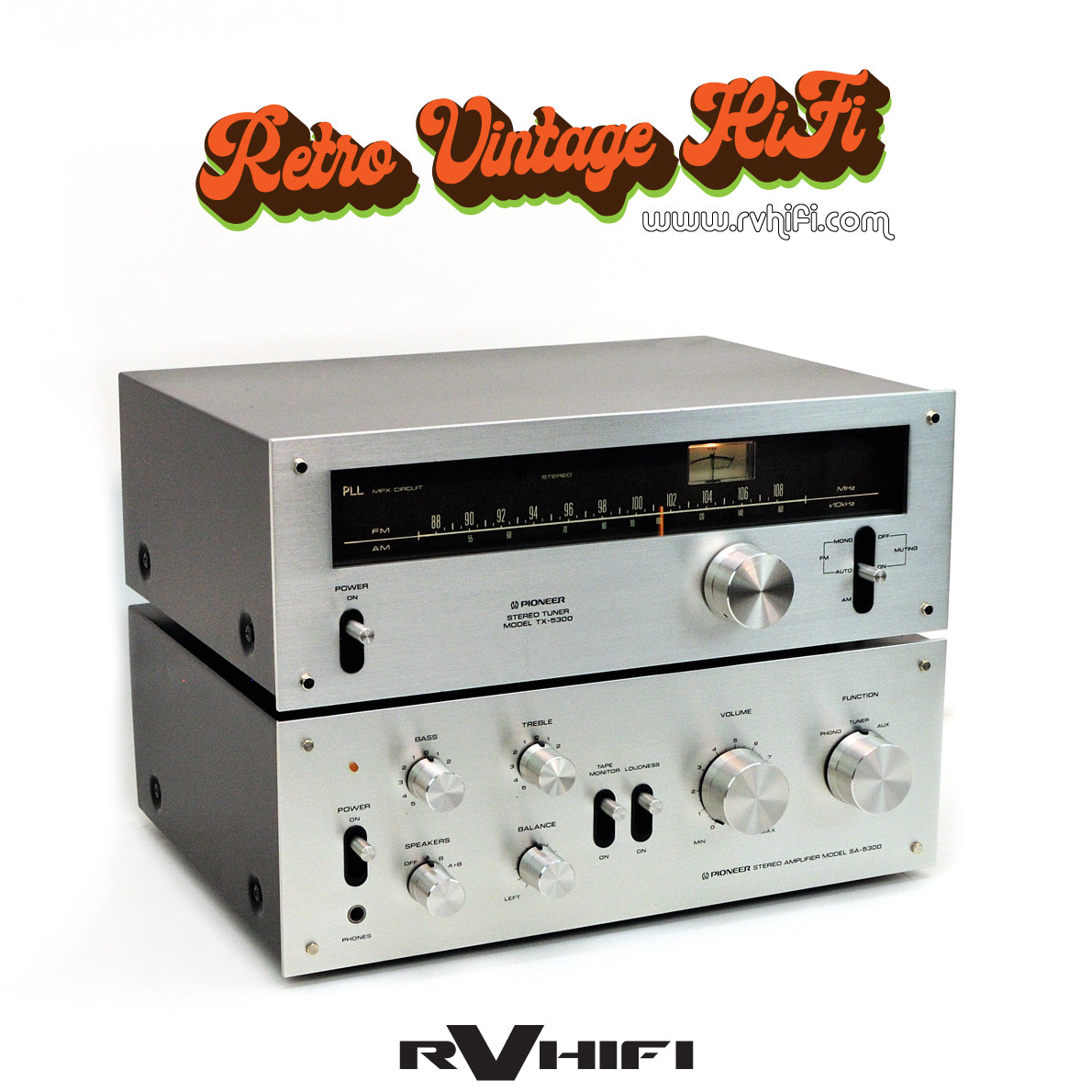

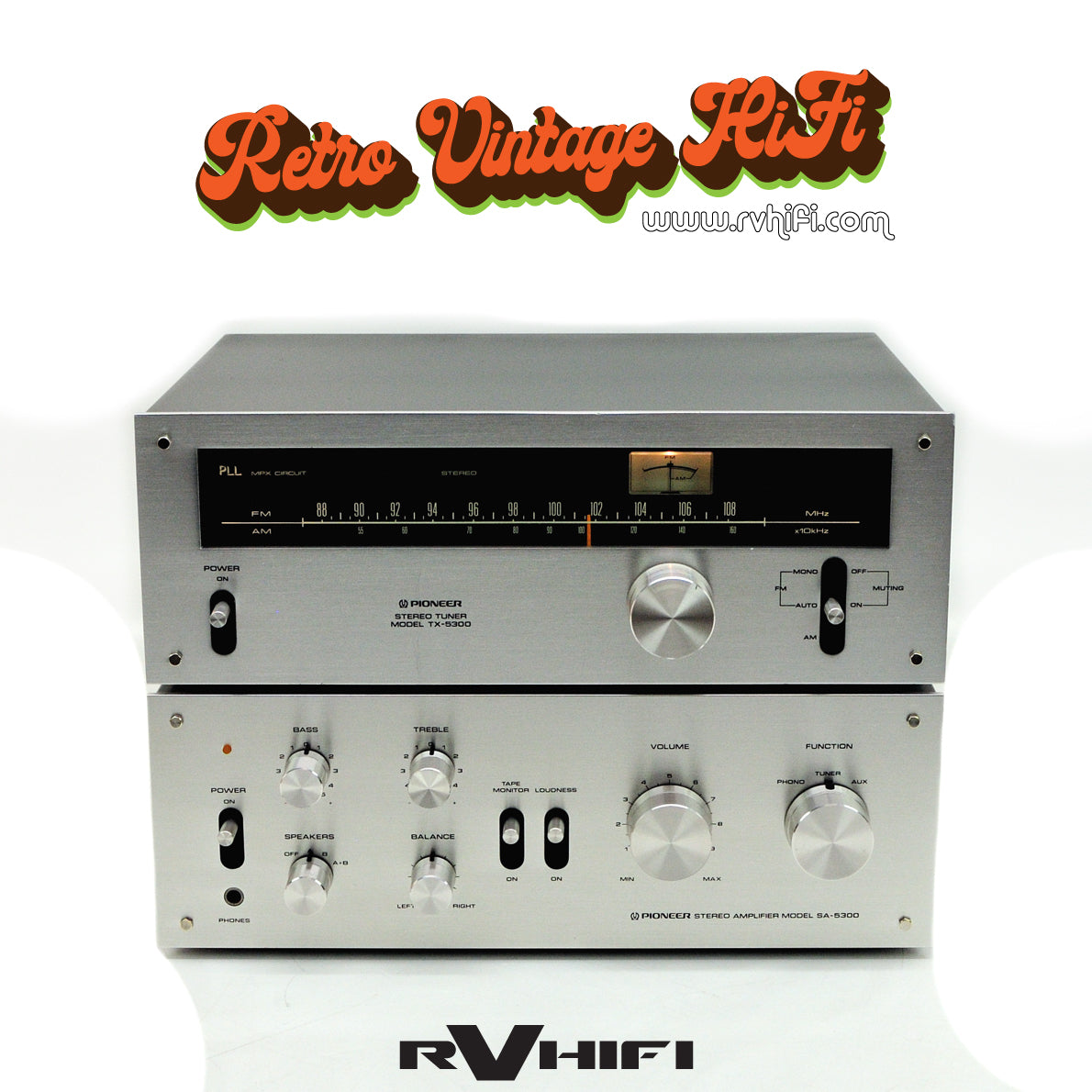

Pioneer SA-5300 Stereo Amplifier & TX-5300 Stereo Tuner

Pioneer SA-5300 Stereo Amplifier & TX-5300 Stereo Tuner

Amplifier Specifications:
Power output: 10 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 30kHz
Total harmonic distortion: 0.08%
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MM), 85dB (line)
Dimensions: W350 x H125 x D282mm
Weight: 6.4kg
Year: 1974 - 1977
Serial No: VJ1904729D

Description of Works:
Replaced all electrolytic capacitors.
Inspect small signal transistors.
Inspect output transistors.
Dismantled, cleaned & deoxit potentiometers and switches.
New speaker banana binding posts.
Cleaned & detailed unit.
Repainted metal case.
New 240vac power lead.

Tuner Specifications:
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 525 to 1605 kHz
Sensitivity: 1.6uV (FM), 300uV (MW)
Signal to Noise Ratio: 68dB (FM), 50dB (MW)
Distortion: 0.5% (FM)
Selectivity: 60dB (FM), 35dB (MW)
Frequency response: 20Hz to 15kHz (FM)
Output: 750mV
Semiconductors: 1 x FET, 3 x IC, 5 x transistors, 6 x diodes
Dimensions: 350 x 125 x 303mm
Weight: 4.8kg
Year: 1974 - 1977
Serial No: VH1305754M

Description of Works:
Upgraded power supply capacitors
Inspected & re-soldered all solder joints
Checked all adjustments
Supply & fit new illumination globes
Supply & fit new 240vac power lead
Re-painted metal case, satin finish
Supply new FM antenna
Supply new RCA interconnect lead
Cleaned and detail unit

Warranty: 6 months
