Pioneer PL-514 2 Speed Belt Drive Turntable

Regular price
$0.00
Sale price
$0.00
Regular price
Sold out
Unit price
per

Pioneer

RV HIFI Says:

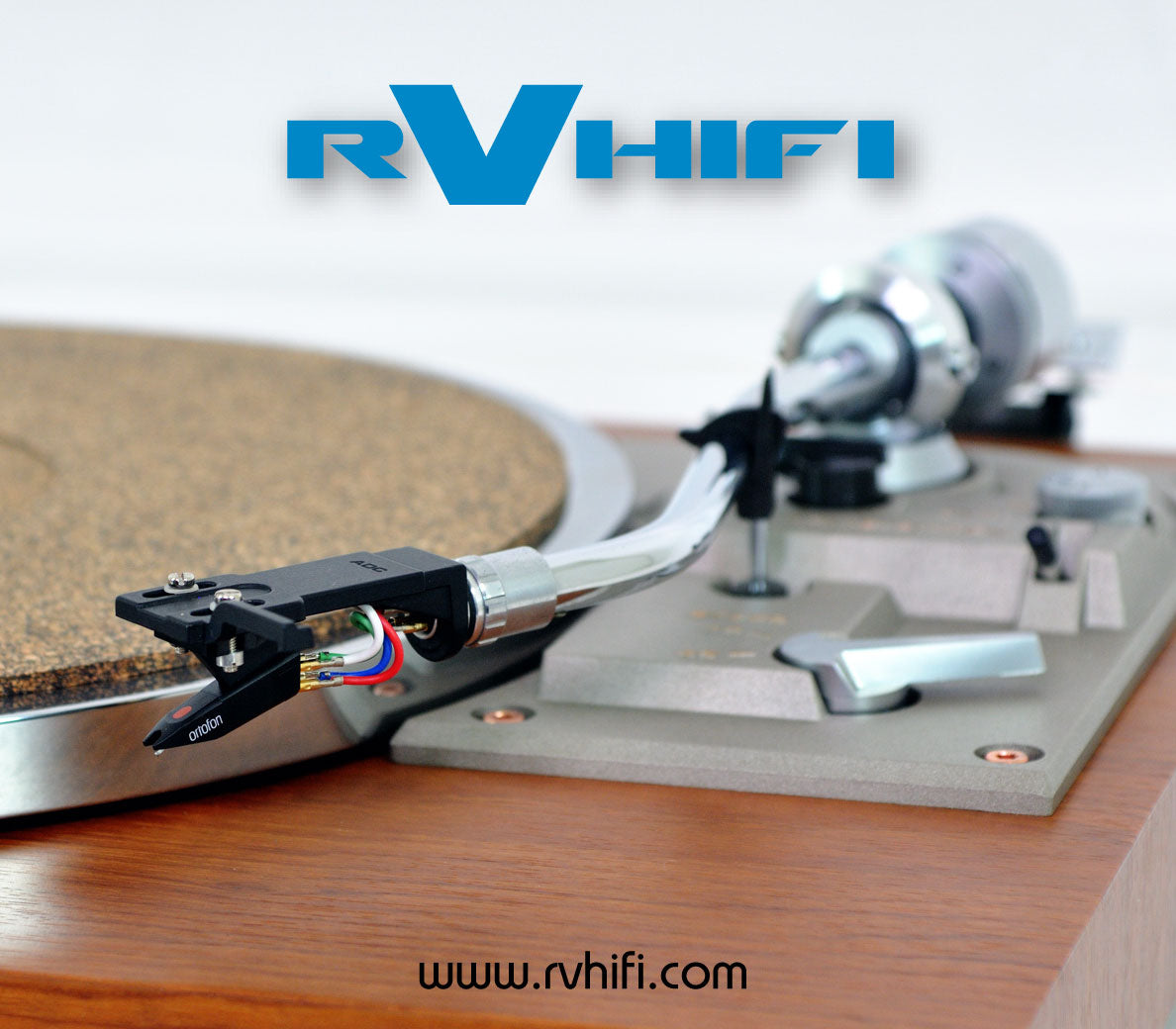

This Pioneer PL-514 was originally a silver unit in appearance and was re-trimmed with high quality 3M DiNoc wood veneer vinyl. The original plastic cover was upgraded to a acrylic lid and we found that the base cover plate was resonating, so we dampened the metal plate, the original feet were also modified for improvement. A new ADC headshell, Ortofon OM5E cartridge and Headshell gold wires were fitted, making an already great turntable into a musically better performer. We also reproduced the rear panel decals like the original versions and small visual upgrades to the turntable!

Description

The Pioneer PL-514 is a high-performance belt-driven turntable which employs an auto-return mechanism.

Other features include an anti-skating force control, cueing device, detachable dust cover, insulator feet, plug-in type headshell and a 40mm thick particle board cabinet.

Specifications

Type: auto-return turntable
Drive method: belt drive
Motor: 4-pole synchronous
Speeds: 33 and 45rpm
Wow and flutter: 0.055% WRMS
Signal to noise ratio: 65dB
Platter: 320mm aluminium alloy die-cast
Tonearm: static balance type, pipe arm (s-shaped)
Effective length: 221mm
Overhang: 15.5mm
Usable cartridge weight: 4 to 10g
Dimensions: 440 x 365 x 140mm
Weight: 8.2kg

Description of work

The following tasks and parts have either been repaired or replaced:
New 3M DiNoc Wood Veneer Vinyl
Fitted with New Ortofon OM-5E Red Cartridge
New ADC head shell
Removed the old grease and re-greased with synthetic type
Treated RCA’s with De-Oxit
Treated all contacts points with De-Oxit
New Acrylic Cover Lid
New Cork Mat
Polished platter
Dampened base cover plate for sonic improvements
New 240 volt AC power lead
Tested in excess of 4 hours

Warranty: 8 months



This product is no longer available for sale please call us to enquire about another or similar item.
