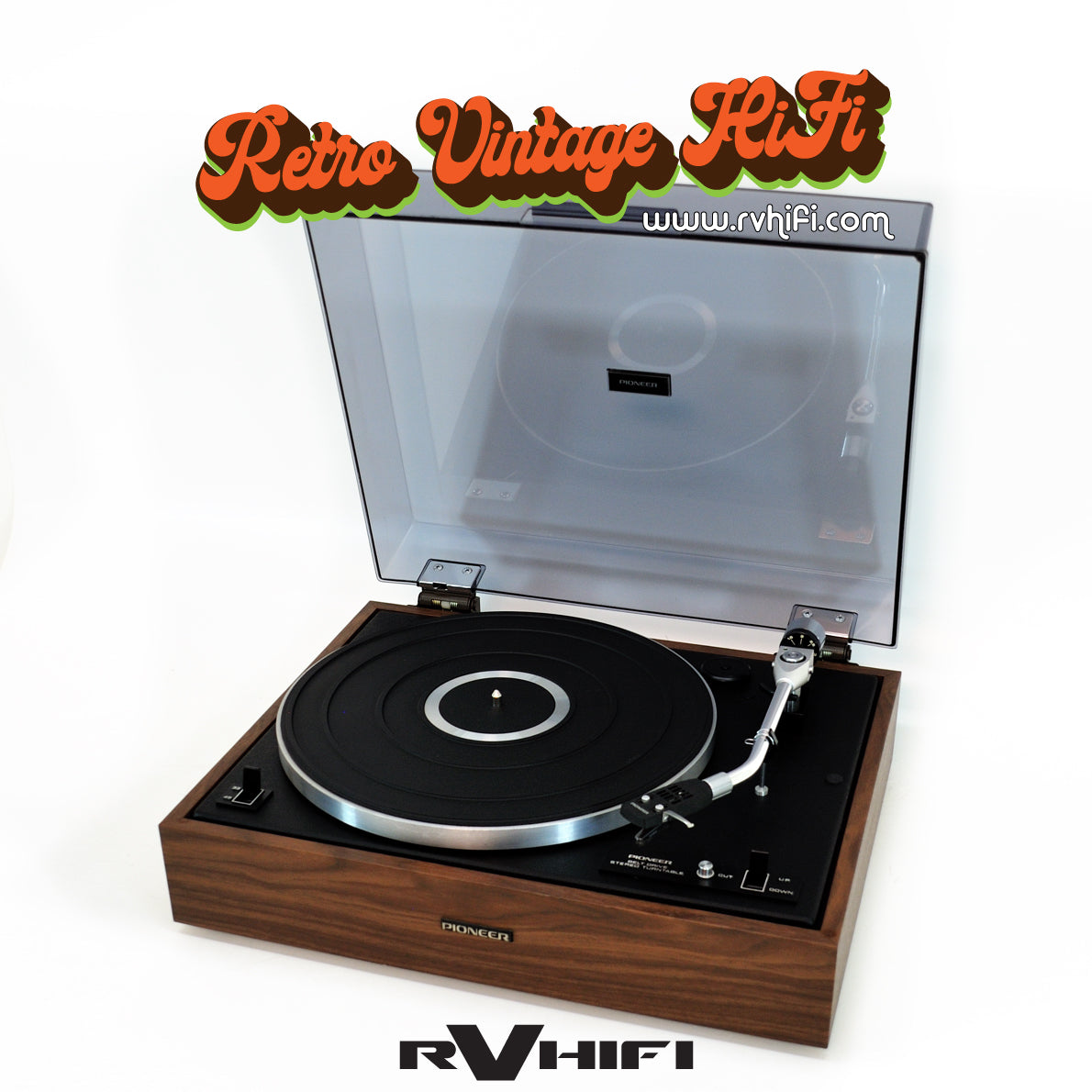

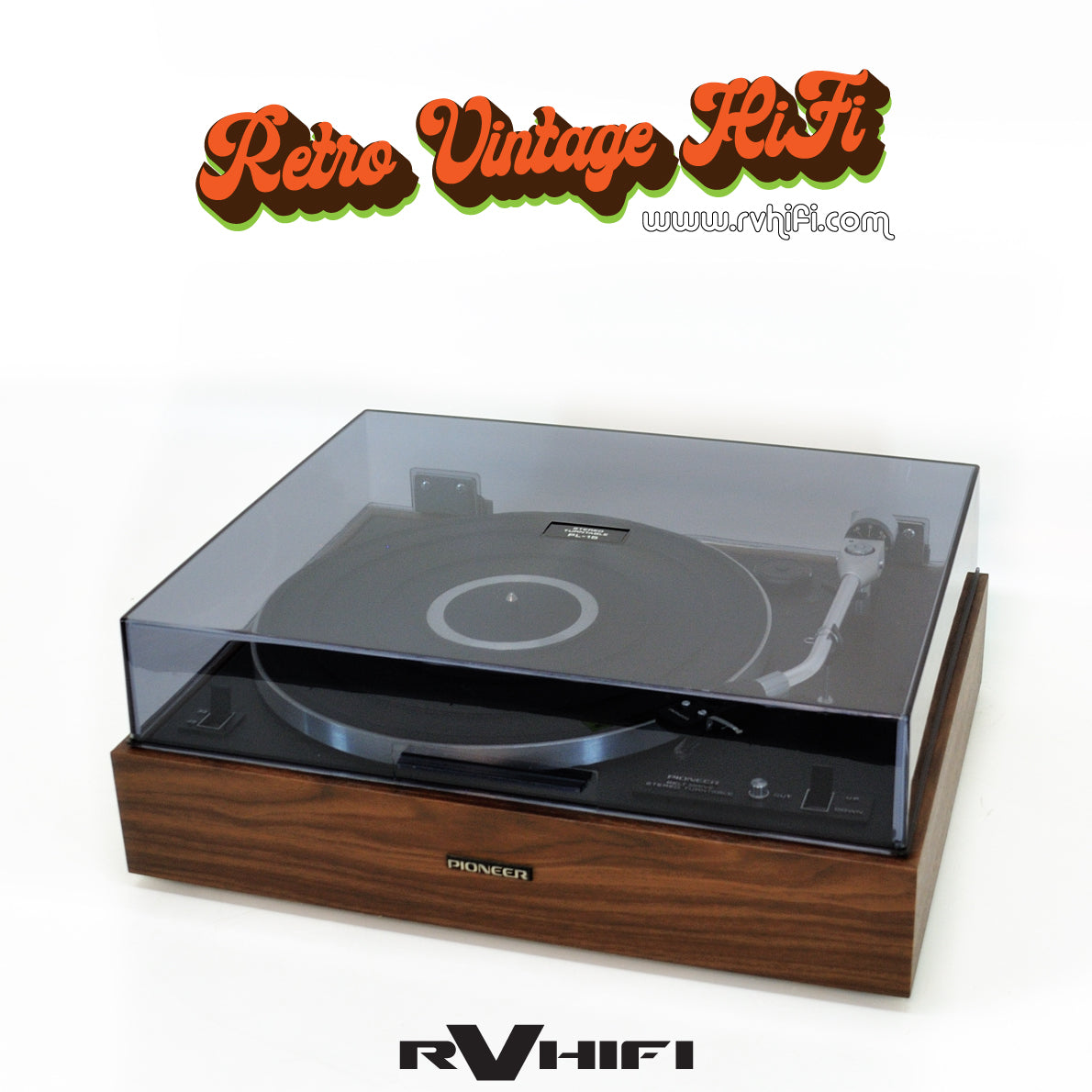

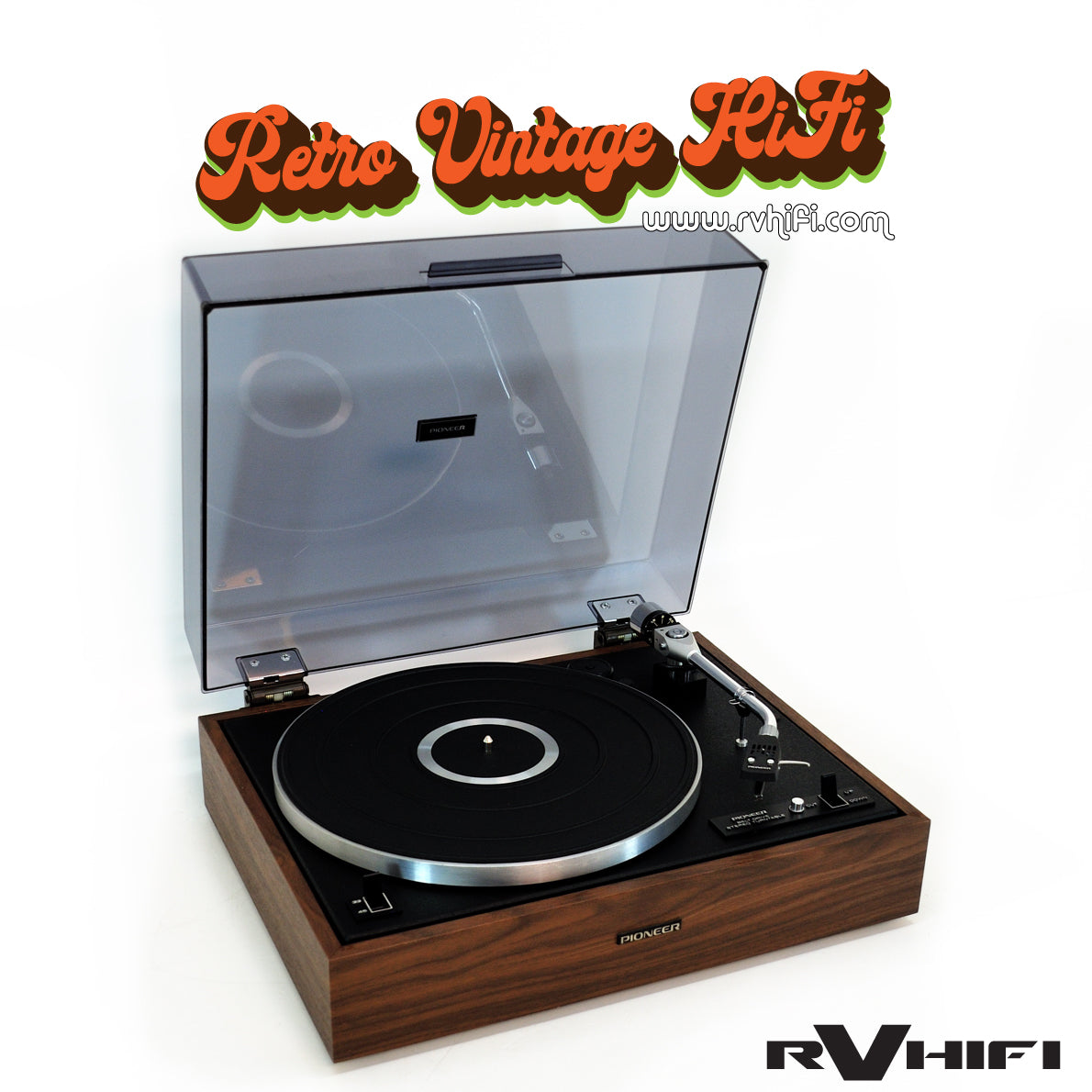

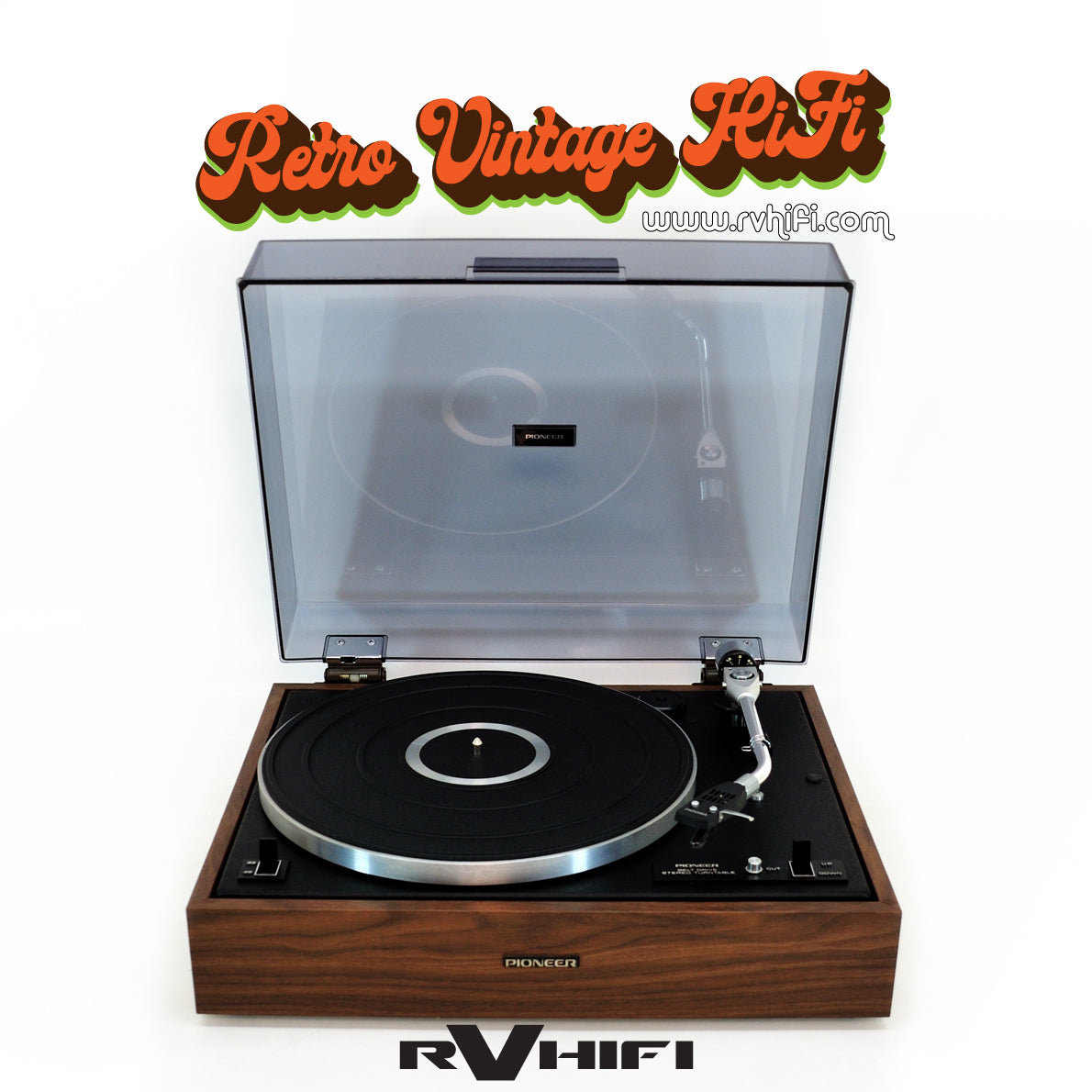

Pioneer PL-15 Belt-Drive Turntable

Pioneer PL-15 Belt-Drive Turntable

Description:
The PL-15 employs a 4-pole synchronous motor is completely free from even minor line voltage fluctuations, keeping turntable revolution constant at all times. Accordingly, there is no need to make speed fine adjustment with a stroboscope.
When record playing comes to an end, the tonearm returns onto the arm rest automatically, and then the power is cut off. In addition to this Auto Return mechanism, the PL-15 features the Auto Cut button. Once the button is pressed even while a record is being played, it permits the tonearm to return onto the arm rest automatically, too.
The oil-damped arm lifter can help you in playing a record. The tonearm floats up and goes down gently, resulting in longer service life of stylus and record surface protection.
Replacement of cartridge or stylus is simple by virtue of the easy-removal arm head provided.
To make easy, accurate adjustment of tracking force without a tracking force gauge, there is a direct-reading dial conveniently available for the purpose.

Specifications:
Motor: 4-pole synchronous
Drive method: belt
Speeds: 33 and 45rpm
Wow and flutter: 0.1% wrms
Signal to noise ratio: 47dB
Platter: 300mm aluminium alloy diecast
Tonearm: static balance type, pipe arm
Effective length: 221mm
Dimensions: 163 x 430 x 340mm
Weight: 7.3kg

Year: 1973-1976
Serial No: ST22763

Description of work:
The following tasks and parts have either been repaired or replaced:

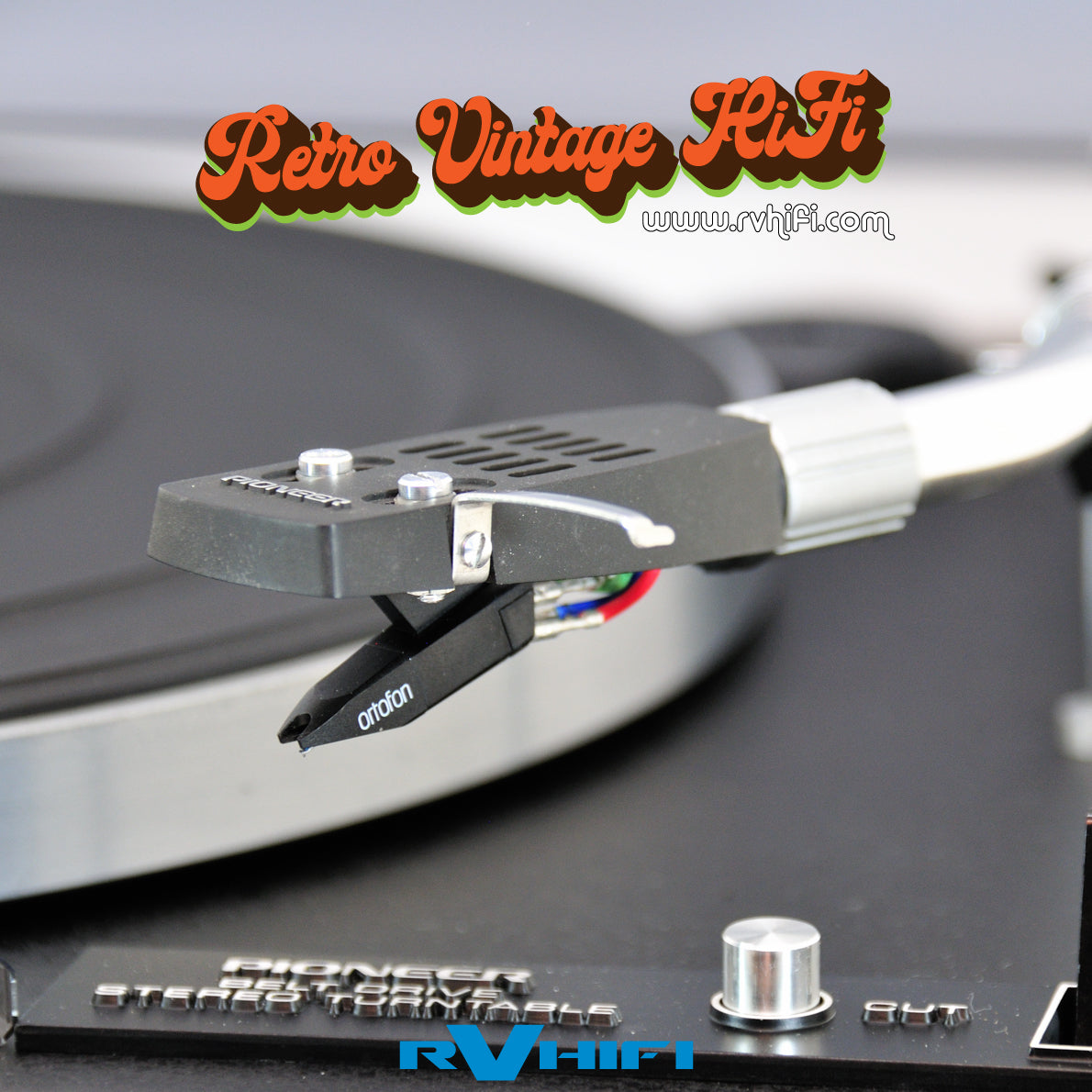

Supplied with a Ortofon OM5s cartridge.
New drive belt.
New 240 vac power lead.
Serviced & calibrated all mechanical moving parts.
Washed and cleaned chassis.
Polished plastic cover.
Tested in excess of 2 hours

Warranty: 3 months
