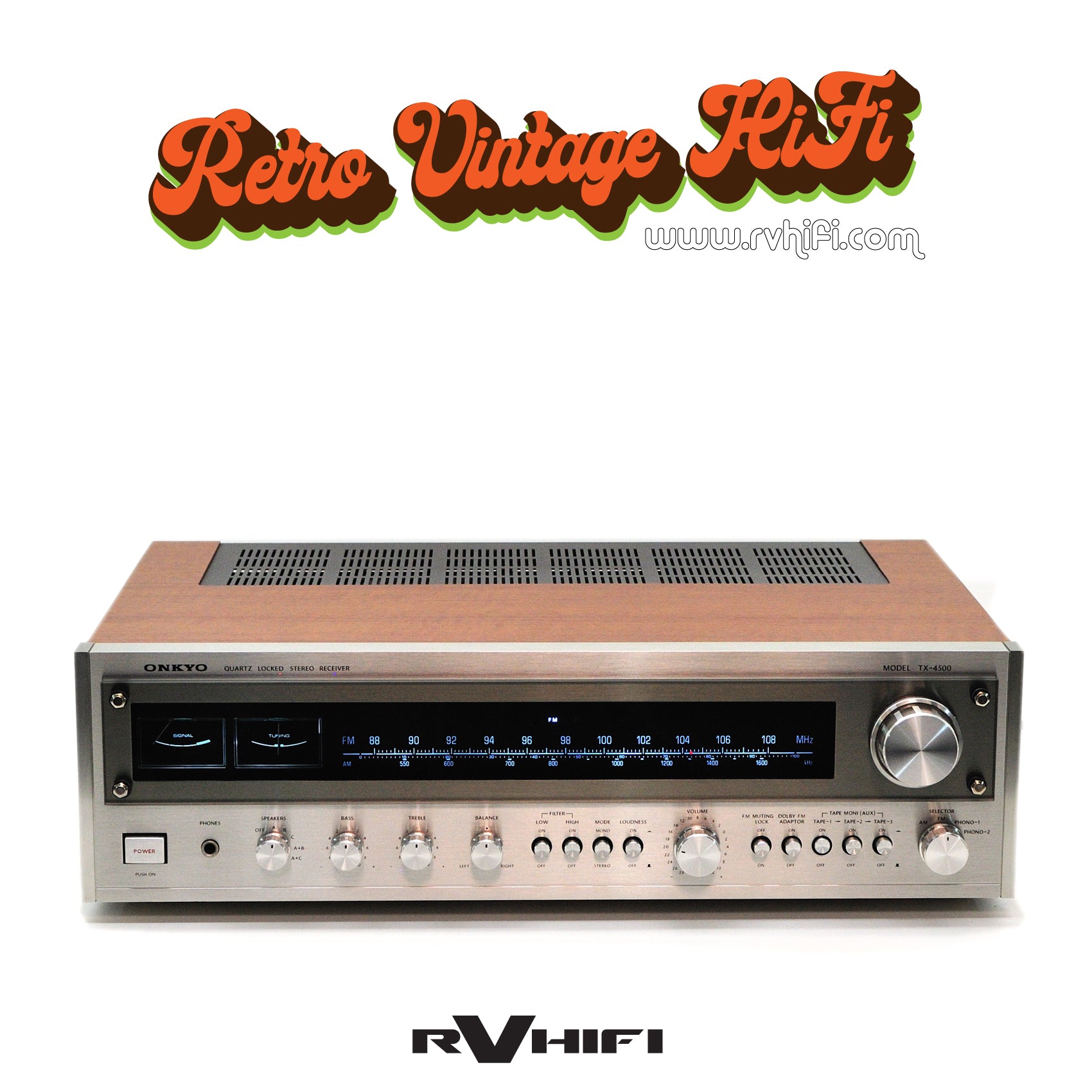

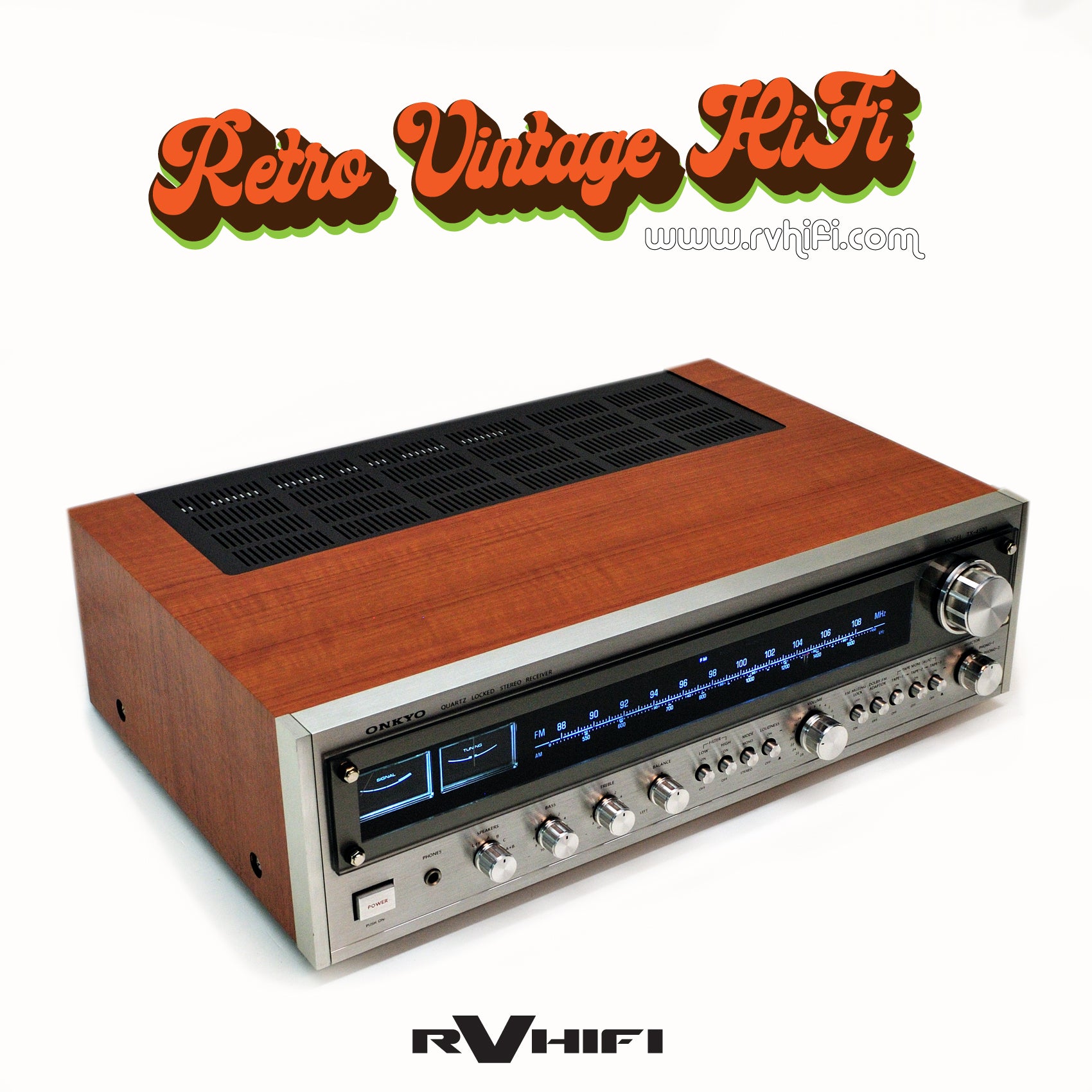

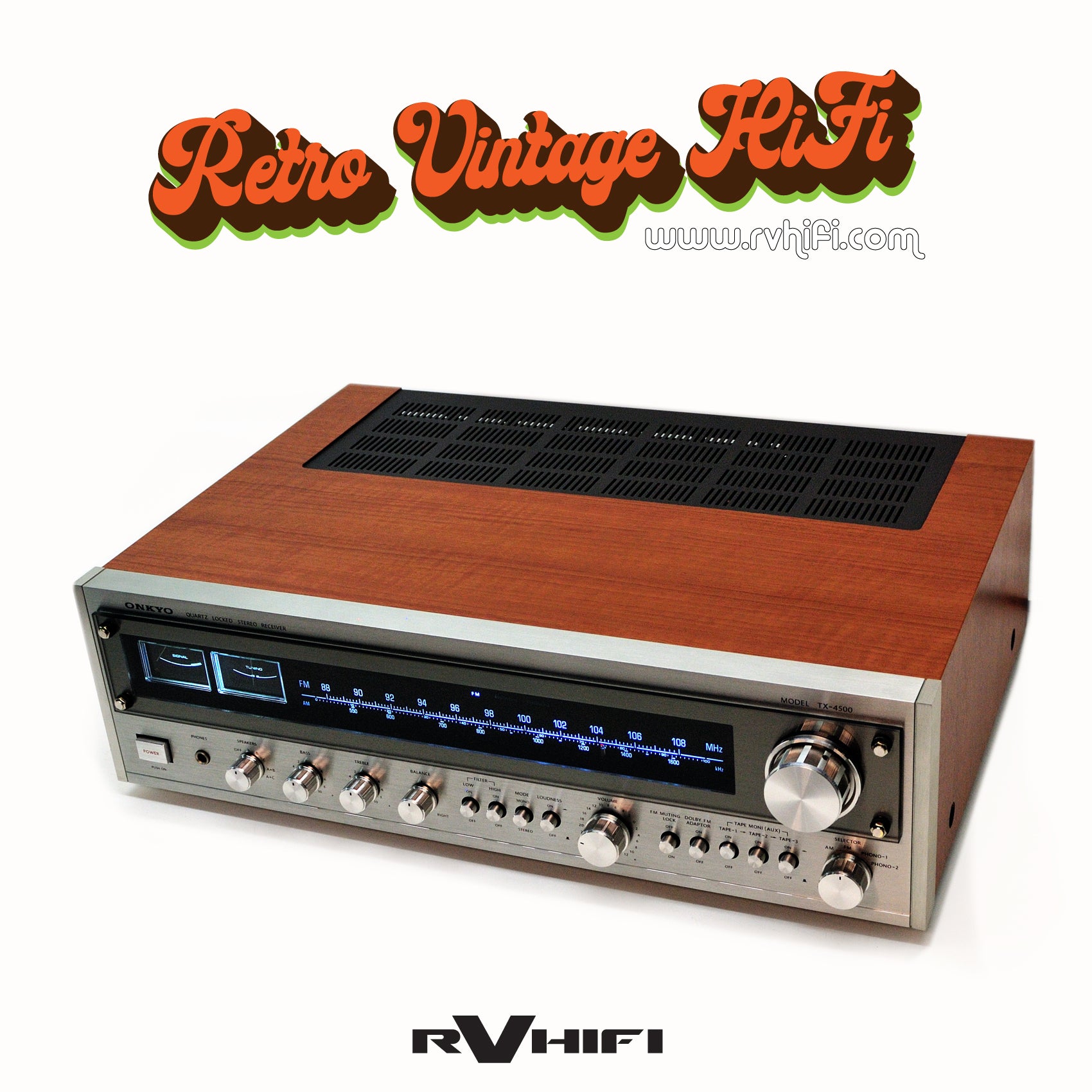

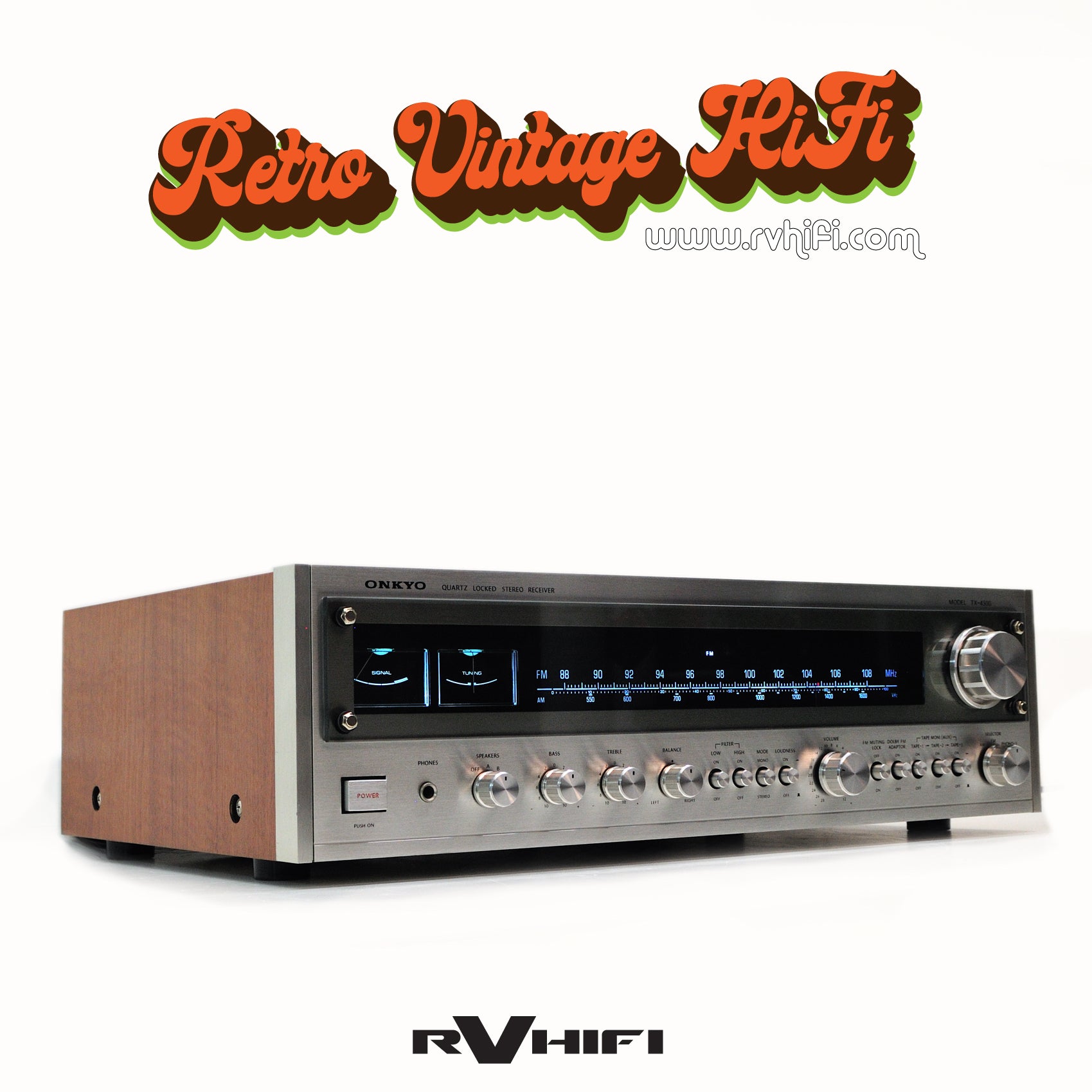

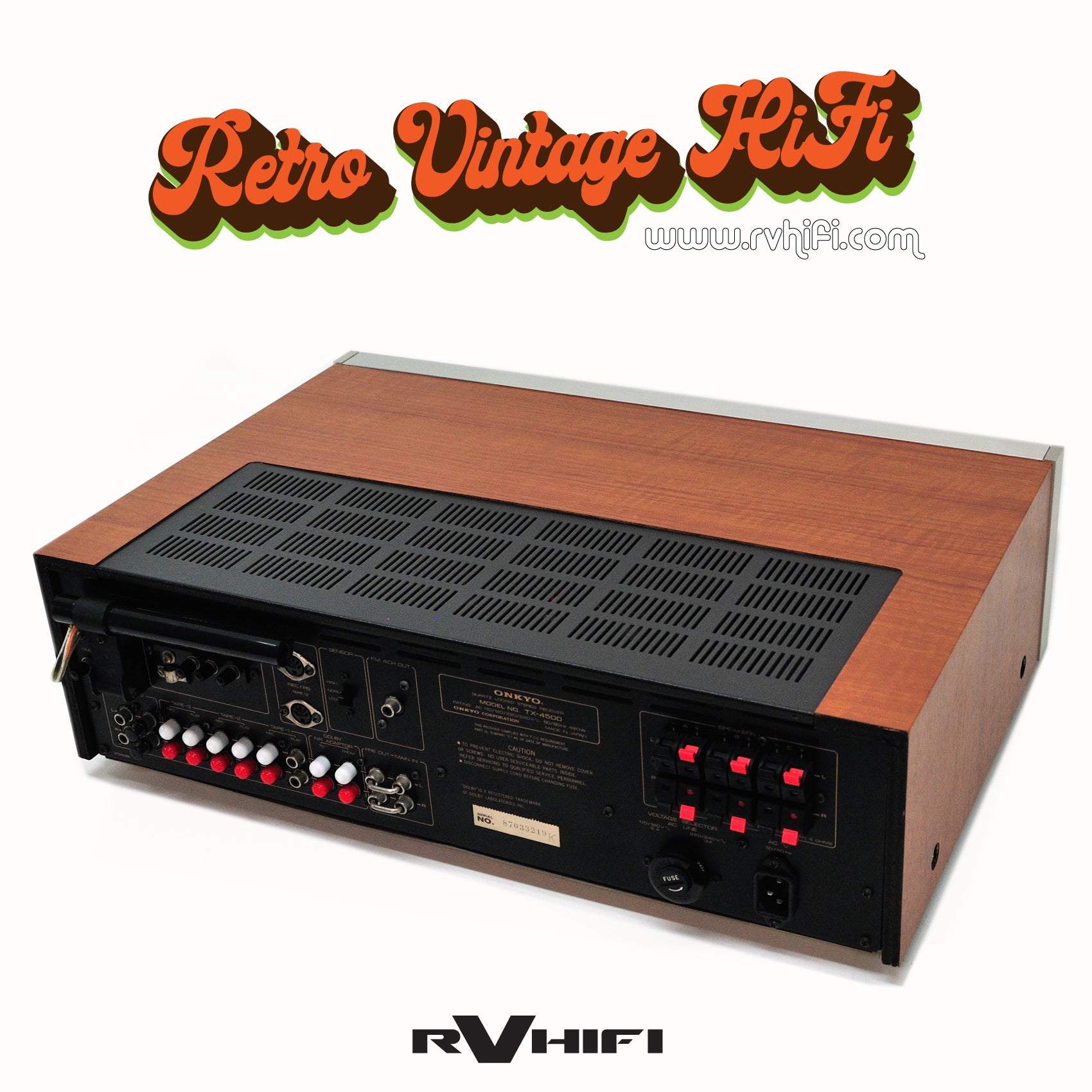

Onkyo TX-4500 Quartz Locked Stereo Receiver

Specifications:
Tuning range: FM, MW
Power output: 55 watts per channel into 8 ohms (stereo)
Frequency response: 15Hz to 30kHz
Total harmonic distortion: 0.1%
Damping factor: 50
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 65dB (MM), 80dB (line)
Output: 150mV (line), 1V (Pre out)
Semiconductors: 1 x FET, 70 x transistors, 8 x IC, 59 x diodes
Dimensions: W583 x H163 x D430mm
Weight: 16.6kg
Year: 1979-1980

Description of Works:
Replaced all electrolytic capacitors in power supply and main amplifier PCB.
Replaced all lamp globes with LED's
Inspected PCB's for dry joints and re-soldered.
Checked all electrical adjustments.
Cleaned & deoxit potentiometers and switches.
Black case upgraded to 3M wood veneer vinyl.
Cleaned & detailed unit.
New 240vac power lead.

Includes: FM Ribbon Antenna

Warranty: 3 months
