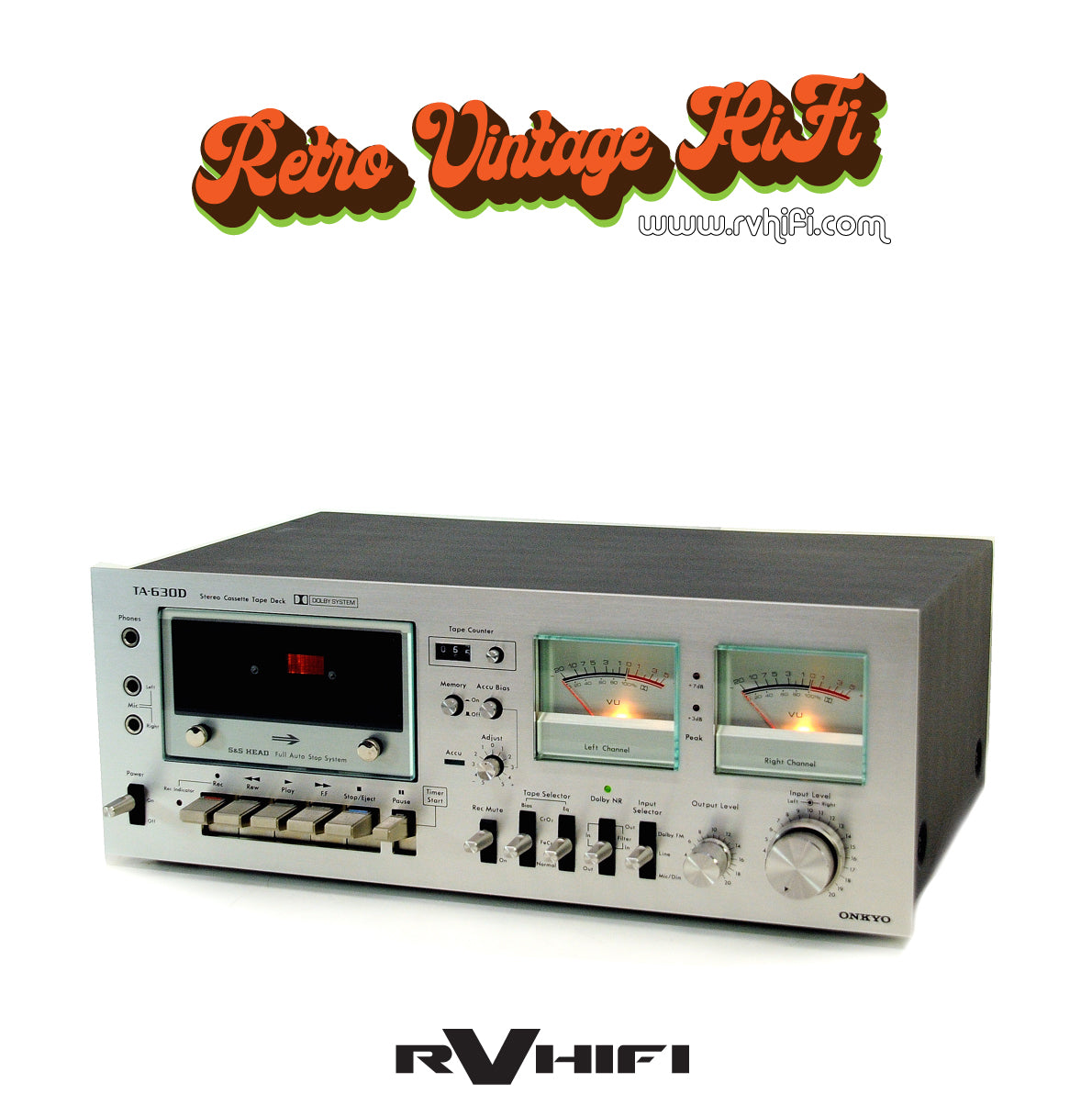

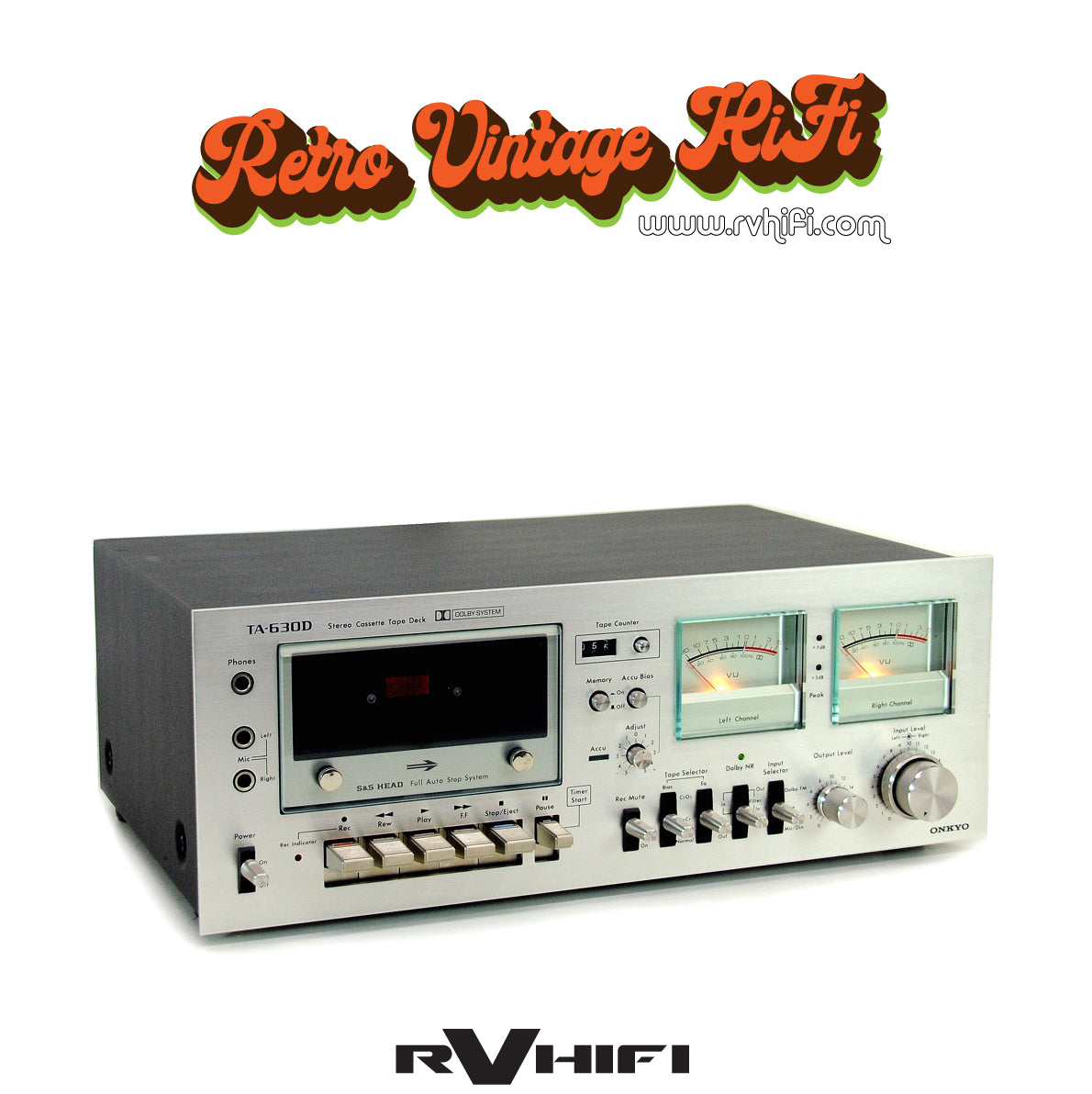

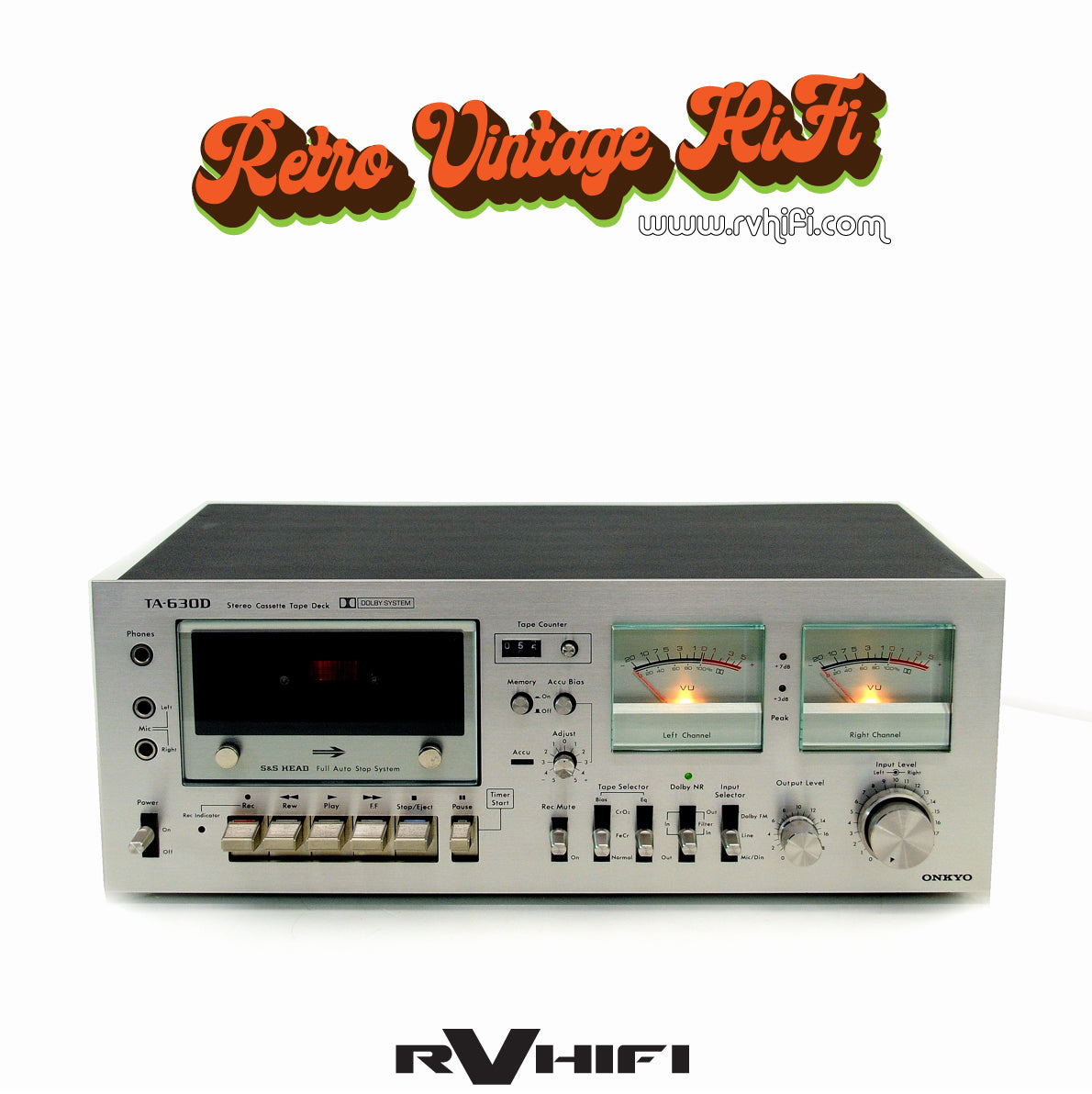

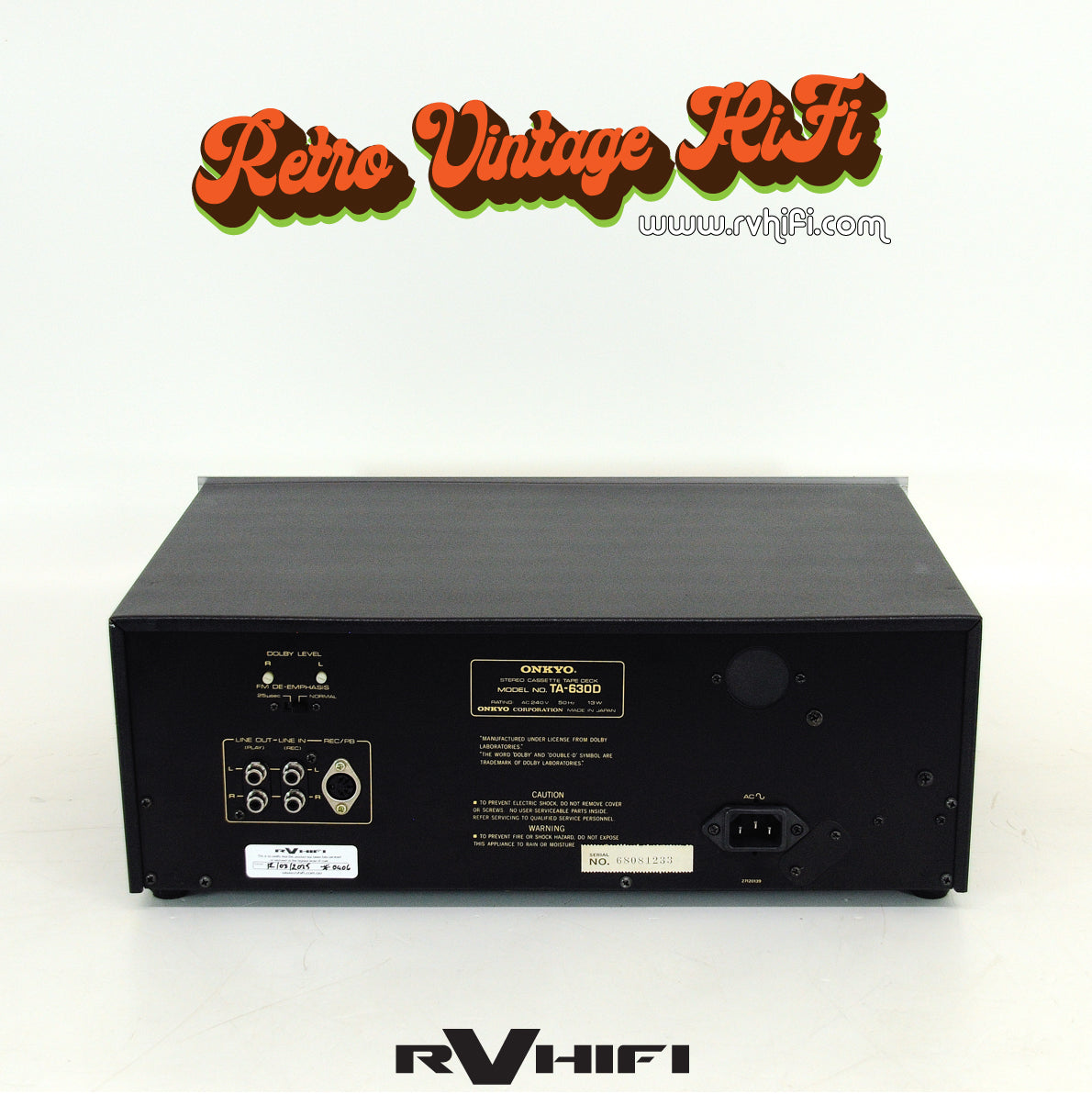

Onkyo TA-630D Stereo Cassette Tape Deck

The Onkyo TA-630D is a classic stereo cassette deck from the late 1970s, known for its exceptional sound reproduction and durability. As part of Onkyo's audio equipment collection, it was designed to cater to the needs of audiophiles. With the added feature of Dolby noise reduction, the deck effectively minimizes unwanted background noise commonly found in analog cassette tapes. It's a reliable choice for cassette tape enthusiasts, thanks to its sturdy build quality.

Specifications:
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: PLL servo DC
Tape Type: type I, FeCr, CrO2
Noise Reduction: B
Frequency Response: 30Hz to 18kHz  (FeCr tape)
Signal to Noise Ratio: 68dB  (dolby B)
Wow and Flutter: 0.048%
Input: 50mV (line), 0.3mV (mic)
Output: 0.775V (line)
Semiconductors: 40 x transistors, 1 x SCR, 4 x IC, 25 x diodes, 3 x LED
Dimensions: 418 x 158 x 297mm
Weight: 6kg
Year: 1978 - 1980
Serial No: 68081233

Description of Works:
Replaced all belts and idler tires.
Replaced Pinch Roller.
Rebuilt cassette mechanism.
Inspect & re-soldered PCB.
Inspect random capacitors, all within specifications.
Cleaned & deoxit potentiometers and switches.
Cleaned, demagnetized and adjust tape heads.
Cleaned & detailed unit.
New 240vac power lead.

Warranty: 3 months.

RV HIFI Says:
The Onkyo TA-630D Cassette Deck is a great example of high-quality audio equipment from the era of analog tape. Its sturdy build, advanced features for the time, and high-quality sound make it a desirable model for enthusiasts of vintage audio gear. Whether for tape recording or playback, it offers exceptional performance and is often appreciated by those who value analog sound reproduction.
