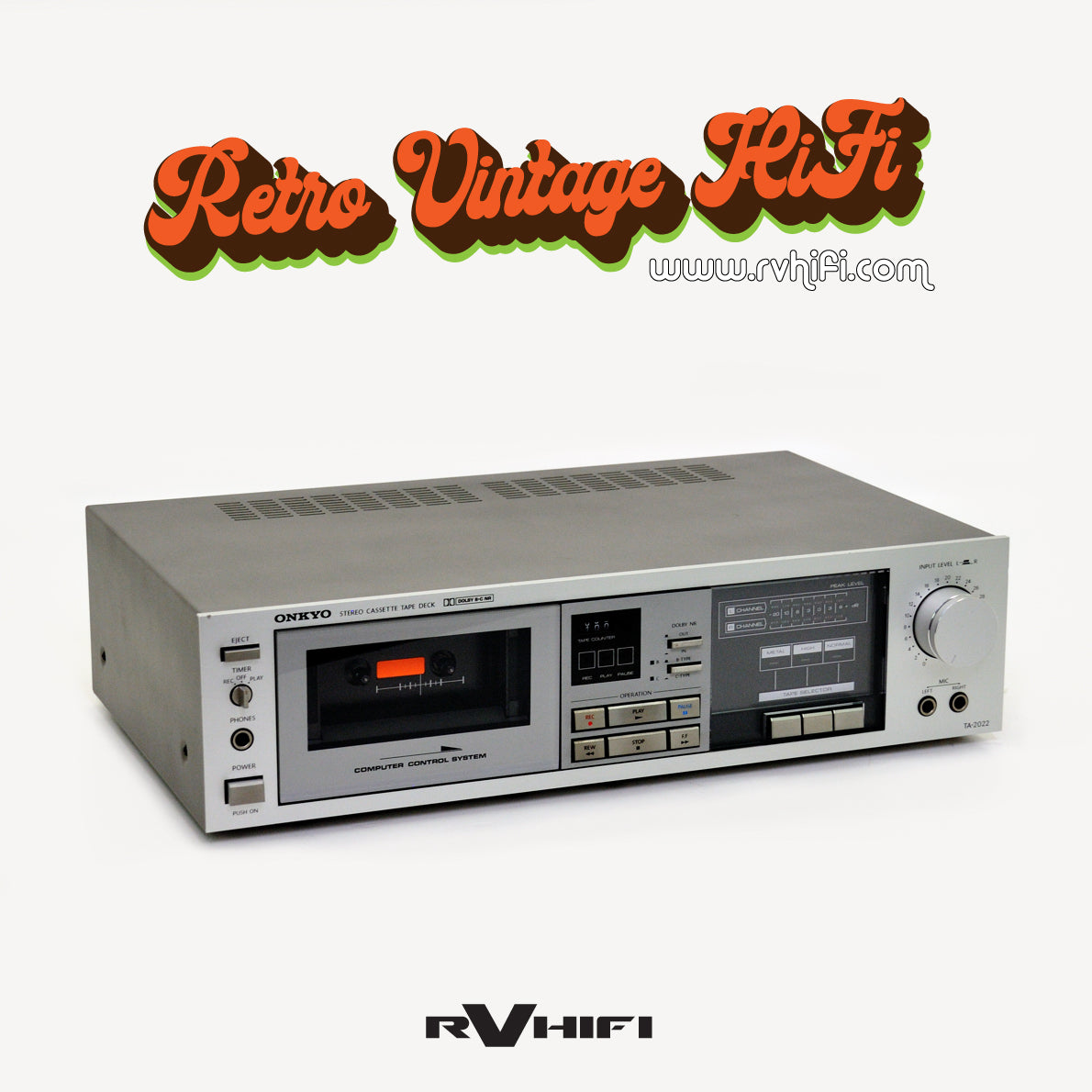

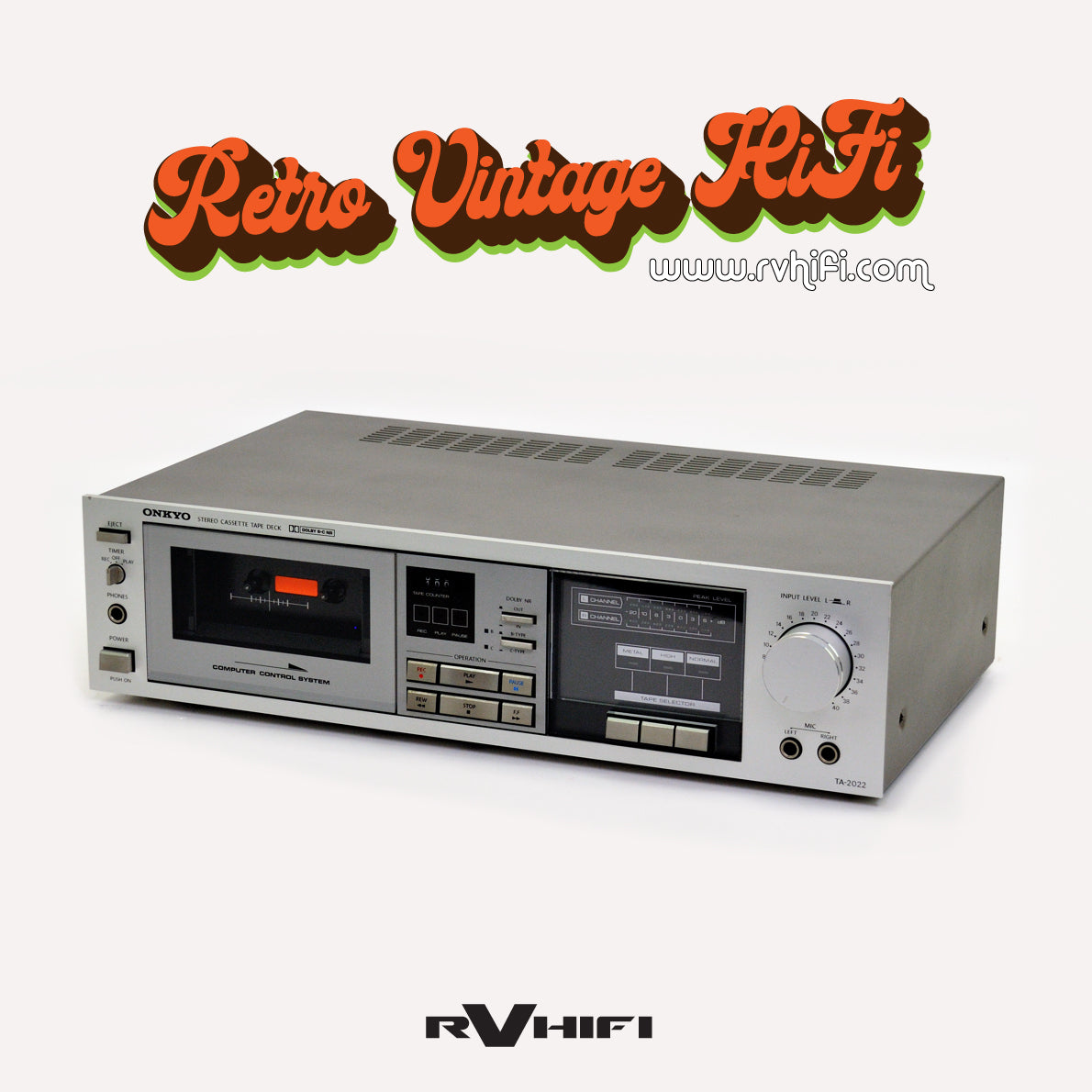

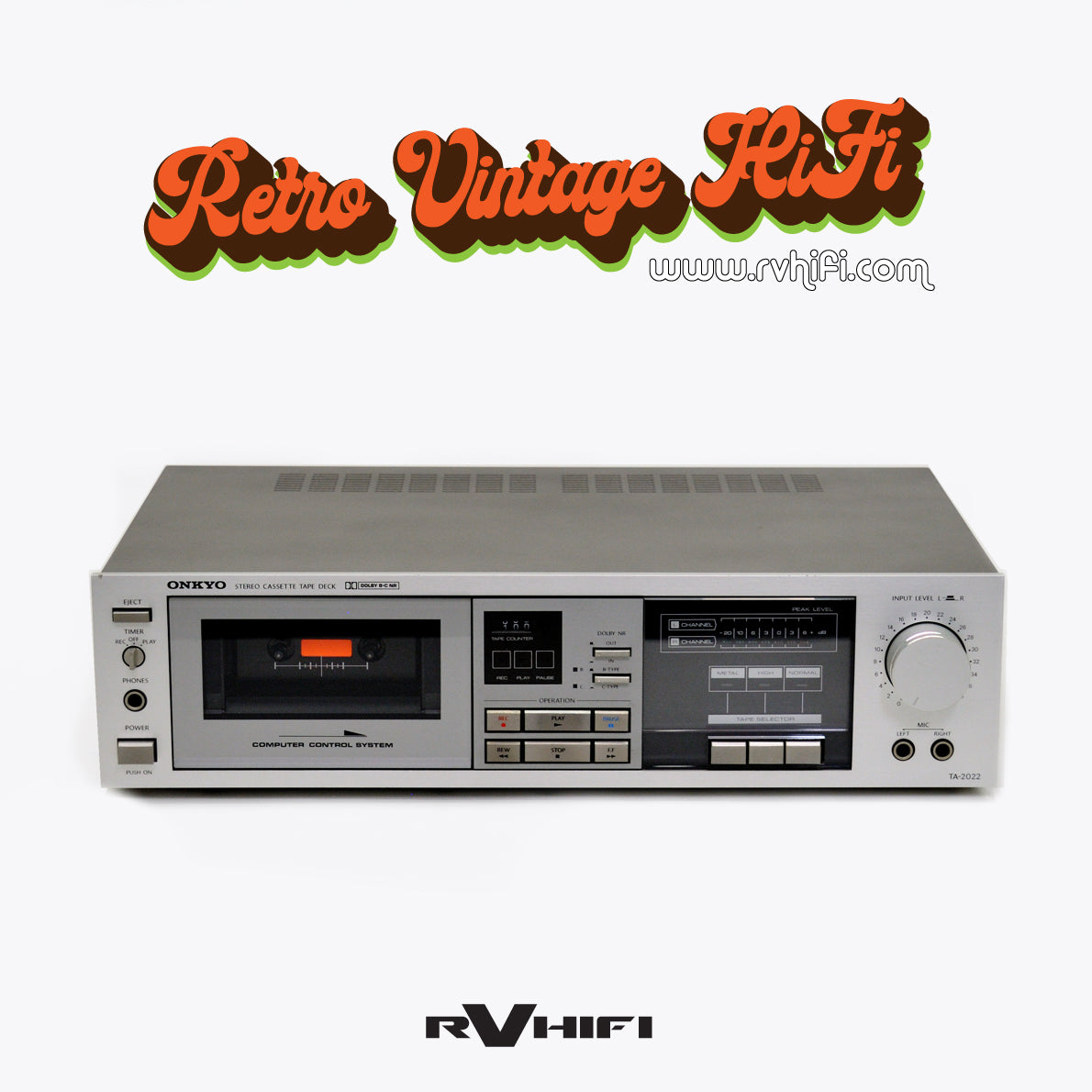

Mid 1980s left loading Onkyo cassette deck with Bolby B, Dolby C
2-head design
Computer Control Silent Transport
Settings for Normal, CrO2, Metal tape types,
Dolby B, C NR
Manual three digits tape counter with reset
Microphone input jacks on front panel
Input Level Control, Play / Record Timer, Front Panel Headphone jack
Left and Right channel level LED indicators
5-pin DIN and RCA jacks on rear panel for Line Level input / output
Specifications
Frequency response : Normal: 20Hz to 15kHz +/- 3dB, CrO2: 20 to 17kHz +/-3dB, metal: 20Hz to 19kHz +/- 3dB
Inputs : microphone jacks x 2, line in x 2, DIN plug x 1
Output level / impedance : 1.1V at > 50kohms
Headphone jack : 8ohms to 200ohms
Signal to noise : 60dB [metal tape, no Dolby]
Noise reduction : 5dB at 1kHz and 10dB above 5kHz [Dolby B], 20dB at 5kHz for Dolby C.
Wow and flutter : 0.05%WRMS
Dimensions [ W x H x D ] : 418 x 112 x 270mm
Weight 4.8 kg
Year: 1984 - 1985
Serial No. 94051008
Description of Works
Supply and fit new belt kit, includes all idler tyres.
Removed old dry grease and applied synthetic lube to mechanisim.
Checked all specification adjustments.
Adjusted tape heads, cleaned and demagnetised.
Cleaned and detailed unit.
Includes 2 sets of RCA leads.
Warranty 3 months
