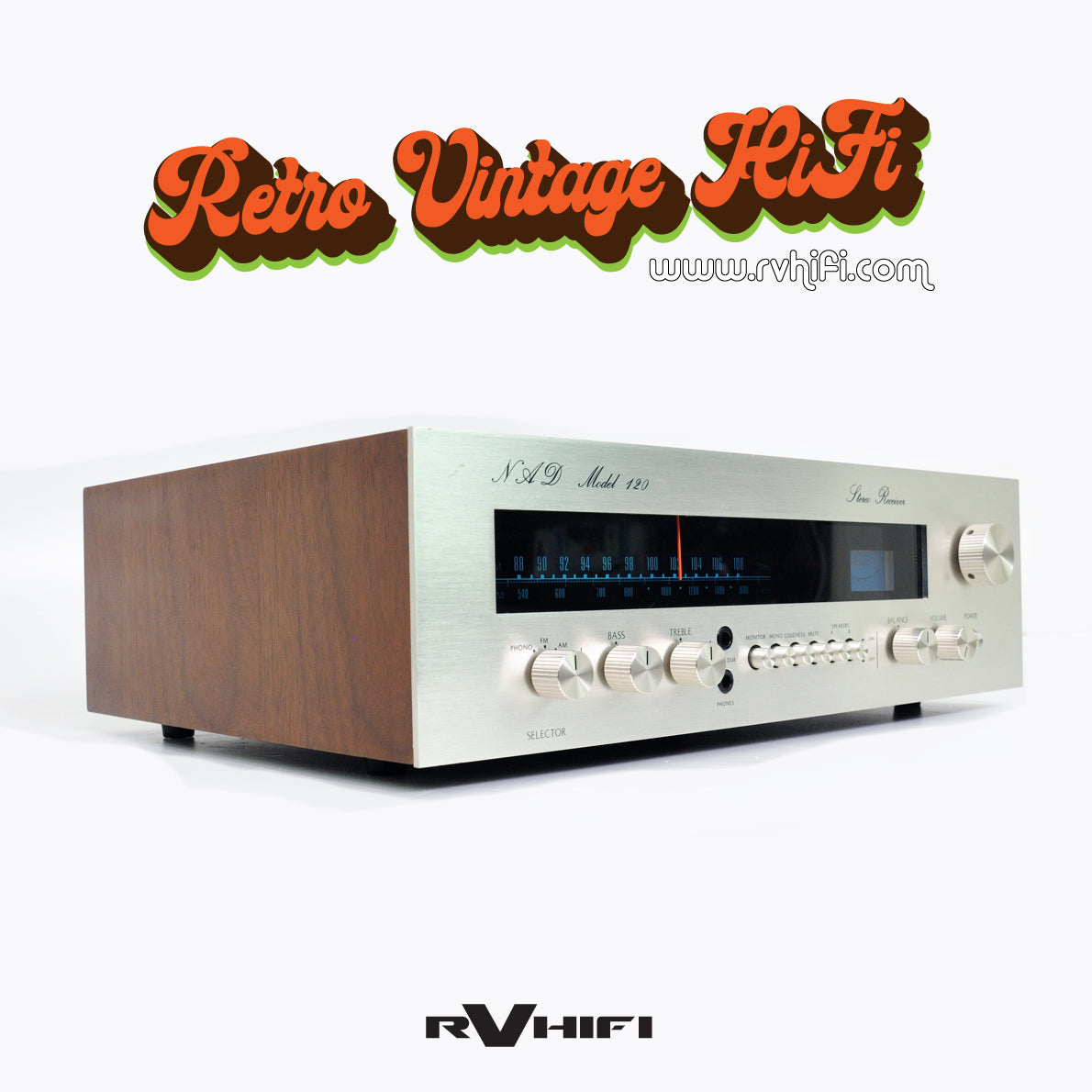

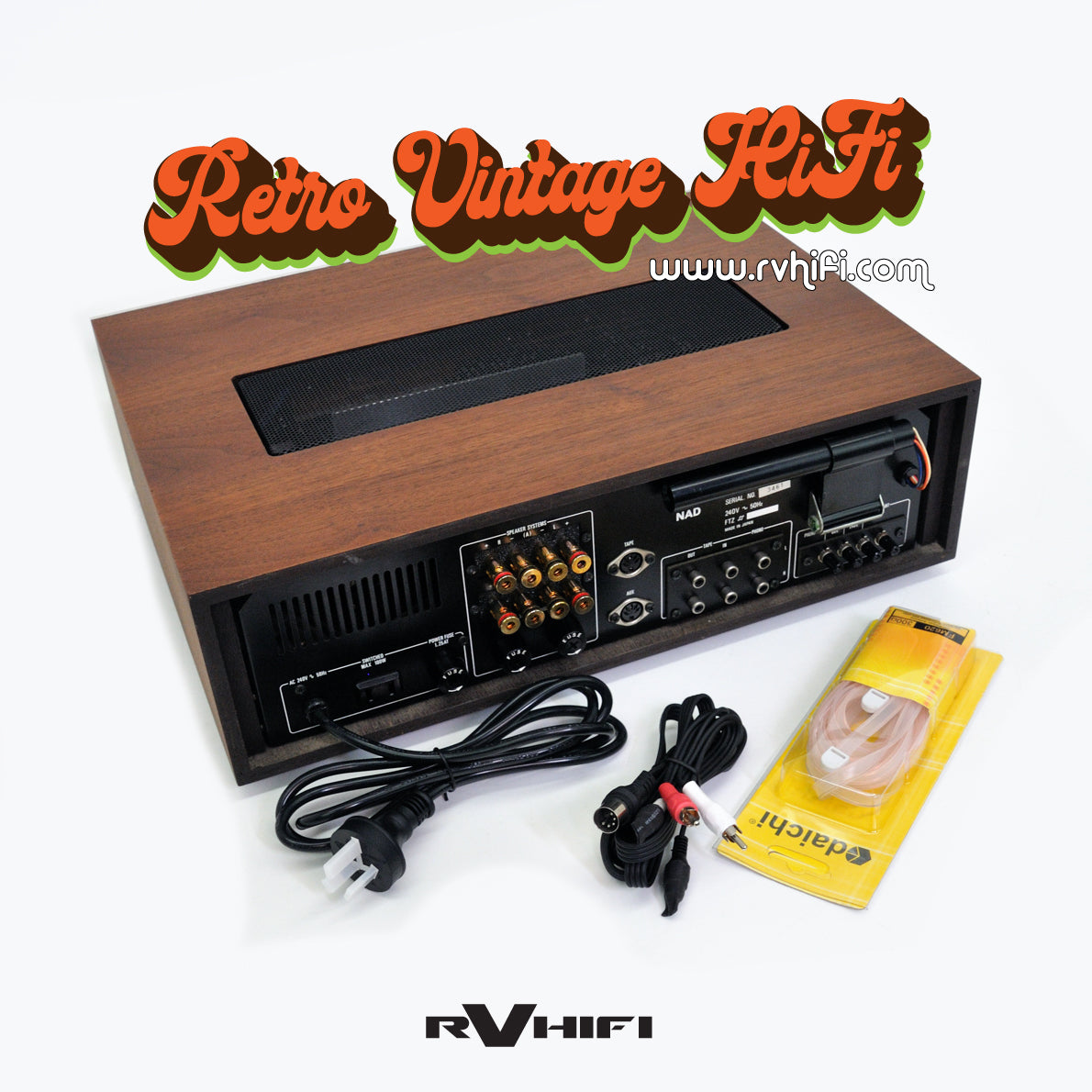

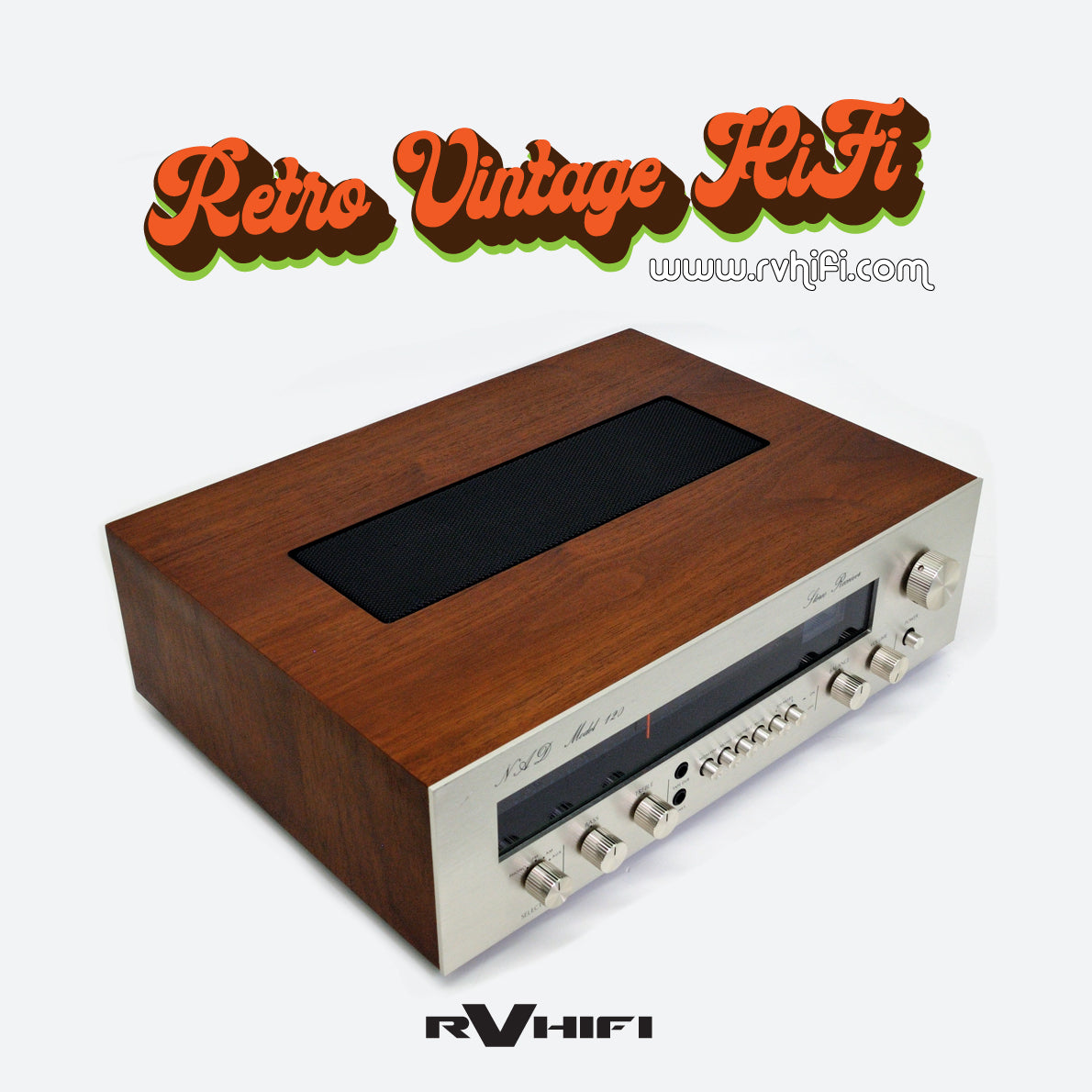

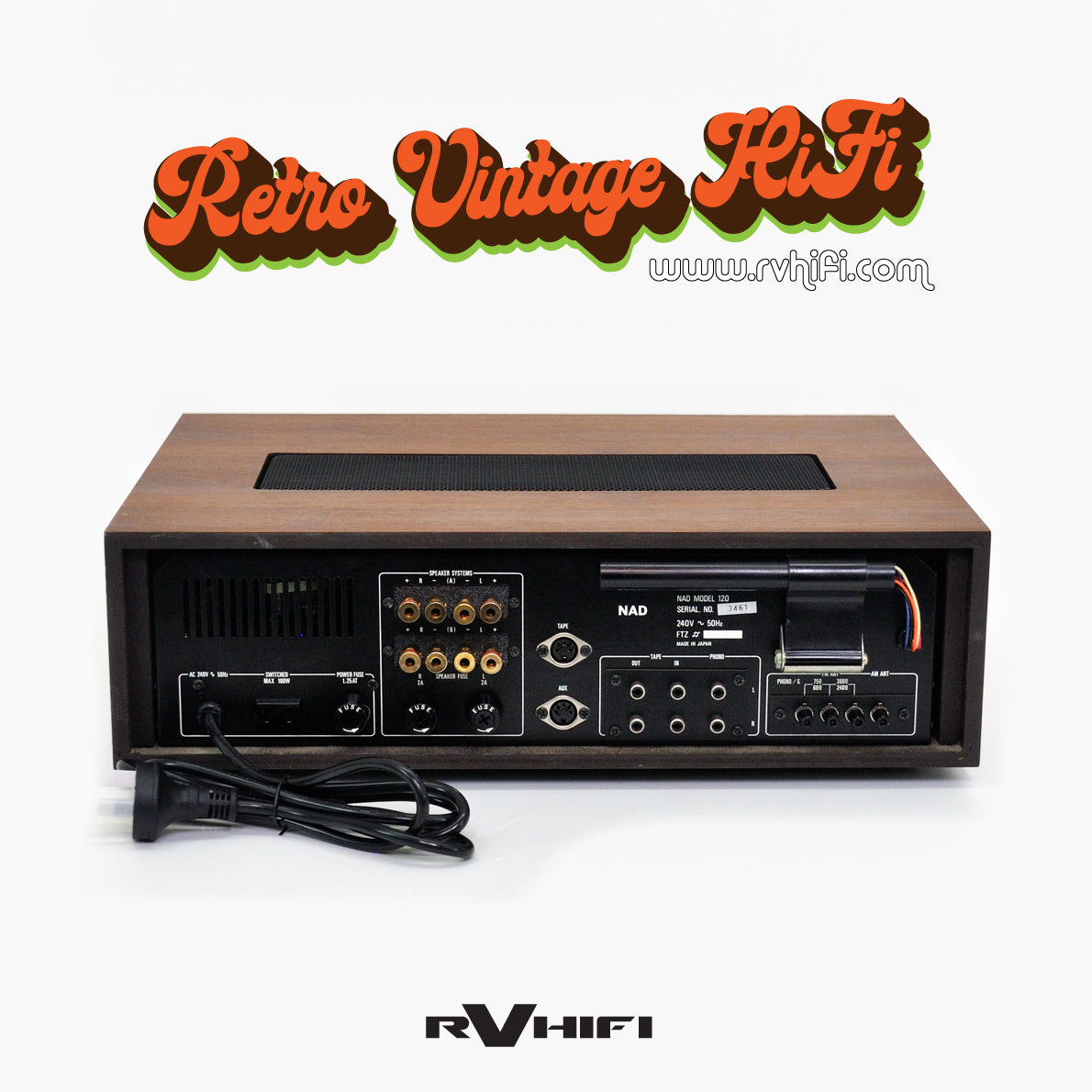

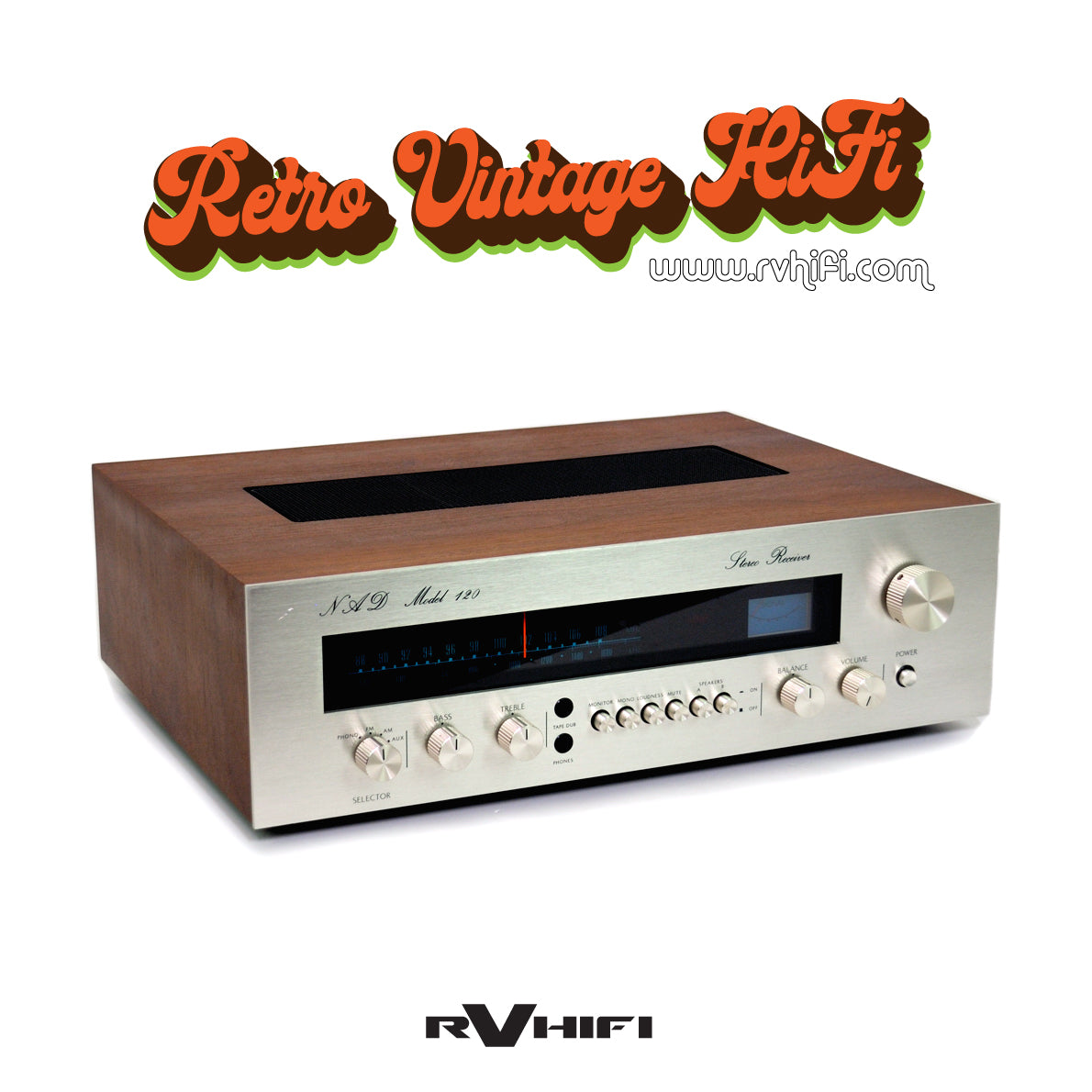

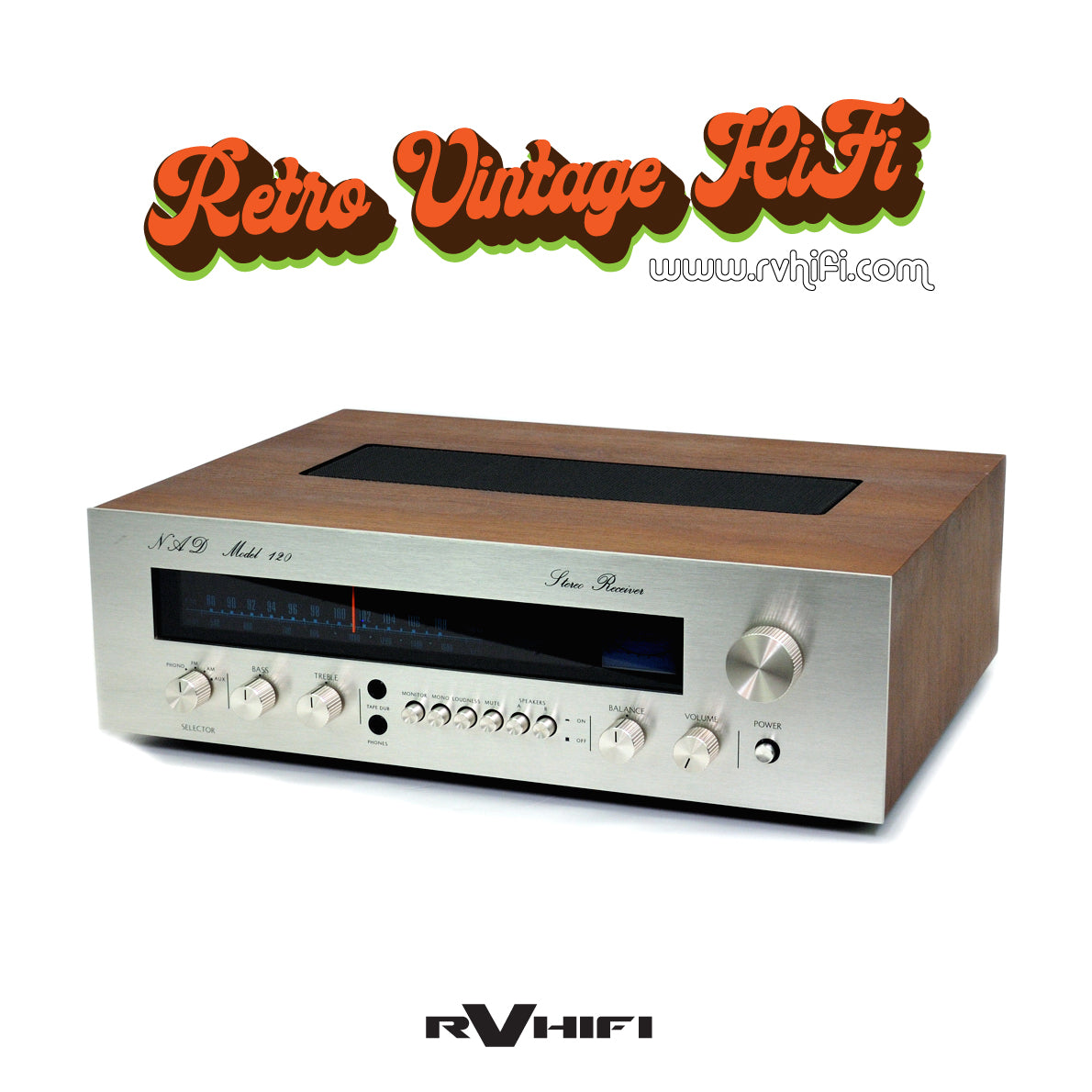

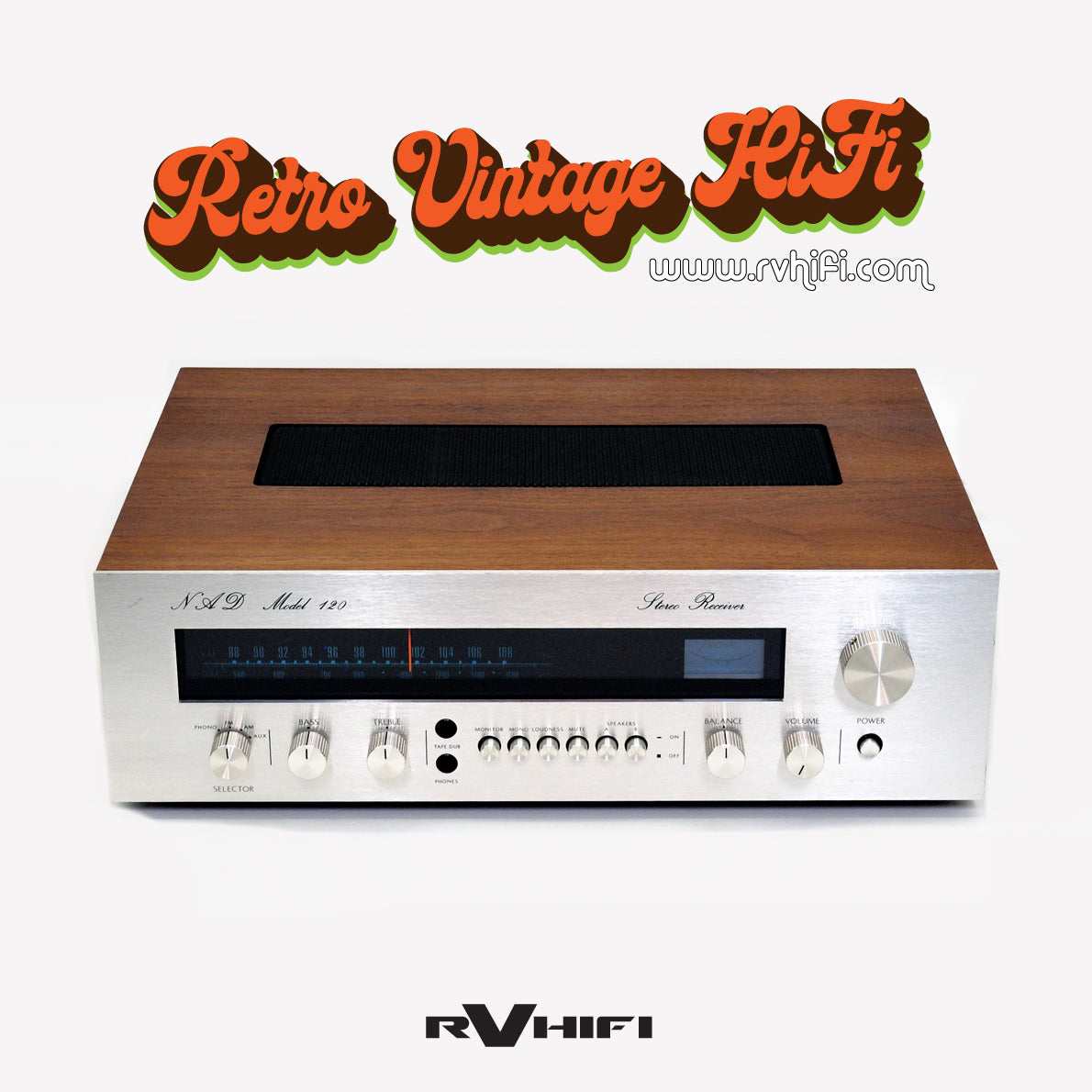

NAD 120 AM/FM Stereo Receiver

Regular price
$679.00
Sale price
$679.00
Regular price
Sold out
Unit price
per

Specifications

Tuning range: FM, MW
Power output: 20 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.2%
Input sensitivity: 2.5mV (MM), 200mV (line)
Signal to noise ratio: 60dB (MM), 80dB (line)
Dimensions: 450 x 140 x 330mm
Weight: 8.5kg
Year: 1975

Serial No. 3461

Description

The amplifier section of the NAD model 120 has directly coupled output stages, with a linear frequency curve of 20 to 20,000Hz at a nominal output, ensuring excellent bass reproduction and dynamic range.

The tuner unit is of the most up to date design. The superb results are made possible by the 3-gang variable capacitor with low noise FET and 2 FETs in the RF and mixing stage as well as IC and phase linear ceramic filters in the IF amplifier.

Most important is the MPX circuit with phase lock loop which increases stereo separation to more than 40dB at 1kHz. The tuner has separate AM and FM IF amplifiers. For accurate tuning a field strength meter is used.

Description of Works

Replaced all electrolytic capacitors.
Replaced small signal transistors in preamp stage.
Replaced illumination globes.
Cleaned & deoxit potentiometers and switches.
Adjust bias and DC offset.
Cleaned & detailed unit.
New coats (3) of clear sealer on wood veneer case.
New speaker banana plug binding posts.
New 240vac power lead.

Warranty 6 months
