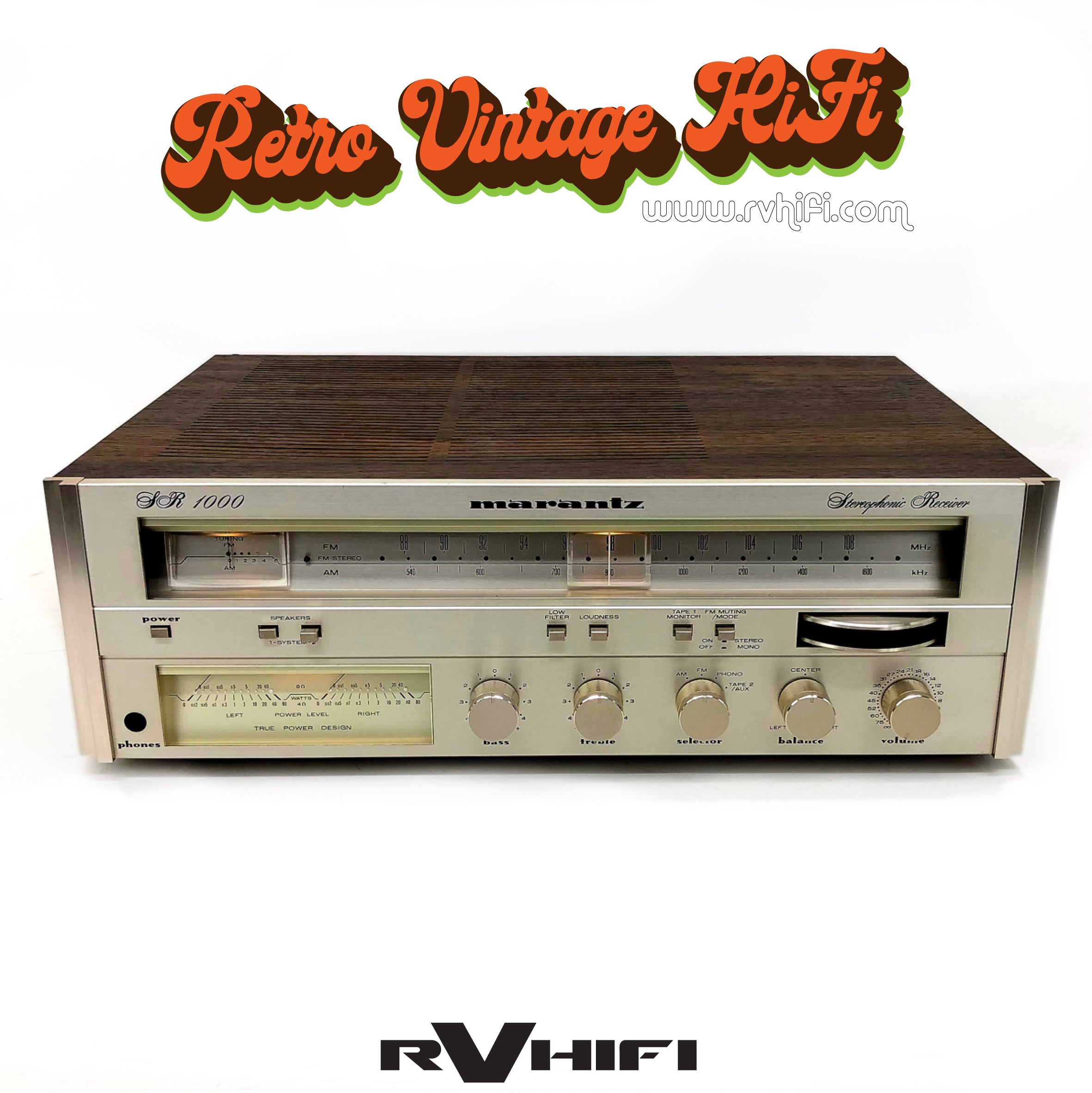

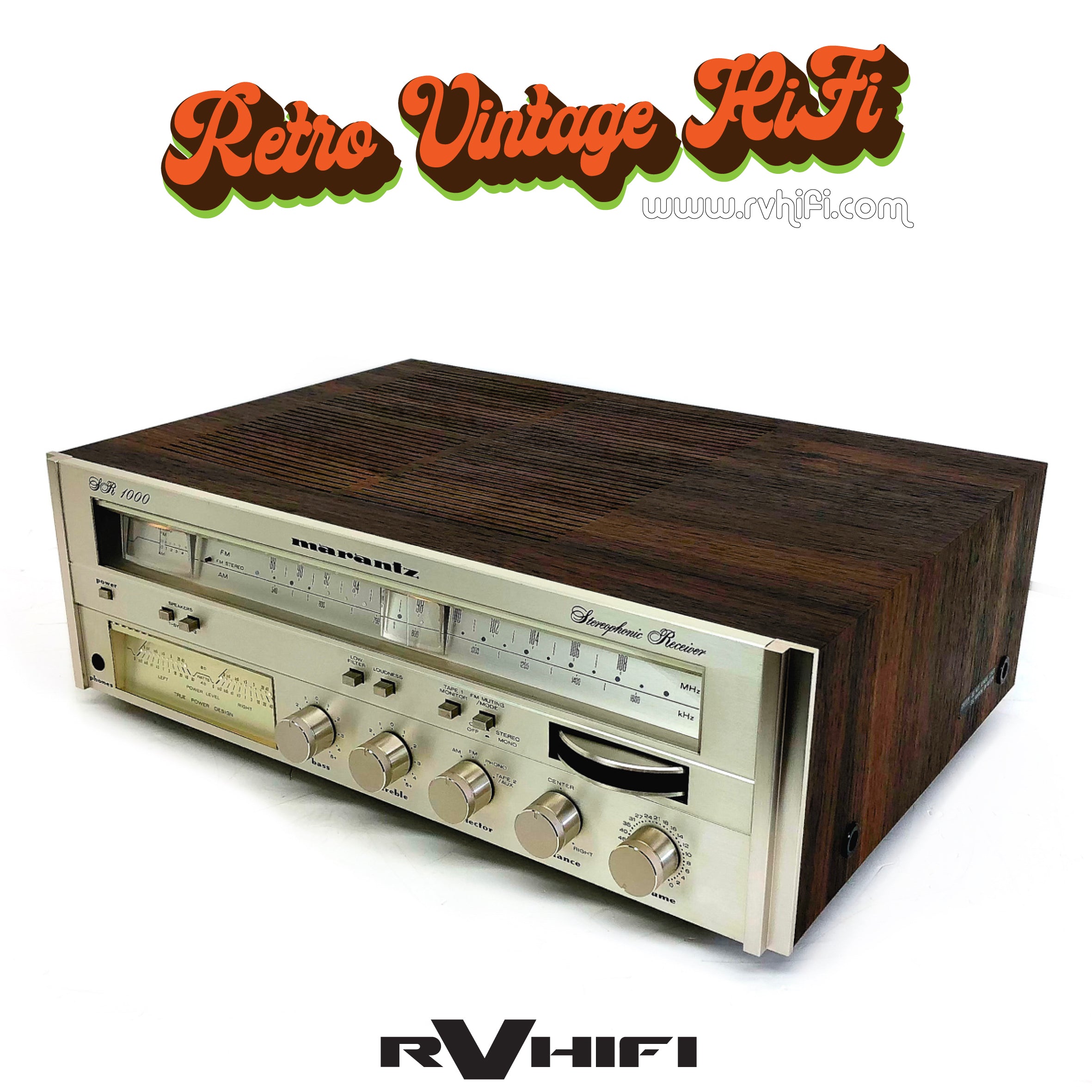

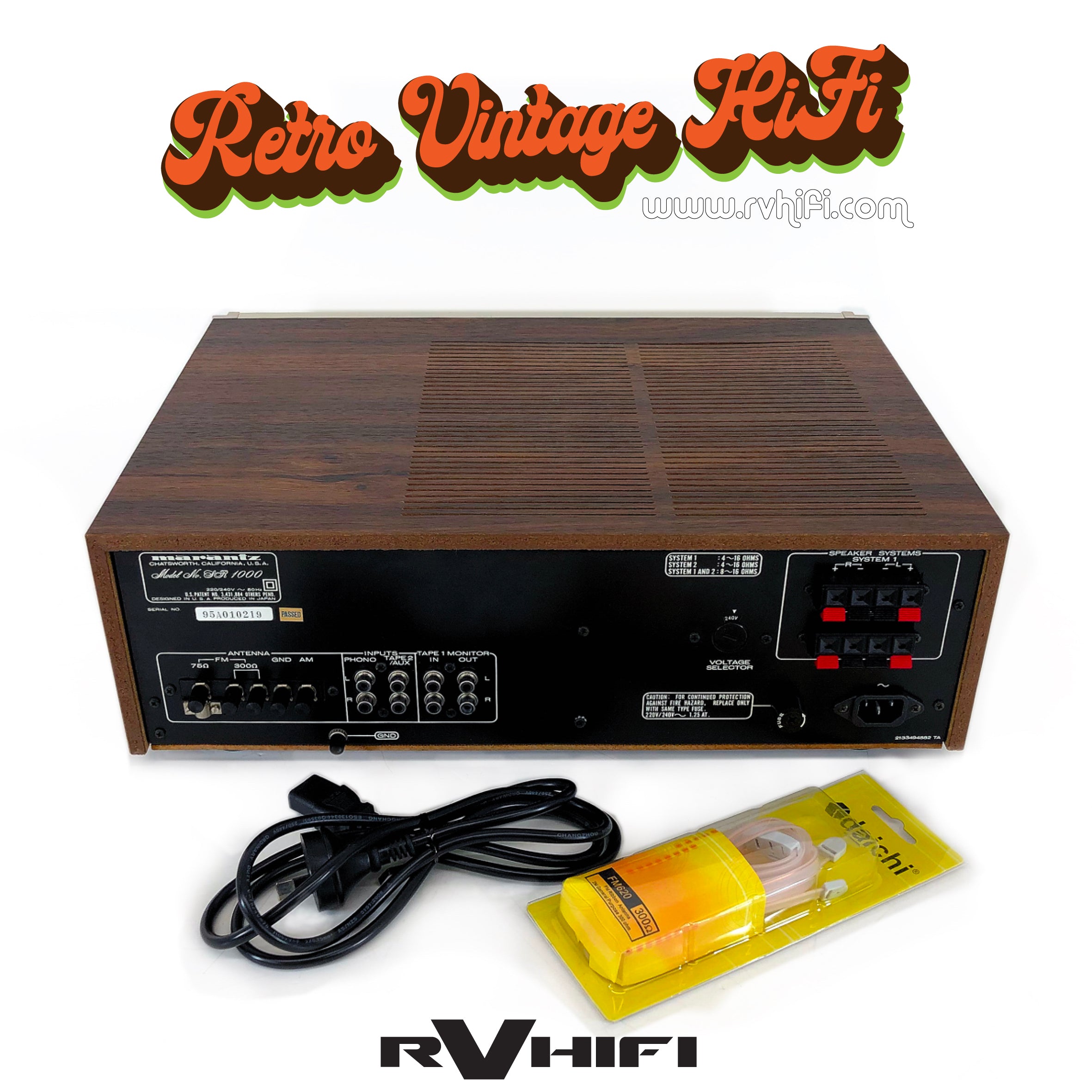

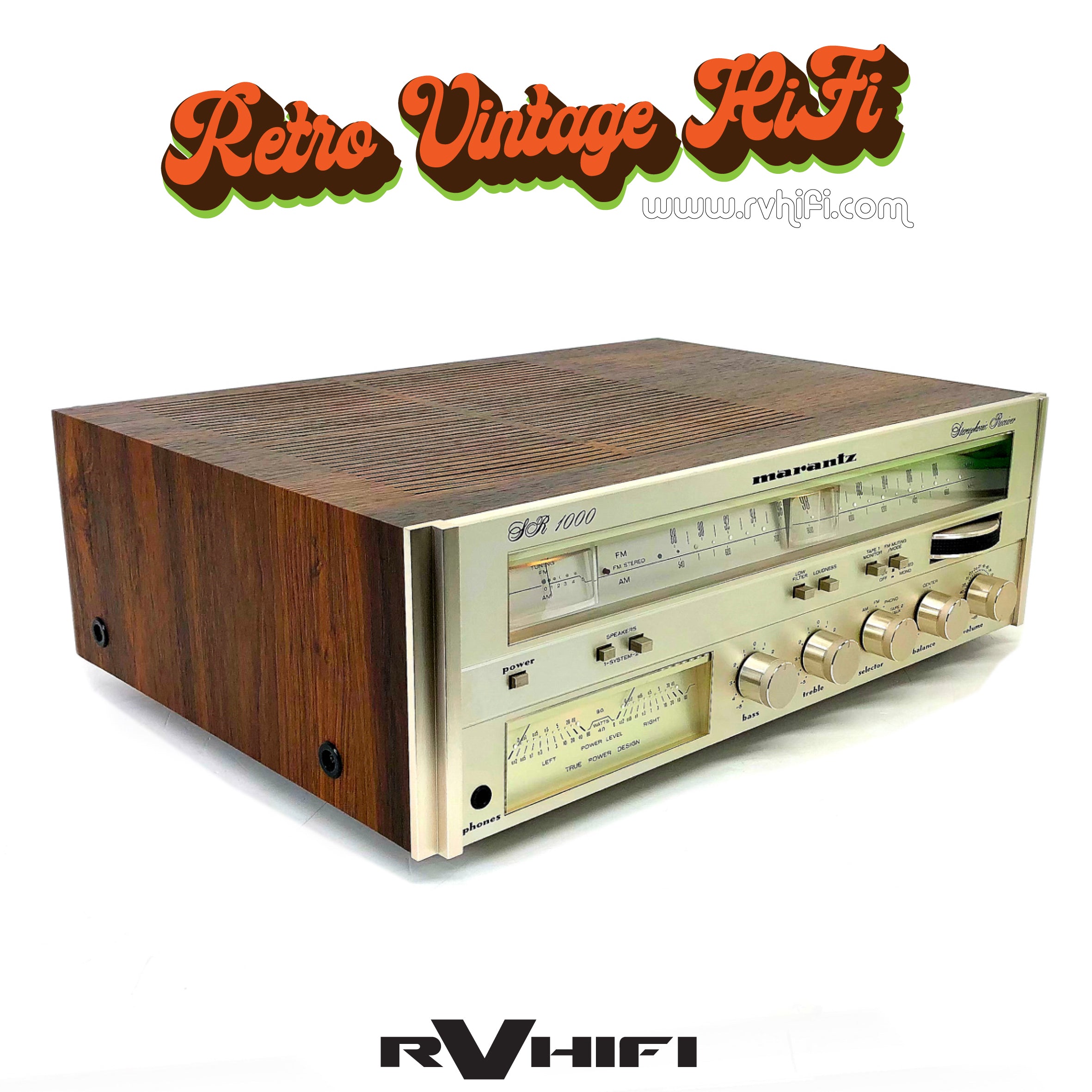

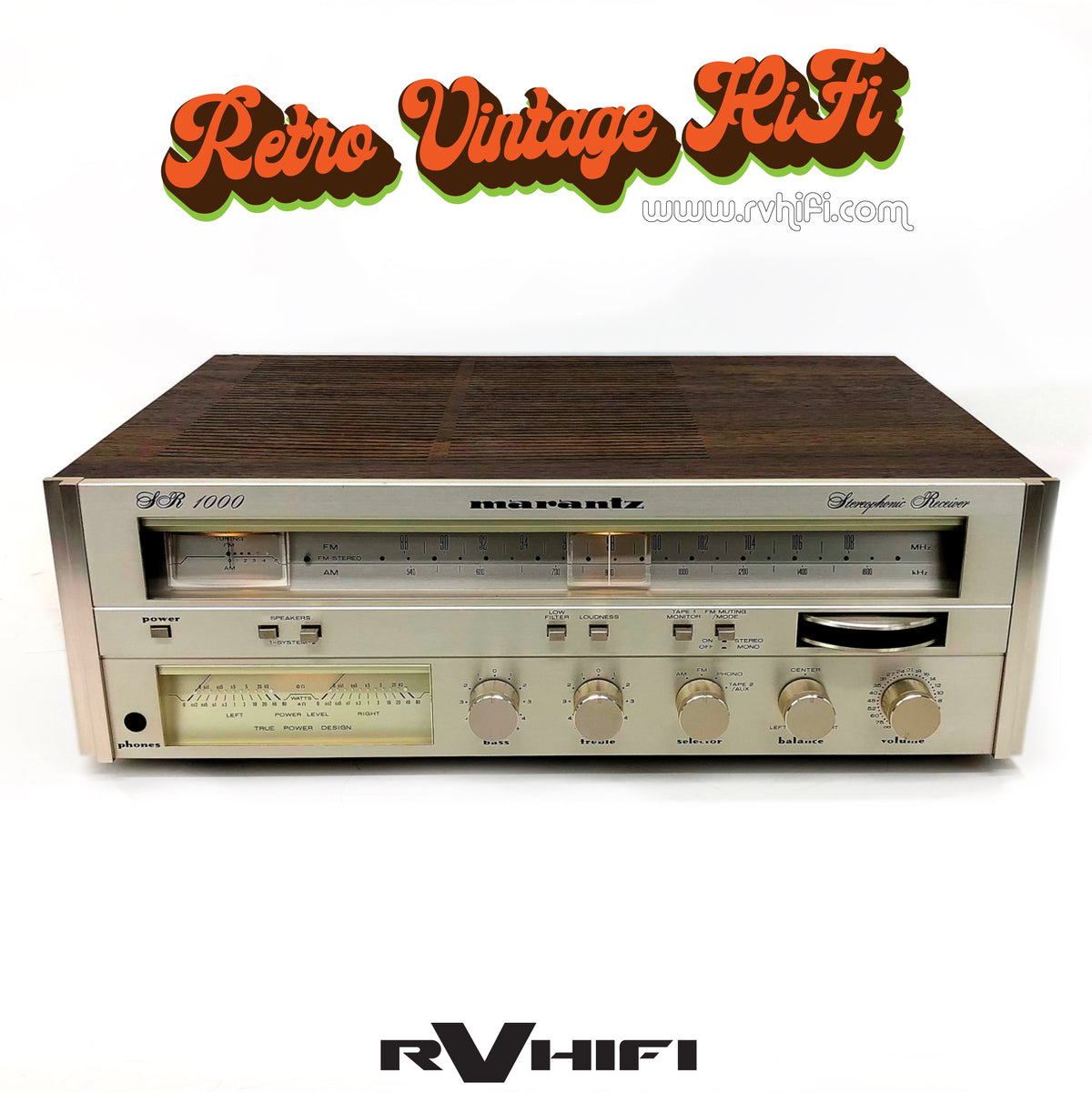

Marantz SR1000 Stereophonic Receiver

Experience the timeless charm of the Marantz SR-1000, a trusty vintage stereo receiver from 1980 designed with the beginner audiophile in mind. Delivering 20 watts per channel, it offers that signature Marantz sound with dependable performance and a stylish silver-face finish. Equipped with a built-in phono stage for your vinyl collection and dedicated inputs for tape and AUX, this receiver gives you full control over bass, treble, and balance. The SR-1000 is a fantastic value, capturing the essence of classic hi-fi and the perfect starting point to explore vintage audio.

Specifications:
Tuning range: FM, MW
Power output: 20 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 40kHz
Total harmonic distortion: 0.09%
Damping factor: 36
Input sensitivity: 2.7mV (MM), 160mV (line)
Signal to noise ratio: 84dB (MM), 96dB (line)
Output: 580mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 7 x IC, 8 x transistors, 13 x diodes, 1 x FET
Dimensions: 466 x 140 x 323mm
Weight: 6.5kg
Year: 1980
Serial No: 95A010219

Description of Works:
Replaced all electrolytic capacitors in power amplifier and power supply circuit.
Replaced Power amp integrated circuit module.
Replaced various components, diodes, transistors and resistors.
Dismantled and clean all switches and potentiometers.
Replaced 240vac power lead.
Inspect and re-soldered PCB joints.
Cleaned, polished and DeoxIT RCA sockets.
Cleaned and detailed unit.

Warranty: 3 months
