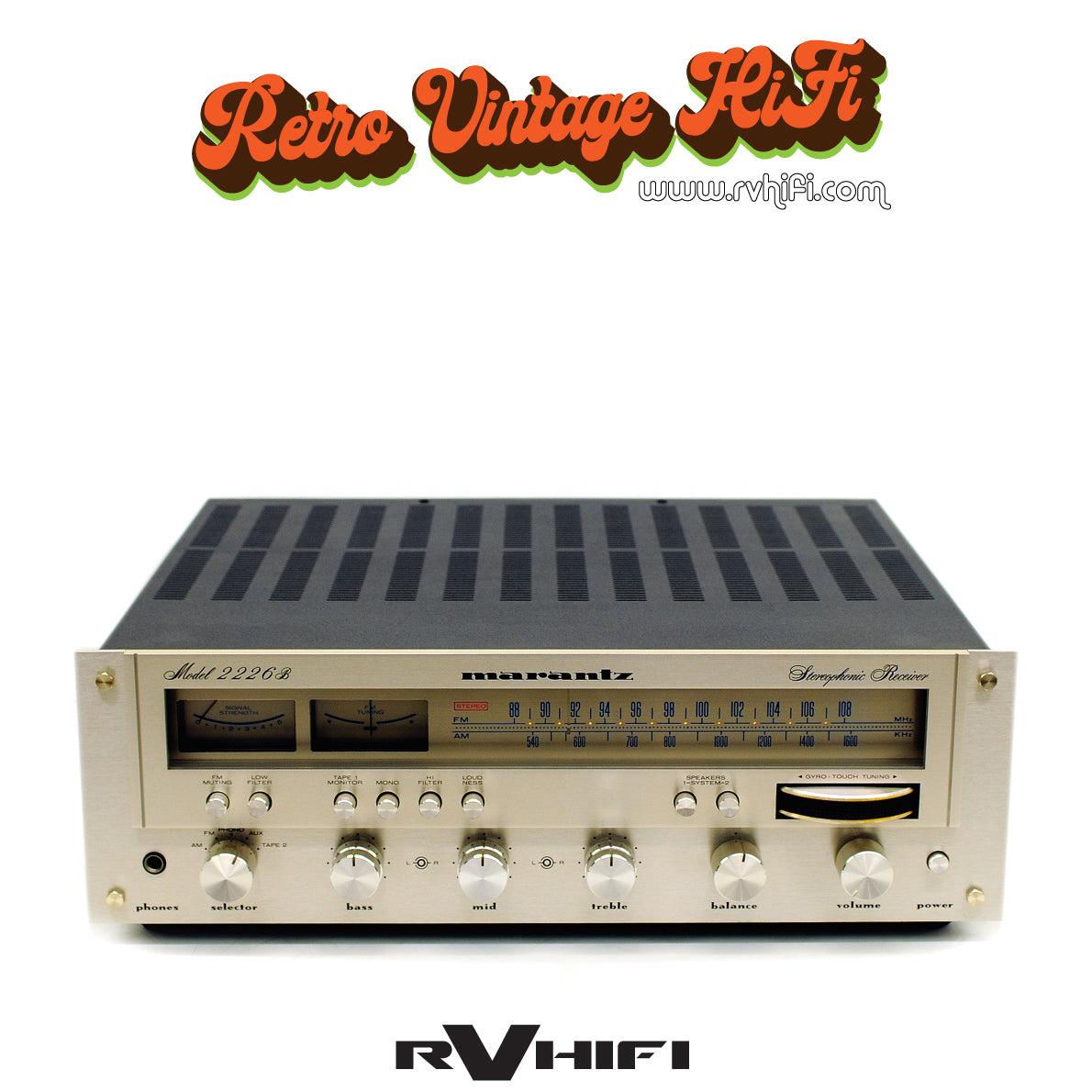

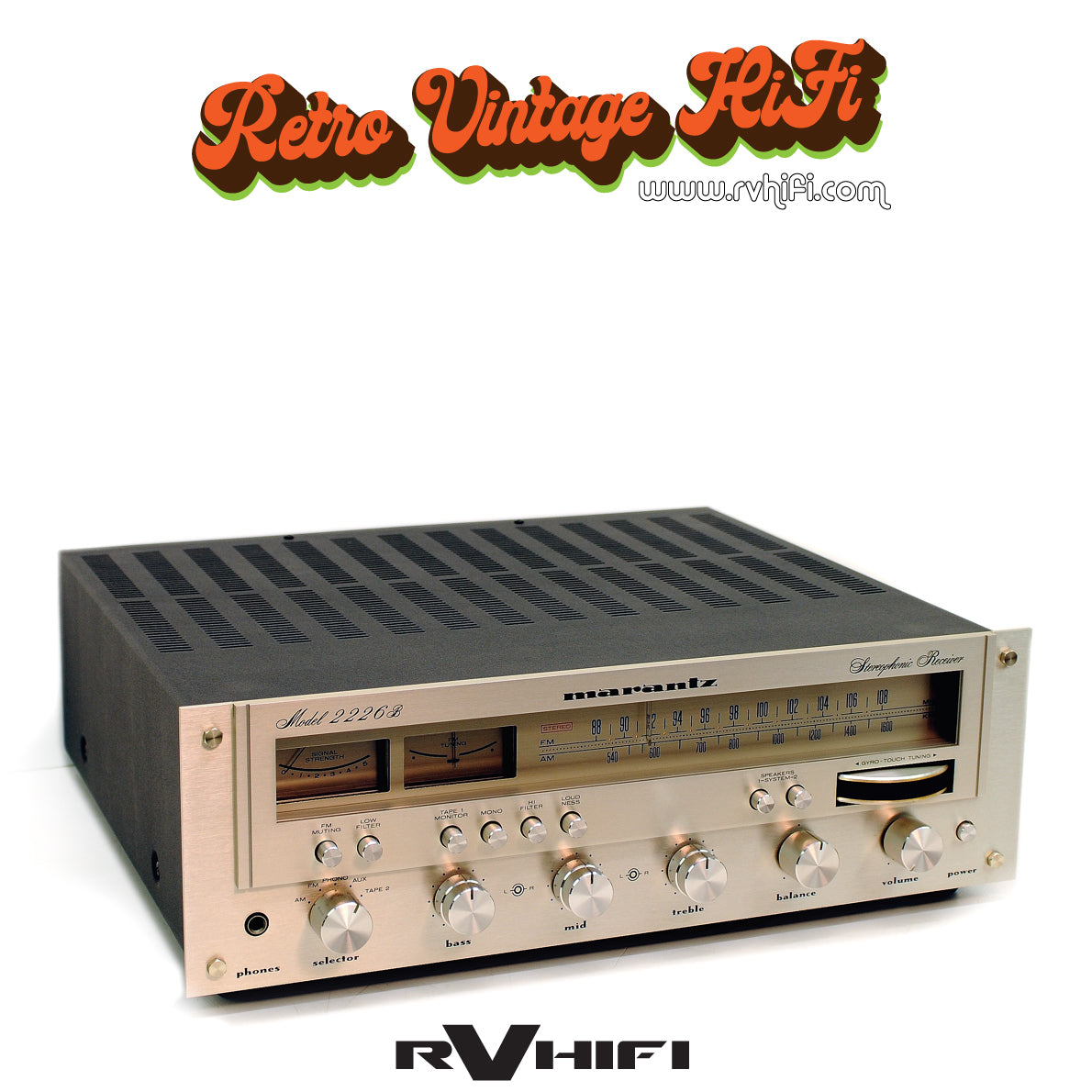

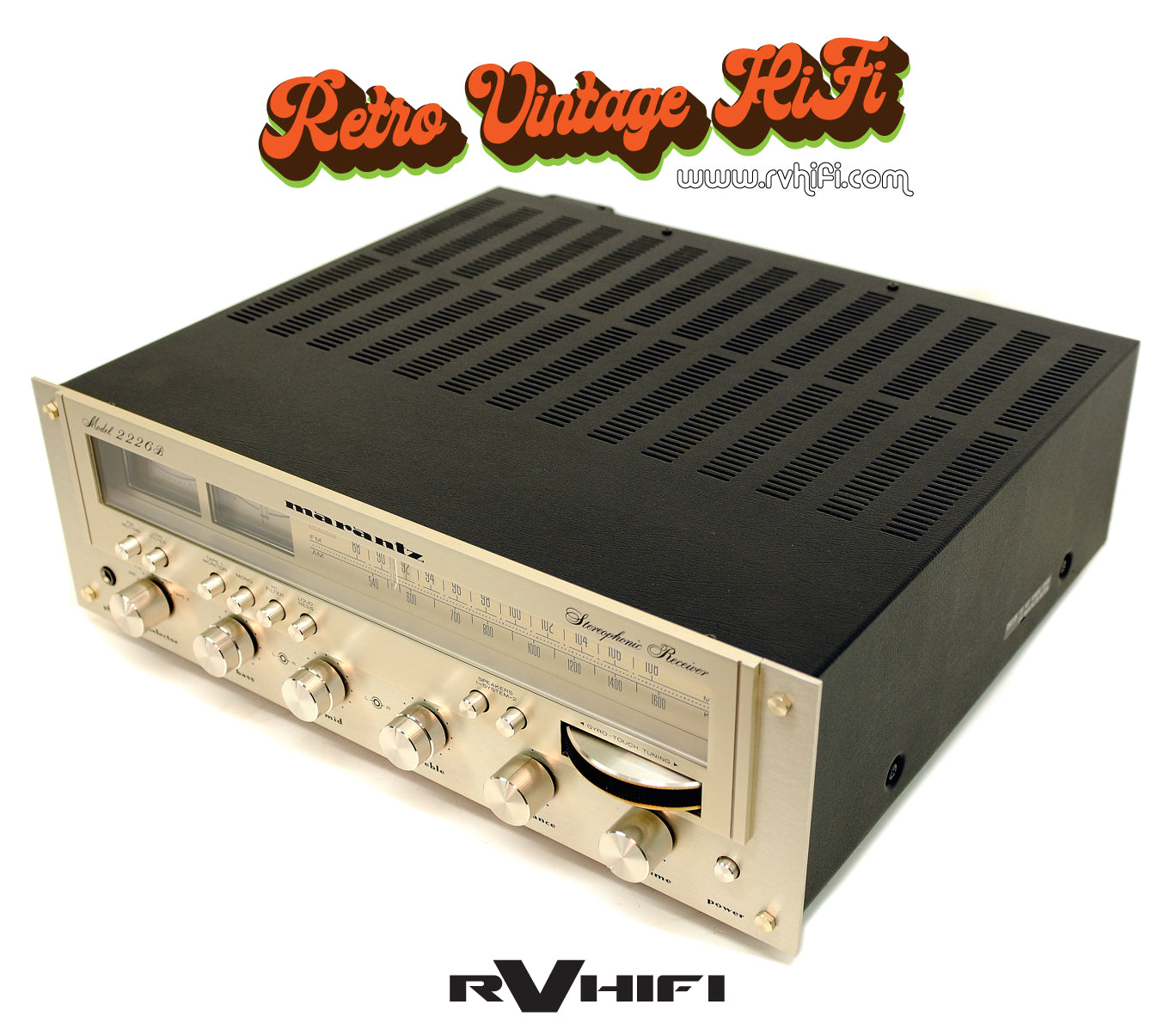

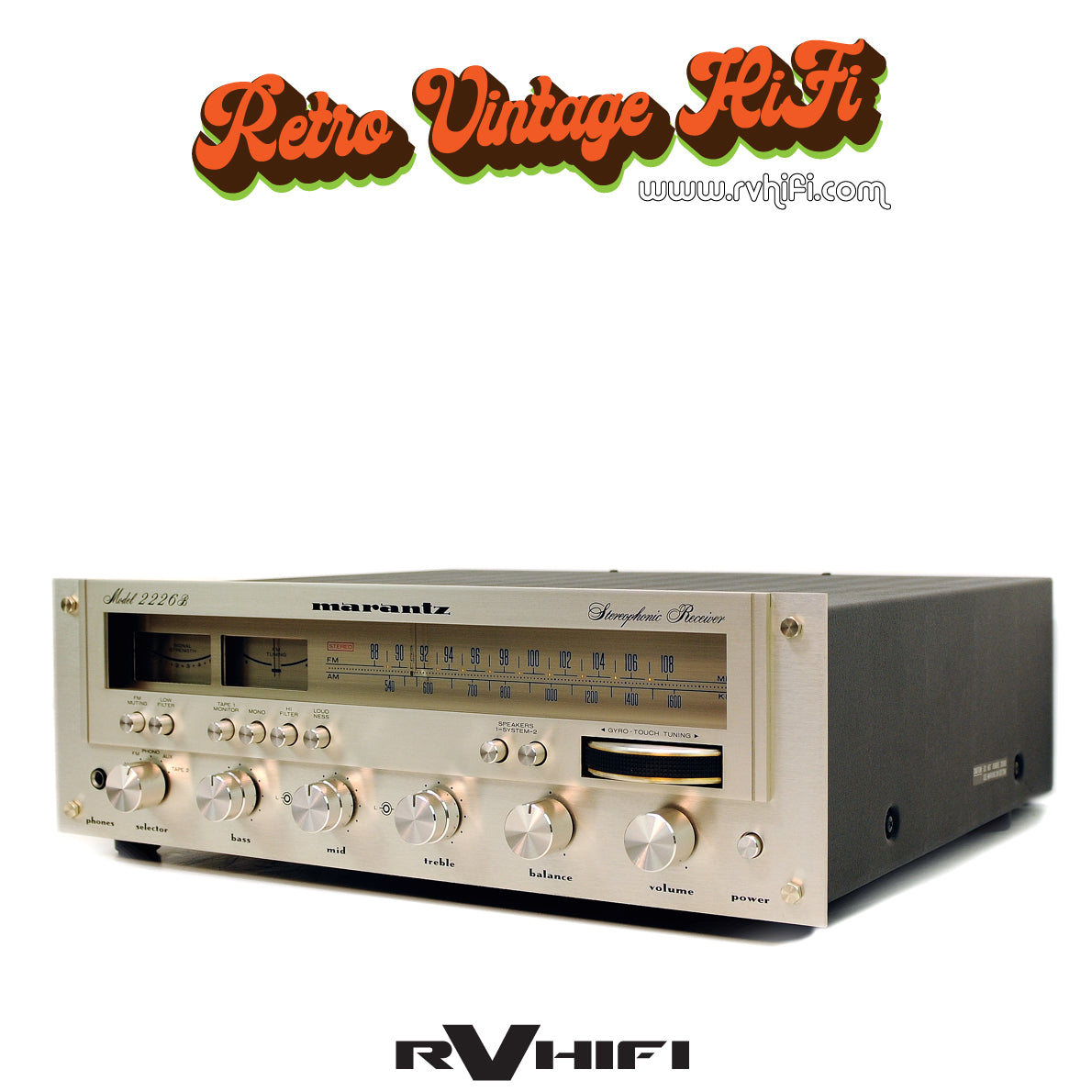

Marantz 2226B Stereophonic Receiver

Marantz 2226B Stereophonic Receiver

Specifications:
Tuning range: FM, MW
Power output: 29 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 40kHz
Total harmonic distortion: 0.1%
Damping factor: 35
Input sensitivity: 1.8mV (MM), 180mV (line)
Signal to noise ratio: 50dB (MM), 50dB (line)
Output: 180mV (line), 1.5V (Pre out)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 3 x IC, 46 x transistors, 30 x diodes, 1 x FET
Dimensions: 440 x 137 x 365mm
Weight: 11.5kg
Year: 1977 - 1979
Serial No: A010124

Description of Works:
Replaced all electrolytics with Nichicon FG, FW, series capacitors.
Replaced and upgraded polyesters with WIMA capacitors.
Inspect and replaced several small signal transistors.
Inspect output transistors.
Inspect and re-soldered all PCB's.
Adjust bias and DC offset.
New Illumination globes.
Dismantled, cleaned & deoxit potentiometers and switches.

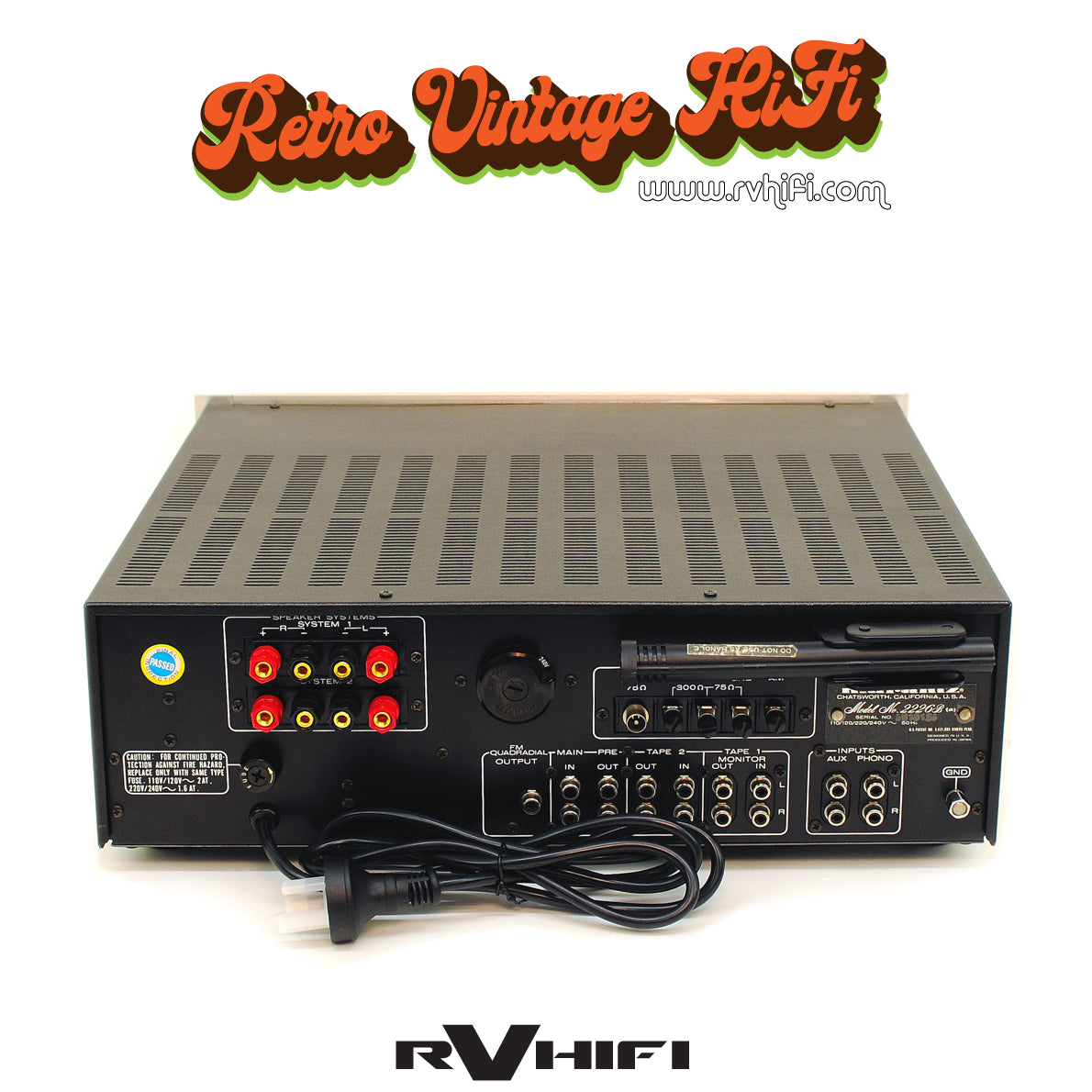

New speaker banana binding posts.
Cleaned & detailed unit.
New 240vac power lead.

Warranty: 12 months

RV HIFI says:
This Marantz 2226B Stereophonic Receiver is a prime example of the remarkable receivers the brand produced in the 1970s. The Model 2226B offers 26 watts per channel into 8 ohms and has been fully serviced and outfitted with new high-end capacitors. Additionally, the speaker terminals have been upgraded to banana style connectors, resulting in superb audio quality that is defined, clear, dynamic, and potent. It is a true representation of the golden era of Hi-Fi, where design and craftsmanship were unparalleled.
