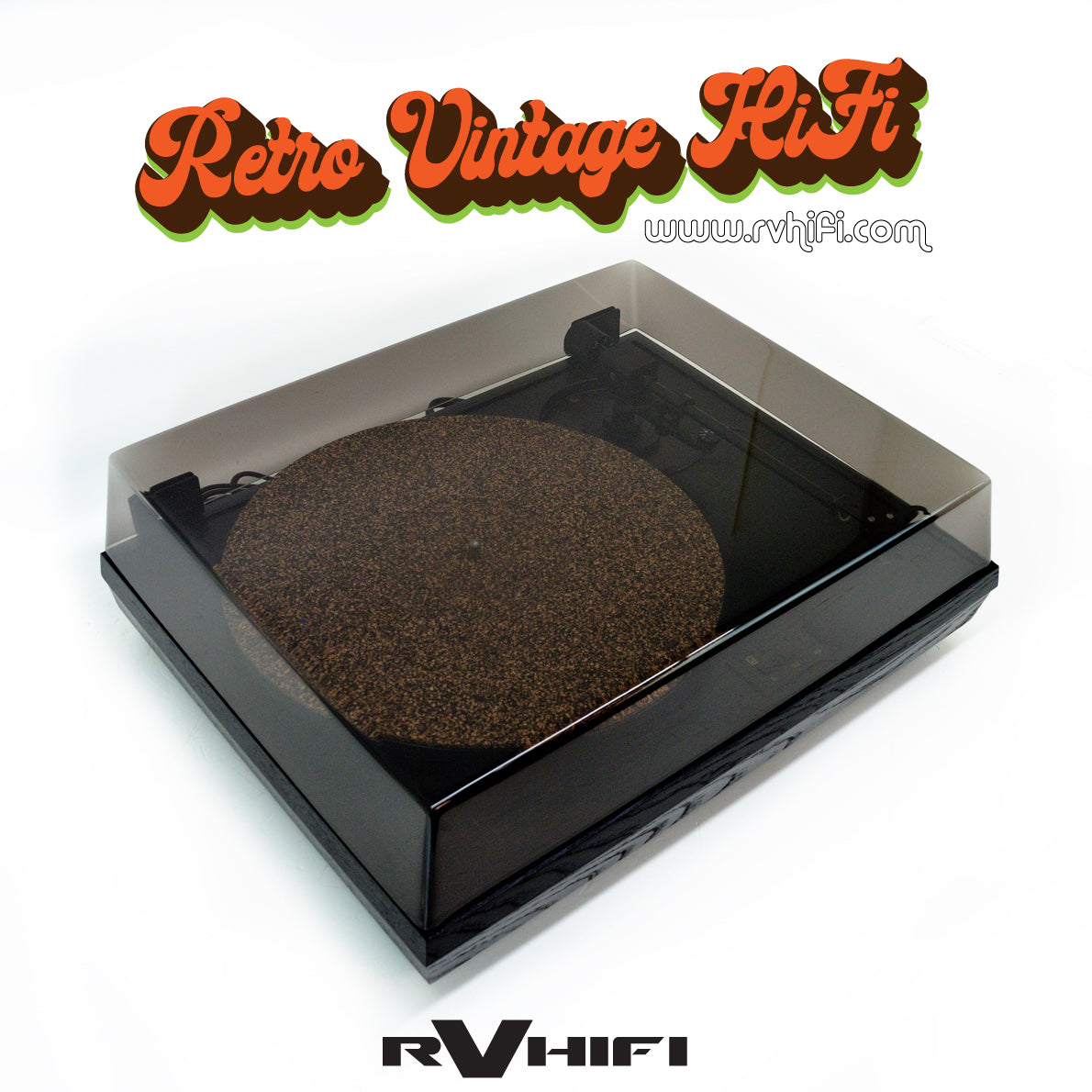

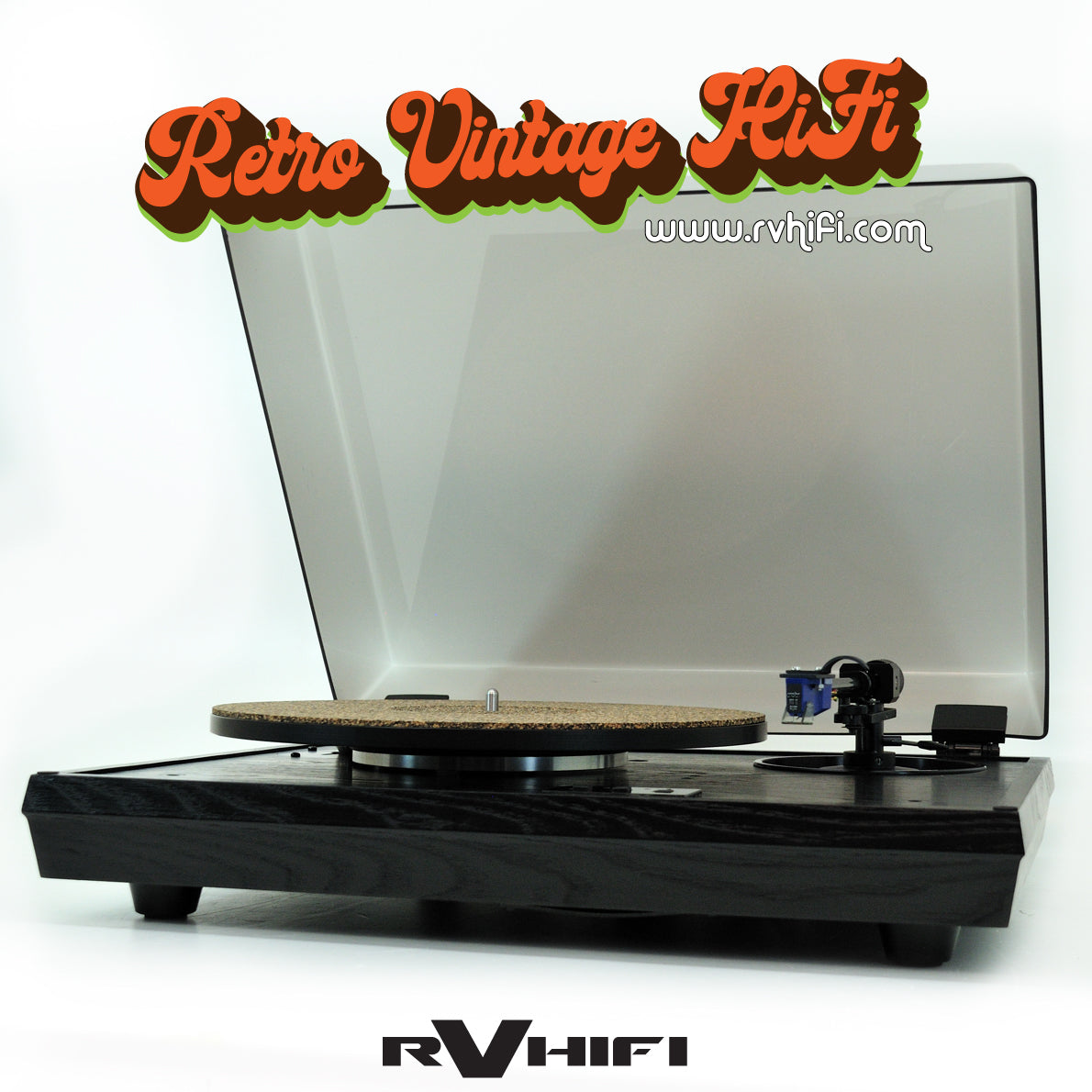

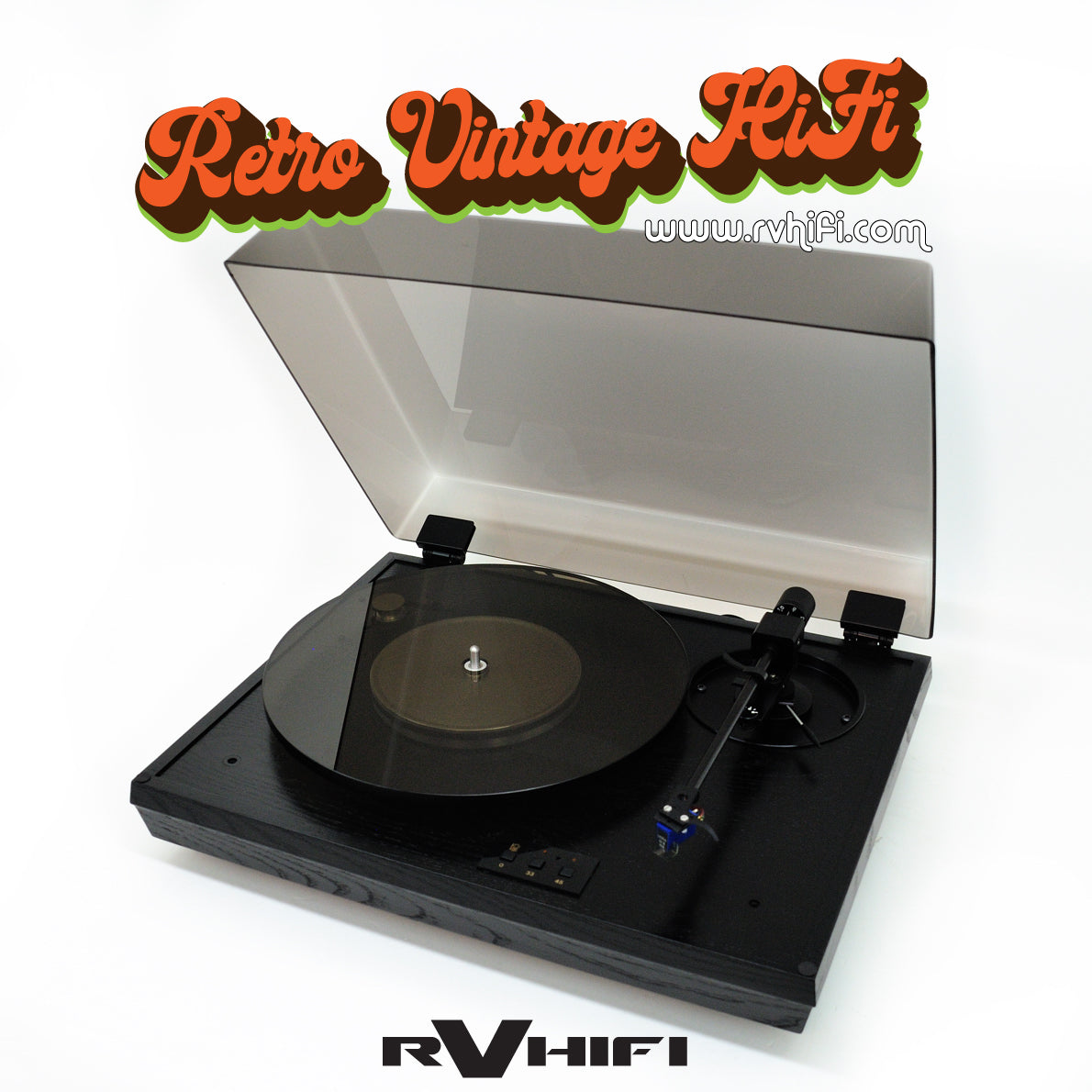

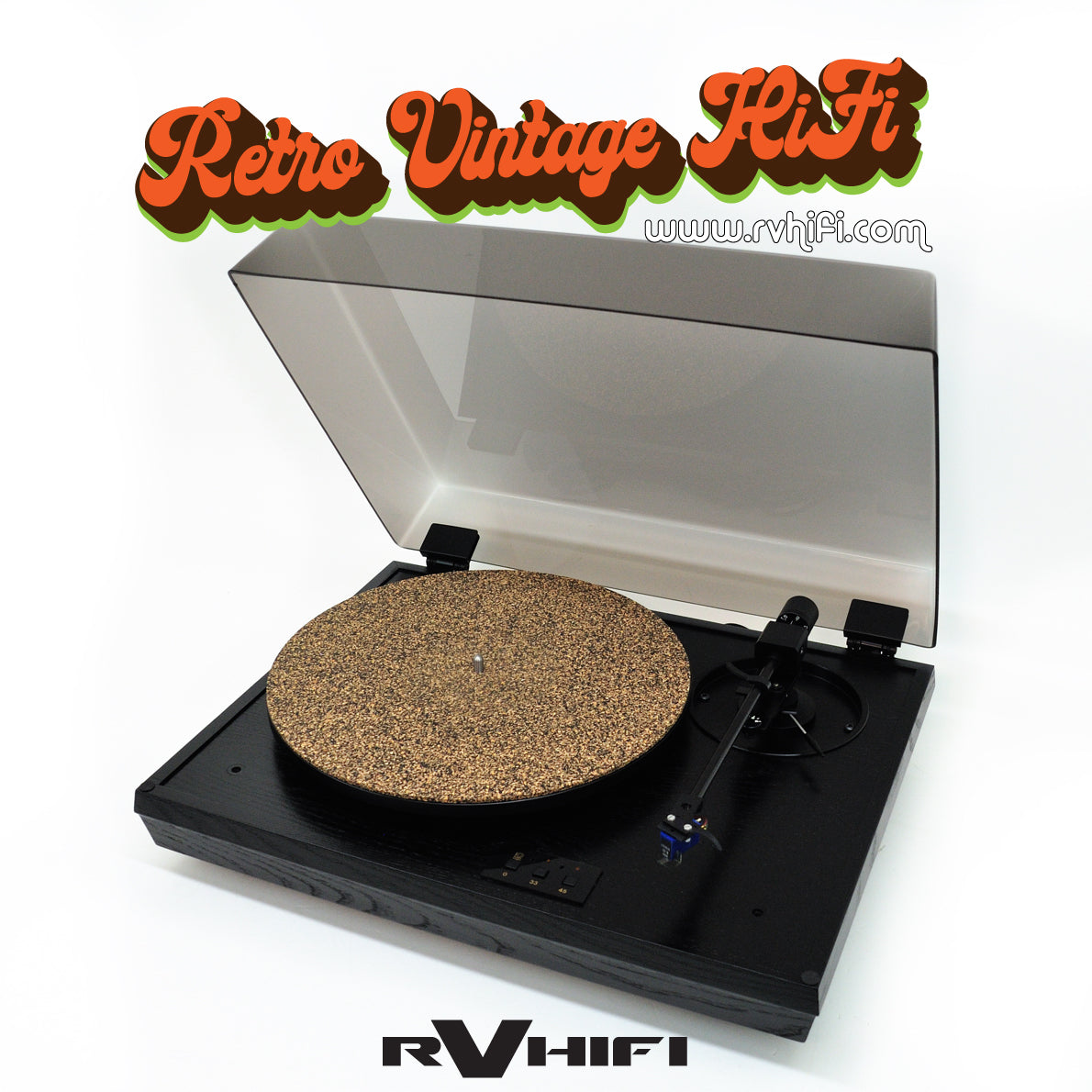

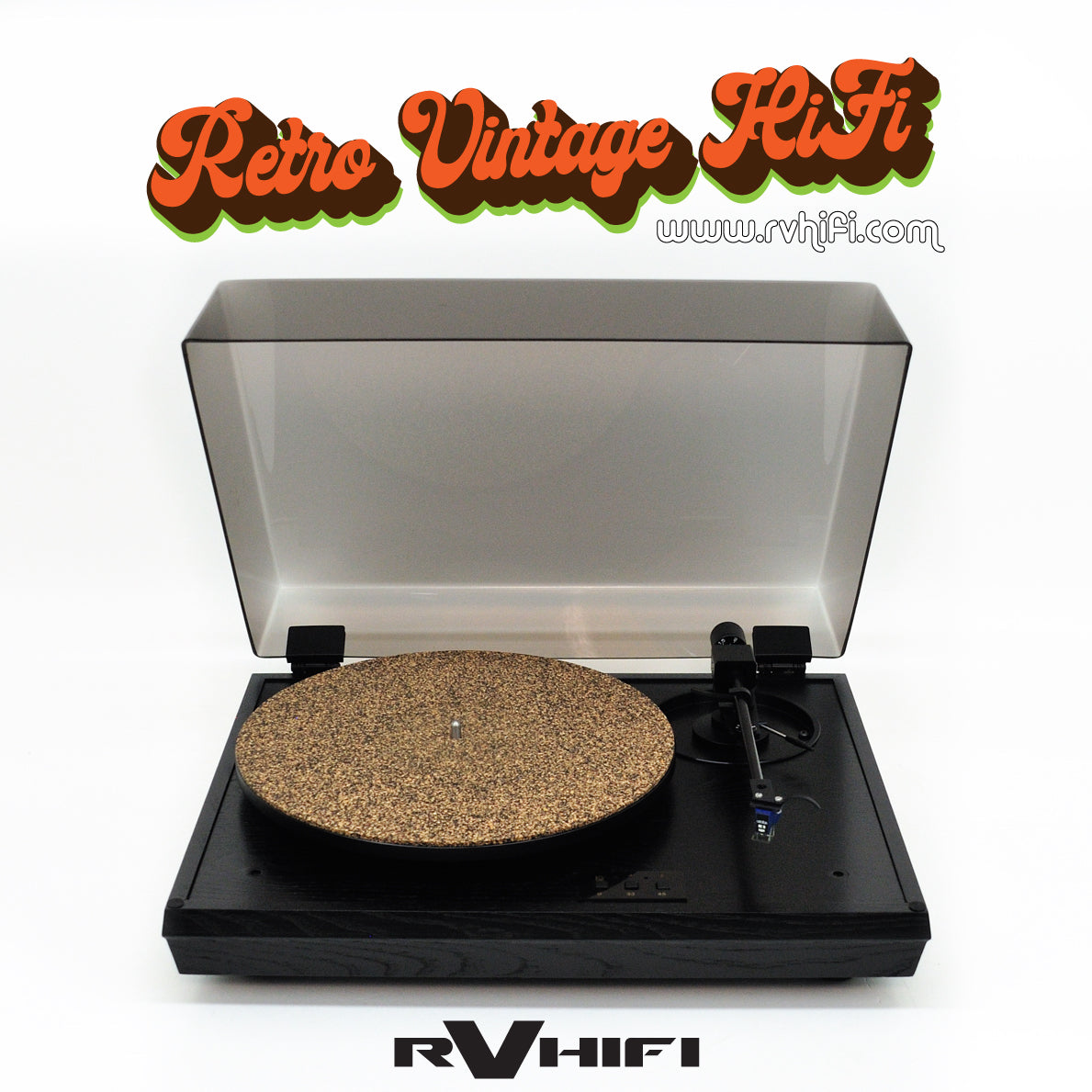

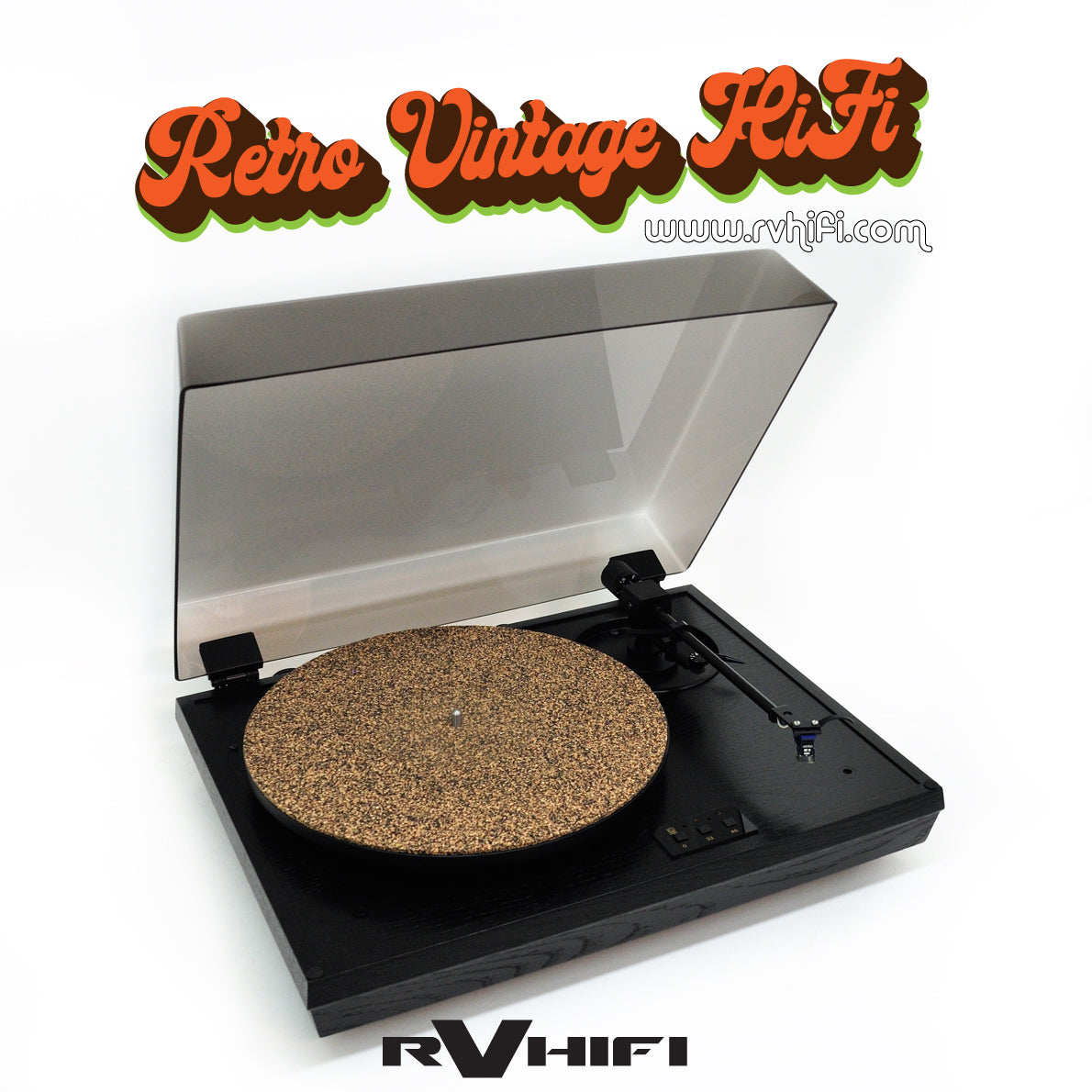

The Logic Tempo is a belt-driven, sprung chassis turntable with AC synchronous motor.
The DM101 was fitted with an improved electronic power supply with two-speed switching.
Drive is by a synchronous motor via a precision ground, flat section belt.
The platter is a precision cut glass item in two-part form, the main machined alloy platter having a high inertia value.
The main bearing has a die-cast aluminum housing with PTFE bushes.
Motor: 24 pole synchronous
Speeds: 33.33 and 45rpm electronically switched
Wow and flutter: <0.06%
Dimensions: W462 x D354 x H144mm
Serial No. 011581
Made in England
Description of Works:
Power Supply capacitors and high wattage resistors replaced.
Fitted new belt.

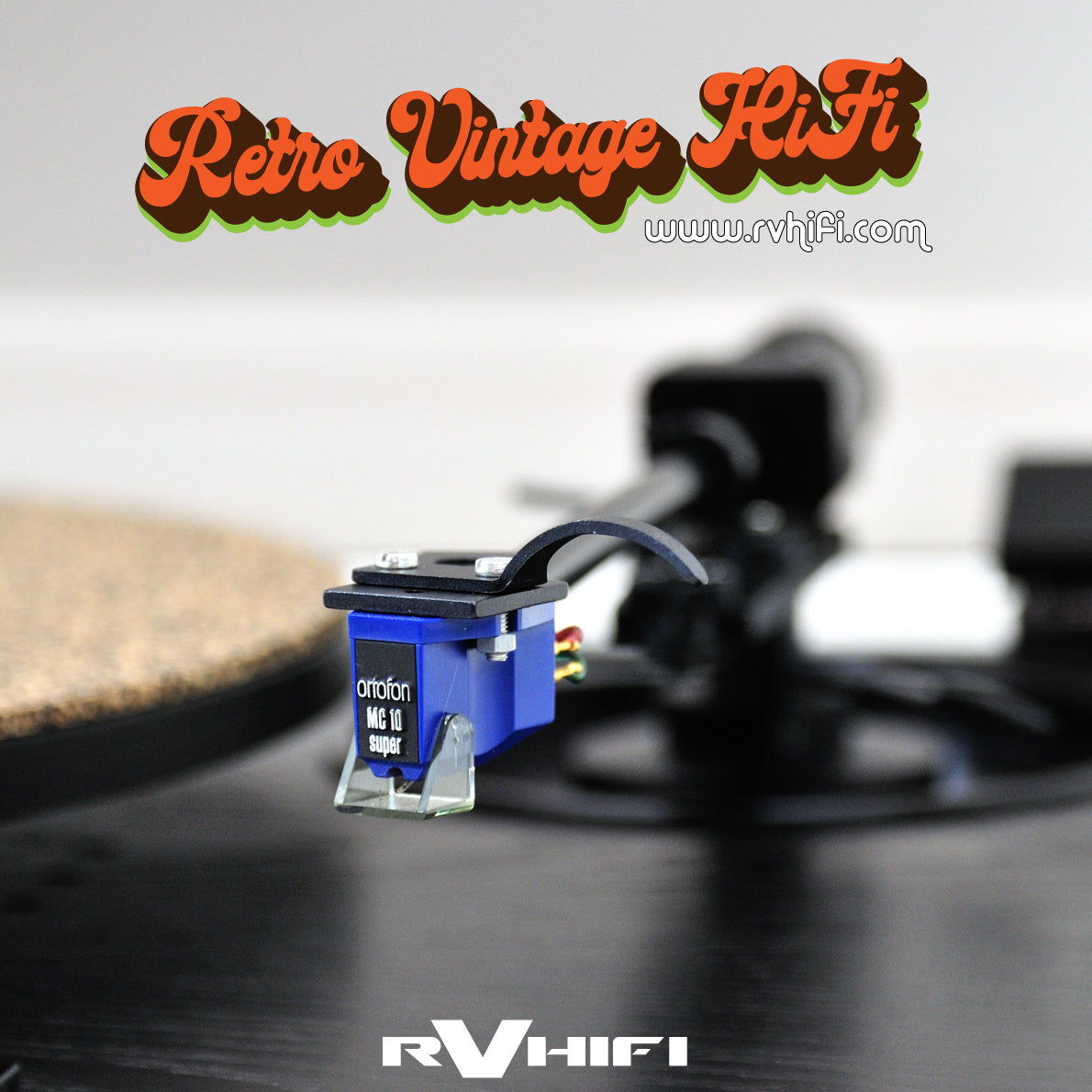

Fitted with a Ortofon MC10 Super Moving Coil cartridge.
Serviced tone arm.
New cork mat.
New Black Epoxy paint.
Clear cover polished.
Warranty 3 months.
RV HIFI Says:

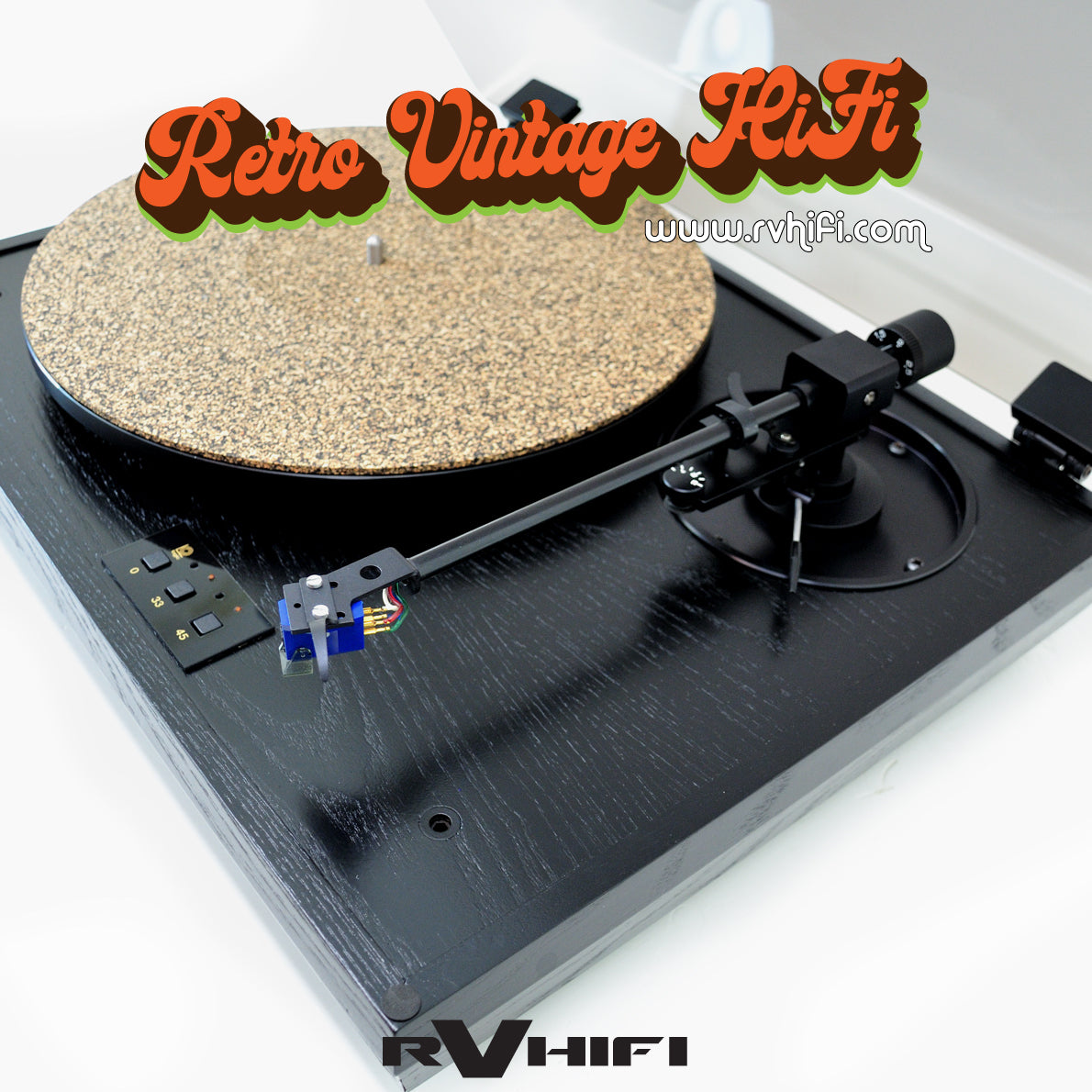

Rare high quality Logic Tempo 2 Speed Belt Drive Turntable, fitted with a Logic Datum II tonearm. Also fitted a Ortofon MC10 Super cartidge. Sound quality is lively and exciting, with a solid, clear and open midband, with good stereo imaging. We completely restored the Tempo turntable to it's former glory, new coat of paint, all electronics up-graded.
