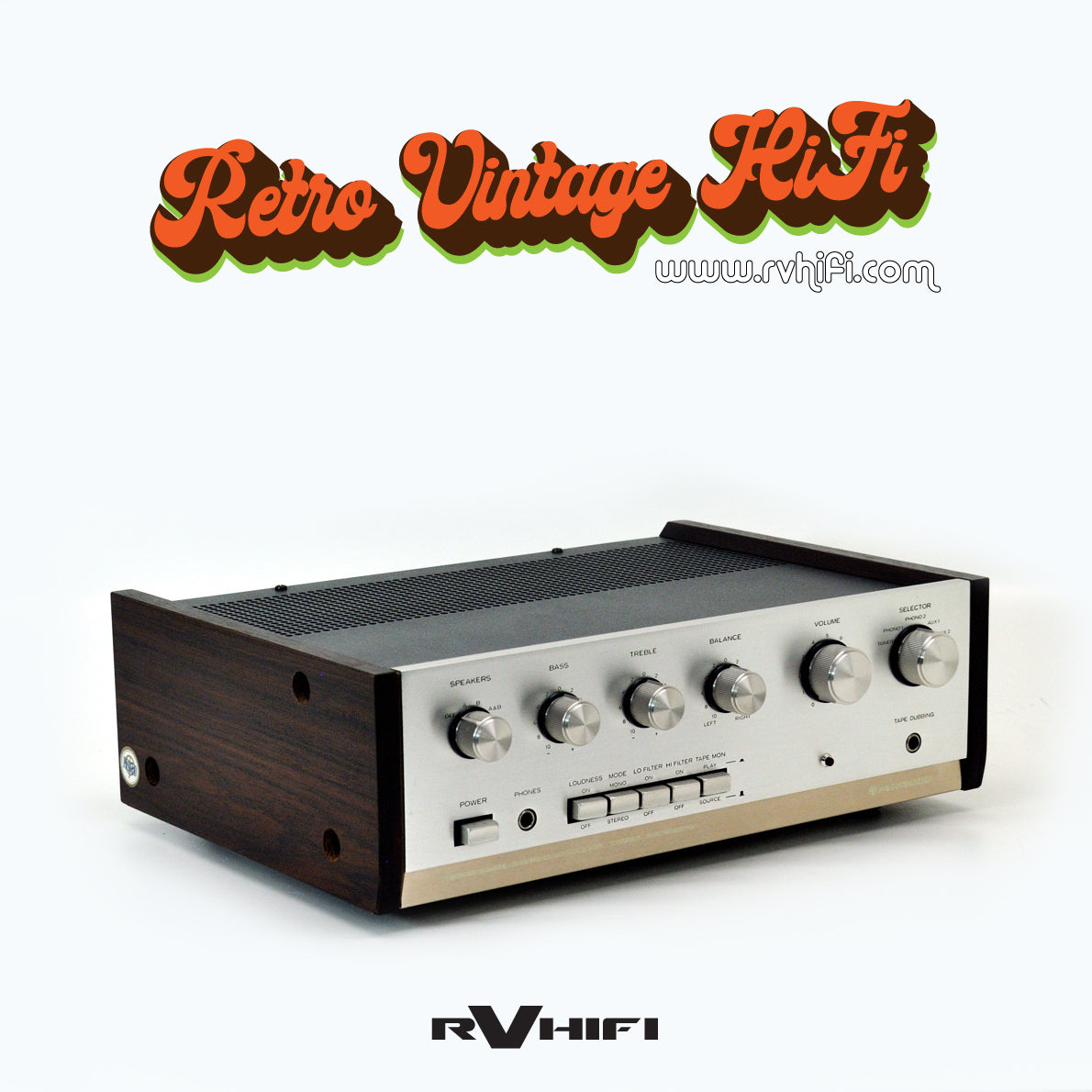

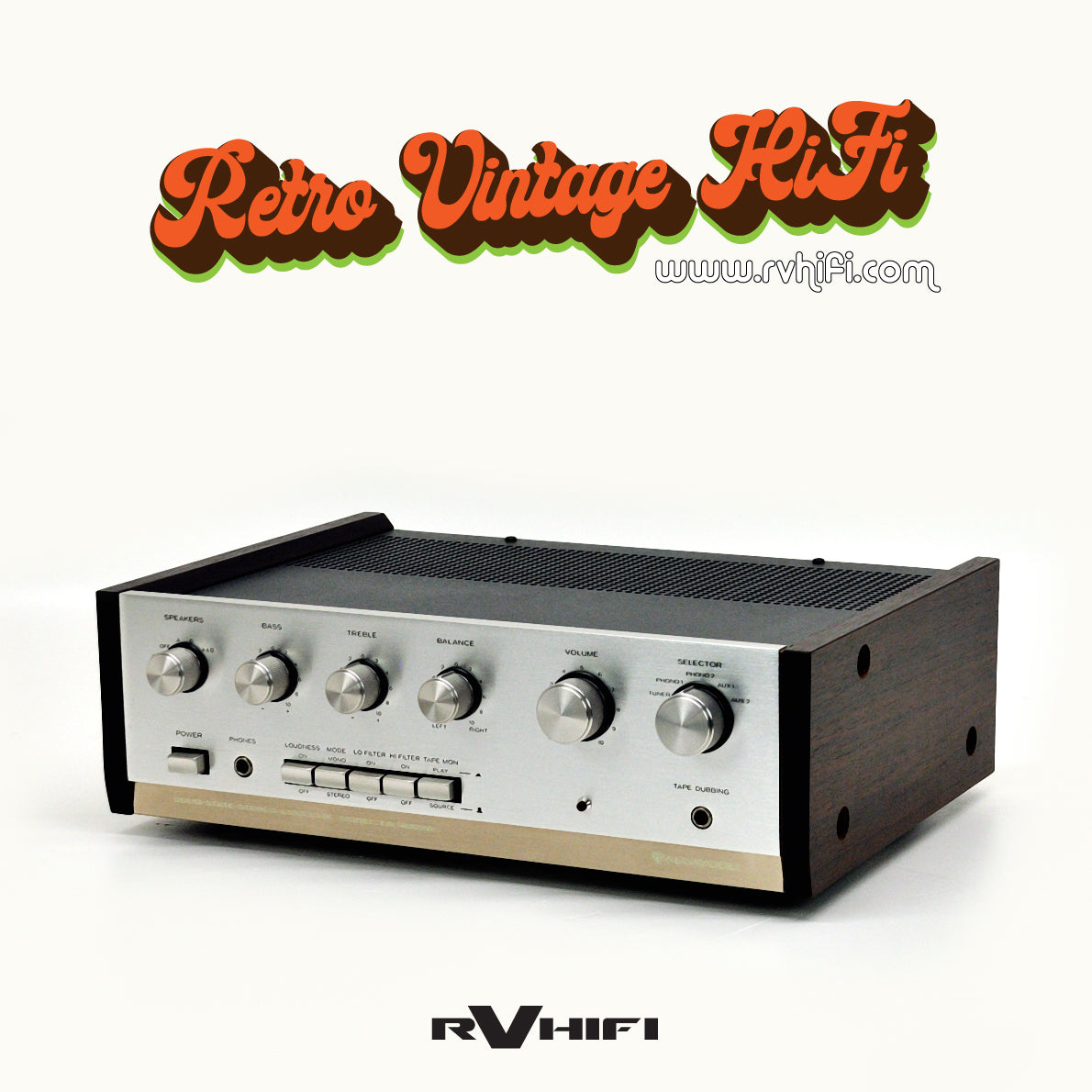

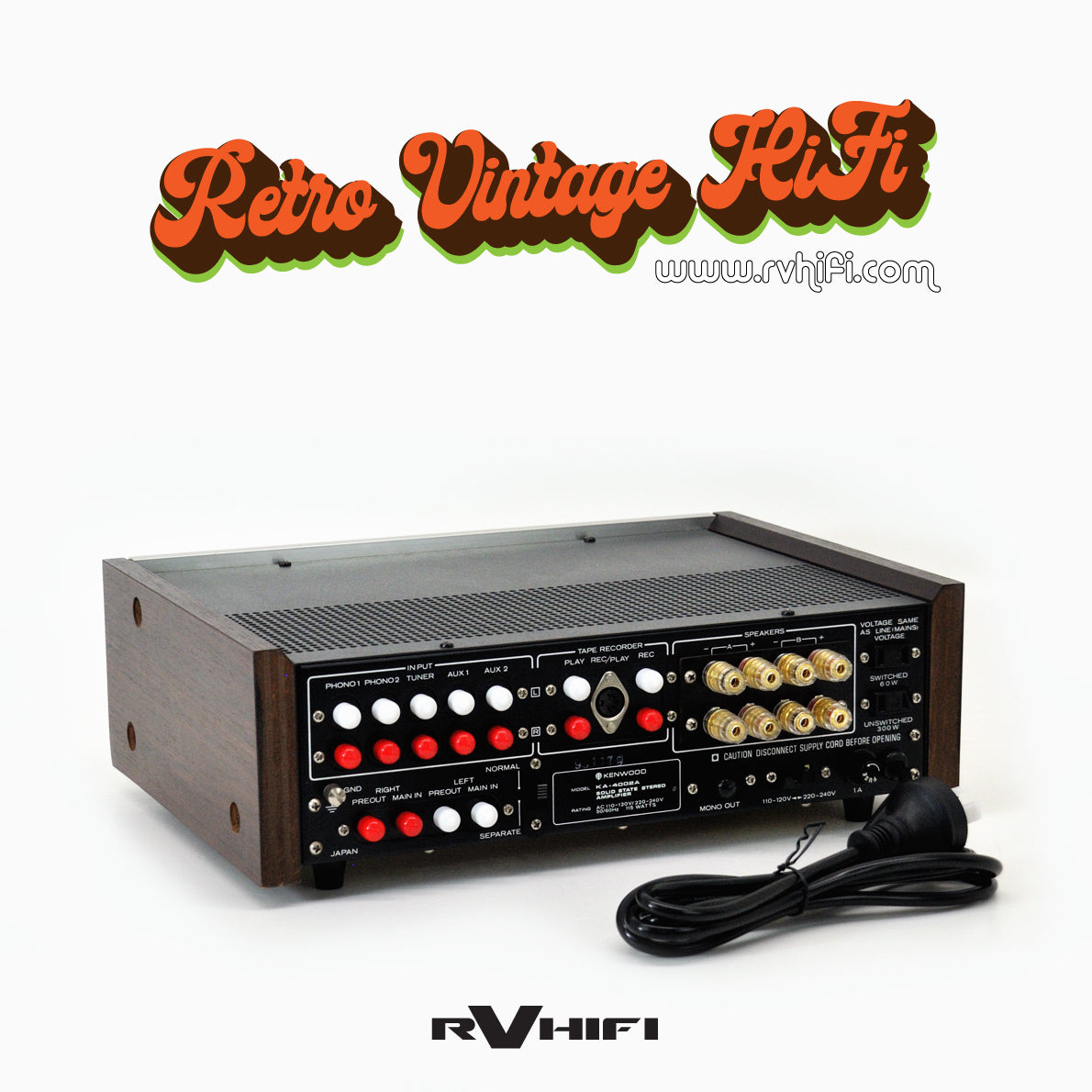

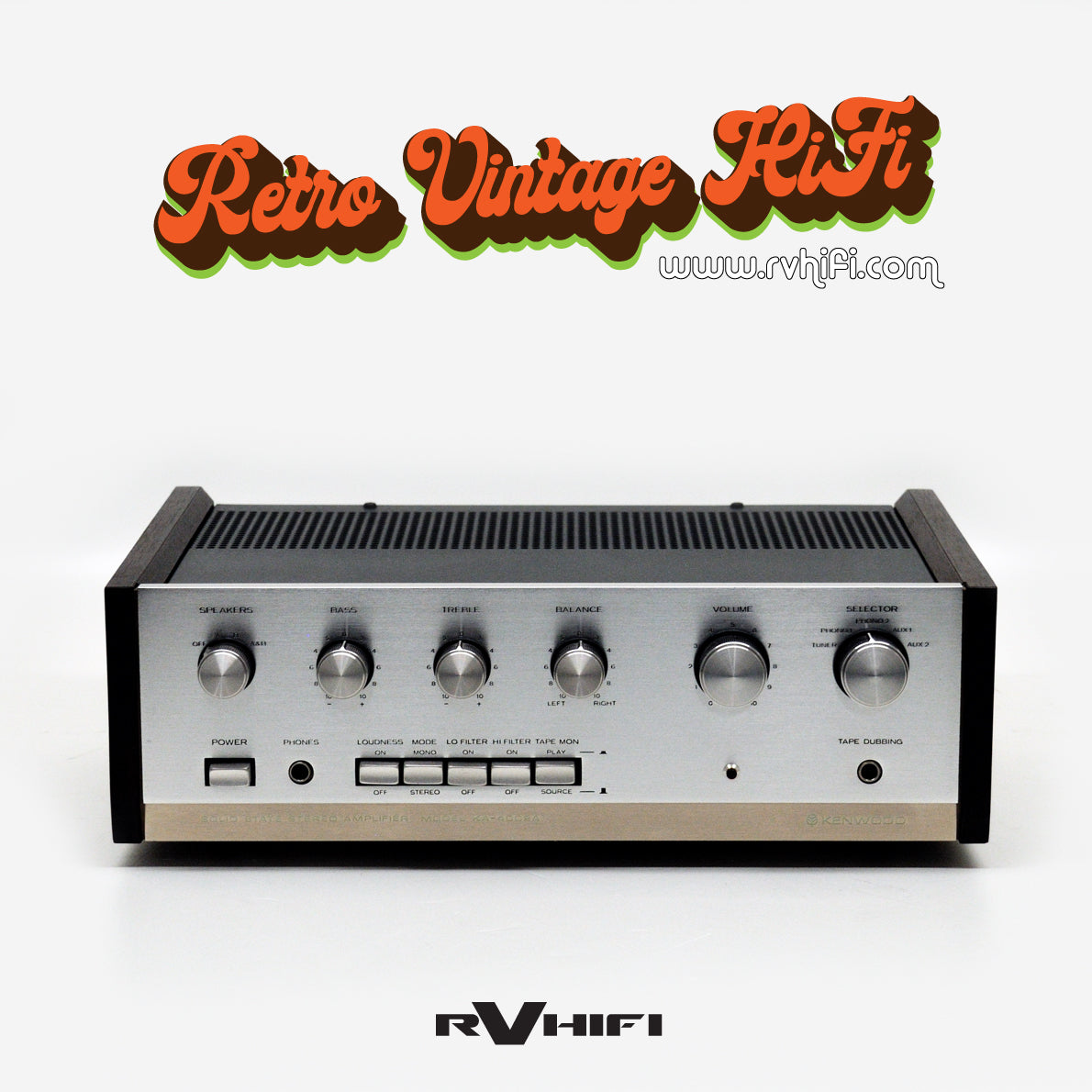

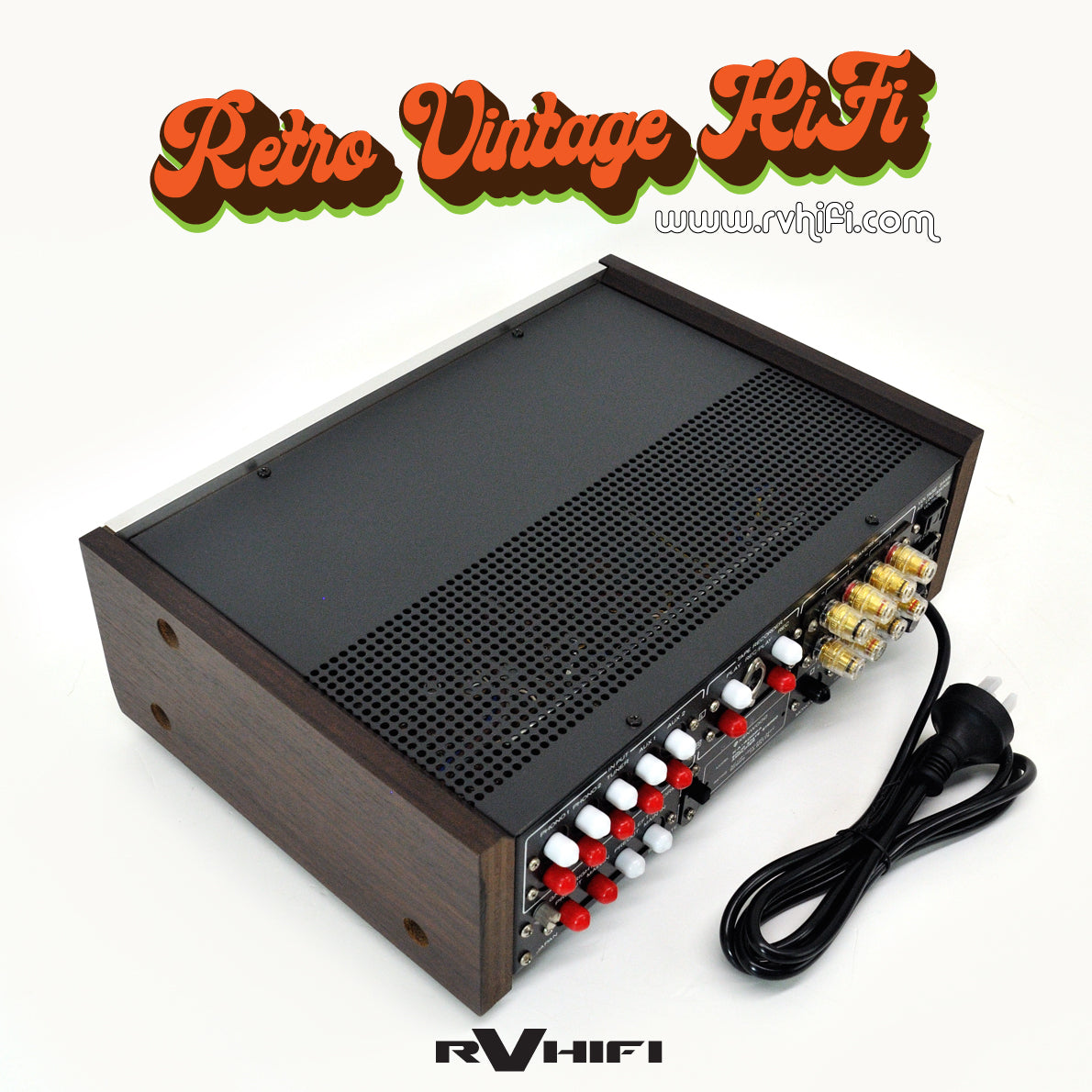

Kenwood KA-4002A Solid State Stereo Amplifier (1970-73)

Description

The Kenwood KA-4002 is the solid state stereo amplifier that packs a compact sized wallop. With 58 watts and intensely low distortion, this instrument guarantees top level performance of the highest proportions.

Another remarkable example of Kenwood's complete, high quality circuitry, the KA-4002 also stresses modern, up to date design with its simple stylized exterior. Its unbeatable craftsmanship makes this model another testimony to Kenwood's deserved world fame.

Specifications
Power output: 18 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 40kHz
Total harmonic distortion: 0.5%
Damping factor: 50
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 60dB (MM), 70dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 352 x 118 x 240mm
Weight: 5.7kg
Year 1970-73
Serial No. 981179


Description of Works
Replaced all electrolytics with Nichicon FG caps
Power supply cap upgraded from 2200uf 50v to 4700uf 63v
New 240vac power lead
Clean & deoxit all pots & switches
Inspect & re-soldered all joints on PCB
Upgraded speaker output posts to gold banana posts.
Cleaned & detailed chassis

Warranty 6 months
