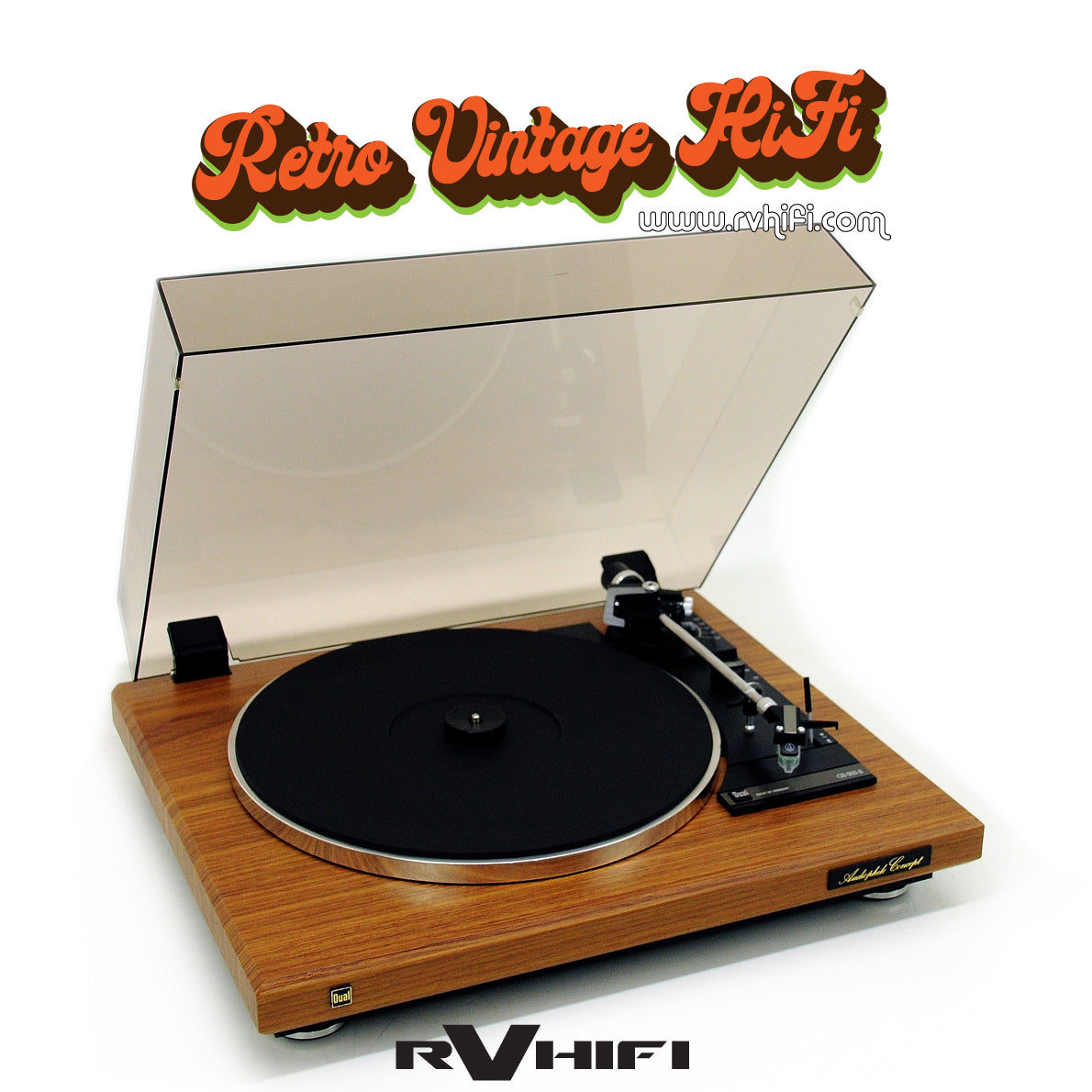

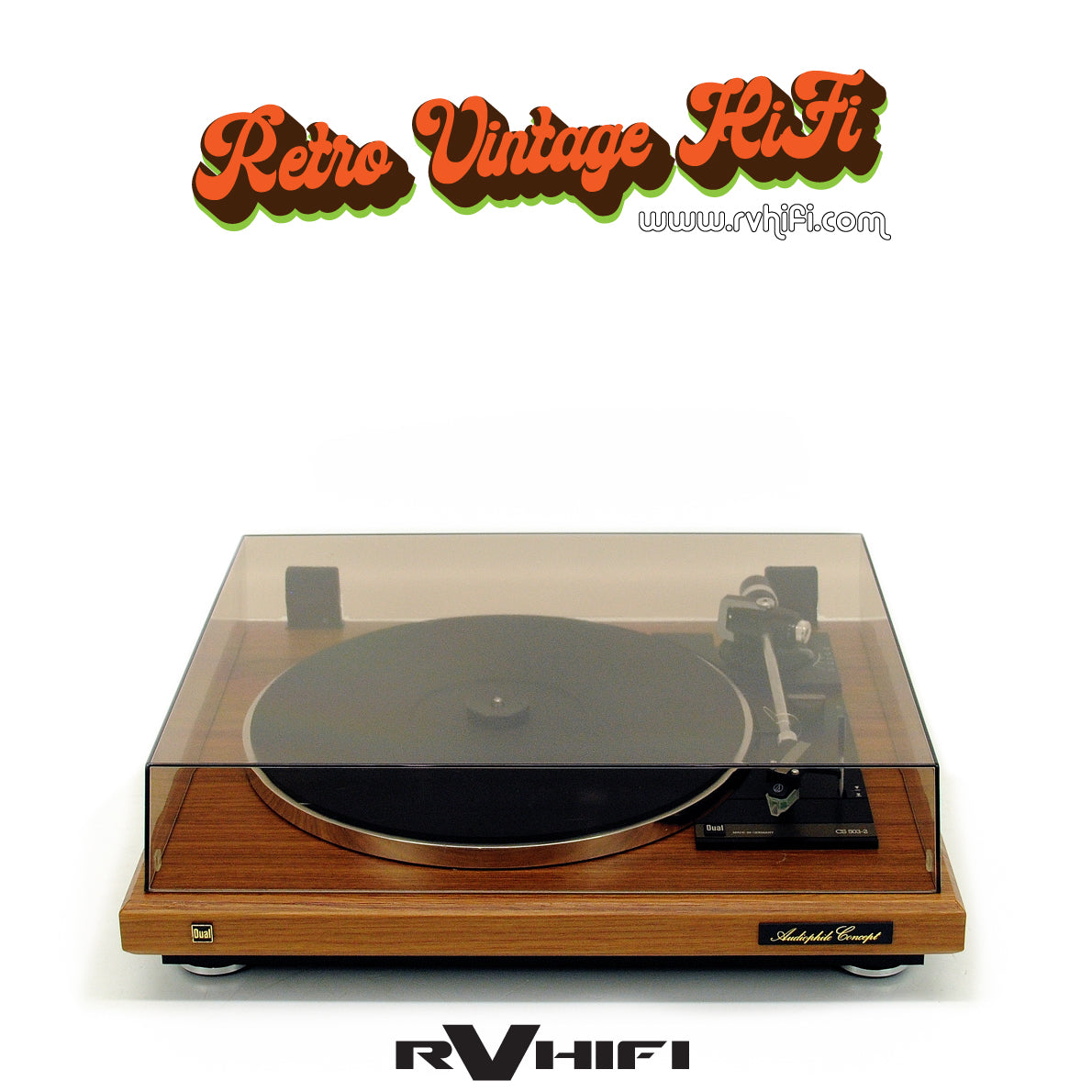

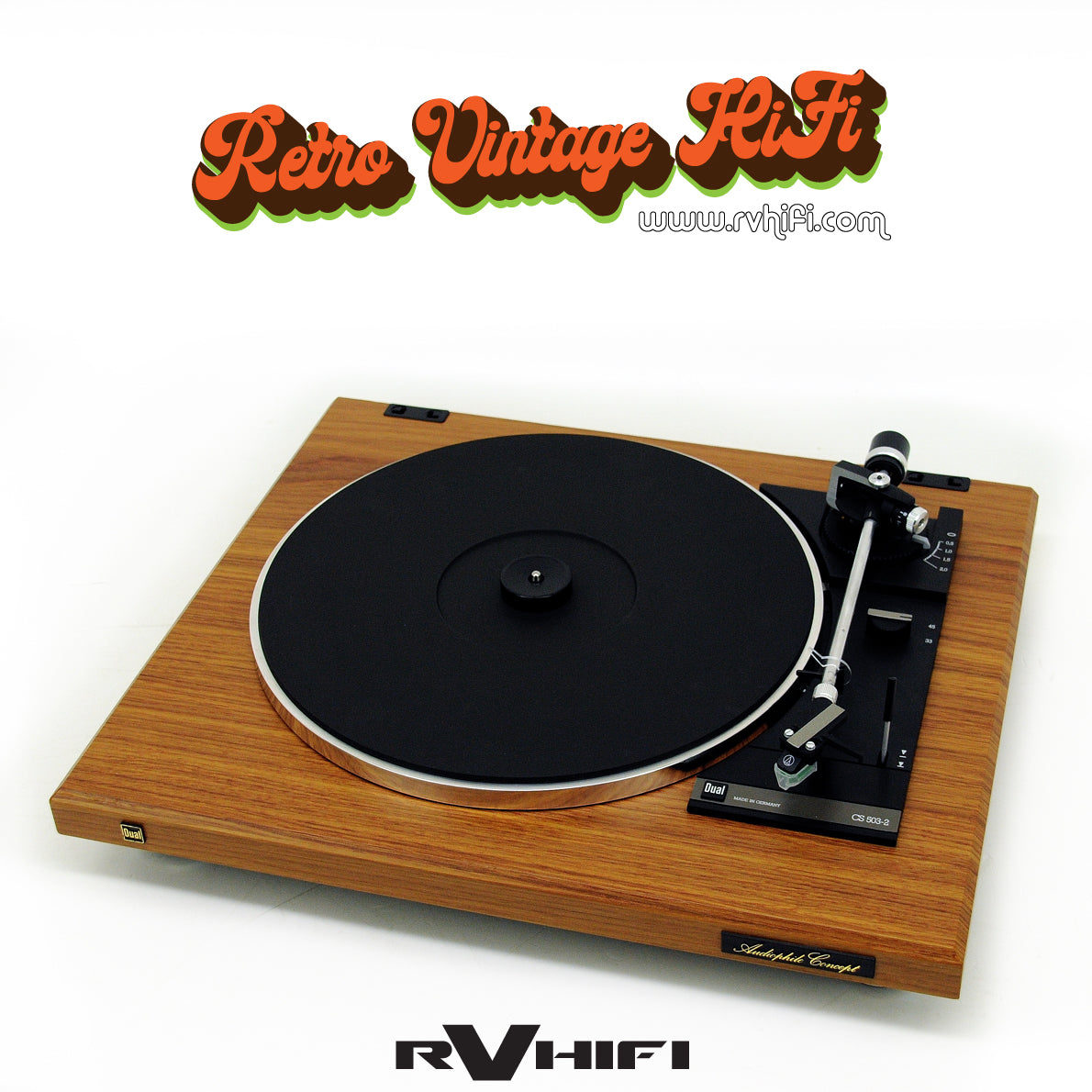

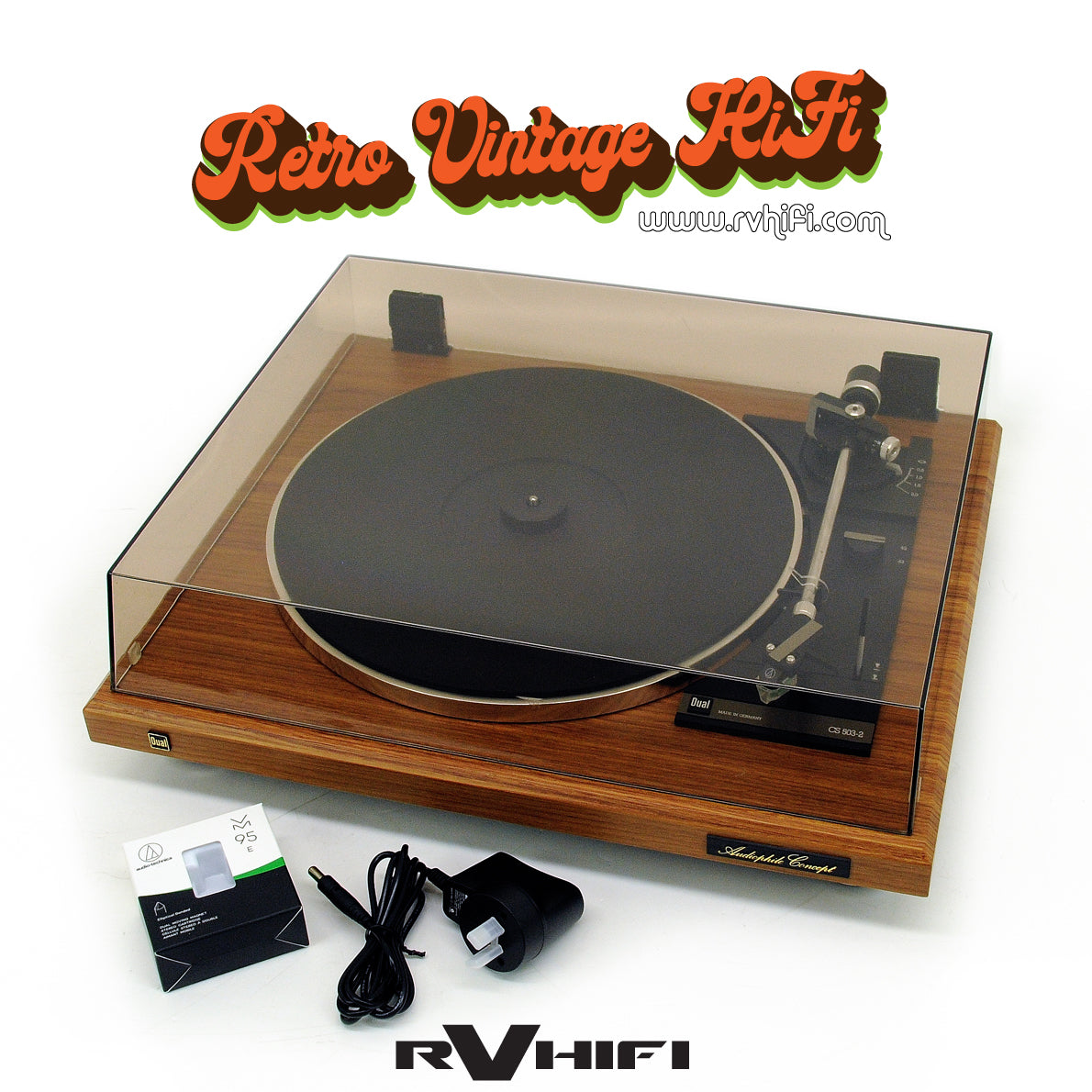

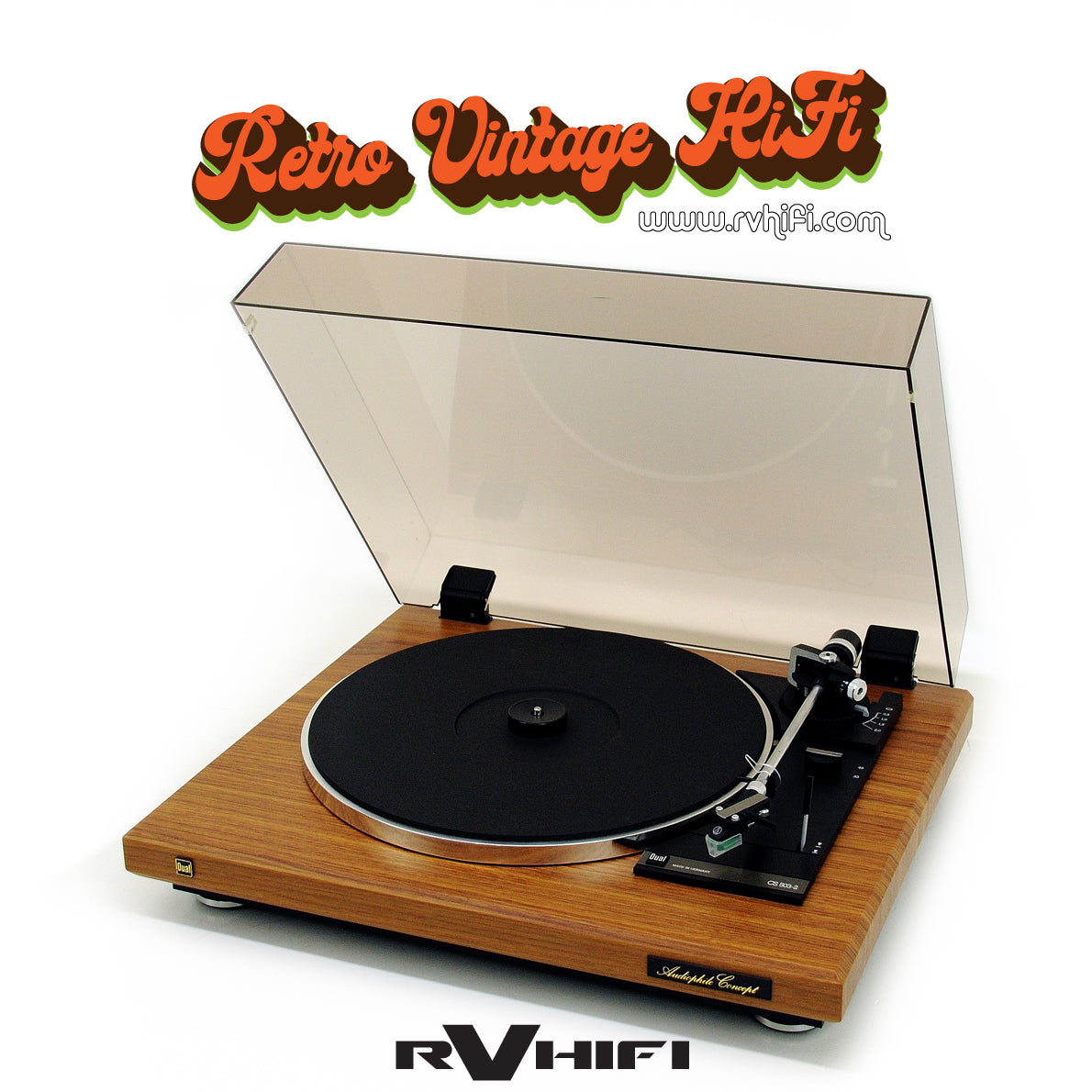

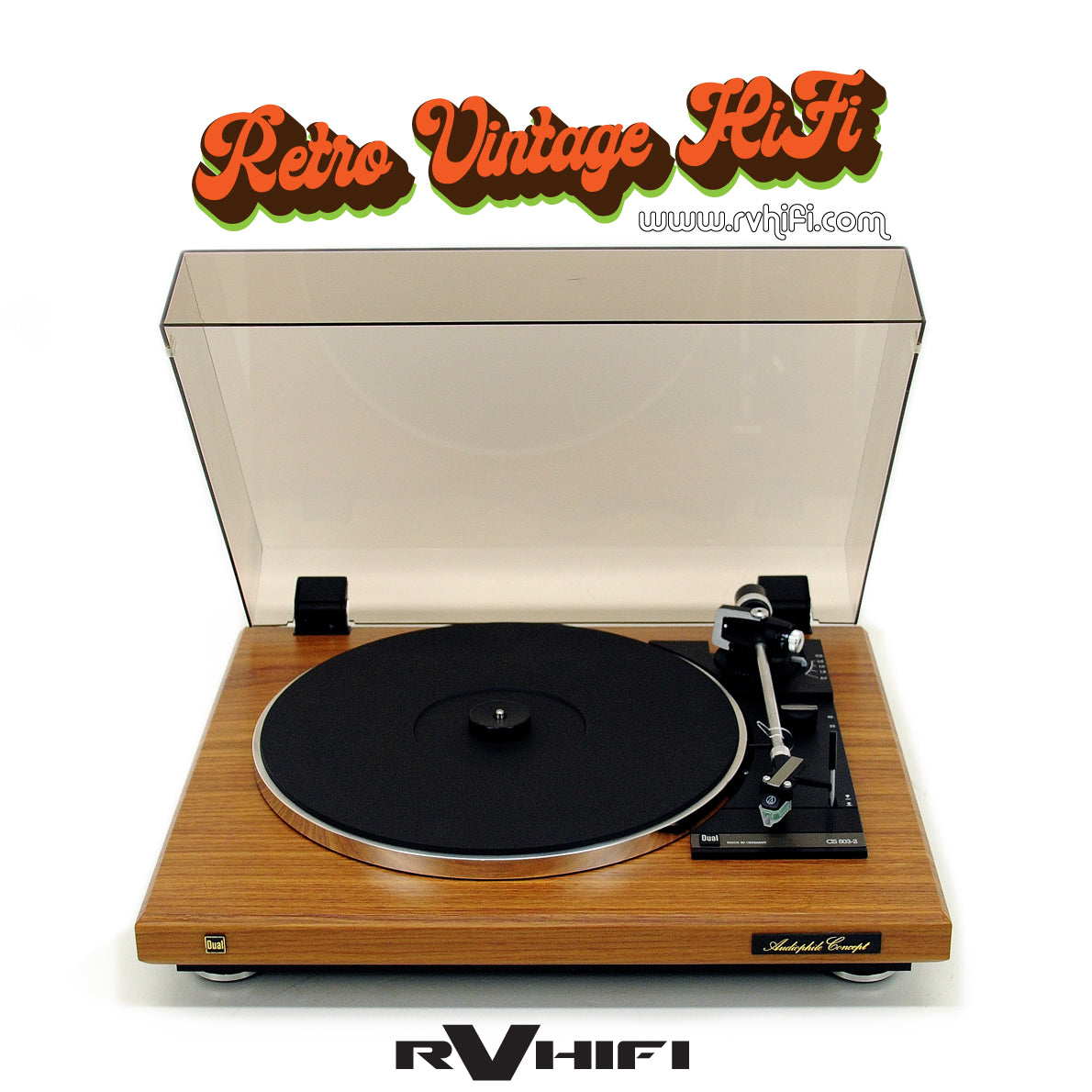

Dual CS 503 2-Speed Belt-Drive Turntable

Dual CS 503-2 2-Speed Belt-Drive Turntable

Description:
The Dual CS 503-2 boasts a timeless turntable mechanism, commonly found in 1980s belt-driven designs. The sturdy MDF wood base plinth is beautifully accented with 3M DI-NOC wood veneer vinyl, providing an appealing aesthetic. Enhanced with a new Audio-Technica cartridge, this turntable offers improved performance.

Specifications:
Type: Tacho controlled DC motor
Platter speeds: 33.33 and 45 rpm
Wow and flutter: 0.035% WRMS
Platter: non magnetic, removable 304mm diameter
Tonearm: distortion free aluminum tubular tonearm
Signal to noise ratio: 70dB rumble (weighted)
Effective tonearm length: 211mm
Offset angle: 26 degrees
Overhang: 19.5mm
Cartridge: Audio-Technica AT-VM95E
Tracking force: 1.8-2.2g
Frequency range: 20Hz to 22kHz
Output voltage: 4.0 mV
Dimensions: 440W x 132H x 369D mm
Weight: 6.2Kg
Year: 1984
Serial No. 27963

Description of Works:
Supply and fit new 12v DC motor.
Fitted new belt.

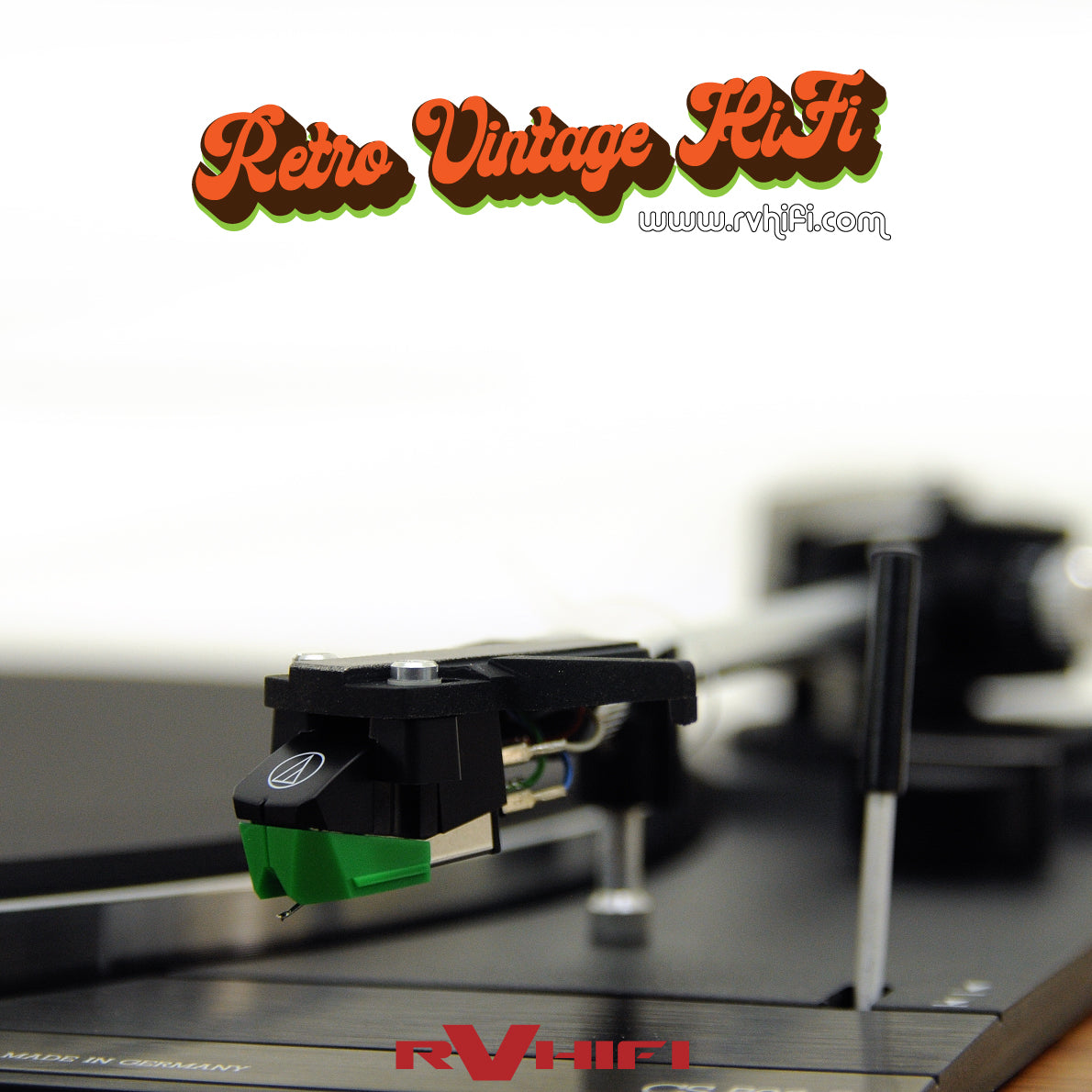

Fitted with a Audio-Technica AT-VM95E Moving Magnet cartridge.
Serviced tone arm.
Re-trimmed turntable base with 3M DI-NOC wood veneer vinyl.
New tone-arm locking latch.
Clear cover polished.
New 12 volt power transformer.

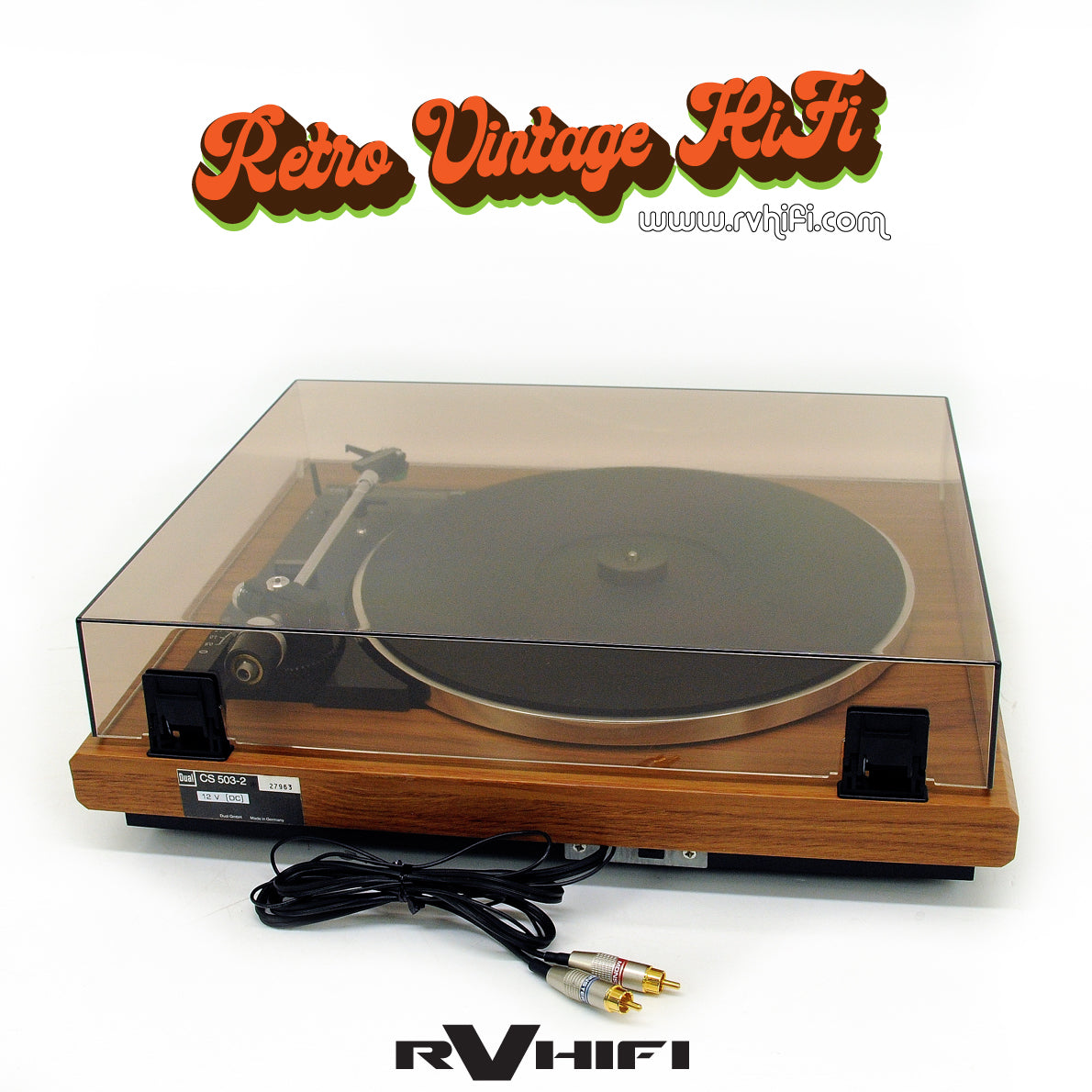

Supply and fit new Monster Cable RCA plugs.
Adjust and calibrated 33/45 speeds.
Cleaned and detailed unit.

Warranty: 12 months.
