Dokorder 1120 4-Track Stereo/Mono Tape Deck

Specifications:
4-track, 2-channel, stereo/monaural system
3 Heads: 1 x record, 1 x playback, 1 x erase
Motors: 1 x capstan, 2 x reel
Reel size: Up to 10.5 inch reel
Equalization: NAB
Tape speeds: 3 3ā„4Ā  and 7 1ā„2 ips
Wow and flutter: 0.15% (7 1ā„2 ips)
Frequency response: 30Hz to 20kHz (7 1ā„2 ips)
Signal to Noise Ratio: 50dB
Crosstalk: 45dB
Input: 80mV (line), 30mV (DIN), 0.5mV (mic)
Output: 1.2V (line), 1.2V (DIN)
Semiconductors: 2 x IC, 38 x transistors, 62 x diodes
Dimensions: 452 x 430 x 172mm
Weight: 27kg
Year: 1976
Serial No: FHD6055

Description of Works:
Replaced all electrolytic capacitors through out with premium types.
Replaced RCA sockets with Gold types.
New Belts.
Serviced pinch roller.
Cleaned, removed old grease, applied synthetic lubricant to mechanical parts.
Cleaned, inspected and adjusted brake pads.
Inspected PCB's for dry joints and re-soldered.
Checked all mechanical adjustments.
Checked all electrical adjustments.
Cleaned & deoxit potentiometers and switches.
Cleaned, demagnetized and adjust tape heads
Cleaned & detailed unit.
New 240vac power lead.

Includes: Original Dokorder reel hubs.

Warranty: 3 months

RV HI FI SAYS:

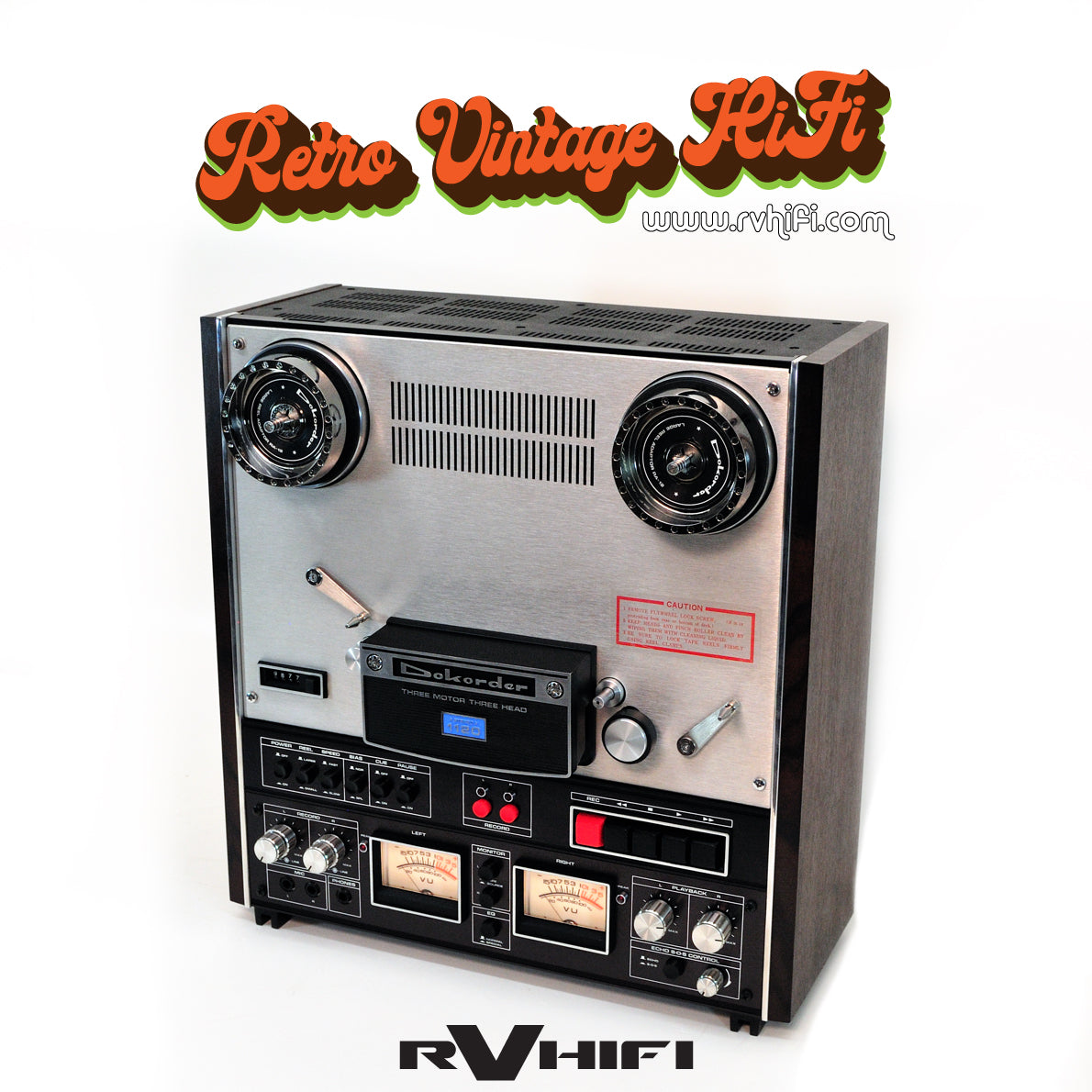

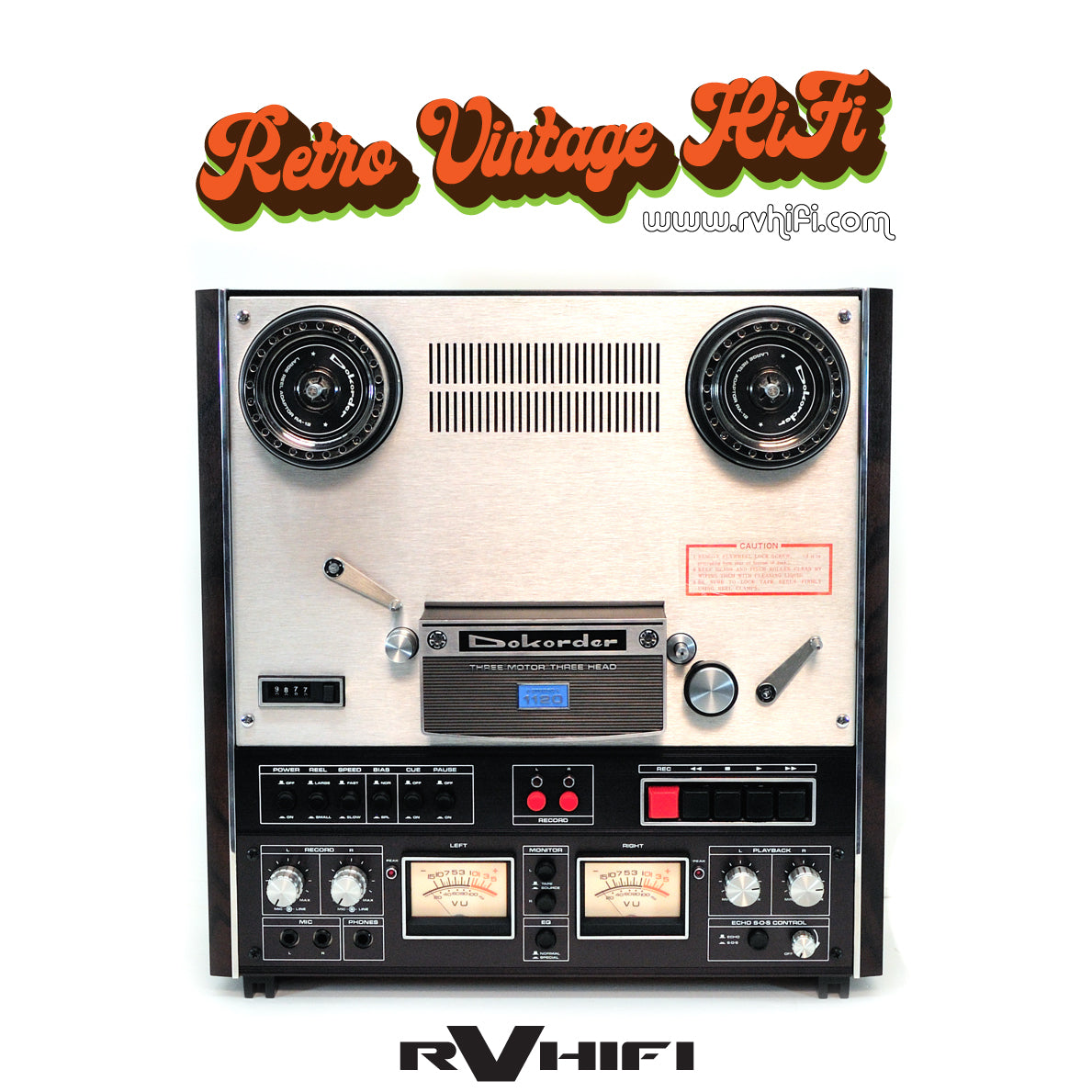

This Dokorder 1120 is a quarter-track, two-speed (3.75 and 7.5ips) unit from Denki Onkyo of Japan. It boasts sound-on-sound, echo capabilities, source/tape monitoring, three motors and three tape heads, and is in spectacular condition, appearing nearly brand new.

Due to the weight and cubic dimensions of this item, we request that you contact us on 0419700769 or by email for a quote on shipping to your location.
