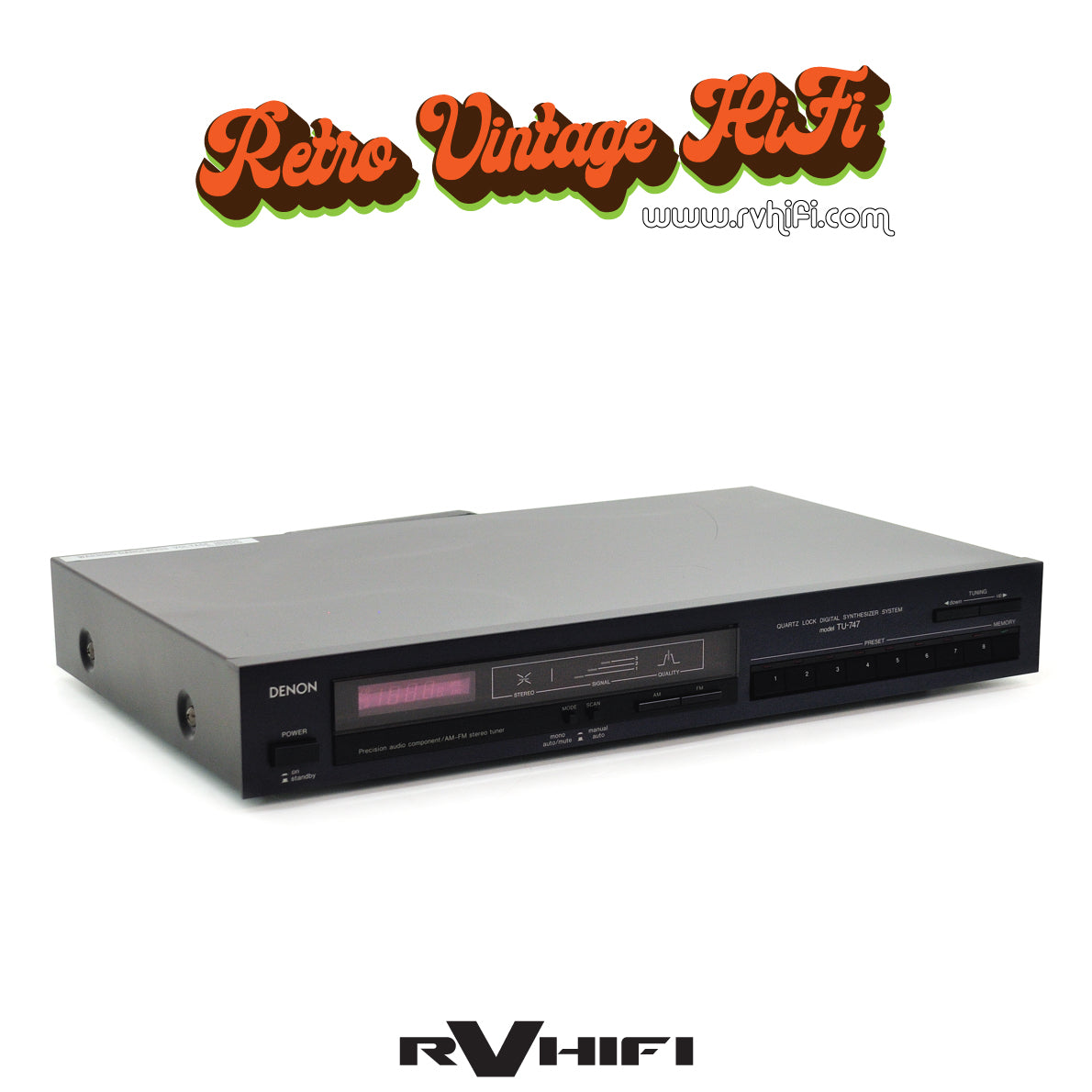

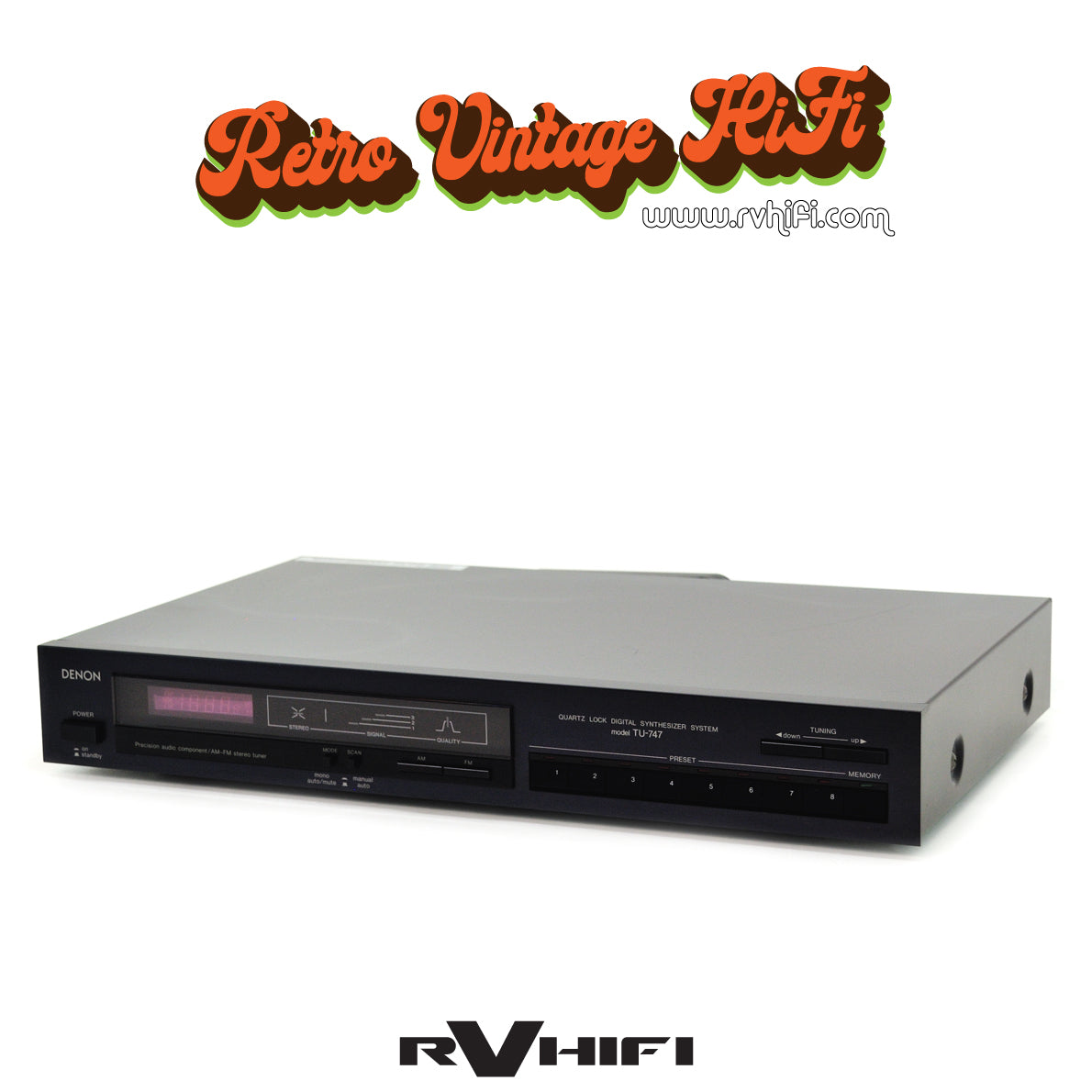

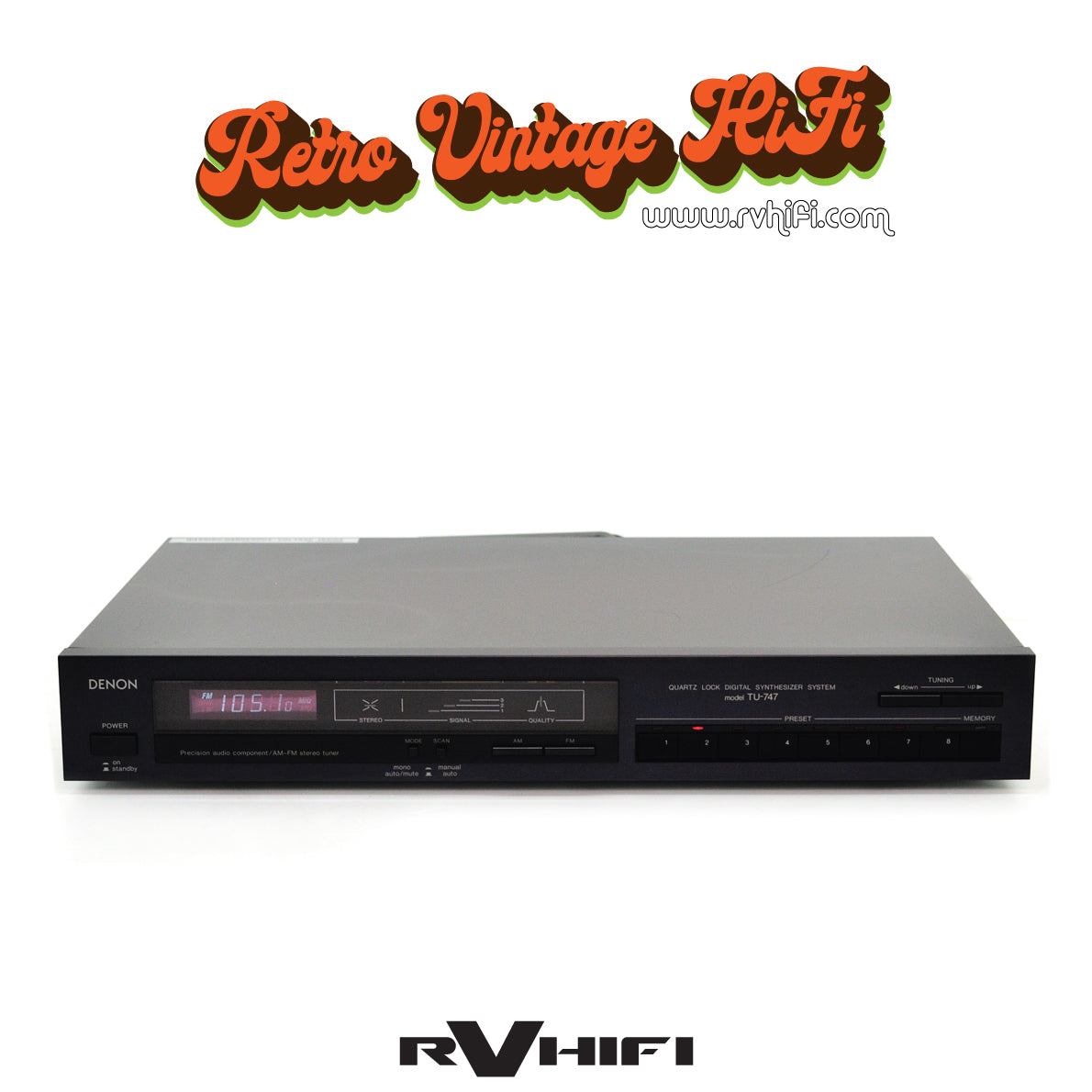

This stereo HI-FI AM/FM tuner features a black metal case and a digital display. It is designed to receive FM and MW frequencies in a range from 87.5-108MHz and 522-1611kHz respectively. The device includes 8 radio station preset buttons for FM and AM. It also has RCA line out sockets, clip-on AM rod aerial, as well as connectors for AM loop aerial and 75 ohm connectors for FM antenna.
Usable sensitivity : 0.8uV, 9.3dBf [75ohms]
Selectivity : 70dB [+/- 400kHz]
Harmonic distortion : Mono: 0.1%, stereo: 0.3%
Signal to noise ratio : Mono:82dB, stereo: 78dB
Frequency response : 20Hz to 15kHz [+0.2dB / -1.5dB]
Channel separation : 45dB
Dimensions [W x H x D ]: 434 x 66 x 281mm
Weight : 3.3kg
Serial No: 1150057
Description of Works:
Inspect and checked all specifications.
Inspect and re-soldered all PCB's.
Cleaned and detailed unit.
New Power Lead.
Includes FM antenna and RCA interconnect lead.
Warranty: 3 months
