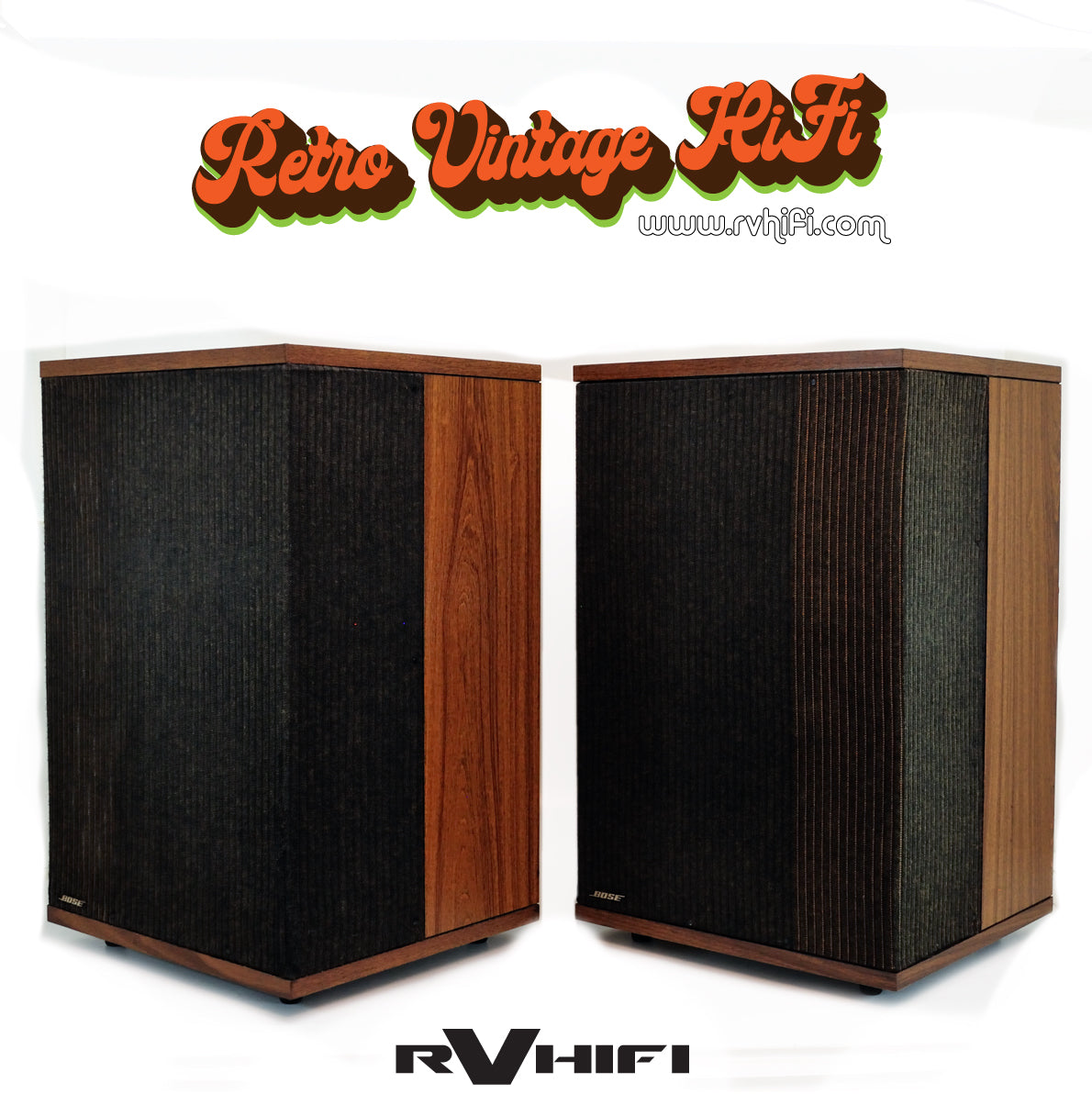

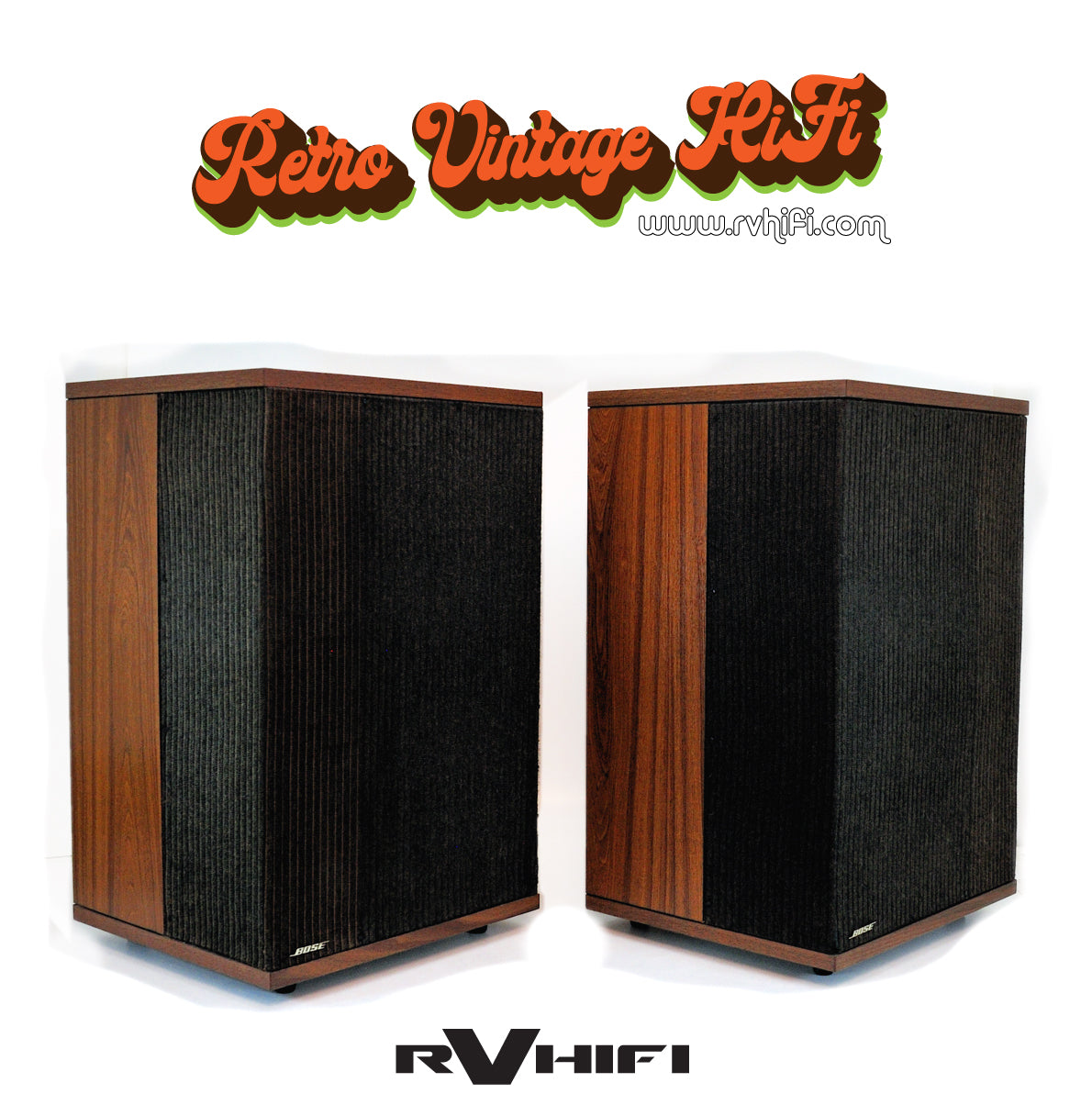

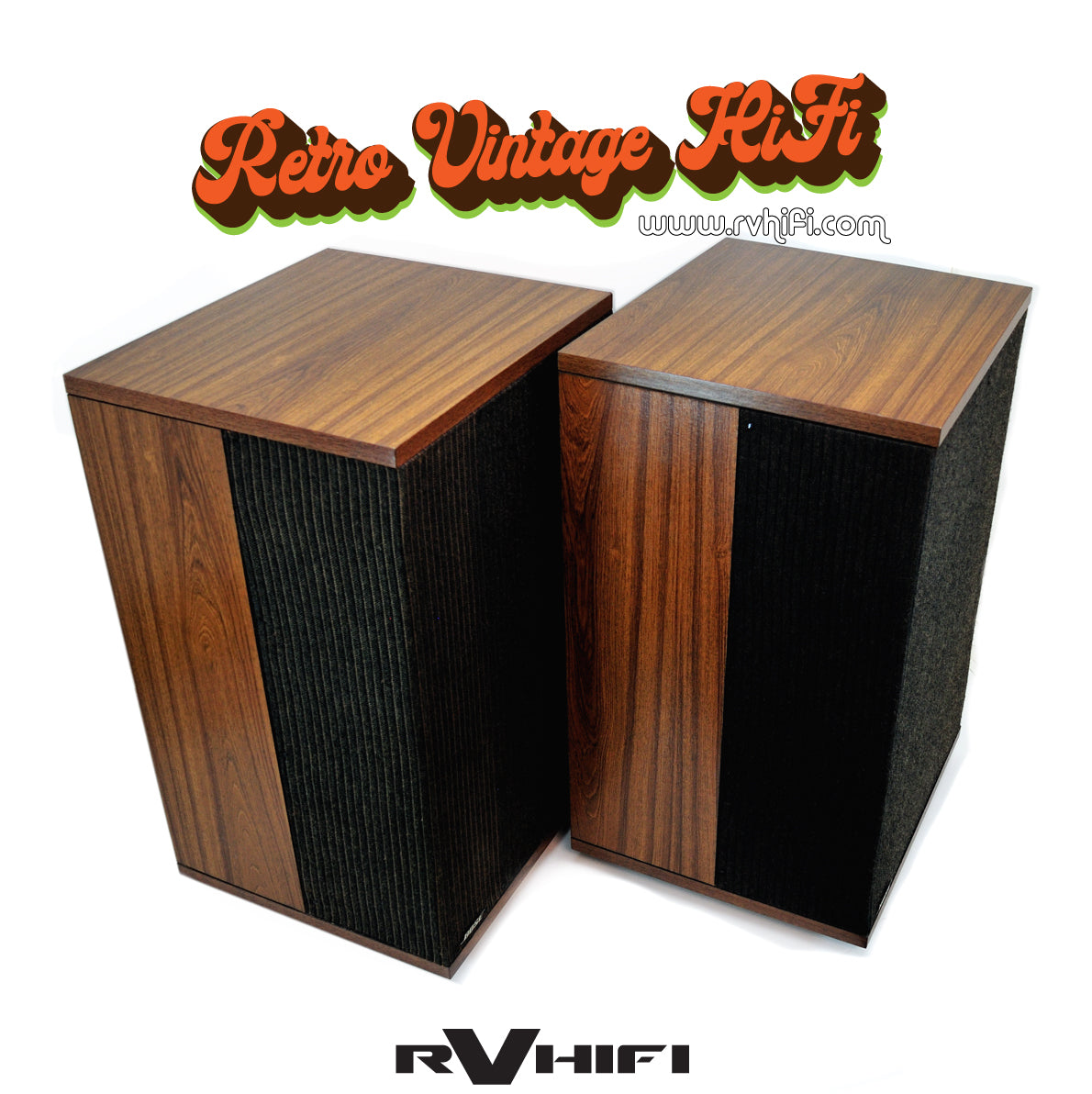

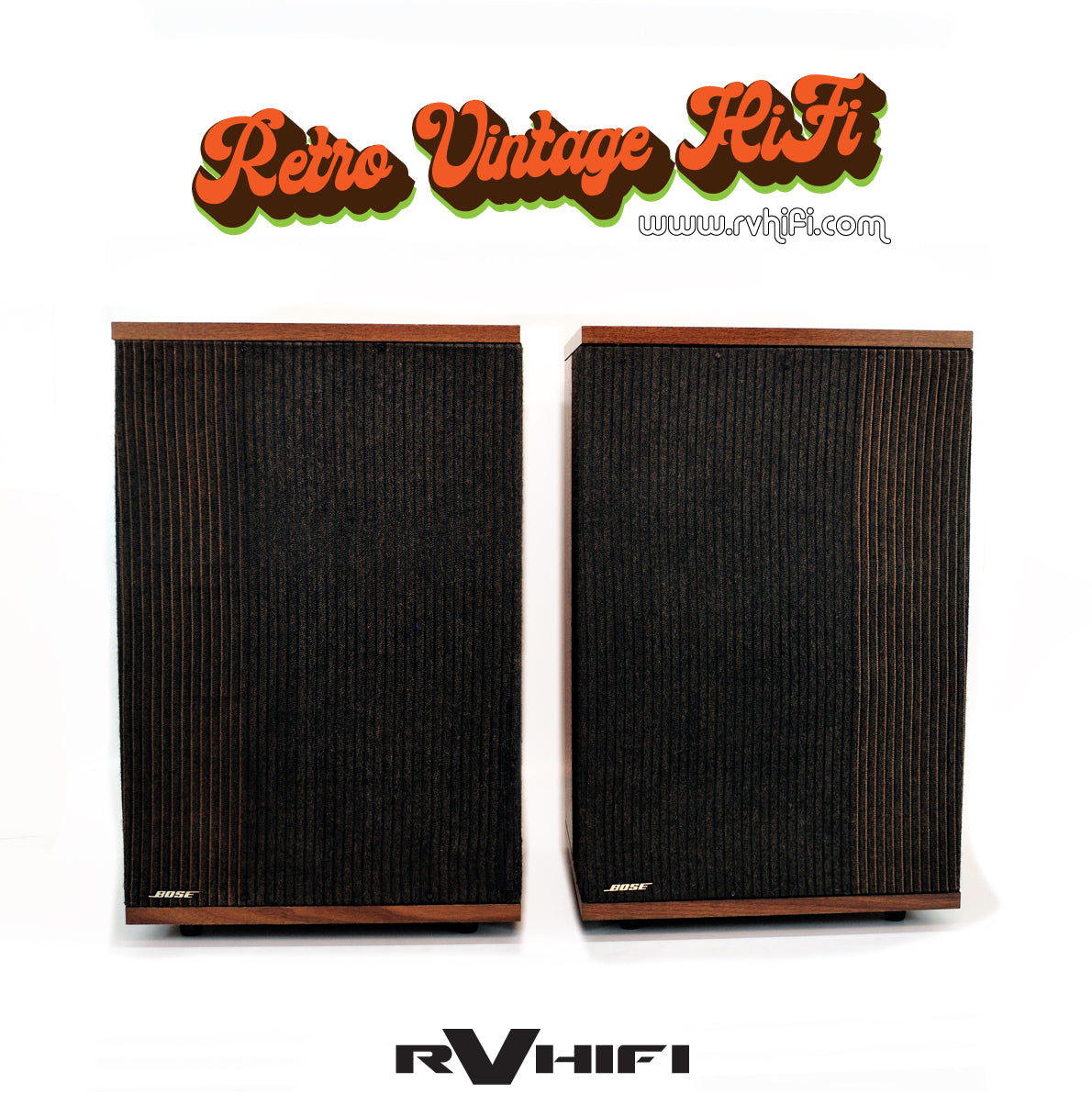

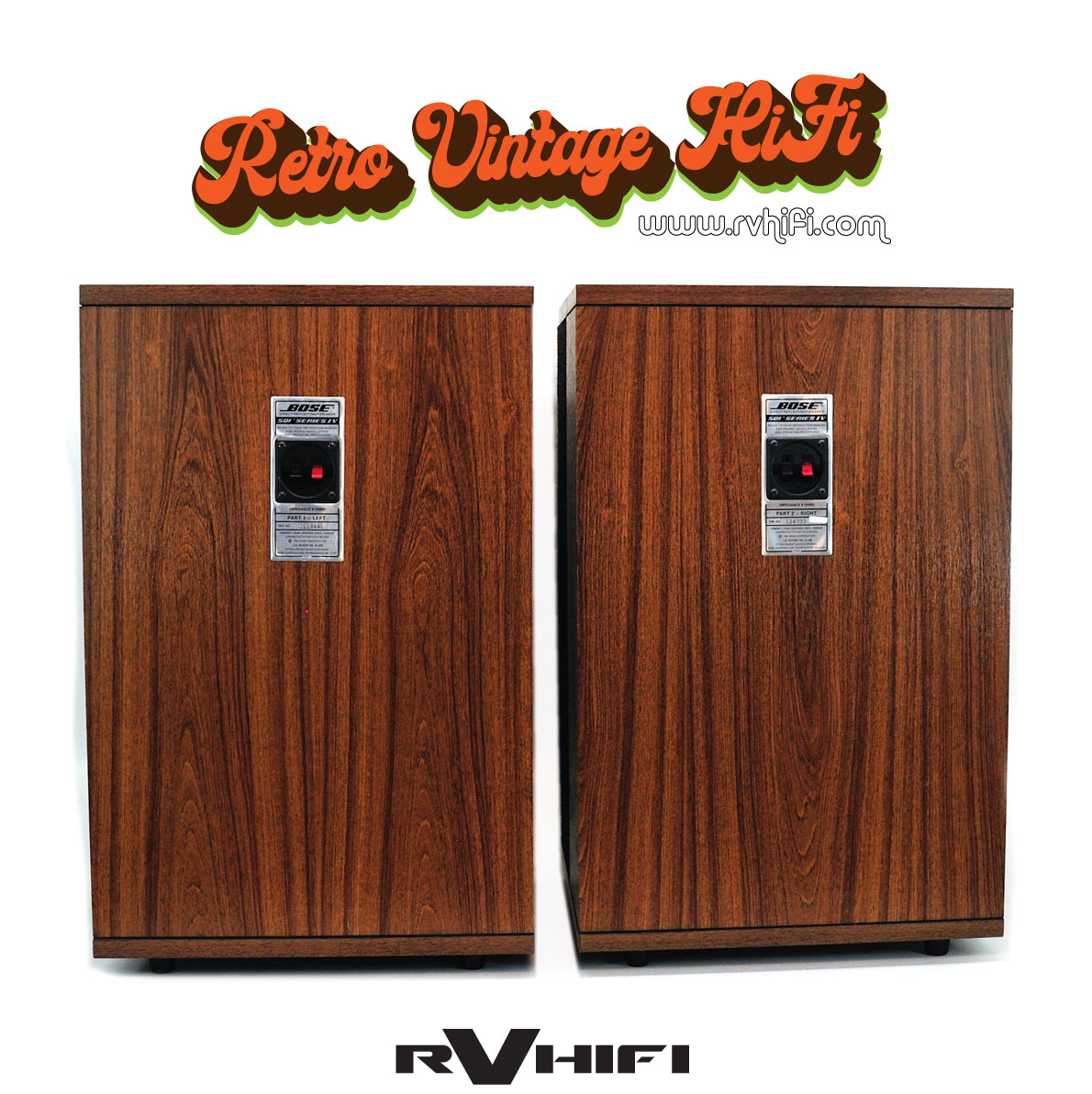

Bose 501 series IV Direct/Reflecting Speaker System

Description:
The original Bose 501 dates from 1970 and was the first model to be introduced by the company after its very successful 901, which had established the Bose Direct/Reflecting principle as a force to be reckoned with. Though it was a Direct/ Reflecting model as well, the 501 is radically different from the 901 in some important particulars. Whereas the 901's multiple drivers all are identical full - range devices, the 501 has always been a two-way system.

Specifications:
Direct/Reflecting system
Free Space array
Dual Frequency crossover network
Syncom II computer testing
Driver complement:
         One (1) 10-inch (25.4 cm) long excursion woofer
         Two (2) 3-inch (7.6cm) tweeters, mounted in a Free Space array
Nominal impedance: 8 ohms
Power rating: 115 watts IEC, compatible with receivers or amplifiers rated from 20 to 230 watts per channel
Cabinet: Wood-grain vinyl veneer, W40.1 x D35.6 x H63.2 cm
Shipping weight: 18.1kg / per speaker
Year: 1984
Serial No: 119445 / 124733

DESCRIPTION OF WORKS:
Inspect capacitors in crossover network.
New woofer foam surrounds.
New manufactured speaker grille baffles.
Cleaned, repaired and detailed cabinets.

Warranty: 3 months.

Due to the weight and cubic dimensions of this item, we request that you contact us on 0419700769 or by email for a quote on shipping to your location.
