Description:

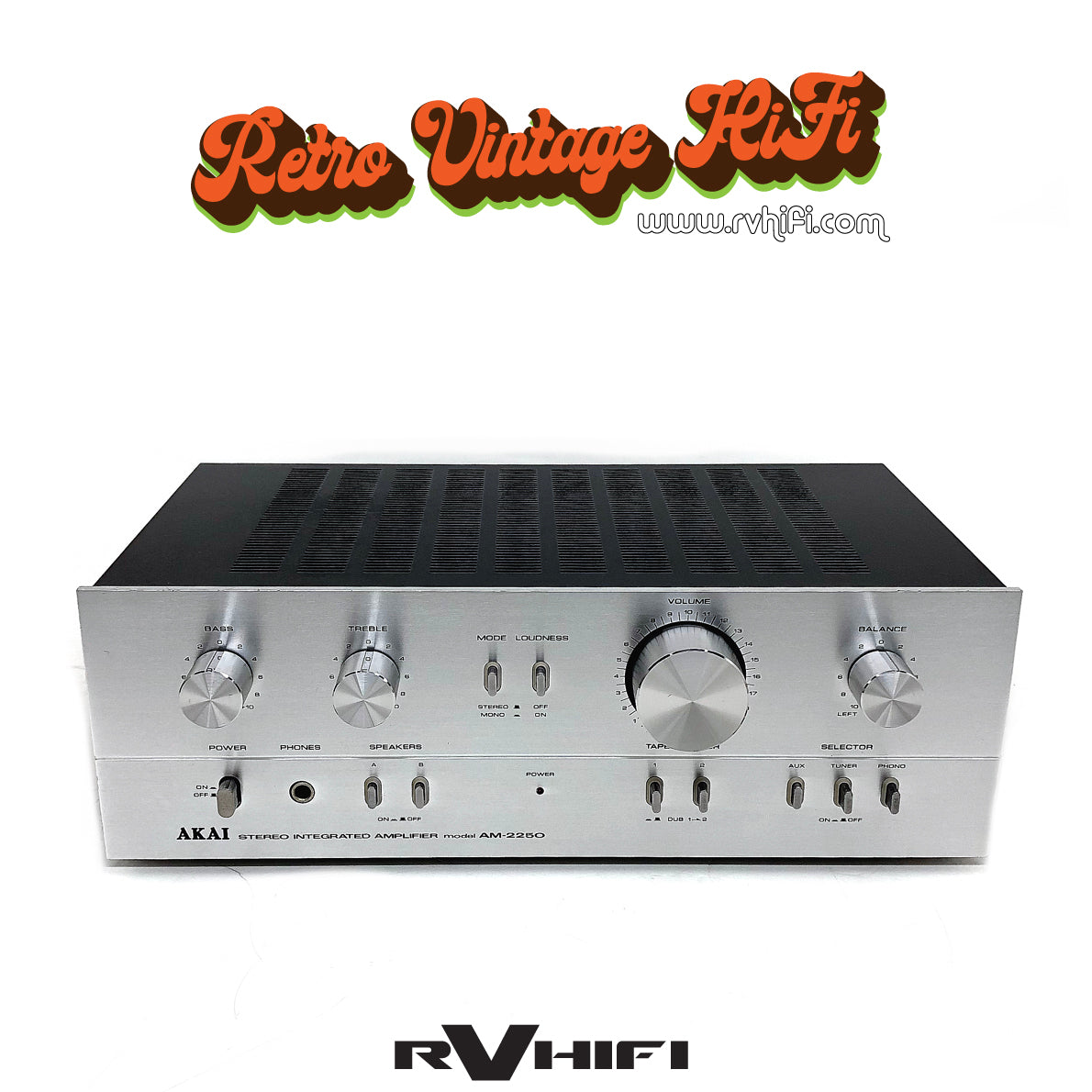

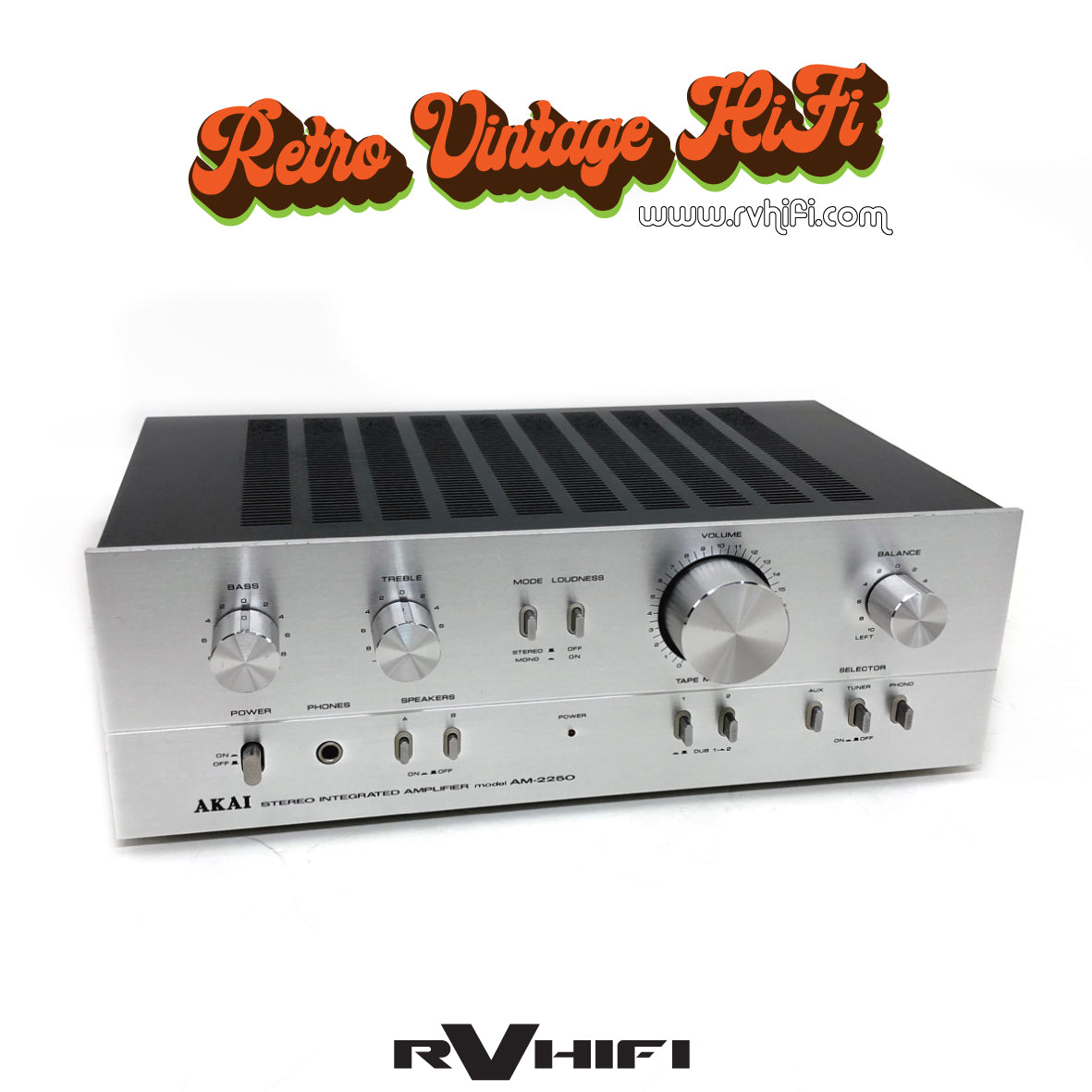

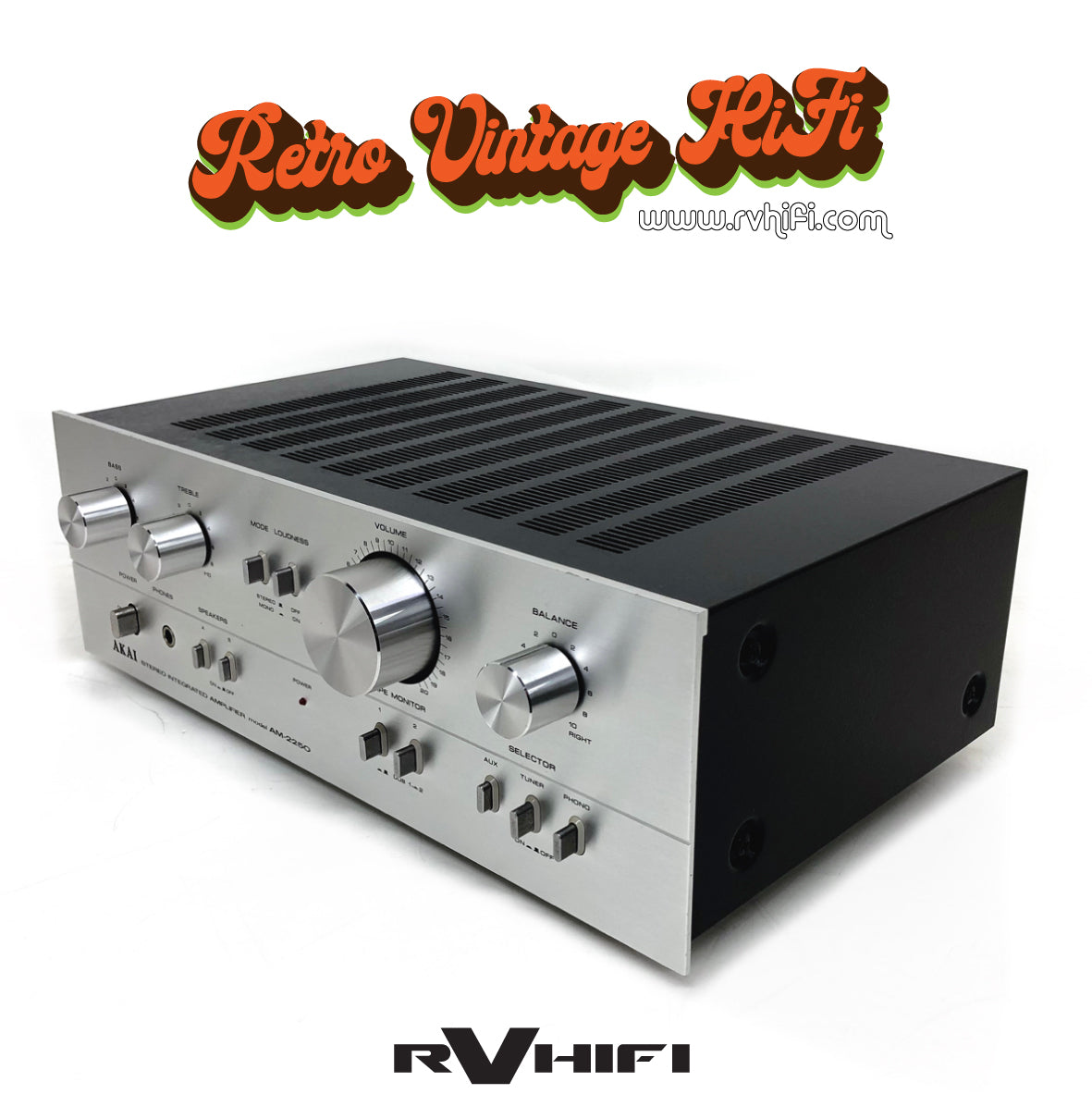

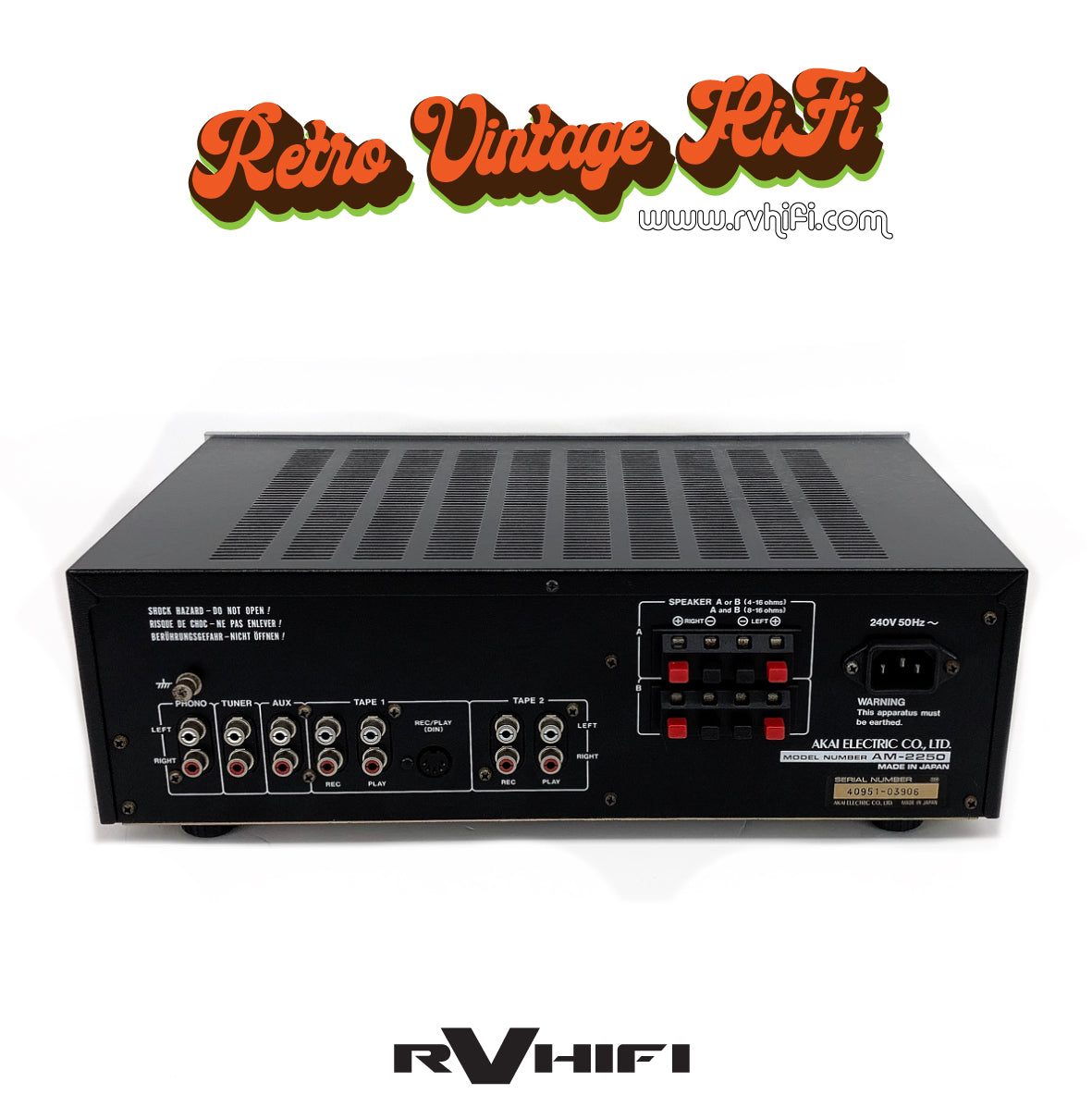

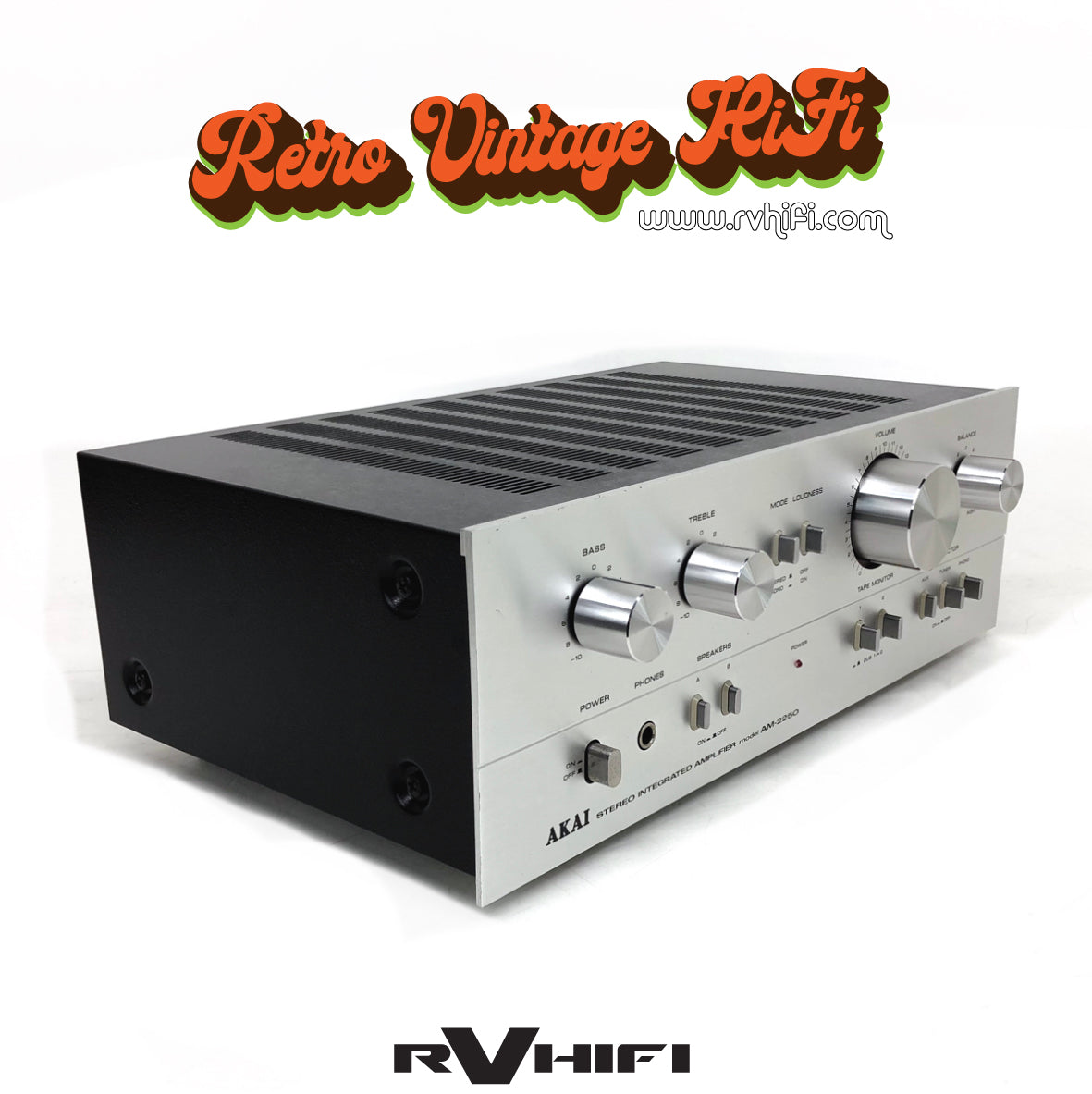

The Akai AM-2250 is a vintage stereo integrated amplifier valued for its durable construction and notably clear audio output. This timeless model is often commended for its minimalist and stylish design, featuring a brushed aluminum front panel. It delivers 25 watts per channel at 8 ohms.
Specifications:
Power output: 25 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 40kHz
Total harmonic distortion: 0.2%
Damping factor: 50
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 75dB (MM), 95dB (line)
Channel separation: 45dB (MM)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 3 x transistors, 4 x diodes, 2 x IC
Dimensions: 380 x 130 x 220mm
Weight: 6.2kg
Year: 1978-1980.
Serial No: 40951-03906
Description of Works:
Replaced all electrolytic capacitors in power amplifier and power supply circuit.
Dismantled and clean all switches and potentiometers.
Replaced 240vac power lead.
Inspect and re-soldered PCB joints.
Cleaned, polished and DeoxIT RCA sockets.
Painted metal case.
Cleaned and detailed unit.
Warranty: 3 months
