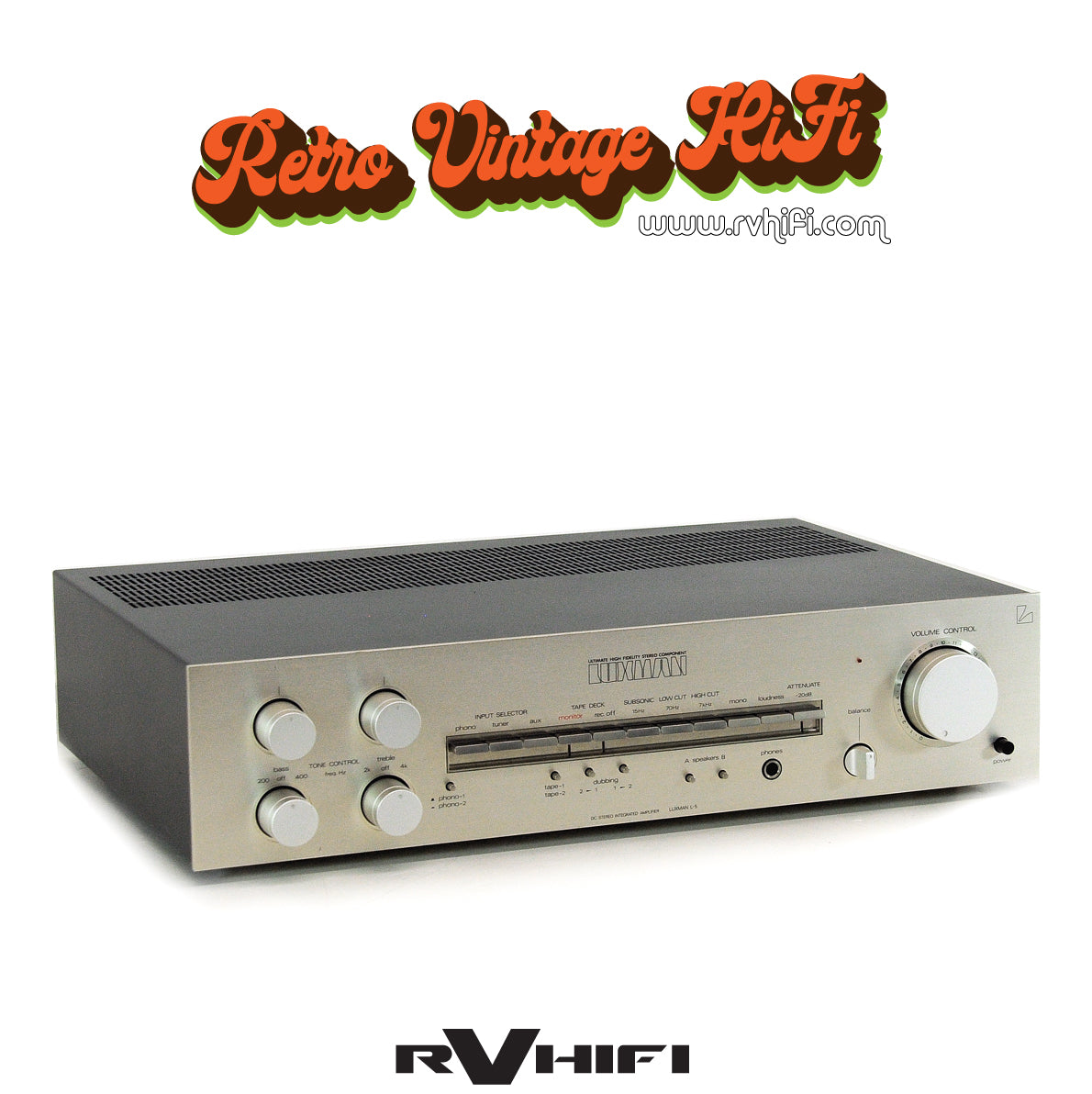

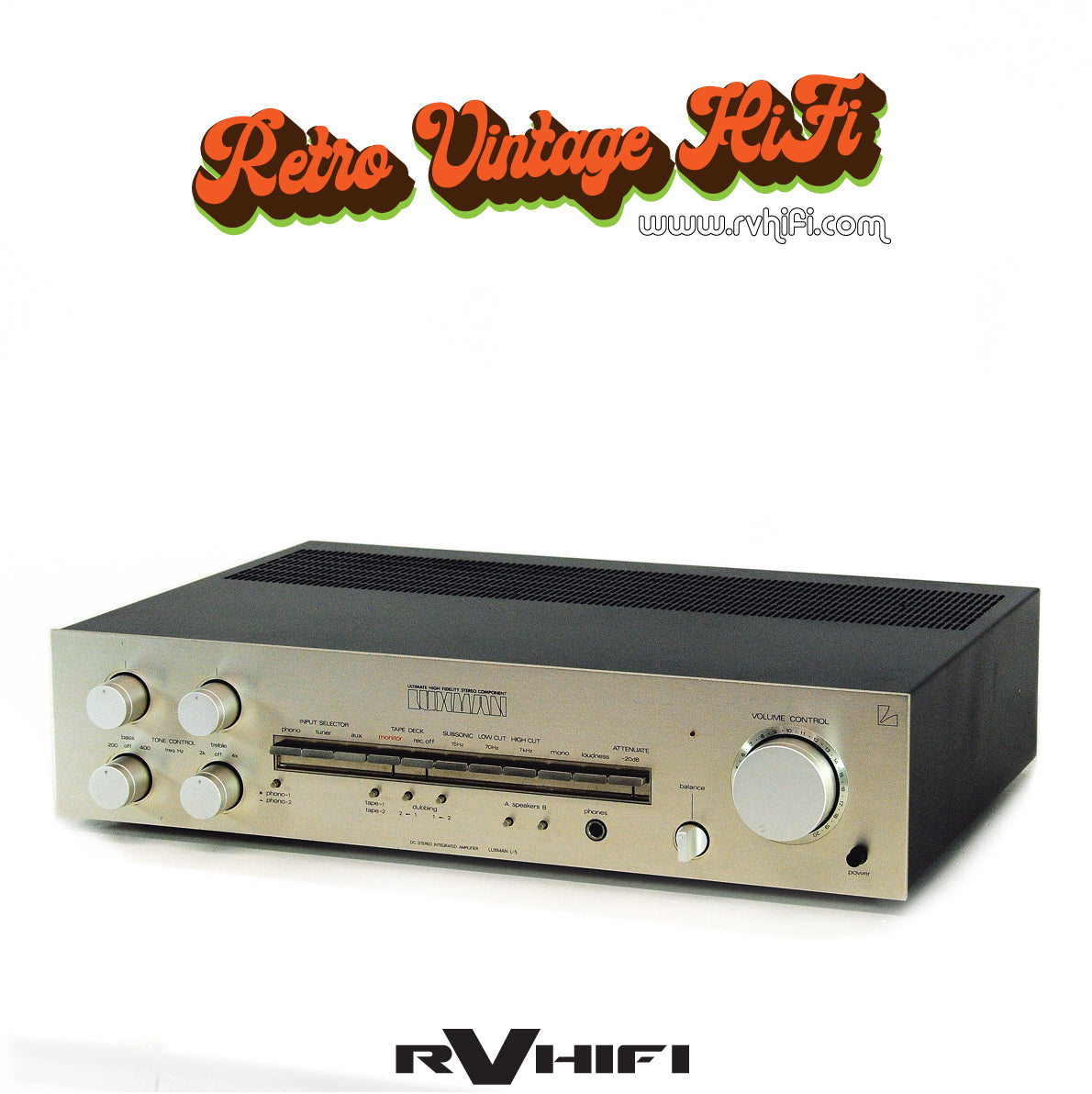

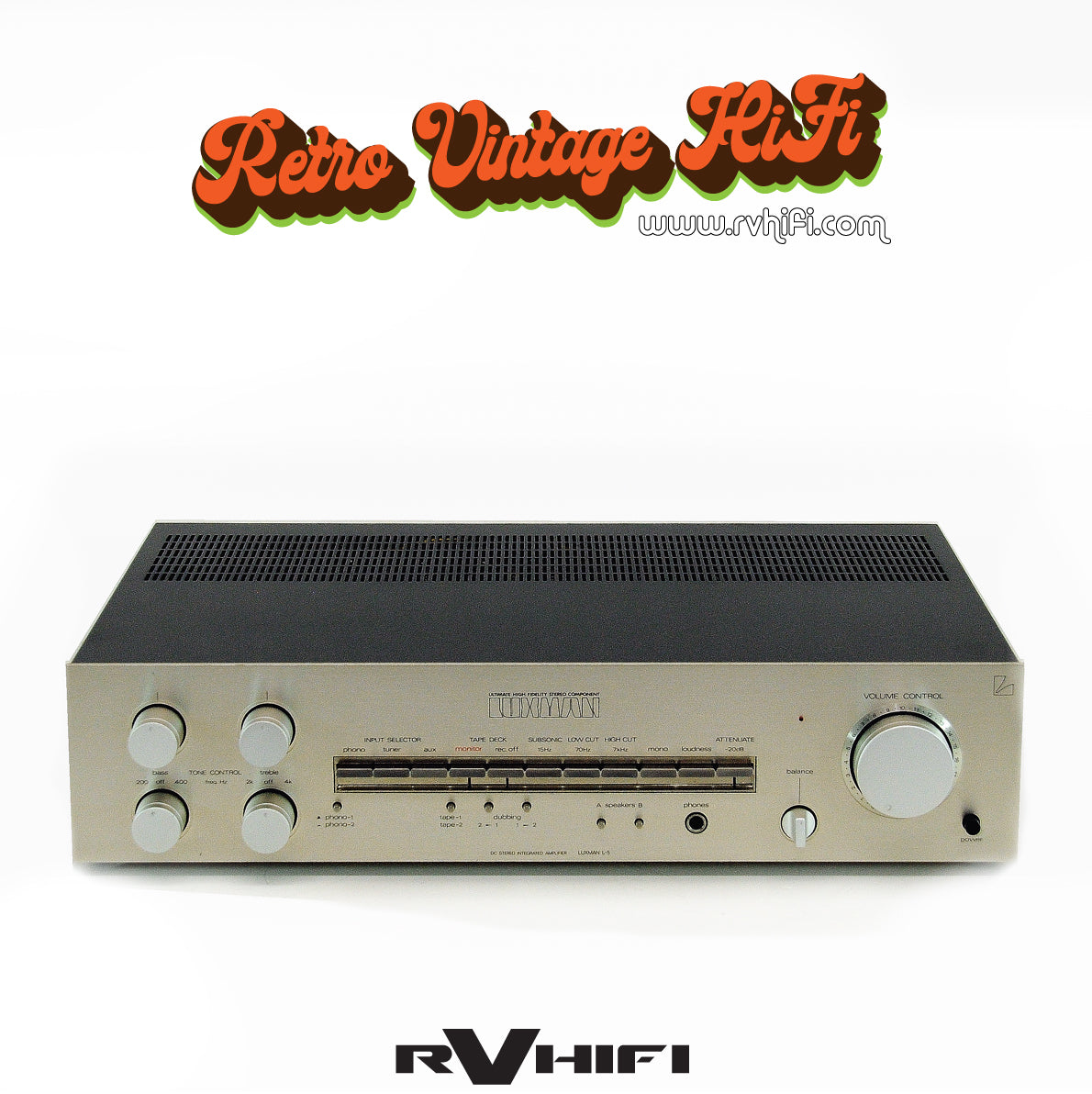

Luxman L-5 Solid State Integrated DC Amplifier

The Luxman L-5 amplifier boasts a sleek, precise design and utilizes a DC configuration to deliver high-quality performance. With a powerful output of 60W per channel, driven into 8ohm loads from 20Hz-20,000Hz, and a total harmonic distortion of only 0.2%, this pre-main amplifier was meticulously developed to excel in every aspect of its design, function, and mechanism.

Specifications:
Power output: 60 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.03%
Damping factor: 80
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 92dB (MM), 100dB (line)
Channel separation: 60dB (MM), 78dB (line)
Dimensions: 438 x 289 x 105mm
Weight: 9.5kg
Year: 1978 - 1981

Description of Works:
Replaced all electrolytic's with premium Nichicon Fine Gold capacitors.
Replaced power supply main stiffening capacitors.
Replaced all output transistors with genuine N.O.S. parts.
Inspect and re-soldered all PCB joints.
Dismantled, cleaned and DeoxIT all potentiometers and selector switch.

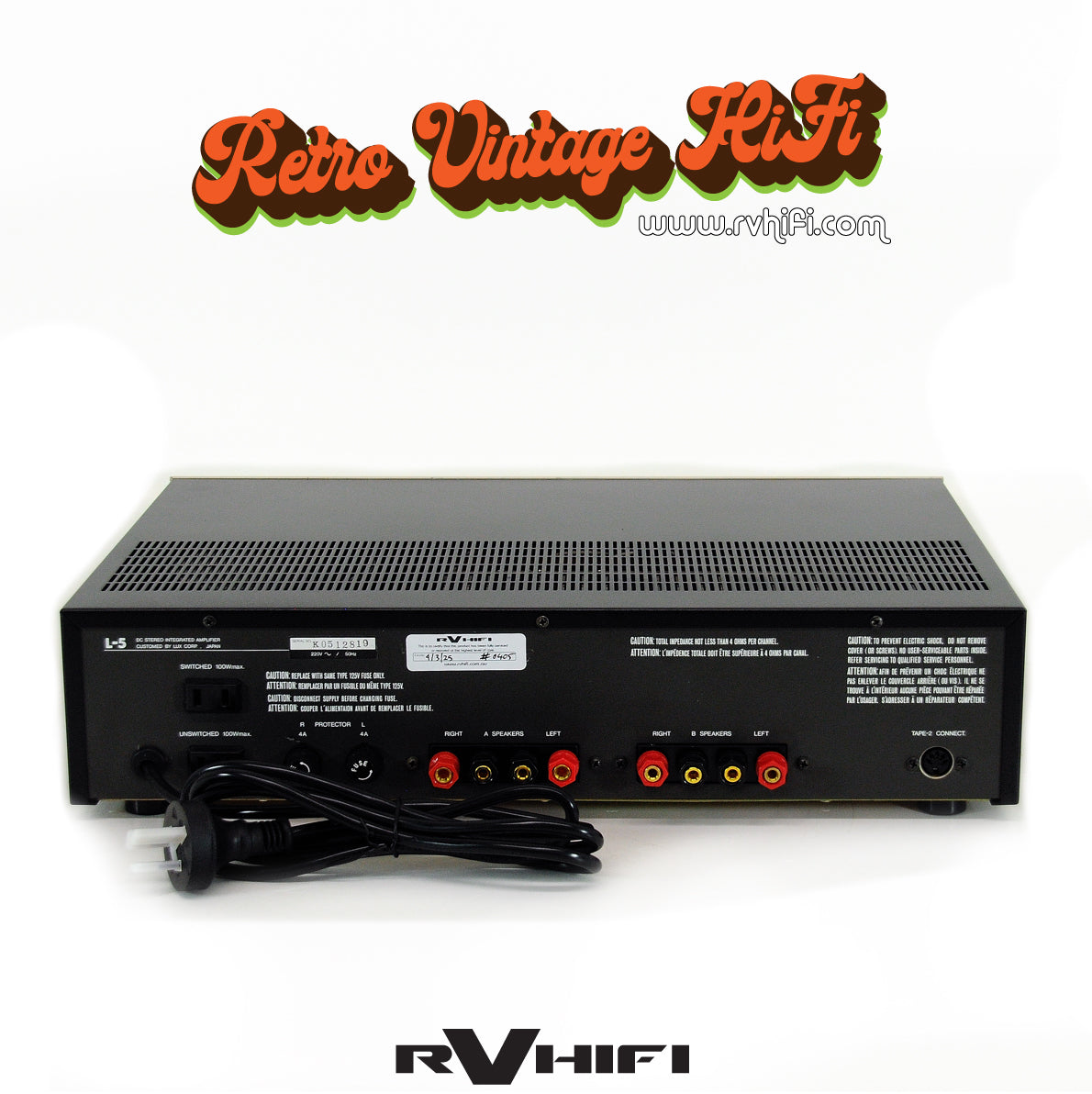

New speaker banana binding posts.
Repainted metal outer case.
New 240vac power lead.
Cleaned and detailed unit.

Warranty: 8 months

RV HIFI says:
The Luxman L-5 is highly regarded for its sound quality, build, and overall performance. Its rich and natural sound makes it suitable for audiophiles who appreciate detailed and accurate audio reproduction. It holds up well in modern systems, despite being decades old, and is a solid choice for someone looking for a vintage amplifier with a timeless quality.
